Separator kit Ø 80/80. The Ø 80/80 separator
kit, allows separation of the exhaust flues and
air intake pipes according to the diagram shown
in the figure. Combustion products are expelled
from pipe (S) (in plastic, so as to resist acid
condensate). Air is taken in through duct (A) for
combustion (this is also in plastic). The intake
pipe (A) can be installed either on the right or
left hand side of the central exhaust pipe (S). Both
ducts can be routed in any direction.

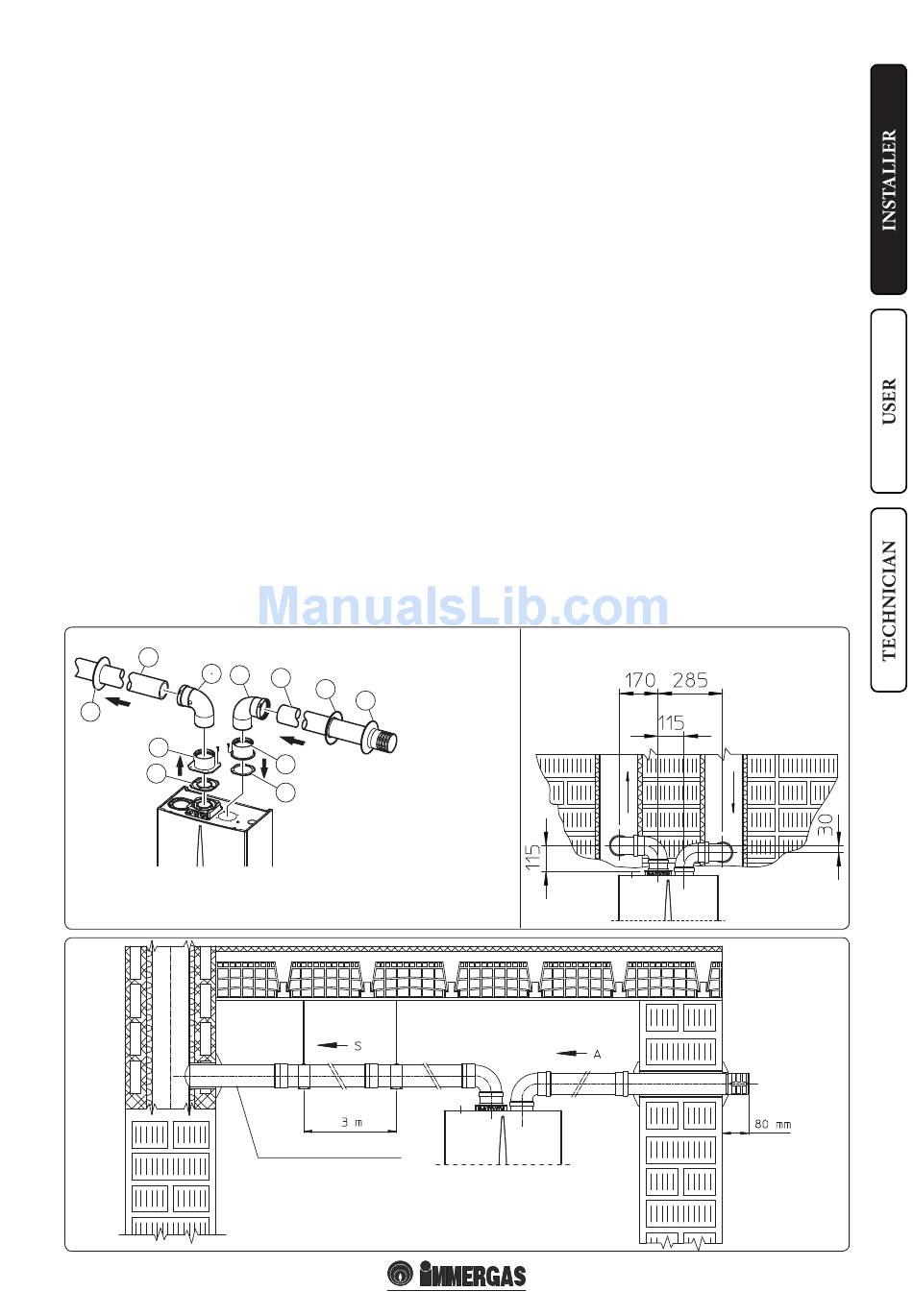

• Kit assembly (Fig. 1-20): install the flange (4)
on the central hole of the boiler, positioning the
gasket (1) (which does not require lubrication)
positioning it with the circular projections
downwards in contact with the boiler flange
and tighten using the hex screws with flat
end present in the kit. Remove the flat flange
present in the lateral hole with respect to the
central one (according to needs) and replace it
with the flange (3), positioning the gasket (2)
already present in the boiler and tighten using
the supplied self-threading screws. Fit the male
end (smooth) to the bends (5) in the female end
of the flanges (3 and 4). Fit the intake terminal
(6) with the male section (smooth) in the
female section of the bend (5) up to the stop,
ensuring that the internal and external wall
sealing plates are fitted. Fit the exhaust pipe
(9) with the male end (smooth) to the female
end of the bend (5) up to the stop; making sure
that the internal wall sealing plate has been
fitted, this will ensure sealing and joining of
the elements making up the kit.
1-20
9
5
S
7
4
1
• Coupling of extension pipes and elbows. To
install push-fitting extensions with other
elements of the flue extraction elements
assembly, proceed as follows: Install the pipe
or elbow with the male side (smooth) on the
female section (with lip seal) to the end stop
on the previously installed element. This will
ensure sealing and joining of the elements
correctly.
• Installation clearance (Fig. 1-21). The minimum
installation clearance measurements of the Ø
80/80 separator terminal kit have been stated
in some limit conditions.
• Extensions for Ø 80/80 separator kit. The
maximum vertical straight length (without
bends) that can be used or Ø 80 intake and
exhaust pipes is 41 metres, independently to
whether they are used for intake or exhaust.
The maximum horizontal straight length (with
bend in suction and in exhaust) that can be
used or Ø 80 intake and exhaust pipes is 36
metres independently to whether they are used
for intake or exhaust.
N.B.: to favour the removal of possible condensate
forming in the exhaust pipe, tilt the pipes towards
the boilers with a min. slope of 1.5%. (Fig. 1-22).
When installing the Ø 80 ducts, a section clamp
with pin must be installed every 3 metres.
5
6
7
8
A
3
The kit includes:
N° 1 - Exhaust gasket (1)
2
N° 1 - Flange gasket (2)
N° 1 - Female intake flange (3)
N° 1 - Female exhaust flange (4)
N° 2 - Bend 90° Ø 80 (5)
N° 1 - Intake terminal Ø 80 (6)
N° 2 - Internal white wall sealing plates (7)
N° 1 - External grey wall sealing plate (8)
N° 1 - Exhaust pipe Ø 80 (9)
Minimum slope 1.5%
• Configuration type B
The appliance can be installed inside buildings in
B
and national and local regulations in force, must
be complied with.
- Type B open chamber boilers must not be
- in type B
- The installation of appliances in B
C53
1-21
11 - IE
open chamber and
23
forced draught.
mode; in this eventuality, all technical rules
23
installed in places where commercial, artisan
or industrial activities take place, which use
products that may develop volatile vapours
or substances (e.g. acid vapours, glues, paints,
solvents, combustibles, etc.), as well as dusts
(e.g. dust deriving from the working of
wood, coal fines, cement, etc.), which may be
damaging for the components of the appliance
and jeopardise functioning.
configuration, the boilers must not
23
be installed in bedrooms, bathrooms or in
bedsitters.
configuration is only recommended outdoors
(in a partially protected place) or in places that
are not lived in and which are permanently
ventilated.
23
C43
C83
1-22
