D-Link DCS-5009l Quick Install Manual

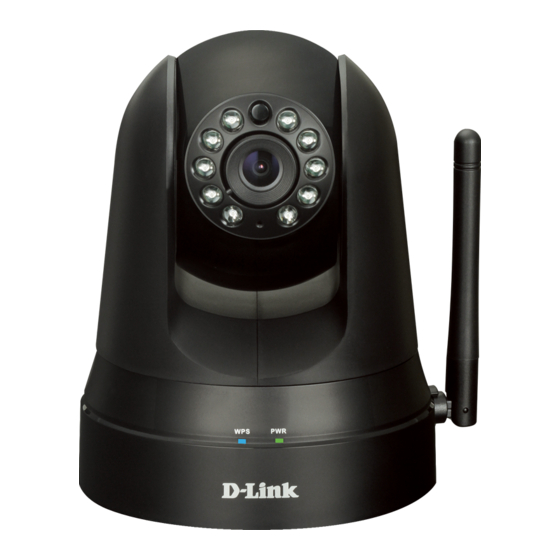

Pan & tilt day/night network camera.
Hide thumbs


Advertisement

DCS-5009L
Pan & Tilt Day/Night Network Camera
Cloud Camera
Quick Install Guide

Advertisement

   Also See for D-Link DCS-5009l

   Related Manuals for D-Link DCS-5009l

   Summary of Contents for D-Link DCS-5009l

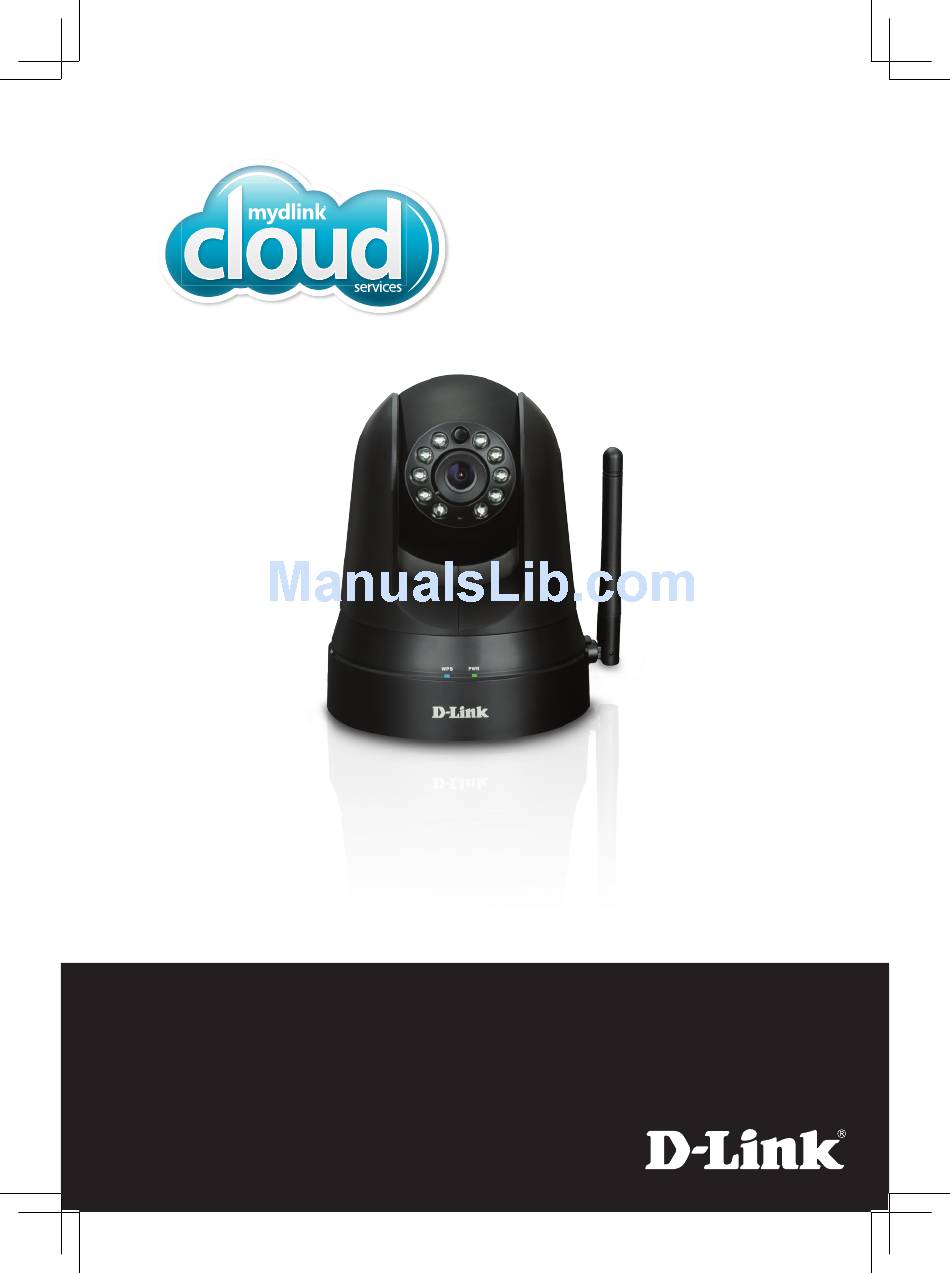

  • Page 1 DCS-5009L Pan & Tilt Day/Night Network Camera Cloud Camera Quick Install Guide...
  • Page 2: Package Contents

    Package Contents DCS-5009L Pan & Tilt Day/Night Network Camera Mounting Kit Power Adapter Ethernet Cable Quick Install Guide If any of the above items are missing, please contact your reseller. Minimum Requirements • Wired 10/100 Fast Ethernet or Wireless 802.11g/n network...
  • Page 3: Product Overview

    Product Overview Front Light Sensor IR LEDs* Camera Lens Manual Focus Bezel Microphone Power and Link LED WPS LED *Note: If you see a white haze when viewing in night vision mode, the IR lights on the camera may be reflecting off a nearby surface. Try repositioning the camera in order to avoid glare from the IR LEDs.
  • Page 4: Zero Configuration Setup

    (both wired and wireless) to your camera, and add it to your mydlink account. If you do not have a D-Link Cloud router, skip to the Easy Setup section on the next page. Attach the power supply to the power...
  • Page 5 Easy Setup (All Other Routers) If you do not have a D-Link Cloud Router, you can use any Windows or Mac computer to go through the Setup Wizard, which will guide you through the installation process, from connecting your hardware to configuring your camera.
  • Page 6 Start mydlink Open a web browser on any computer connected to the Internet. Enter http://www.mydlink.com in the address bar and press Enter. Sign in with your mydlink account registered in the Setup Wizard. • Windows does not have Java installed by default. Please download it from http://www.java.com.
  • Page 7: Mount The Camera

    Mount the Camera Please refer to the steps below to assist you with mounting the camera. We suggest that you configure the camera before mounting. 1. Place the mounting bracket where you want to position the camera and use a pencil to mark the holes.
  • Page 8: Technical Support

    June 3, 2014 6DCS5009LQ01G ©2014 D-Link. All Rights Reserved. D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries. All other third party marks mentioned herein may be trademarks of their respective owners. Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specifications. Actual data throughput will vary.
