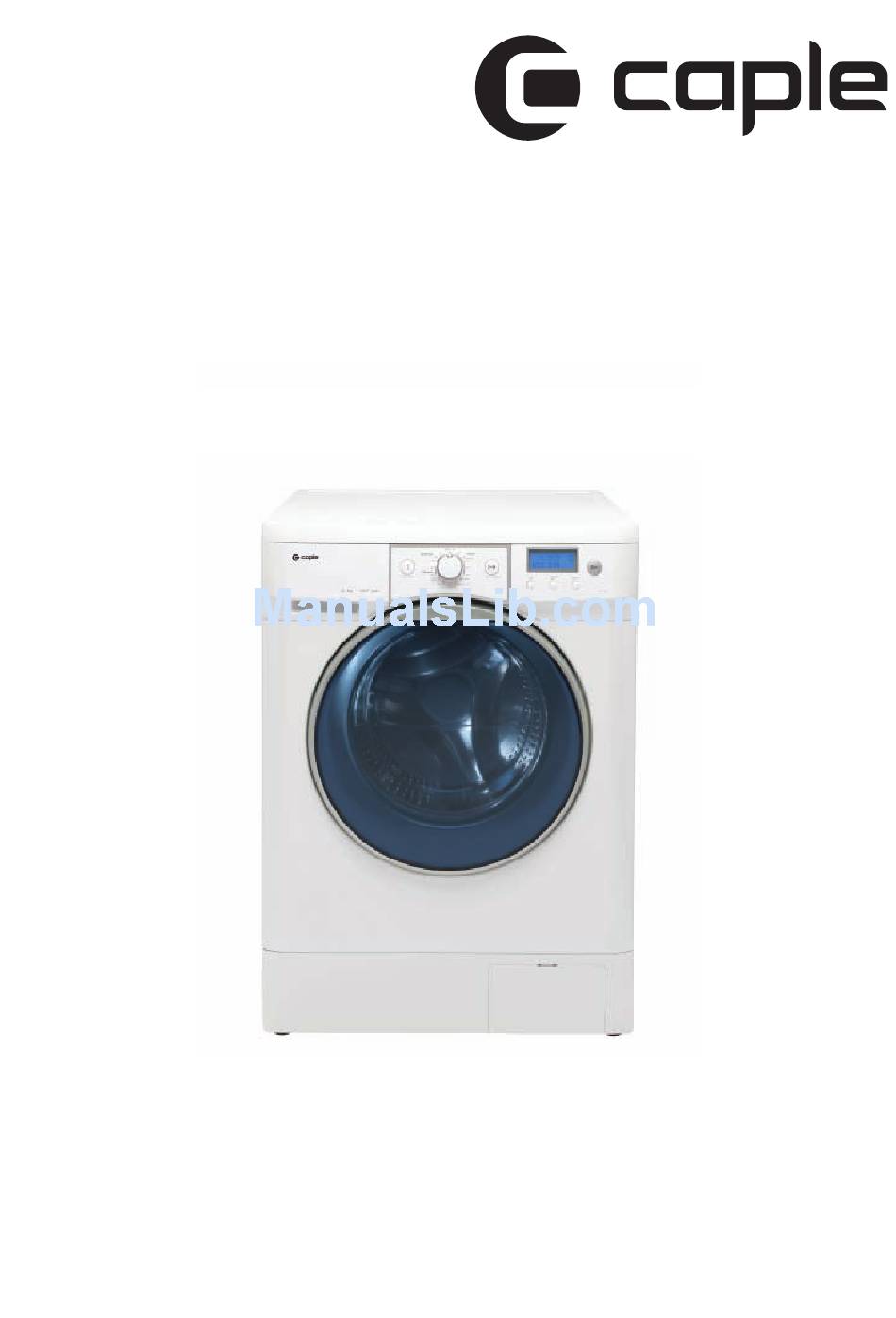

- Page 1 Technical manual for washing machine Model code: WMF1020 Contact Caple on 0844 8003830 or for spare parts www.4caple.co.uk...
- Page 3 New product information sheet Product name: WMF1020 Description: Freestanding washing machine Product code: WMF1020 Features Energy class A+ Wash class A Spin efficiency B 16 programmes: - Cotton 30c - Cotton 40c - Cotton 60c + pre-wash - Cotton 60c...
- Page 4 New product information sheet Product name: WMF1020 Description: Freestanding washing machine Product code: WMF1020 LCD display which features Electronic clock - delay timer 1 – 24 hours Wash progress Total time remaining Programme and spin speed indicator Features Cold fill Advance balance system –...
-
Page 5: How To Use This Manual
t e c h n i c a l How to use this manual This document is intended for all persons rendering technical support services (T.S.S.). It is designed to facilitate the repair of the product described. It provides documentary support for technical consultations. -
Page 6: Table Of Contents
t e c h n i c a l Table of contents 1.- Warnings and precautions ........1 2.- Features ..............3 3.- Description of operation ........8 3.1.- General description ............8 3.1.1.- Component characteristics ............8 3.1.2.- V3 and V4 circuit confi guration ..........11 3.1.3.- Washing machine vibrations ........... -
Page 7: Warnings And Precautions
t e c h n i c a l Warnings and precautions 1.- Warnings and precautions The washing machine must be connected to an earth. If this basic safety rule is not respected, the manufacturer shall under no circumstances accept liability for injuries suffered by persons or for damage to objects. - Page 8 Warnings and precautions Specifi cations plate (Registration plate) This is situated on the hatch on the front of the washing machine. This plate indicates the following: Mains electricity grid voltage and frequency CAPLE 3F-2609 TYPWM-900E3B COD.905013069 N.050900001 Total power 2200W 220-230V-50Hz 10A.
-
Page 9: Features
t e c h n i c a l Features 2.- Features This range is comprised of the following models: Spin + flot Additional Start-Pause Detergent ON/OFF Programme Time delay button functions button drawer button selector control button button Select F7-212 Turbo Time Plus 1200... - Page 10 t e c h n i c a l Description of operation Selecting additional functions Button for selecting additional functions according to programmes. a) It has 3 options: easy iron, intensive wash, extra rinse. Press the select button to display to required option.
- Page 11 t e c h n i c a l Description of operation Spin selection The wash options must always be selected after selecting the wash programme. Any change of programme during the selection annuls the options which had previously been selected. a) Spin selection and anti-crease (fl...
- Page 12 t e c h n i c a l Description of operation Lock selection Activate lock a) Locking is activated by keeping the start/pause key pressed for at least 3 seconds. The screen will show that it has been activated. Deactivate lock b) The lock is deactivated when the wash programme ends.
- Page 13 t e c h n i c a l Features Programme tables...
-
Page 14: Description Of Operation
t e c h n i c a l Description of operation 3.- Description of operation 3.1.- General description 3.1.1.- Component characteristics Component Function Features Used in machines with Voltage: 220 v / 50 Hz Motor 1250 RPM variable spin; makes Stator resistance: 1.3 Ω... - Page 15 t e c h n i c a l Description of operation Component Function Features Hatch closing Door lock with instant Manual opening for use opening in case of electricity supply failure. Re-circulates the drum Voltage: 220-240 V /50 Hz Recirculation pump water for greater wash Drainage pump resistance...
- Page 16 t e c h n i c a l Description of operation Componente Function Features Heating element + Resistance: 26.4 Ω Heating resistance thermal fuse incorpo- Material: Austenitic rated into the element stainless steel itself Power: 2022 W Thermal fuse cut-out Voltage: 230 v temperature165º...
-
Page 17: V3 And V4 Circuit Confi Guration
t e c h n i c a l Description of operation 3.1.2.- V3 and V4 circuit confi guration If the circuit is not confi gured it will go into status as soon as it is plugged in (go to step no. - Page 18 t e c h n i c a l Description of operation KG – Drum capacity HOT WATER 7: 7 kg 0: Cold water 8: 8 kg 8: Hot water KG options depending on circuit references / If the circuit does not have this option it will washing machine model.
- Page 19 t e c h n i c a l Description of operation Label location: It is located in the detergent drawer. Select F7-412 X Turbo Time Plus 1200 r.p.m. To display the washer R.P.M. 1200 configuration: 1º Configure Kg. R (00) With recirculation 2º...
- Page 20 t e c h n i c a l Description of operation Fault modes description table...
- Page 21 t e c h n i c a l Description of operation The speeds allowed for the V3 circuits depend on the hardware reference (with/without double fi eld) and the washing machine capacity (in kg), and are as follows: DOUBLE FIELD MOTOR 5 kg 700 800 900 1000 1100 6 kg 700 800 900 1000 1100 1200 1300 1400 7 kg 700 800 900 1000 1100 1200 1300 1400 1500 1600...
-
Page 22: Washing Machine Vibrations
t e c h n i c a l Description of operation 3.1.3.- Washing machine vibrations • Wash vibrations... - Page 23 t e c h n i c a l Description of operation • Spin vibrations Easy iron...
- Page 24 t e c h n i c a l Description of operation Normal spin:...
-
Page 25: Description Of The Operation Of Programme No. 2
t e c h n i c a l Description of operation 3.1.4.- Description of the operation of programme no. 2 Programme no. 2 is a short (quick) programme which takes 30 minutes and heats to 30ºC. It is a suitable programme for a technician making any operational checks. The programme phases and their approximate start and end times are described below. -
Page 26: Attempts To Spin
t e c h n i c a l Description of operation 3.1.5.- Attempts to spin If the washing machine detects unbalanced clothes in the spin cycle it will follow this process: The total number of attempts to start spinning is 20, divided according to these criteria. -
Page 27: Drawings And Diagrams
t e c h n i c a l Description of operation 3.2.- Drawings and diagrams... - Page 28 t e c h n i c a l Description of operation Reference electric installation cold water with recirculation LH6J200A6.
