  • Page 1: Air Conditioning

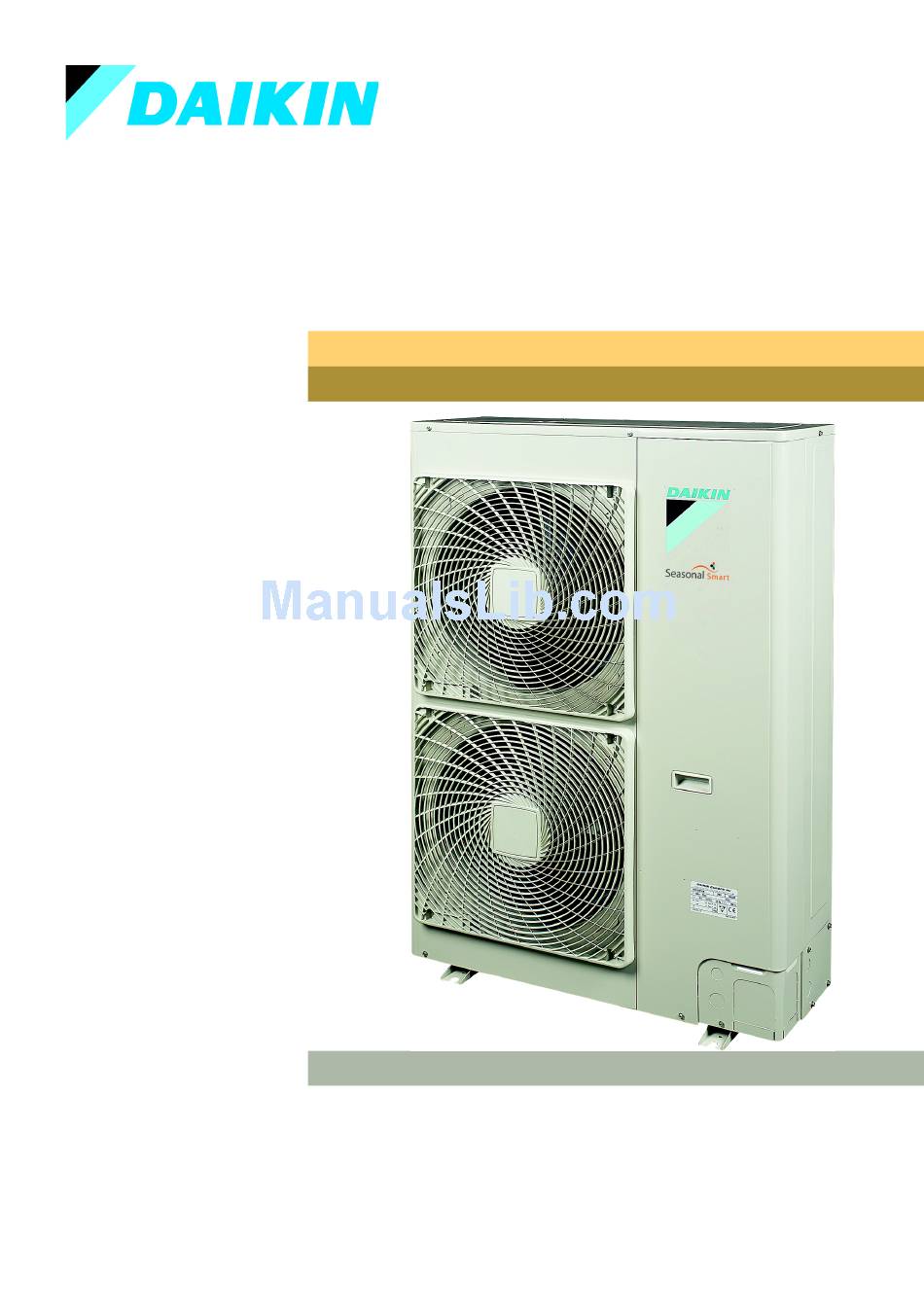

    Air Conditioning Technical Data Pair, Twin, Triple, double twin EEDEN15-100 RZQG-L(8)Y1...

  • Page 3: Table Of Contents

    ........... 37 • Split - Sky Air • RZQG-L(8)Y1...

  • Page 4: Rzqg-L(8)Y1

    • Daikin outdoor units are neat, sturdy and can easily be mounted on a (temperature and load) - via improved nominal performances roof or terrace or simply placed against an outside wall •...

  • Page 5: Specifications

    2-3 Capacity and Power input FCQG71F/RZQG71L8Y1 RZQG100L8Y1 RZQG125L8Y1 FCQG140F/RZQG140LY1 Cooling capacity Nom. 12.0 13.4 Heating capacity Nom. 10.8 13.5 15.5 Power input Cooling Nom. 2.01 2.45 3.22 4.17 Heating Nom. 1.89 2.60 3.72 4.30 • Split - Sky Air • RZQG-L(8)Y1...

  • Page 6: Capacity And Power Input

    2-5 Capacity and Power input FVQ71C/RZQG71L8Y1 FVQ100C/RZQG100L8Y1 FVQ125C/RZQG125L8Y1 FVQ140C/RZQG140LY1 Cooling capacity Nom. 12.0 13.4 Heating capacity Nom. 10.8 13.5 15.5 Power input Cooling Nom. 2.02 2.49 3.74 4.17 Heating Nom. 2.06 2.61 3.65 4.30 • Split - Sky Air • RZQG-L(8)Y1...

  • Page 7: Capacity And Power Input

    2-7 Capacity and Power input FCQHG71F/RZQG71L8Y1 RZQG100L8Y1 RZQG125L8Y1 RZQG140LY1 Cooling capacity Nom. 12.0 13.4 Heating capacity Nom. 10.8 13.5 15.5 Power input Cooling Nom. 1.66 2.15 3.00 4.00 Heating Nom. 1.56 2.16 3.07 3.77 • Split - Sky Air • RZQG-L(8)Y1...

  • Page 8: Capacity And Power Input

    RZQG140LY1 Capacity control Method Inverter controlled Casing Colour Ivory white Material Painted galvanized steel plate Dimensions Unit Height 1,430 Width Depth Packed unit Height 1,170 1,610 Width 1,015 Depth Weight Unit Packed unit • Split - Sky Air • RZQG-L(8)Y1...
  • Page 9 OU - IU Min. 5 (1) Max. System Equival Chargel Additional refrigerant charge kg/m See installation manual Level difference IU - OU Max. 30.0 IU - IU Max. Heat insulation Both liquid and gas pipes • Split - Sky Air • RZQG-L(8)Y1...

  • Page 10: Electrical Specifications

    (1) 3 with re-charging Contains fluorinated greenhouse gases PED: assembly = category l : excluded from scope of PED due to article 1, item 3.6 of 97/23/EC See separate drawing for electrical data • Split - Sky Air • RZQG-L(8)Y1...

  • Page 11: Electrical Data

    • Outdoor Unit • RZQG-L(8)Y1 Electrical data 3 - 1 Electrical Data • Split - Sky Air • RZQG-L(8)Y1...

  • Page 12: 3 Electrical Data

    • Outdoor Unit • RZQG-L(8)Y1 Electrical data 3 - 1 Electrical Data • Split - Sky Air • RZQG-L(8)Y1...

  • Page 13: 3 Electrical Data

    • Outdoor Unit • RZQG-L(8)Y1 Electrical data 3 - 1 Electrical Data • Split - Sky Air • RZQG-L(8)Y1...

  • Page 14: 3 Electrical Data

    Indoor fan motor Voltage Full Load Ampere (A) Voltage range Fan motor rated output [kW] Minimum Circuit Ampere (A) Maximum Fuse Ampere (A) Rated operating frequency [Hz] Rated load amps [A] COMP Compressor 3D094863B • Split - Sky Air • RZQG-L(8)Y1...

  • Page 15: 3 Electrical Data

    Indoor fan motor Voltage Full Load Ampere (A) Voltage range Fan motor rated output [kW] Minimum Circuit Ampere (A) Maximum Fuse Ampere (A) Rated operating frequency [Hz] Rated load amps [A] COMP Compressor 3D096315C • Split - Sky Air • RZQG-L(8)Y1...

  • Page 16: Options

    • Outdoor Unit • RZQG-L(8)Y1 Options 4 - 1 Options • Split - Sky Air • RZQG-L(8)Y1...

  • Page 17: Combination Table

    • Outdoor Unit • RZQG-L(8)Y1 Combination table 5 - 1 Combination Table • Split - Sky Air • RZQG-L(8)Y1...

  • Page 18: 5 Combination Table

    3. For the selection of the correct refnet kit, required to install a multi-combination, refer to the option list. Twin : ·KHRQ22M20TA· or ·KHRQ58T· Triple : ·KHRQ127H· or ·KHRQ58H· Double twin : ·KHRQ22M20TA· or ·KHRQ58T· 3D090361B • Split - Sky Air • RZQG-L(8)Y1...

  • Page 19: Capacity Tables

    8.7 x 3 (BF) (0.4 x 3) (0.15 x 3) (0.17 x 3) (0.25 x 3) (0.17 x 3) (0.08 x 3) (0.17 x 3) Heating 2,51 2,86 3,20 2,59 3,68 2,70 3,68 3D076749F • Split - Sky Air • RZQG-L(8)Y1...
  • Page 20 3,75 5,38 (BF) (0.4 x 4) (0.15 x 4) (0.20 x 4) (0.25 x 4) (0.17 x 4) (0.08 x 4) (0.17 x 4) Heating 4,30 4,70 5,33 3,81 5,85 4,70 5,85 3D076751F • Split - Sky Air • RZQG-L(8)Y1...

  • Page 21: Capacity Correction Factor

    • Outdoor Unit • RZQG-L(8)Y1 Capacity tables 6 - 2 Capacity Correction Factor • Split - Sky Air • RZQG-L(8)Y1...

  • Page 22: Dimensional Drawings

    • Outdoor Unit • RZQG-L(8)Y1 Dimensional drawings 7 - 1 Dimensional Drawings • Split - Sky Air • RZQG-L(8)Y1...

  • Page 23: Centre Of Gravity

    • Outdoor Unit • RZQG-L(8)Y1 Centre of gravity 8 - 1 Centre of Gravity • Split - Sky Air • RZQG-L(8)Y1...

  • Page 24: Piping Diagrams

    • Outdoor Unit • RZQG-L(8)Y1 Piping diagrams 9 - 1 Piping Diagrams • Split - Sky Air • RZQG-L(8)Y1...

  • Page 25: Piping Diagram Twin Application

    • Outdoor Unit • RZQG-L(8)Y1 Piping diagrams 9 - 2 Piping Diagram Twin Application • Split - Sky Air • RZQG-L(8)Y1...

  • Page 26: Piping Diagram Triple Application

    • Outdoor Unit • RZQG-L(8)Y1 Piping diagrams 9 - 3 Piping Diagram Triple Application • Split - Sky Air • RZQG-L(8)Y1...

  • Page 27: Piping Diagram Double Twin Application

    • Outdoor Unit • RZQG-L(8)Y1 Piping diagrams 9 - 4 Piping Diagram Double Twin Application • Split - Sky Air • RZQG-L(8)Y1...

  • Page 28: Wiring Diagrams

    • Outdoor Unit • RZQG-L(8)Y1 Wiring diagrams 10 - 1 Wiring Diagrams - Three Phase • Split - Sky Air • RZQG-L(8)Y1...

  • Page 29: Sound Data

    • Outdoor Unit • RZQG-L(8)Y1 Sound data 11 - 1 Sound Power Spectrum • Split - Sky Air • RZQG-L(8)Y1...
  • Page 30 • Outdoor Unit • RZQG-L(8)Y1 Sound data 11 - 1 Sound Power Spectrum • Split - Sky Air • RZQG-L(8)Y1...

  • Page 31: Sound Pressure Spectrum - Cooling

    • Outdoor Unit • RZQG-L(8)Y1 Sound data 11 - 2 Sound Pressure Spectrum - Cooling • Split - Sky Air • RZQG-L(8)Y1...
  • Page 32 • Outdoor Unit • RZQG-L(8)Y1 Sound data 11 - 2 Sound Pressure Spectrum - Cooling • Split - Sky Air • RZQG-L(8)Y1...

  • Page 33: Sound Pressure Spectrum - Heating

    • Outdoor Unit • RZQG-L(8)Y1 Sound data 11 - 3 Sound Pressure Spectrum - Heating • Split - Sky Air • RZQG-L(8)Y1...
  • Page 34 • Outdoor Unit • RZQG-L(8)Y1 Sound data 11 - 3 Sound Pressure Spectrum - Heating • Split - Sky Air • RZQG-L(8)Y1...

  • Page 35: Sound Pressure Spectrum Quiet Mode

    • Outdoor Unit • RZQG-L(8)Y1 Sound data 11 - 4 Sound Pressure Spectrum Quiet Mode • Split - Sky Air • RZQG-L(8)Y1...
  • Page 36 • Outdoor Unit • RZQG-L(8)Y1 Sound data 11 - 4 Sound Pressure Spectrum Quiet Mode • Split - Sky Air • RZQG-L(8)Y1...

  • Page 37: Installation

    • Outdoor Unit • RZQG-L(8)Y1 Installation 12 - 1 Installation Method • Split - Sky Air • RZQG-L(8)Y1...
  • Page 38 • Outdoor Unit • RZQG-L(8)Y1 Installation 12 - 1 Installation Method • Split - Sky Air • RZQG-L(8)Y1...

  • Page 39: Operation Range

    • Outdoor Unit • RZQG-L(8)Y1 Operation range 13 - 1 Operation Range • Split - Sky Air • RZQG-L(8)Y1...
  • Page 41 All content is copy- righted by Daikin Europe N.V. Naamloze Vennootschap - Zandvoordestraat 300, B-8400 Oostende - Belgium - www.daikin.eu - BE 0412 120 336 - RPR Oostende...
