Atlantis Land A02-RA241-W54 User Manual

Wireless router adsl2+
Hide thumbs Also See for A02-RA241-W54:
Table of Contents

Advertisement

Quick Links

Download this manual

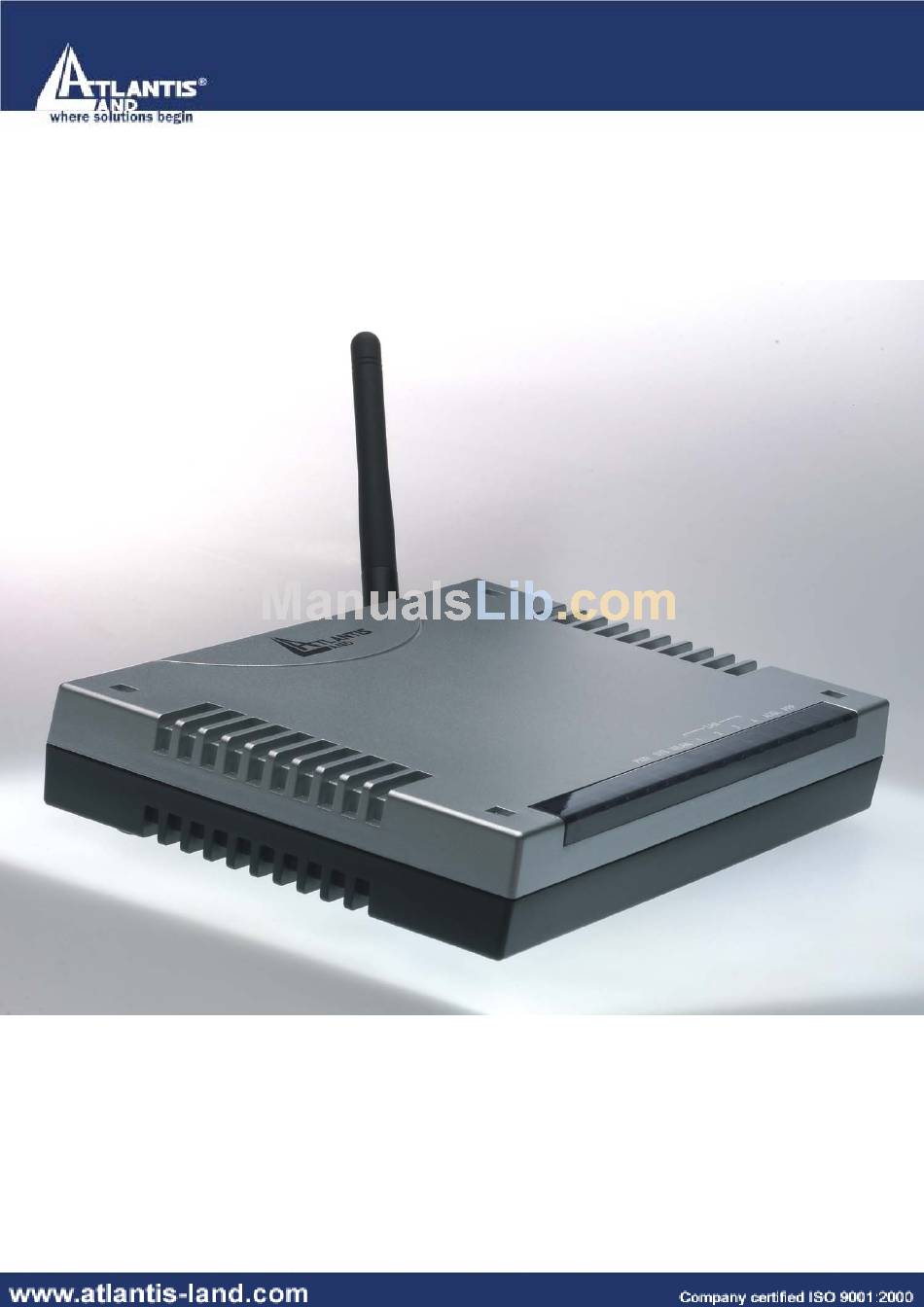

WIRELESS ROUTER

ADSL2+
A02-RA241-W54
USER'S MANUAL
A02-RA241-W54_ME01

Advertisement

Table of Contents
loading

Related Manuals for Atlantis Land A02-RA241-W54

Summary of Contents for Atlantis Land A02-RA241-W54

  • Page 1: Wireless Router

    WIRELESS ROUTER ADSL2+ A02-RA241-W54 USER’S MANUAL A02-RA241-W54_ME01...
  • Page 3 Copyright The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other names mentioned mat be trademarks or registered trademarks of their respective owners. Subject to change without notice. No liability for technical errors and/or omissions. CE Mark Warning This is a Class B product.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1 1.1 A VERVIEW OF THE 1.2 P ACKAGE ONTENTS 1.3 W ADSL2+ F IRELESS OUTER 1.4 W ADSL2+ A IRELESS OUTER CHAPTER 2 2.1 C AUTIONS FOR USING THE 2.2 T ... 6 RONT 2.3 T ...
  • Page 5 3.6.3.3.2 Remote Access... 36 3.6.3.3.3 Firmware ... 37 3.6.3.3.4 Backup/Restore ... 38 3.6.3.3.5 Restart ... 39 3.6.3.3.6 User Management ... 39 3.6.3.4 Firewall ... 41 3.6.3.4.1 Packet Filering ... 41 3.6.3.4.2 MAC address Filtering ... 48 3.6.3.4.3 Intrusion Detection... 49 3.6.3.4.4 Block Wan Request...

  • Page 7: Chapter 1

    WIRELESS ROUTER ADSL2+ Chapter 1 Introduction 1.1 An Overview of the Wireless Router ADSL2+ Broadband Sharing and IP sharing The Compact Router ADSL2+ supports 4 x 10/100 Mbps auto-negotiating Fast Ethernet ports for connection to your PC or LAN and downstream (with built-in ADSL2+ modem) rate up to 24Mbps.

  • Page 8: Package Contents

    1.2 Package Contents • Wireless Router ADSL2+ • One CD-ROM containing the online manual • One Quick Start Guide • One RJ-11 ADSL/telephone cable • One CAT-5 LAN cable • One AC-DC power adapter (12VDC, 1A) If any of the above items are missing, please contact your reseller. 1.3 Wireless Router ADSL2+ Features Wireless ADSL Router2+ provides the following features: •...
  • Page 9 • Firewall: Supports SOHO firewall with NAT technology. Automatically detects and blocks the Denial of Service (DoS) attack. The URL-blocking, packet filtering are also supported. The hacker’s attack will be recorded associated with timestamp in the security logging area. More firewall features will be added continually, please visit our web site to download latest firmware.
  • Page 10 • Dynamic Host Control Protocol (DHCP) client and server: In the WAN site, the DHCP client can get an IP address from the Internet Server Provider (ISP) automatically. In the LAN site, the DHCP server can allocate up to 253 client IP addresses and distribute them including IP address, subnet mask as well as DNS IP address to local computers.

  • Page 11: Wireless Router Adsl2+ Application

    WIRELESS ROUTER ADSL2+ 1.4 Wireless Router ADSL2+ Application...

  • Page 12: Chapter 2

    Place the Wireless Router ADSL2+ on a stable surface. Only use the power adapter that comes with the package. Do NOT upgrade firmware on any Atlantis Land product over a wireless connection. Failure of the device may result. Use only hard-wired network connections.

  • Page 13: The Rear Ports

    2.3 The Rear Ports PORT LINE (RJ-11) (4 *RJ-45)* RESET POWER (Jack) POWER Switch 2.4 Cabling The most common problem is bad cabling or ADSL line. Make sure that all connected devices are turned on. On the front of the product is a bank of LEDs. As a first check, verify that the LAN Link, ADSL , PWR, SYS LEDs are lit and WLAN is blanking.
  • Page 14 a qualified and licensed electrician), and ensure that all line filters are correctly installed and the right way around. Missing line filters or line filters installed the wrong way around can cause problems with your ADSL connection, including frequent disconnections. WIRELESS ROUTER ADSL2+...

  • Page 15: Chapter 3

    The Wireless Router ADSL2+ can be configured with your Web browser. The web browser is included as a standard application in the following operation systems, UNIX, Linux, Mac OS, Windows 95/98/NT/2000/Me, and etc. The product provides a very easy and user- friendly interface for configuration.

  • Page 16: Configuring Pc In Windows

    3.3 Configuring PC in Windows For Windows 95/98/ME 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Configuration tab. 2. Select TCP / IP -> NE2000 Compatible, or the name of any Network Interface Card (NIC) in your PC.
  • Page 17 WIRELESS ROUTER ADSL2+ 5. Then select the DNS Configuration tab. 6. Select the Disable DNS radio button and click “OK” to finish the configuration.

  • Page 18: For Windows Nt4.0

    For Windows NT4.0 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Protocols tab. 2. Select TCP/IP Protocol and click Properties. 3. Select the Obtain an IP address from a DHCP server radio button and click “OK”.

  • Page 19: For Windows 2000

    WIRELESS ROUTER ADSL2+ For Windows 2000 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections. 2. Double-click LAN Area Connection. 3. In the LAN Area Connection Status window, click Properties.
  • Page 20 Select Internet Protocol (TCP/IP) and click Properties. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons. Click “OK” to finish the configuration. WIRELESS ROUTER ADSL2+...

  • Page 21: For Windows Xp

    WIRELESS ROUTER ADSL2+ For Windows XP 1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections. 2. Double-click Local Area Connection 3. In the LAN Area Connection Status window, click Properties.
  • Page 22 WIRELESS ROUTER ADSL2+ 4. Select Internet Protocol (TCP/IP) and click Properties. 5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons 6. Click “OK” to finish the configuration.

  • Page 23: Factory Default Settings

    3.4 Factory Default Settings Before configurating this Wireless Router ADSL2+, you need to know the following default settings. • Username: admin • Password : atlantis • IP Address : 192.168.1.254 • Subnet Mask : 255.255.255.0 • DHCP server is enabled. •...

  • Page 24: Lan And Wan Port Addresses

    3.4.2 LAN and WAN Port Addresses The parameters of LAN and WAN ports are pre-set in the factory. The default values are shown below. LAN Port IP address Subnet Mask DHCP server function 3.5 Information from the ISP Before configuring this device, you have to check with your ISP (Internet Service Provider) what kind of service is provided such as PPPoE, PPPoA, RFC1483, IpoA.

  • Page 25: Status

    You will get a status report web page when login successfully. At the configuration homepage, the left navigation page where bookmarks are provided links you directly to the desired setup page, including: • Status (ADSL, LAN, PPP, VPN connect Status, Learned MAC Table, Routing Table, System Log, Security Log) •...

  • Page 26: Routing Table

    “no” for dynamically-generated ARP table entries • “yes” for static ARP table entries added by the user 3.6.1.2 Routing Table Display the current routing paths of A02-RA241-W54. • #: Item number • Destination: IP address of the destination network. • Netmask: The destination netmask address.

  • Page 27: System Log

    • Leased: DHCP assigned IP addresses information. • IP Address: IP addresses of devices on your LAN (Local Area Network). • MAC Address: The MAC Address that you want to assign the fixed IP address • Client Host Name: Expired IP addresses information •...

  • Page 28: Quick Start Guide

    3.6.2 Quick Start Guide For detailed instructions on configuring WAN settings, see the WAN section of this manual. The information you need for the Quick Start wizard to get you online are your login (often in the form of username@ispname), your password, and the encapsulation type. Your ISP can supply all the details you need.
  • Page 29 • NAT: Select “Enabled”. Optional Setting • IP Address: Type your ISP assigned IP address in the IP Address text box. • Subnet Mask: Enter a subnet mask in dotted decimal notation. • Default Gateway: You must specify a gateway IP address (supplied by your ISP) •...

  • Page 30: Configuration

    3.6.3 CONFIGURATION When you click this item, you get following sub-items to configure Wireless Router ADSL2+: • LAN • WAN • System • Firewall • QoS • Virtual Server • Advanced 3.6.3.1 LAN A Local Area Network (LAN) is a shared communication system to which many computers are attached and is limited to the immediate area, usually the same building or floor of a building.

  • Page 31: Wireless

    3.6.3.1.2 Wireless • Mode: 802.11b + g (Mixed mode), 802.11b and 802.11g. The factory default is 802.11b + g. • ESSID: Enter the unique ID given to the Access Point (AP), which is already built-in to the router’s wireless interface. To connect to this device, your wireless clients must have the same ESSID as the device.

  • Page 32: Wireless Security

    You must make sure that the SSID, Encryption and Channel is set the same as that AP you wish to connect. When WDS is enable only WEP ecryption is supported. The range of radio frequencies used by IEEE 802.11b wireless devices is called a “channel”.
  • Page 33 WPA Pre-Shared Key: • WPA Algorithms: TKIP (Temporal Key Integrity Protocol) utilizes a stronger encryption method and incorporates Message Integrity Code (MIC) to provide protection against hackers. • WPA Shared Key: The key for network authentication. The input format is in character style and key size should be in the range between 8 and 63 characters.

  • Page 34: Dhcp Server

    note that you do not have to enter Key (1-4) as below when the Passphrase is enabled.. • Key (1-4): Enter the key to encrypt wireless data. To allow encrypted data transmission, the WEP Encryption Key values on all wireless stations must be the same as the router.
  • Page 35 WIRELESS ROUTER ADSL2+ If you check DHCP Relay Agent and click Next then you must enter the IP address of the DHCP server which assigns an IP address back to the DHCP client in the LAN. Use this function only if advised to do so by your network administrator or ISP. Click Apply to enable this function.

  • Page 36: Wan

    3.6.3.2 WAN Before you start installing this device, you have to check with your ISP what kind of service (connection method) is provided such as PPPoE, PPPoA, RFC1483 bridged or routed, IPoA. Gather the information as illustrated in the following table and keep it for reference. PPPoE PPPoA RFC1483...
  • Page 37 PPPoE(RFC 2516) or PPPoA(RFC 2364) PPPoE (PPP over Ethernet) provides access control in a manner similar to dial-up services using PPP. PPPoA stands for Point to Point Protocol over ATM Adaptation Layer 5 (AAL5). It provides access control and billing functionality in a manner similar to dial-up services using PPP. •...
  • Page 38 • Connect to Demand(PPPoE only): If you want to establish a PPPoE session only when there is a packet requesting access to the Internet (i.e. when a program on your computer attempts to access the Internet). • Idle Timeout: Auto-disconnect the broadband firewall gateway when there is no activity on the line for a predetermined period of time.

  • Page 39: Rfc 1483 Routing

    RFC 1483 Routing • Description: Your description of this connection. • VPI and VCI: Enter the information provided by your ISP. • NAT: The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single IP account, sharing the single IP address. If users on your LAN have public IP addresses and can access the Internet directly, the NAT function can be disabled.

  • Page 40: Dns

    BRIDGE (PPPoE) • Description: A user-definable name for this connection. • VPI/VCI: Enter the information provided by your ISP. • Encapsulation method: Select the encapsulation format, this is provided by your ISP. 3.6.3.2.2 DNS A Domain Name System (DNS) contains a mapping table for domain name and IP addresses.

  • Page 41: Adsl

    3.6.3.2.3 ADSL • ADSL Mode: There are four modes “Annex A”,”Annex L”,”Annex M” that user can select for this connection. • Modulator: There are four modes “AUTO”,”ADSL”,”ADSL2”and”ADSL2+” that user can select for this connection. • DSP Firmware Version: DSP code version •...

  • Page 42: System

    WIRELESS ROUTER ADSL2+ 3.6.3.3 System There are six items within the System section: Time Zone, Remote Access, Firmware Upgrade, Backup/Restore, Restart and User Management. 3.6.3.3.1 Time Zone The router does not have a real time clock on board; instead, it uses the Simple Network Time Protocol (SNTP) to get the current time from an SNTP server outside your network.

  • Page 43: Firmware

    Upgrade: Click upgrade to begin the upload process. This process may take up to two minutes. Do NOT upgrade firmware on any Atlantis Land product over a wireless connection. Failure of the device may result. Use only hard-wired network connections.

  • Page 44: Backup/Restore

    WIRELESS ROUTER ADSL2+ 3.6.3.3.4 Backup/Restore These functions allow you to save and backup your router’s current settings to a file on your PC, or to restore a previously saved backup. This is useful if you wish to experiment with different settings, knowing that you have a backup handy in the case of any mistakes. It is advisable to backup your router’s settings before making any significant changes to your router’s configuration.

  • Page 45: Restart

    WIRELESS ROUTER ADSL2+ 3.6.3.3.5 Restart Click Restart with option Current Settings to reboot your router and restore your last saved configuration. If you wish to restart the router using the factory default settings (for example, after a firmware upgrade or if you have saved an incorrect configuration), select Factory Default Settings to reset to factory default settings.
  • Page 46 WIRELESS ROUTER ADSL2+ You are strongly advised to change the password on the default “admin” account when you receive your router, and any time you reset your configuration to Factory Defaults.

  • Page 47: Firewall

    WIRELESS ROUTER ADSL2+ 3.6.3.4 Firewall Your router includes a full DoS firewall for controlling Internet access from your LAN, as well as helping to prevent attacks from hackers. In addition to this, when using NAT (Network Address Translation. Please see the WAN configuration section for more details on NAT) the router acts as a “natural”...
  • Page 48 Packet filtering function enables you to configure your router to check specified internal/external user (IP address) from Internet access, or you can disable specific service request (Port number) to /from Internet. This configuration program allows you to set up different filter rules up to 10 for different users based on their IP addresses or their network Port number.
  • Page 49 • Outgoing / Incoming: Determine whether the rule is for outgoing packets or for incoming packets. • Active: Choose “Yes” to enable the rule, or choose “No” to disable the rule. • Packet Type: Specify the packet type (TCP, UDP, ICMP or any) that the rule will be applied to.Select TCP if you want to scope for the connection-based application service on the remote server using the port number.
  • Page 50 WIRELESS ROUTER ADSL2+ http(OutGoing/Ingoing):...
  • Page 51 WIRELESS ROUTER ADSL2+ POP3 (OutGoing/Ingoing):...
  • Page 52 WIRELESS ROUTER ADSL2+ SMTP (OutGoing/Ingoing):...
  • Page 53 WIRELESS ROUTER ADSL2+ FTP (OutGoing/Ingoing)::...

  • Page 54: Mac Address Filtering

    WIRELESS ROUTER ADSL2+ DNS (OutGoing/Ingoing): 3.6.3.4.2 MAC address Filtering MAC filtering function enables you to configure your ADSL Firewall Router to block internal user (MAC address) from Internet access. If you check Enable, remember to choosea defaulkt rules policy between Forward or Drop. If you select Forward , the packet with the MAC address in the table(Drop) will be dropped and others will be forwarded.

  • Page 55: Intrusion Detection

    • Active: Select Yes from the drop down list box to enable MAC address filtering. • Action When Matched: Select “Drop” or “Forward”. • Log: Choose “Yes” if you wish to generate logs when the filer rule is applied to a packet.

  • Page 56: Block Wan Request

    • Your E-Mail: Set your email address. • Recipient’s E-mail: Set the Recipient’s email address to which notification is sent. • SMTP server: Set the SMTP (mail) server address. 3.6.3.4.4 Block Wan Request The “Block WAN Request” is a stand-alone function and not relate to whether security enable or disable.
  • Page 57 Fron/To: IP Address Block Mode: You can select when Router have yo use thess settings Keywords Filtering: Allows blocking by specific keywords within a particular URL rather than having to specify a complete URL (e.g. to block any image called “advertisement.gif”). When enabled, your specified keywords list will be checked to see if any keywords are present in URLs accessed to determine if the connection attempt should be blocked.
  • Page 58 WIRELESS ROUTER ADSL2+ • Block Java Applet: Blocks Web content which includes the Java Applet to prevent someone who wants to damage your system via the standard HTTP protocol. • Block ActiveX: Blocks ActiveX • Block Cookies: Blocks Cookies • Block Proxy: Blocks Proxy...

  • Page 59: Qos

    WIRELESS ROUTER ADSL2+ 3.6.3.5 QoS Quality of Service Introduction If you’ve ever found your ‘net’ speed has slowed to a crawl because another family member is using a P2P file sharing program, you’ll understand why the Quality of Service features in routers is such a breakthrough for home users and office users.
  • Page 60 Application: A name that identifies an existing policy. Time Schedule: Scheduling your QOS policy to be applied. Direction: The traffic flow direction to be controlled by the QOS policy. There are two settings to be provided in the Router: LAN to WAN: You want to control the traffic flow from the local network to the outside world.
  • Page 61 : Before using these buttons to edit or delete a policy, please select one policy you want to edit/delete from the radio option : After you have configured the policies, you can press this button to apply the configuration. If you want to make the change persistent in flash, choose When you press your browser.
  • Page 62 GRE: For PPTP VPN Connections. Assigned Data rate: Assign the data ratio for this policy to be controlled. For examples, we want to only allow 20% of the total data transfer rate for the LAN-to-WAN direction to be used for FTP server. Then we can specify here with data ratio = 20. If you have ADSL LINE with 256K/bps.rate, the estimated data rate, in kbps, for this rule is 20%*256*0.9 = 46kbps.
  • Page 63 Gold service (H) Silver service (L) Silver service (M) Silver service (H) Bronze service (L) Bronze service (M) Bronze service (H) Local Machine IPs: The IP address values for Local LAN machines you want to control. (For IP packets from LAN to WAN, it is the source IP address. For IP packages from WAN to LAN, it is the destination IP address.) Remote Machine IPs: The IP address values for Remote WAN machines you want to control.

  • Page 64: Connection Diagram

    QOS example for your Network Connection Diagram HTTP WEB brosing users VoIP Software FTP Server ADSL Subscription Rate Upstream: 256 kbps Downstream: 1024 Mbps Example QOS Plan Application IP or Ports VoIP User 192.168.1.1 FTP Sever 192.168.1.100 Incoming and HTTP web browsing users Control Flow...
  • Page 65 WIRELESS ROUTER ADSL2+ Example QOS Setup...
  • Page 66 WIRELESS ROUTER ADSL2+ VoIP application Voice is latency-sensitive application. Most VoIP devices are use SIP protocol and the port number will be assigned by SIP module automatically. Better to use fixed IP address for catching VoIP packets as high priority. Above settings will help to improve quality of your VoIP service when traffic is full loading.
  • Page 67 WIRELESS ROUTER ADSL2+ FTP Server Application Some of companies will setup FTP server for customer downloading or home user sharing their files by using FTP. LAN to WAN direction:...
  • Page 68 WIRELESS ROUTER ADSL2+ WAN to LAN direction: With above settings that help to limit utilization of upstream of FTP. Time schedule also help you to only limit utilization at day time.
  • Page 69 WIRELESS ROUTER ADSL2+ HTTP Web Browsing You can control the internet web browsing by specify the HTTP 80 (8080 for some proxy server). LAN to WAN direction:...
  • Page 70 WIRELESS ROUTER ADSL2+ WAN to LAN direction:...

  • Page 71: Virtual Server

    3.6.3.6 Virtual Server When you click Virtual Server, you get the following figure. Being a natural Internet firewall, this network router protects your network from being accessed by outside users. When it needs to allow outside users to access internal servers, e.g.
  • Page 72 Application OutBound ICQ 98, 99a NetMeeting 2.1 a 3.01 VDO Live MIRC Cu-SeeMe 7648 TCP &UDP, 24032 UDP PC AnyWhere 5632 UDP, 22 UDP, 5631 TCP, 65301 TCP Edonkey MSN Messanger Services File Transfer Protocol (FTP) Data FTP Commands Telnet Simple Mail Transfer Protocol (SMTP) Email Domain Name Server (DNS) Trivial File Transfer Protocol (TFTP)

  • Page 73: Advanced

    3.6.3.7 Advanced Configuration options within the Advanced section are for users who wish to take advantage of the more advanced features of the router. Users who do not understand the features should not attempt to reconfigure their router, unless advised to do so by support staff. •...

  • Page 74: Dynamic Dns

    WIRELESS ROUTER ADSL2+ E.G. 3.6.3.7.2 Dynamic DNS The Dynamic DNS function lets you alias a dynamic IP address to a static hostname, so if your ISP does not assign you a static IP address you can still use a domain name. This is especially useful for hosting servers via your ADSL connection, so that anyone wishing to connect to you may use your domain name, rather than having to use your dynamic IP address, which changes from time to time.

  • Page 75: Vlan

    The Dynamic DNS service allows you to alias a dynamic IP address to a static hostname. This dynamic IP address is the WAN IP address. For example, to use the service, you must first apply for an account from this free Web server http://www.dyndns.org/. There are more than 8 DDNS servers supported.

  • Page 76: Device Management

    WIRELESS ROUTER ADSL2+ Group individual ports into a small “Virtual” network of their own to be independent of the other ports. To add a VLAN group check on the port to be a member to this VLAN Group, and press “Apply”...
  • Page 77 Embedded Web Server: HTTP Port: This is the port number the router’s embedded web server (for web-based configuration) will use. The default value is the standard HTTP port, 80. Users may specify an alternative if, for example, they are running a web server on a PC within their LAN. For Example: User A changes HTTP port number to 8081.

  • Page 78: Igmp

    Address Translation group IP group ICMP group TCP group UDP group EGP (not applicable) Transmission SNMP group • RFC1650 (EtherLike-MIB): dot3Stats • RFC 1493 (Bridge MIB): dot1dBase group dot1dTp group dot1dStp group (if configured as spanning tree) • RFC 1471 (PPP/LCP MIB): pppLink group pppLqr group •...

  • Page 79: Save Config

    WAN interfaces in the web configurator (LAN; WAN). Select None to disable IP multicasting on these interfaces. 3.6.4 SAVE Config After changing the router’s configuration settings, you must save all of the configuration parameters to FLASH to avoid losing them after turning off or resetting your router. Click Save to write your new configuration to FLASH.

  • Page 80: Problems With The Wan Interface

    Problems with the WAN Interface Problem Initialization connection failed. Problems with the LAN Interface Problem Can’t ping any station on the LAN. Corrective Action Ensure that the cable is connected properly from the ADSL port to the wall jack. The ADSL LED on the front panel of the ADSL Firewall Router should be on.

  • Page 81: Appendix A

    WIRELESS ROUTER ADSL2+ APPENDIX A Wireless LAN Overview This section introduces the wireless LAN and some basic configurations. Wireless LANs can be as simple as two computers with wireless LAN cards communicating in a peer-to-peer network or as complex as a number of computers with wireless LAN cards communicating through access points which bridge network traffic to the wired LAN.
  • Page 82 WIRELESS ROUTER ADSL2+ When a data frame exceeds the RTS/CTS value you set (between 0 to 2432 bytes), the station that wants to transmit this frame must first send an RTS (Request To Send) message to the AP for permission to send it. The AP then responds with a CTS (Clear to Send) message to all other stations within its range to notify them to defer their transmission.
  • Page 83 Data Encryption with WEP WEP encryption scrambles the data transmitted between the wireless stations and the access points to keep network communications private. It encrypts unicast and multicast communications in a network. Both the wireless stations and the access points must use the same WEP key for data encryption and decryption.

  • Page 84: Traffic Shaping

    WIRELESS ROUTER ADSL2+ APPENDIX B Traffic Shaping Traffic Shaping is an agreement between the carrier and the subscriber to regulate the average rate and “burstiness” or fluctuation of data transmission over an ATM network. This agreement helps eliminate congestion, which is important for transmission of real time data such as audio and video connections.

  • Page 85: Appendix C

    Technical Features Protocols LAN port WAN port External buttons LED Indicators Standard ADSL Compliance Protocols ADSL Wireless Antenna Firewall VLAN Input Power Power Consumption Agency and Regulatory Dimensions Weight Operating Temperature Storage Temperature Operating Humidity IP, NAT, ARP, ICMP, DHCP(server, relay e client), RIP1/2 , SNMP, SNTP client, UPnP, Telnet server, IGMP RJ-45, 4 10/100Base-T ports RJ-11 (1 port ADSL)

  • Page 86: Appendix D

    If you have any problems with the Wireless Router ADSL2+, please consult this manual. If you continue to have problems you should contact the dealer where you bought this ADSL Router. If you have any other questions you can contact the Atlantis Land company directly at the following address:...
