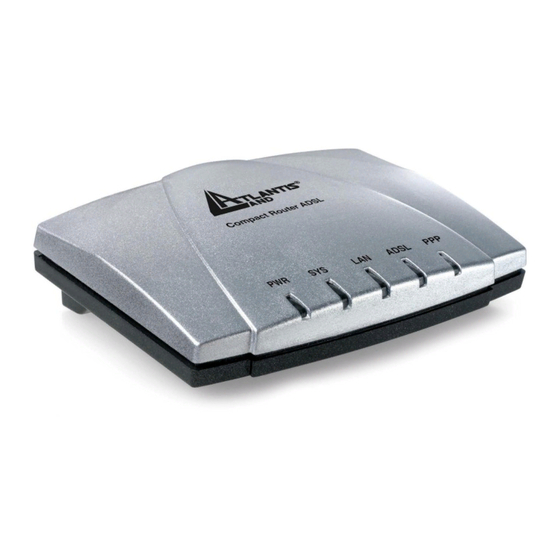

Atlantis Land A02-RA110 User Manual

Compact router adsl
Hide thumbs Also See for A02-RA110:
Table of Contents

Advertisement

Quick Links

Download this manual
COMPACT ROUTER
ADSL
A02-RA110
USER'S MANUAL
A02-RA110 _ME01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A02-RA110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlantis Land A02-RA110

Summary of Contents for Atlantis Land A02-RA110

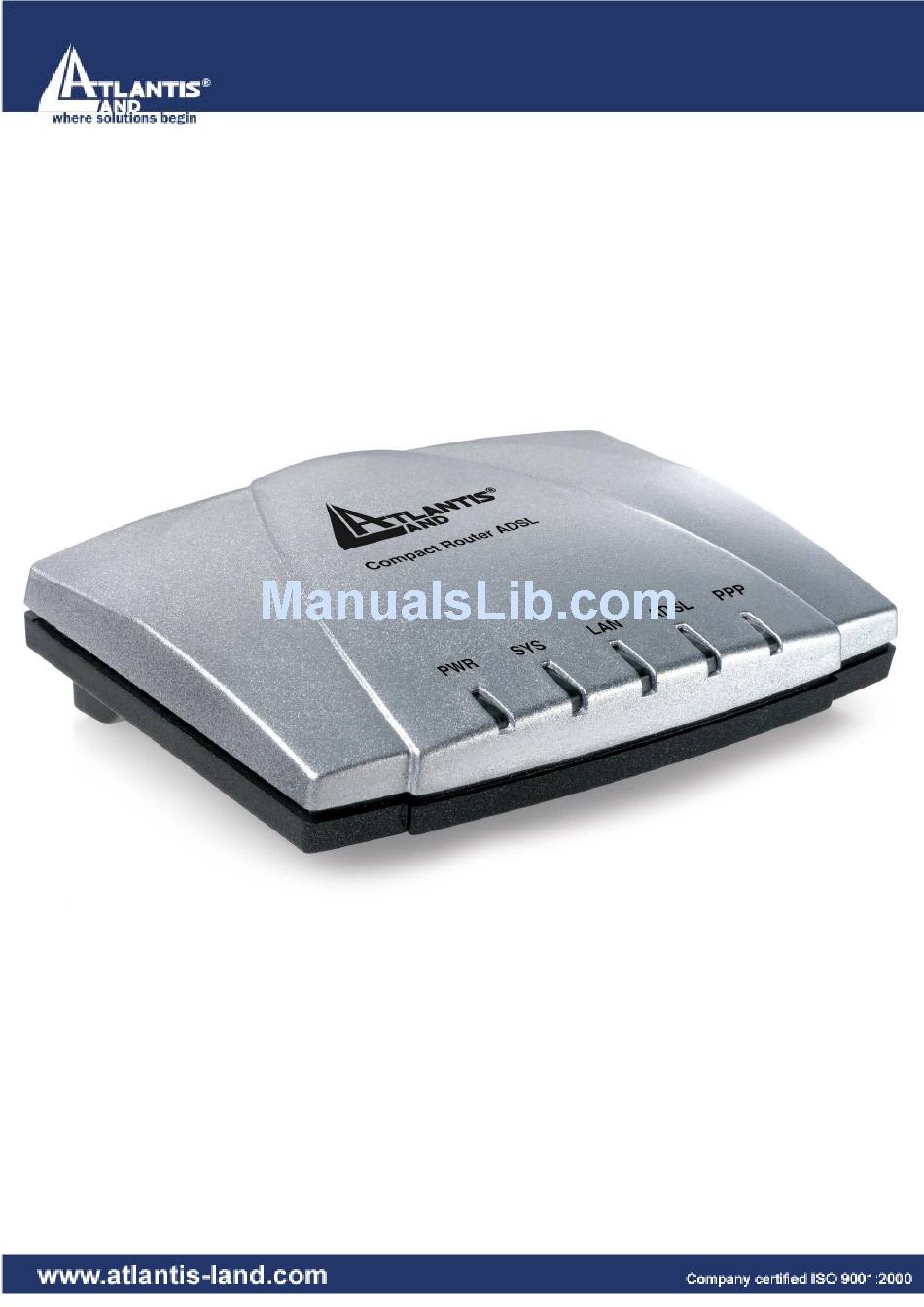

  • Page 1 COMPACT ROUTER ADSL A02-RA110 USER’S MANUAL A02-RA110 _ME01...

  • Page 3: Table Of Contents

    COMPACT ROUTER ADSL INDEX CHAPTER 1: GETTING TO KNOW THE ADSL ROUTER 1.1 Introducing the Compact Router ADSL 1.2 Package Contents 1.3 Features of the Compact Router ADSL 1.4 Applications for the ADSL Router 1.4.1 Internet Access CHAPTER 2: USING COMPACT ROUTER ADSL 2.1 Cautions for using the Compact Router ADSL 2.2 The Front Panel LEDs 2.3 The Rear Ports...
  • Page 4 COMPACT ROUTER ADSL 4.2 Encapsulation 4.2.1 ENET ENCAP 4.2.2 PPP over Ethernet 4.2.3 PPPoA 4.2.4 RFC 1483 4.3 Multiplexing 4.3.1 VC-based Multiplexing 4.3.2 LLC-based Multiplexing 4.4 VPI and VCI 4.5 Wizard Setup Configuration: First Screen 4.6 IP Address and Subnet Mask 4.7 IP Address Assignment 4.7.1 IP Assignment with PPPoA or PPPoE Encapsulation 4.7.2 IP Assignment with RFC 1483 Encapsulation...
  • Page 5 COMPACT ROUTER ADSL CHAPTER 6: WAN SETUP 6.1 WAN Overview 6.2 PPPoE Encapsulation 6.3 PPTP Encapsulation 6.4 Traffic Shaping 6.5 Configuring WAN Setup CHAPTER 7: NETWORK ADDRESS TRANSLATION (NAT) 7.1 NAT Overview 7.1.1 NAT Definitions 7.1.2 What NAT Does 7.1.3 How NAT Works 7.1.4 NAT Application 7.1.5 NAT Mapping Types 7.2 SUA (Single User Account) Versus NAT...
  • Page 6 COMPACT ROUTER ADSL 11.1.3 System Timeout 11.2 Telnet 11.3 FTP 11.4 Web 11.5 Configuring Remote Management CHAPTER 12: MAINTENANCE 12.1 Maintenance Overview 12.2 System Status Screen 12.2.1 System Statistics 12.3 DHCP Table Screen 12.4 Diagnostic Screens 12.4.1 Diagnostic General Screen 12.4.2 Diagnostic DSL Line Screen 12.5 Firmware Screen APPENDIX A: TROUBLESHOOTING...
  • Page 7 COMPACT ROUTER ADSL...

  • Page 8: Fcc Warning

    COMPACT ROUTER ADSL Copyright The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other names mentioned mat be trademarks or registered trademarks of their respective owners. Subject to change without notice. No liability for technical errors and/or omissions.

  • Page 9: Chapter 1: Getting To Know The Adsl Router

    One CD-ROM containing the online manual • One Quick Start Guide • One RJ-11 ADSL/telephone cable • One CAT-5 LAN cable • One AC-DC power adapter (9VDC, 1A) If any of the above items are missing, please contact your reseller. A02-RA110 Pag. 1...

  • Page 10: Features Of The Compact Router Adsl

    G.996.1 (for ISDN only); G.991.1;G.lite (G992.2)).Supports OAM F4/F5 loop- back, AIS and RDI OAM cells.ATM Forum UNI 3.1/4.0 PVC.Supports up to 8 PVCs (UBR, CBR, VBR).Multiple Protocols over AAL5 (RFC 1483).PPP over AAL5 (RFC 2364).PPP over Ethernet (RFC 2516). A02-RA110 Pag. 2...
  • Page 11 Network Management: Embedded Web Configurator,CLI (Command Line Interpreter),SNMP manageable,DHCP Server/Client,Built-in Diagnostic Tools. Syslog, TFTP/FTP server, firmware upgrade and configuration backup/support supported. Diagnostics Capabilities: The ADSL Router can perform self-diagnostic tests. These tests check the integrity of the following circuitry: A02-RA110 Pag. 3...

  • Page 12: Applications For The Adsl Router

    Access Multiplexer) providers. A DSLAM is a rack of ADSL line cards with data multiplexed into a backbone network interface/connection (for example, T1, OC3, DS3, ATM or Frame Relay). Think of it as the equivalent of a modem rack for ADSL. A02-RA110 Pag. 4...
  • Page 13 COMPACT ROUTER ADSL A02-RA110 Pag. 5...

  • Page 14: Chapter 2: Using Compact Router Adsl

    Place the Compact Router ADSL on a stable surface. Only use the power adapter that comes with the package. Do NOT upgrade firmware on any Atlantis Land product over a wireless connection. Failure of the device may result. Use only hard-wired network connections.

  • Page 15: The Rear Ports

    3-5 seconds: no action 6 seconds or above: restore to factory default settings (this is used when you can not login to the router, e.g. forgot the password) Connect the supplied power adapter to this jack. POWER (jack) A02-RA110 Pag. 7...

  • Page 16: Cabling

    On the front of the product is a bank of LEDs. As a first check, verify that the LAN Link and ADSL line LEDs are lit and SYS is blanking. If they are not, verify that you are using the proper cables. A02-RA110 Pag. 8...

  • Page 17: Chapter 3: Introducing The Web Configurator

    Ethernet network adapter must be installed. If not, please refer to MS Windows related manuals. Any TCP/IP capable workstation can be used to communicate with or through the Compact Router ADSL. To configure other types of workstations, please consult the manufacturer’s documentation. A02-RA110 Pag. 9...

  • Page 18: Configuring Pc In Windows

    3. Select the Obtain an IP address from a DHCP server radio button and click “OK”. 3.2.3 For Windows 2000 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections. 2. Double-click LAN Area Connection. A02-RA110 Pag. 10...

  • Page 19: For Windows Xp

    3.2.4 For Windows XP 1. Go to Start / Control Panel (in Classic View). In the Control Panel, double- click on Network Connections. 2. Double-click Local Area Connection 3. In the LAN Area Connection Status window, click Properties. A02-RA110 Pag. 11...
  • Page 20 COMPACT ROUTER ADSL 4. Select Internet Protocol (TCP/IP) and click Properties. 5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons 6. Click “OK” to finish the configuration. A02-RA110 Pag. 12...
  • Page 21 COMPACT ROUTER ADSL A02-RA110 Pag. 13...

  • Page 22: Factory Default Settings

    From 192.168.1.100 to VPI=8 192.168.1.199 VCI=35 3.4 Information from the ISP Before configuring this device, you have to check with your ISP (Internet Service Provider) what kind of service is provided such as PPPoE, PPPoA, RFC1483, IpoA. A02-RA110 Pag. 14...

  • Page 23: Accessing The Adsl Router Web Configurator

    3.5 Accessing the ADSL Router Web Configurator Step 1. Launch your web browser. Step 2. Type "192.168.1.254" as the URL. Step 3. An Enter Network Password window displays. Enter the user name (“admin” is the default), password (“atlantis” default) and click OK. A02-RA110 Pag. 15...
  • Page 24 Click SITE MAP to go to the Site Map screen. Click Logout in the navigation panel when you have finished a ADSL Router management session. A02-RA110 Pag. 16...

  • Page 25: Configuring Password

    COMPACT ROUTER ADSL 3.7 Configuring Password It is highly recommended that you change the password for accessing the ADSL Router. To change the ADSL Router’ password, click Advanced Setup and then Password. The screen appears as shown. A02-RA110 Pag. 17...

  • Page 26: Resetting The Adsl Router

    Step 1. Make sure the SYS LED is on (not blinking). Step 2. Press the RESET button for five seconds, and then release it. When the SYS LED begins to blink, the defaults have been restored and the ADSL Router restarts. A02-RA110 Pag. 18...

  • Page 27: Chapter 4: Wizard Setup

    PPPoA stands for Point to Point Protocol over ATM Adaptation Layer 5 (AAL5). It provides access control and billing functionality in a manner similar to dial-up services using PPP. The ADSL Router encapsulates the PPP session based on A02-RA110 Pag. 19...

  • Page 28: Rfc 1483

    VCI is 32 to 65535 (0 to 31 is reserved for local management of ATM traffic). Please see the appendix for more information. 4.5 Wizard Setup Configuration: First Screen In the SITE MAP screen click Wizard Setup to display the first wizard screen. A02-RA110 Pag. 20...
  • Page 29 Virtual Circuit ID VPI (Virtual Path Identifier) and VCI (Virtual Channel Identifier) define a virtual circuit. Refer to Enter the VPI assigned to you. This field may already be configured. Enter the VCI assigned to you. This field may already be A02-RA110 Pag. 21...

  • Page 30: Ip Address And Subnet Mask

    The Single User Account feature can be enabled or disabled if you have either a dynamic or static IP. However the encapsulation method assigned influences your choices for IP address and ENET ENCAP Gateway. A02-RA110 Pag. 22...

  • Page 31: Ip Assignment With Pppoa Or Pppoe Encapsulation

    The first is that idle timeout is disabled. The second is that the ADSL Router will try to bring up the connection when turned on and whenever the connection is down. A nailed-up connection can be very expensive for obvious reasons. A02-RA110 Pag. 23...

  • Page 32: Wizard Setup Configuration: Second Screen

    All screens shown are with routing mode. Configure the fields and click Next to continue. 4.10.1 PPPoE Select PPPoE from the Encapsulation drop-down list box in the first wizard screen to display the screen as shown. A02-RA110 Pag. 24...

  • Page 33: Rfc 1483

    This configuration is valid in case of a subscription with a static IP and active NAT (SUA) (for the managing of the public class turn to the CD handbook). Make sure that the parameters are, in case of RFC1483, the ones in the picture, if not specifically shown by the ISP. A02-RA110 Pag. 25...
  • Page 34 Select None, SUA Only or Full Feature from the drop-sown list Address box. Refer to the NAT chapter for more details. Translation Network Select None, SUA Only or Full Feature from the drop-sown list Address box. Refer to the NAT chapter for more details. Translation LABEL DESCRIPTION A02-RA110 Pag. 26...

  • Page 35: Enet Encap

    The following table describes the labels in this screen. Label Description IP Address A static IP address is a fixed IP that your ISP gives you. A dynamic IP address is not fixed; the ISP assigns you a A02-RA110 Pag. 27...

  • Page 36: Pppoa

    Click Back to go back to the first wizard screen. Next Click Next to continue to the next wizard screen. 4.10.4 PPPoA Select PPPoA from the Encapsulation drop-down list box in the first wizard screen to display the screen as shown. A02-RA110 Pag. 28...
  • Page 37 Internet. The Single User Account feature can be used with either a dynamic or static IP address. Click Obtain an IP Address Automatically if you have a dynamic IP address; otherwise click Static IP A02-RA110 Pag. 29...

  • Page 38: Dhcp Setup

    4.12 Wizard Setup Configuration: Third Screen Verify the settings in the screen shown next. To change the LAN information on the ADSL Router, click Change LAN Configurations. Otherwise click Save Settings to save the configuration and skip to section 3.13. A02-RA110 Pag. 30...
  • Page 39 COMPACT ROUTER ADSL If you want to change the ADSL Router LAN settings, click Change LAN Configuration to display the screen as shown next. A02-RA110 Pag. 31...
  • Page 40 IP address pool. Address Size of Client IP This field specifies the size or count of the IP address pool. Pool Primary DNS Enter the IP addresses of the DNS servers. The DNS Server servers are passed to the A02-RA110 Pag. 32...

  • Page 41: Wizard Setup Configuration: Connection Tests

    Refer to the rest of this User’s Guide for more detailed information on the complete range of ADSL Router features. If you cannot access the Internet, open the web configurator again to confirm that the Internet settings you configured in the Wizard Setup are correct. A02-RA110 Pag. 33...

  • Page 42: Chapter 5: Lan Setup

    5.1.1 LANs, WANs and the ADSL Router The actual physical connection determines whether the ADSL Router ports are LAN or WAN ports. There are two separate IP networks, one inside, the LAN network; the other outside: the WAN network as shown next: A02-RA110 Pag. 34...

  • Page 43: Dns Server Address

    DNS Server fields in DHCP Setup. 2. Leave the DNS Server fields in DHCP Setup blank (for example 0.0.0.0). The ADSL Router acts as a DNS proxy when this field is blank. A02-RA110 Pag. 35...

  • Page 44: Lan Tcp/Ip

    RIP-1 is universally supported; but RIP-2 carries more information. RIP-1 is probably adequate for most networks, unless you have an unusual network topology. Both RIP-2B and RIP-2M sends the routing data in RIP-2 format; the difference being that RIP-2B uses subnet broadcasting while RIP-2M uses multicasting. A02-RA110 Pag. 36...

  • Page 45: Multicast

    After that, the ADSL Router periodically updates this information. IP multicasting can be enabled/disabled on the ADSL Router LAN and/or WAN interfaces in the web configurator (LAN; WAN). Select None to disable IP multicasting on these interfaces. A02-RA110 Pag. 37...

  • Page 46: Configuring Lan

    If set to Relay, the ADSL Router acts as a surrogate DHCP server and relays DHCP requests and responses between the remote server and the clients. Enter the IP address of the actual, remote DHCP server in the Remote DHCP Server field A02-RA110 Pag. 38...
  • Page 47 The ADSL Router supports both IGMP version 1 (IGMP-v1) and IGMP-v2. Select None to disable it. Apply Click this button to save these settings back to the ADSL Router. Cancel Click this button to reset the fields in this screen. A02-RA110 Pag. 39...

  • Page 48: Chapter 6: Wan Setup

    Point-to-Point Tunneling Protocol (PPTP) is a network protocol that enables secure transfer of data from a remote client to a private server, creating a Virtual Private Network (VPN) using TCP/IP-based networks. PPTP supports on-demand, multi-protocol and virtual private networking over public networks, such as the Internet. A02-RA110 Pag. 40...

  • Page 49: Traffic Shaping

    PCR. After MBS is reached, cell rates fall below SCR until cell rate averages to the SCR again. At this time, more cells (up to the MBS) can be sent at the PCR again.The following figure illustrates the relationship between PCR, SCR and MBS. A02-RA110 Pag. 41...

  • Page 50: Configuring Wan Setup

    COMPACT ROUTER ADSL 6.5 Configuring WAN Setup To change the ADSL Router’s WAN remote node settings, click WAN. The screen differs by the encapsulation. A02-RA110 Pag. 42...
  • Page 51 The Sustain Cell Rate (SCR) sets the average cell rate (long- Rate term) that can be transmitted. Type the SCR, which must be less than the PCR. Maximum Burst Maximum Burst Size (MBS) refers to the maximum number A02-RA110 Pag. 43...
  • Page 52 Refer to the Subnetting appendix in the to calculate a subnet encapsulation mask If you are implementing subnetting. only) ENET ENCAP You must specify a gateway IP address (supplied by your Gateway (ENET ISP) when you select ENET ENCAP in the Encapsulation ENCAP field. encapsulation only) A02-RA110 Pag. 44...
  • Page 53 COMPACT ROUTER ADSL Back Click Back to return to the previous screen. Apply Click Apply to save the changes. Cancel Click Cancel to begin configuring this screen afresh. A02-RA110 Pag. 45...

  • Page 54: Chapter 7: Network Address Translation (Nat)

    Outside This refers to the host on the WAN. Local This refers to the packet address (source or destination) as the packet travels on the LAN. Global This refers to the packet address (source or destination) as the packet travels on the WAN. A02-RA110 Pag. 46...

  • Page 55: What Nat Does

    Many-to-One and Many-to-Many Overload NAT mapping) in each packet and then forwards it to the Internet. The ADSL Router keeps track of the original addresses and port numbers so incoming reply packets can have their original values restored. The following figure illustrates this. A02-RA110 Pag. 47...

  • Page 56: Nat Application

    The following figure illustrates a possible NAT application, where three inside LANs (logical LANs using IP Alias) behind the ADSL Router can communicate with three distinct WAN networks. More examples follow at the end of this chapter. A02-RA110 Pag. 48...

  • Page 57: Nat Mapping Types

    Many-to-One and Server. The ADSL Router also supports Full Feature NAT to map multiple global IP addresses to multiple private LAN IP addresses of clients or servers using mapping types as outlined in A02-RA110 Pag. 49...

  • Page 58: Sua Server

    If the default is not defined, the service request is simply discarded. The most often used port numbers are shown in the following table. Please refer to RFC 1700 for further information about port numbers. A02-RA110 Pag. 50...

  • Page 59: Configuring Servers Behind Sua (Example)

    1723 7.3.2 Configuring Servers Behind SUA (Example) Let's say you want to assign ports 22-25 to one server, port 80 to another and assign a default server IP address of 192.168.1.35 as shown in the next figure. A02-RA110 Pag. 51...

  • Page 60: Selecting The Nat Mode

    Select this radio button if you have multiple public WAN IP addresses for the ADSL Router. Edit Details Click this link to go to the NAT - Address Mapping Rules screen. Apply Click Apply to save your configuration. A02-RA110 Pag. 52...

  • Page 61: Configuring Sua Server

    Start Port No. Enter a port number in this field. To forward only one port, enter the port number again in the End Port No. field. To forward a series of ports, enter the start port number here A02-RA110 Pag. 53...

  • Page 62: Configuring Address Mapping

    4, rules 5 to 7 will be pushed up by 1 rule, so old rules 5, 6 and 7 become new rules 4, 5 and 6. To change the ADSL Router’s address mapping settings, click NAT, Select Full Feature and click Edit Details to open the following screen. A02-RA110 Pag. 54...
  • Page 63 1-1: One-to-one mode maps one local IP address to one global IP address. Note that port numbers do not change for the One-to-one NAT mapping type. M-1: Many-to-One mode maps multiple local IP addresses to one global IP address. A02-RA110 Pag. 55...

  • Page 64: Editing An Address Mapping Rule

    Rules screen to display the screen shown next. The following table describes the labels in this screen. Label Description Type Choose the port mapping type from one of the following. 1. One-to-One: One-to-One mode maps one local IP address A02-RA110 Pag. 56...
  • Page 65 Server Mapping Set field. Apply Click Apply to save your changes back to the ADSL Router. Cancel Click Cancel to return to the previously saved settings. Delete Click Delete to exit this screen without saving A02-RA110 Pag. 57...

  • Page 66: Chapter 8: Security

    Telnet, FTP and HTTP. Click on “Security” link in the Site Map screen to open the following interface. Selecting on of the services in the table the access to the associated port from the WAN will come closed. A02-RA110 Pag. 58...

  • Page 67: Chapter 9: Dynamic Dns Setup

    IP address as yourhost.dyndns.org. This feature is useful if you want to be able to use, for example, www.yourhost.dyndns.org and still reach your hostname. 9.2 Configuring Dynamic DNS To change the ADSL Router’s DDNS, click Dynamic DNS. The screen appears as shown. A02-RA110 Pag. 59...
  • Page 68 Type the password assigned to you. Enable Wildcard Select this check box to enable DYNDNS Wildcard. Apply Click Apply to save your changes back to the ADSL Router. Cancel Click Cancel to return to the previously saved settings. A02-RA110 Pag. 60...

  • Page 69: Chapter 10: Time And Date Setup

    10.1 Configuring Time Zone To change the ADSL Router’s time and date, click Time Zone. The screen appears as shown. Use this screen to configure the ADSL Router’s time based on your local time zone. A02-RA110 Pag. 61...
  • Page 70 If the IP address was entered correctly, try pinging it for example to test the connection. Date Current Date This field displays the date of the ADSL Router. Each time you reload this page, the ADSL Router synchronizes the time with the time server. A02-RA110 Pag. 62...
  • Page 71 When you select None in the Use Time Server when Bootup field, enter the new time in this field and then click Apply. Apply Click Apply to save your changes back to the ADSL Router. Cancel Click Cancel to return to the previously saved settings. A02-RA110 Pag. 63...

  • Page 72: Remote Management Overview

    11.1.2 Remote Management and NAT When NAT is enabled: Use the ADSL Router’s WAN IP address when configuring from the WAN. Use the ADSL Router’s LAN IP address when configuring from the LAN. A02-RA110 Pag. 64...

  • Page 73: System Timeout

    FTP. To use this feature, your computer must have an FTP client. 11.4 Web You can use the ADSL Router’s embedded web configurator for configuration and file management. See the online help for details. 11.5 Configuring Remote Management Click Remote Management to open the following screen. A02-RA110 Pag. 65...
  • Page 74 ADSL Router. Type an IP address to restrict access to a client with a matching IP address. Apply Click Apply to save your settings back to the ADSL Router. Cancel Click Cancel to begin configuring this screen afresh. A02-RA110 Pag. 66...

  • Page 75: Chapter 12: Maintenance

    COMPACT ROUTER ADSL Chapter 12: Maintenance This chapter displays system information such as Atlantis Land firmware, port IP addresses and port traffic statistics. 12.1 Maintenance Overview Use the maintenance screens to view system information, upload new firmware, manage configuration and restart the ADSL Router.
  • Page 76 DHCP Pool Size This is the number of IP addresses in the IP address pool. Show Statistics Click Show Statistics to see router performance statistics such as number of packets sent and number of packets received for each port. A02-RA110 Pag. 68...

  • Page 77: System Statistics

    This is the status of your WAN link. Transfer Rate This is the transfer rate in kbps. Upstream Speed This is the upstream speed of the ADSL Router. Downstream This is the downstream speed of the ADSL Router. Speed A02-RA110 Pag. 69...

  • Page 78: Dhcp Table Screen

    LAN, or else the computer must be manually configured. Click MAINTENANCE, and then the DHCP Table tab. Read-only information here relates to your DHCP status. The DHCP table shows current DHCP client information (including IP Address, Host Name and MAC Address) of all network A02-RA110 Pag. 70...

  • Page 79: Diagnostic Screens

    12.4 Diagnostic Screens These read-only screens display information to help you identify problems with the ADSL Router. Click Diagnostic to display the following screen. 12.4.1 Diagnostic General Screen Click Diagnostic and then General to open the screen shown next. A02-RA110 Pag. 71...

  • Page 80: Diagnostic Dsl Line Screen

    Click OK to proceed. Back Click this button to go back to the main Diagnostic screen. 12.4.2 Diagnostic DSL Line Screen Click Diagnostic and then DSL Line to open the screen shown next. A02-RA110 Pag. 72...
  • Page 81 PVC with proper VPIs/VCIs before you begin this test. The ADSL Router sends an OAM F5 packet to the DSLAM/ATM switch and then returns it (loops it back) to the ADSL Router. The ATM loopback test is useful for troubleshooting A02-RA110 Pag. 73...

  • Page 82: Firmware Screen

    Type in the location of the file you want to upload in this field or click Browse ... to find it. Browse... Click Browse... to find the .bin file you want to upload. Remember that you must decompress compressed (.zip) A02-RA110 Pag. 74...
  • Page 83 After two minutes, log in again and check your new firmware version in the System Status screen. If the upload was not successful, the following screen will appear. Click Back to go back to the Firmware screen. A02-RA110 Pag. 75...

  • Page 84: Appendix A: Troubleshooting

    If these steps fail to correct the problem, contact your local distributor for assistance. A.1.3 DSL LED The DSL LED on the front panel does not light up. STEPS CORRECTIVE ACTION Check the telephone wire and connections between the ADSL Router DSL port and the wall jack. A02-RA110 Pag. 76...

  • Page 85: A.2 Telnet

    Make sure that there is not an console session running. Check that you have enabled web service access. If you have configured a secured client IP address, your computer’s IP address must match it. Refer to the chapter on remote management for details. A02-RA110 Pag. 77...

  • Page 86: A.4 Login Username And Password

    “atlantis”. The Password and Username fields are case- sensitive. Make sure that you enter the correct password and username using the proper casing. It is highly recommended to change the default username and password. Make sure you store the username and password in a A02-RA110 Pag. 78...

  • Page 87: A.5 Lan Interface

    MAC address or the host name. The username and password apply to PPPoE and PPoA encapsulation only. Make sure that you have entered the correct Service Type, User Name and Password (be sure to use the correct casing). A02-RA110 Pag. 79...

  • Page 88: A.7 Internet Access

    Use the ADSL Router’s LAN IP address when configuring from the LAN. Refer to Section A.6 for instructions on checking your LAN connection. Refer to Section A.7 for instructions on checking your WAN connection. See also the Section A.4. A02-RA110 Pag. 80...

  • Page 89: A.9 Remote Node Connection

    Check WAN screen to verify that the username and password are entered properly. Verify your login name and password for the remote node. If these steps fail, you may need to verify your login and password with your ISP. A02-RA110 Pag. 81...

  • Page 90: Appendix B: Technical Features

    Pass Through Input Power 9V DC @ 1A Power Consumption < 9watts Agency and Regulatory Dimensions 135x 90 x 42 mm Weight <190g Operating Temperature 0° to 40°C Storage Temperature -10° to 70°C Operating Humidity 5-95% non-condensing A02-RA110 Pag. 82...

  • Page 91: Appendix C:support

    If you continue to have problems you should contact the dealer where you bought this ADSL Router. If you have any other questions you can contact the Atlantis Land company directly at the following address: Atlantis Land SpA Viale De Gasperi, 122 20017 Mazzo di Rho(MI) Tel: +39.
