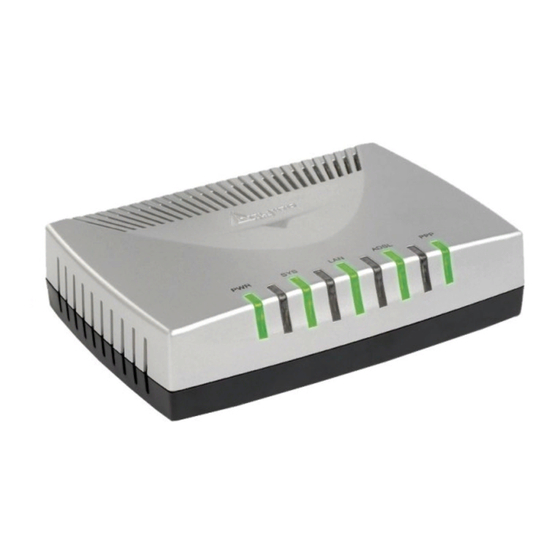

Atlantis Land WebShare A02-RA11 User Manual

Webshare 111/141 router adsl2+
Hide thumbs Also See for WebShare A02-RA11:
Table of Contents

Advertisement

Quick Links

Download this manual

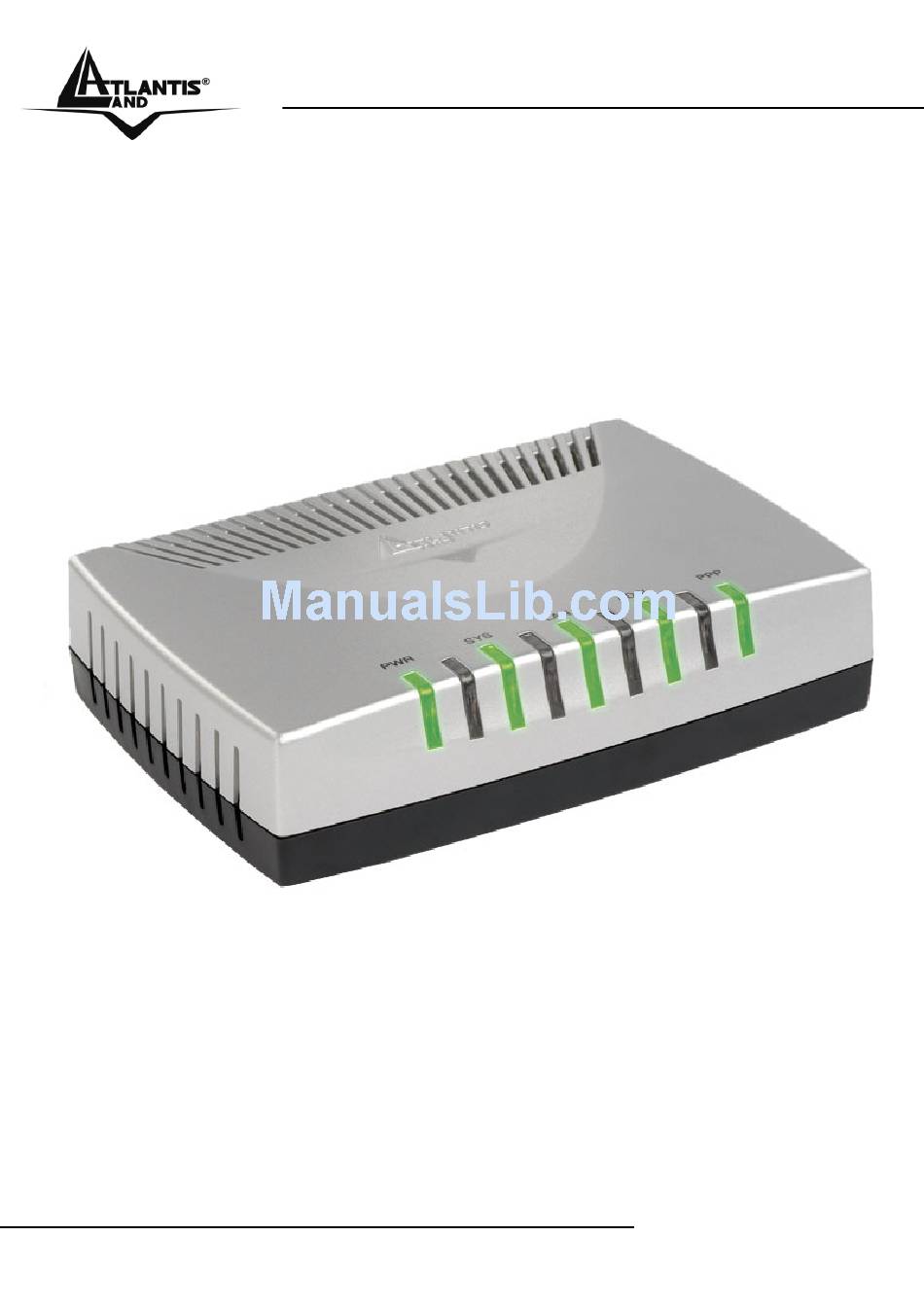

WebShare 111/141
ROUTER ADSL2+
A02-RA111
A02-RA141
USER'S MANUAL
A02-RA11(4)1 _ME02
Where solutions begin
Company certified ISO 9001:2000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WebShare A02-RA11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlantis Land WebShare A02-RA11

Summary of Contents for Atlantis Land WebShare A02-RA11

  • Page 1 WebShare 111/141 ROUTER ADSL2+ A02-RA111 A02-RA141 USER’S MANUAL A02-RA11(4)1 _ME02 Where solutions begin Company certified ISO 9001:2000...
  • Page 2 Where solutions begin Company certified ISO 9001:2000...

  • Page 3: Table Of Contents

    WebShare 111/141 INDICE WebShare 111/141 ROUTER ADSL2+ CHAPTER 1: INTRODUCTION 1.1 An Overview of WebShare 111/141 ADSL2+ Router 1.2 Package Contents 1.3 WebShare 111/141 Router ADSL2+ Features 1.4 WebShare 111/141 Router ADSL2+ Application CHAPTER 2: USING WEBSHARE 111/141 ADSL2+ ROUTER 2.1 Cautions for using the WebShare Router ADSL2+ 2.2 The Front LEDs 2.3 The Rear Ports...
  • Page 4 WebShare 111/141 CHAPTER 4: QUICK START 4.1 Wizard Setup Introduction 4.2 Encapsulation 4.2.1 PPP over Ethernet 4.2.2 PPPoA 4.2.3 RFC 1483 4.3 Multiplexing 4.3.1 VC-based Multiplexing 4.3.2 LLC-based Multiplexing 4.4 VPI and VCI 4.5 Quick Start 4.6 Wizard Setup Configuration: Connection Tests CHAPTER 5: LAN SETUP 5.1 LAN Overview 5.1.1 LANs, WANs and the ADSL Router...
  • Page 5 WebShare 111/141 7.2 SUA (Single User Account) Versus NAT 7.3 Virtual Server and DMZ 7.3.1 Port Forwarding: Services and Port Numbers 7.3.2 Virtual Server Click on Advanced Setup then NAT. 7.4 Selecting the NAT Mode CHAPTER 8: ACCESS MANAGEMENT 8.1 ACL 8.2 IP Filter 8.3 SNMP 8.4 UPnP...
  • Page 6 A.1.2 LAN LED A.1.3 DSL LED A.2 Telnet A.3 Web Configurator A.4 Login Username and Password A.5 LAN Interface A.6 WAN Interface A.7 Internet Access A.8 Remote Management A.9 Remote Node Connection APPENDIX B: TECHNICAL FEATURES APPENDIX C:SUPPORT A02-RA11(4)1_ME02 (V1.0 December 2005)
  • Page 7 WebShare 111/141...

  • Page 8: Fcc Warning

    WebShare 111/141 Copyright The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other names mentioned mat be trademarks or registered trademarks of their respective owners. Subject to change without notice. No liability for technical errors and/or omissions.
  • Page 9 WebShare 111/141 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 10: Webshare 111/141

    WebShare 111/141 CHAPTER 1: Introduction 1.1 An Overview of WebShare 111/141 ADSL2+ Router Welcome to the WebShare 111/141 ADSL2+ Router. Your WebShare 111/141 ADSL2+ Router is an “all-in-one” unit, combining an ADSL modem, ADSL router and Ethernet network switch, providing everything you need to get the machines on your network connected to the Internet over your ADSL broadband connection.

  • Page 11: Package Contents

    WebShare 111/141 (Internet Service Providers) provided IP address can be set to the product and then specific services can be rerouted to specific computers on the local network. For instance, a dedicated web server can be connected to the Internet via the product and then incoming requests for HTML that are received by the product can be rerouted to the dedicated local web server, even though the server now has a different IP address.
  • Page 12 WebShare 111/141 Network Address Translation (NAT): Allows multi-users to access outside resources such as the Internet simultaneously with one IP address/one Internet access account. Many application layer gateway (ALG) are supported such as web browser, ICQ, FTP, Telnet, E-mail, News, Net2phone, Ping, NetMeeting, IP phone and others.

  • Page 13: Webshare 111/141 Router Adsl2+ Application

    WebShare 111/141 Virtual Server: User can specify some services to be visible from outside users. The router can detect incoming service request and forward it to the specific local computer to handle it. For example, user can assign a PC in LAN acting as WEB server inside and expose it to the outside network.
  • Page 14 WebShare 111/141 A02-RA111 / A02-RA141 Pag. 5...

  • Page 15: Chapter 2: Using Webshare 111/141 Adsl2+ Router

    Place the Wireless Router ADSL2+ on a stable surface. Only use the power adapter that comes with the package. Do NOT upgrade firmware on any Atlantis Land product over a wireless connection. 2.2 The Front LEDs In the front of WebShare 111/141 ADSL2+ Router, you can see a LED series that show status of some functionality of product.
  • Page 16 WebShare 111/141 Following table contains meaning of front LEDs: Meaning Lit when power is ON. Lit when the system is ready. Lit when connected to an Ethernet device. Green for 100Mbps; Orange for 10Mbps. Blinking when data is Transmitted / Received. Lit when successfully connected to an ADSL DSLAM ADSL (“linesync”).

  • Page 17: The Rear Ports

    WebShare 111/141 2.3 The Rear Ports Ports Meaning Connect the supplied RJ-11 (“telephone”) cable to this ADSL port when connecting to the ADSL/telephone network. Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four LAN ports when connecting to a PC or an office/home network of 10Mbps or 100Mbps.
  • Page 18 WebShare 111/141 Ensure that all other devices connected to the same telephone line as your router (e.g. telephones, fax machines, analog modems) have a line filter (A01-AF2) connected between them and the wall socket (unless you are using a Central Splitter or Central Filter installed by a qualified and licensed electrician), and ensure that all line filters are correctly installed and the right way around.

  • Page 19: Chapter 3: Configuration

    WebShare 111/141 CHAPTER 3: Configuration WebShare 111/141 Router ADSL2+ can be configured with your web browser. A web browser is included as a standard application in the following operating systems: Windows 98/NT/2000/XP/Me, MAC, Linux, etc. The product provides a very easy and user-friendly interface for configuration. 3.1 Before Configuration PCs must have an Ethernet interface installed properly and be connected to the router either directly or through an external repeater hub, and have TCP/IP...

  • Page 20: Configuring Pc For Windows 95/98/Me

    WebShare 111/141 3.1.1 Configuring PC for Windows 95/98/ME 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Configuration tab. Select TCP / IP -> NE2000 Compatible, or the name of any Network Interface Card (NIC) in your PC.
  • Page 21 WebShare 111/141 A02-RA111 / A02-RA141 Pag. 12...

  • Page 22: Configuring Pc For Windows Nt4.0

    WebShare 111/141 3.1.2 Configuring PC for Windows NT4.0 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Protocols tab. 2. Select TCP/IP Protocol and click Properties. 3. Select the Obtain an IP address from a DHCP server radio button and click “OK”.

  • Page 23: Configuring Pc For Windows 2000

    WebShare 111/141 3.1.3 Configuring PC for Windows 2000 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections. 2. Double-click LAN Area Connection. 3. In the LAN Area Connection Status window, click Properties. A02-RA111 / A02-RA141 Pag.
  • Page 24 WebShare 111/141 4. Select Internet Protocol (TCP/IP) and click Properties 5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons. 6. Click “OK” to finish the configuration. A02-RA111 / A02-RA141 Pag. 15...

  • Page 25: Configuring Pc For Windows Xp

    WebShare 111/141 3.1.4 Configuring PC for Windows XP 1. Go to Start / Control Panel (in Classic View). In the Control Panel, double- click on Network Connections. 2. Double-click Local Area Connection A02-RA111 / A02-RA141 Pag. 16...
  • Page 26 WebShare 111/141 3. In the LAN Area Connection Status window, click Properties. 4. Select Internet Protocol (TCP/IP) and click Properties. 5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons. 6. Click “OK” to finish the configuration. A02-RA111 / A02-RA141 Pag.

  • Page 27: Configuring For Mac

    WebShare 111/141 3.1.5 Configuring for MAC 1. Click on Apple Menu and select Control Panel/TCP/IP. It will appear the follow screen. 2. Select Ethernet on Connect Via. 3. Select Using DHCP Server on Configure. 4. Leave empty the field DHCP Client ID.

  • Page 28: Verification Of Configuration

    WebShare 111/141 3.1.6 Verification of Configuration To verify your correct configuration (after PC restart, necessary for Windows 98, 98Se, ME and instead enough obtain IP lease for XP, 2000),use ping command. From a DOS Window, type: ping 192.168.1.254. If It show you this message: Pinging 192.168.1.254 with 32 bytes of data: Reply from 192.168.1.254: bytes=32 times<10ms TTL=64 Reply from 192.168.1.254: bytes=32 times<10ms TTL=64...

  • Page 29: Factory Default Setting

    WebShare 111/141 3.2 Factory Default Setting Before configuring your, you need to know the following default settings: Username: admin Password: atlantis IP Address (192.168.1.254) Subnet Mask (255.255.255.0) ISP Setting in WAN Side = PPPoA, VCMux, Routing, VPI=8, VCI=35 DHCP Server enabled with IP pool from192.168.1.100 to 192.168.1.199 3.2.1 Password The default username and password are admin and atlantis respectively.

  • Page 30: Lan And Wan Port Addresses

    WebShare 111/141 3.2.2 LAN and WAN Port Addresses The parameters of LAN and WAN ports are pre-set in the factory. The default values are shown below. Porta LAN Porta WAN IP address 192.168.1.254 Mode=Routing Encapsulation=PPPoA Subnet Mask 255.255.255.0 Multiplex=VC Enabled DHCP server function VPI=8 100 IP addresses...

  • Page 31: Browser Configuration

    WebShare 111/141 3.5 Browser Configuration Open your web browser, enter the IP address of your router, which by default is 192.168.1.254, and click “Go”. The default username and password are “admin” and “atlantis”. You will get a status report web page when login successfully. 3.6 Surfing in Web GUI Configuration This section descrive how to surf on Site Map configuration Interface.

  • Page 32: Configuring Password

    WebShare 111/141 3.7 Configuring Password It is highly recommended that you change the password for accessing the ADSL Router. To change the ADSL Router’ password, click Maintenance and then Administration . The screen appears as shown. A02-RA111 / A02-RA141 Pag. 23...

  • Page 33: Resetting The Adsl Router

    WebShare 111/141 The following table describes the labels in this screen. Label Description Type the new password in this field. New Password Confirm Password Type the new password again in this field. Click Apply to save your changes back to the ADSL Router. Save Cancel Click Cancel to begin configuring this screen afresh.

  • Page 34: Chapter 4: Quick Start

    WebShare 111/141 CHAPTER 4: Quick Start This chapter provides information on the Wizard Setup screens in the web configurator. 4.1 Wizard Setup Introduction Use the Wizard Setup screens to configure your system for Internet access settings and fill in the fields with the information in the Internet Account Information table of the Compact Guide or Read Me First.

  • Page 35: Multiplexing

    WebShare 111/141 4.3 Multiplexing There are two conventions to identify what protocols the virtual circuit (VC) is carrying. Be sure to use the multiplexing method required by your ISP. 4.3.1 VC-based Multiplexing In this case, by prior mutual agreement, each protocol is assigned to a specific virtual circuit;...
  • Page 36 WebShare 111/141 You can change the password as you like and then click Next to continue. Select your time zone from the drop down list. Please click Next to continue. Select how the router will set up the Internet connection: PPPoE/PPPoA: to obtain IP automatically (You need username and password).
  • Page 37 Click on Next. You have to pay particular attention to the WAN-ADSL connection. If you have any doubt turn to qualified personnel or contact Atlantis-Land technical assistance. Atlantis Land will not be considered responsible in case of wrong or bad configuration.

  • Page 38: Wizard Setup Configuration: Connection Tests

    WebShare 111/141 Click on Next. 4.6 Wizard Setup Configuration: Connection Tests Launch your web browser and navigate to www.atlantis-land.com Internet access is just the beginning. Refer to the rest of this User’s Guide for more detailed information on the complete range of ADSL Router features. If you cannot access the Internet, open the web configurator again to confirm that the Internet settings you configured in the Wizard Setup are correct.

  • Page 39: Chapter 5: Lan Setup

    WebShare 111/141 CHAPTER 5: LAN Setup This chapter describes how to configure LAN settings. 5.1 LAN Overview A Local Area Network (LAN) is a shared communication system to which many computers are attached. A LAN is a computer network limited to the immediate area, usually the same building or floor of a building.

  • Page 40: Dns Server Address

    WebShare 111/141 5.2 DNS Server Address DNS (Domain Name System) is for mapping a domain name to its corresponding IP address and vice versa, for example, the IP address of www.atlantis-land.com is 204.217.0.2. The DNS server is extremely important because without it, you must know the IP address of a machine before you can access it.

  • Page 41: Factory Lan Defaults

    WebShare 111/141 5.4.1 Factory LAN Defaults The LAN parameters of the ADSL Router are preset in the factory with the following values: IP address of 192.168.1.254 with subnet mask of 255.255.255.0 (24 bits) DHCP server enabled with 100 client IP addresses starting from 192.168.1.100. These parameters should work for the majority of installations.
  • Page 42 WebShare 111/141 IGMP version 1 is still in wide use. If you would like to read more detailed information about interoperability between IGMP version 2 and version 1, please see sections 4 and 5 of RFC 2236. The class D IP address is used to identify host groups and can be in the range 224.0.0.0 to 239.255.255.255.

  • Page 43: Configuring Lan

    WebShare 111/141 5.5 Configuring LAN “ Click “Interface Setup” then LAN” to open the following screen. The following table describes the labels in this screen. Router Local IP Enter the IP address of the ADSL Router in dotted decimal IP Address notation, for example, 192.168.1.254 (factory default).
  • Page 44 WebShare 111/141 DHCP Label Description DHCP If set to Enabled, the ADSL Router can assign IP addresses, an IP default gateway and DNS servers to Windows 95, Windows NT and other systems that support the DHCP client. If set to Disabled, the DHCP server will be disabled. If set to Relay, the ADSL Router acts as a surrogate DHCP server and relays DHCP requests and responses between the remote server and the clients.

  • Page 45: Chapter 6: Wan Setup

    WebShare 111/141 CHAPTER 6: WAN Setup This chapter describes how to configure WAN settings. 6.1 WAN Overview A WAN (Wide Area Network) is an outside connection to another network or the Internet. See the Wizard Setup chapter for more information on the fields in the WAN screens.
  • Page 46 WebShare 111/141 an ATM network. This agreement helps eliminate congestion, which is important for transmission of real time data such as audio and video connections. Peak Cell Rate (PCR) is the maximum rate at which the sender can send cells. This parameter may be lower (but not higher) than the maximum line speed.

  • Page 47: Configuring Wan Setup

    WebShare 111/141 6.5 Configuring WAN Setup To change the ADSL Router’s WAN remote node settings, click Interface Setup then Internet. The screen differs by the encapsulation. A02-RA111 / A02-RA141 Pag. 38...
  • Page 48 WebShare 111/141 The following table describes the labels in this screen. PARAMETRES DESCRIPTION ATM VC VPI (Virtual Path Identifier) and VCI (Virtual Channel Identifier) Virtual Circuit ID define a virtual circuit. Activated or Deactivated Status The valid range for the VPI is 0 to 255. Enter the VPI assigned to you.
  • Page 49 WebShare 111/141 Select Obtain an IP Address Automatically if you have a dynamic IP address; otherwise select Static IP Address and type your ISP assigned IP address in the IP Address field below. Select the method of multiplexing used by your ISP from the Multiplex drop-down list.
  • Page 50 WebShare 111/141 IGMP-v2. Select None to disable it. Save Click Apply to save the changes. A02-RA111 / A02-RA141 Pag. 41...
  • Page 51 WebShare 111/141 A02-RA111 / A02-RA141 Pag. 42...

  • Page 52: Chapter 7: Network Address Translation (Nat)

    WebShare 111/141 CHAPTER 7: Network Address Translation (NAT) This chapter discusses how to configure NAT on the WebShare Router ADSL2+. 7.1 NAT Overview NAT (Network Address Translation - NAT, RFC 1631) is the translation of the IP address of a host in a packet, for example, the source address of an outgoing packet, used within one network to a different IP address known within another network.

  • Page 53: How Nat Works

    WebShare 111/141 NAT translates the destination address (the inside global address) back to the inside local address before forwarding it to the original inside host. Note that the IP address (either local or global) of an outside host is never changed. The global IP addresses for the inside hosts can be either static or dynamically assigned by the ISP.

  • Page 54: Nat Mapping Types

    WebShare 111/141 with three distinct WAN networks. More examples follow at the end of this chapter. 7.1.5 NAT Mapping Types NAT supports five types of IP/port mapping. They are: 1. One to One: In One-to-One mode, the ADSL Router maps one local IP address to one global IP address.

  • Page 55: Sua (Single User Account) Versus Nat

    WebShare 111/141 ILA4 IGA2 … Many-to-Many No Overload ILA1 IGA1 ILA2 IGA2 ILA3 IGA3 … Server Server 1 IP IGA1 Server 2 IP IGA1 Server 3 IP IGA1 7.2 SUA (Single User Account) Versus NAT SUA (Single User Account) is a implementation of a subset of NAT that supports two types of mapping, Many-to-One and Server.
  • Page 56 WebShare 111/141 on your local network. You may enter a single port number or a range of port numbers to be forwarded, and the local IP address of the desired server. The port number identifies a service; for example, web service is on port 80 and FTP on port 21.

  • Page 57: Virtual Server

    WebShare 111/141 7.3.2 Virtual Server Click on Advanced Setup then NAT. Click on Virtual Server. A02-RA111 / A02-RA141 Pag. 48...
  • Page 58 WebShare 111/141 The following table describes the labels in this screen. Label Description Start Port No. Enter a port number in this field. To forward only one port, enter the port number again in the End Port No. field. To forward a series of ports, enter the start port number here and the end port number in the End Port No.

  • Page 59: Selecting The Nat Mode

    WebShare 111/141 7.4 Selecting the NAT Mode Click Advanced Setup then NAT to open the following screen chose Multiple (Numbers of IP). Click on IP Address Mapping (for Multiple IPs Service). A02-RA111 / A02-RA141 Pag. 50...
  • Page 60 WebShare 111/141 Ordering your rules is important because the ADSL Router applies the rules in the order that you specify. When a rule matches the current packet, the ADSL Router takes the corresponding action and the remaining rules are ignored. If there are any empty rules before your new configured rule, your configured rule will be pushed up by that number of empty rules.
  • Page 61 WebShare 111/141 A02-RA111 / A02-RA141 Pag. 52...

  • Page 62: Chapter 8: Access Management

    WebShare 111/141 CHAPTER 8: Access Management 8.1 ACL Access Control Listing allows you to determine which services/protocols can access which WEBSHARE ROUTER ADSL2+ interface from which computers. You can configure the router for remote Telnet access or upload and download router firmware and configuration files using FTP.

  • Page 63: Ip Filter

    WebShare 111/141 8.2 IP Filter You may use telnet or Web to remotely manage the ADSL Router. User just needs to enable Telnet or Web and give it an IP address that want to access the ADSL Router. The default IP 0.0.0.0 allows any client to use this service to remotely manage the ADSL Router.
  • Page 64 WebShare 111/141 the Internet (“Incoming”).or Both IP FILTER RULE EDITING: Field Meaning Filter Rule This is item number Index Active Select Yes from the drop down list box to enable IP filter rule The source IP address or range of packets to be Source monitored Address...

  • Page 65: Snmp

    WebShare 111/141 8.3 SNMP Simple Network Management Protocol (SNMP) is a protocol used for exchanging management information between network devices. SNMP is a member of the TCP/IP protocol suite. WebShare Router ADSL2+ supports SNMP agent functionality which allows a manager station to manage and monitor the router through the network.

  • Page 66: Ddns

    WebShare 111/141 Field Meaning Select this checkbox to activate UPnP. Be aware UPnP that anyone could use a UPnP application to open the web configurator's login screen without entering the WEBSHARE ROUTER ADSL2+ IP address Auto-Configured Select this check box to allow UPnP-enabled applications automatically configure...
  • Page 67 WebShare 111/141 Field Meaning Select this check box to use dynamic DNS Dynamic DNS Select the name of your Dynamic DNS service provider Service Provider Type the domain name assigned to your WEBSHARE My Host Name ROUTER ADSL2+ by your Dynamic DNS provider E-Mail Address Type your e-mail address Username...

  • Page 68: Chapter 9: Advanced Setup

    WebShare 111/141 CHAPTER 9: Advanced Setup 9.1 Routing If you have another router with a LAN-to-LAN connection, you may create a static routing on the router that is the gateway to Internet. ROUTING TABLE LIST: Field Meaning Item number IP address of the destination network Dest IP The destination mask address Mask...
  • Page 69 WebShare 111/141 Field Meaning Destination This is the destination subnet IP address Address IP Subnet Mask It is the destination IP addresses based on above destination subnet IP This is the gateway IP address to which packets are Gateway IP Address to be forwarded It represents the cost of transmission for routing Metric...

  • Page 70: Nat

    WebShare 111/141 9.2 NAT The NAT (Network Address Translation - NAT, RFC 1631) is the translation of the IP address of a host in a packet. The default setting is Dynamic NAPT. It provides dynamic Network Address Translation capability between LAN and multiple WAN connections, and the LAN traffic is routed to appropriate WAN connections based on the destination IP addresses and Route Table.

  • Page 71: Virtual Server

    WebShare 111/141 Enabled radio button is checked. Be aware that this IP will be exposed to the WAN/Internet. Select the Apply button to apply your changes. 9.2.3 Virtual Server In TCP/IP and UDP networks a port is a 16-bit number used to identify which application program (usually a server) incoming connections should be delivered to.

  • Page 72: Ip Address Mapping

    WebShare 111/141 9.2.4 IP Address Mapping Field Meaning Choose the rule number Rule Index Rule Type One-to-one: This is the mode maps one local IP address to one global IP address. Note that port numbers do not change for the One-to-one NAT mapping type Many-to-One: This is the mode maps multiple local IP addresses to one global IP address.

  • Page 73: Adsl

    WebShare 111/141 9.3 ADSL Field Meaning ADSL Mode The default setting is Auto Sync-UP. This mode will automatically detect your ADSL, ADSL2+, ADSL2, G.dmt, G.lite, and T1.413. But in some area, multimode cannot detect the ADSL line code well. If it is the case, please adjust the ADSL line code to G.dmt or T1.413 first.

  • Page 74: Chapter 10: Maintenance

    WebShare 111/141 CHAPTER 10: Maintenance 10.1 Administration In factory setting, the default password is atlantis, and that for user is also password. You can change the default password to ensure that someone cannot adjust your settings without your permission. Every time you change your password, please record the password and keep it at a safe place.

  • Page 75: Firmware

    WebShare 111/141 Field Meaning Select the time service protocol that your time Synchronize time with server sends when you turn on the Router Choose the time zone of your location. This will set Time Zone the time difference between your time zone and Greenwich Mean Time (GMT) Daylight Saving Select this option if you use daylight savings time...
  • Page 76 WebShare 111/141 Field Meaning Type in the location of the file you want to upload in Firmware this field or click Browse to find it Location Browse Click Browse... to find the .ras file you want to upload. Remember that you must decompress compressed (.zip) files before you can upload them Upgrade Click UPGRADE to begin the upload process.

  • Page 77: Sysrestart

    WebShare 111/141 10.4 SysRestart Click SysRestart with option Current Settings to reboot your router (and restore your last saved configuration). If you wish to restart the router using the factory default settings (for example, after a firmware upgrade or if you have saved an incorrect configuration), select Factory Default Settings to reset to factory default settings.
  • Page 78 WebShare 111/141 A02-RA111 / A02-RA141 Pag. 69...

  • Page 79: Chapter 11: Status

    WebShare 111/141 CHAPTER 11: Status 11.1 Device Info DEVICE INFORMATION: Field Meaning Firmware version This is the Firmware version This is the MAC Address MAC Address LAN: Field Meaning A02-RA111 / A02-RA141 Pag. 70...

  • Page 80: System Log

    WebShare 111/141 IP Address LAN port IP address Sub Net Mask LAN port IP subnet mask LAN port DHCP role - Enabled, Relay or disabled DHCP Server WAN: Field Meaning “Not connected” or “Connected” Status There are eight groups of PVC can be defined Virtual Circuit VPI: The valid range for the VPI is 0 to 255 VCI: The valid range for the VCI is 32 to 65535...
  • Page 81 WebShare 111/141 ETHERNET: Field Meaning Interface This field displays the type of port Transmit Frames This field displays the number of frames transmitted in the last second This field displays the number of multicast Transmit Multicast Frames frames transmitted in the last second This field displays the number of bytes Transmit total Bytes transmitted in the last second...
  • Page 82 WebShare 111/141 A02-RA111 / A02-RA141 Pag. 73...

  • Page 83: Appendix A: Troubleshooting

    WebShare 111/141 APPENDIX A: Troubleshooting This chapter covers potential problems and the corresponding remedies. A.1 Using LEDs to Diagnose Problems The LEDs are useful aides for finding possible problem causes. A.1.1 Power LED The PWR LED on the front panel does not light up. STEPS CORRECTIVE ACTION Make sure that the ADSL Router’s power adaptor is connected...

  • Page 84: Telnet

    WebShare 111/141 Reset your ADSL line to reinitialize your link to the DSLAM. For details, refer to the Maintenance chapter (web configurator) or the System Information and Diagnosis chapter. If these steps fail to correct the problem, contact your local distributor for assistance.

  • Page 85: Login Username And Password

    WebShare 111/141 the new one as the URL. Remove any filters in LAN or WAN that block web service. See also Section A.9. The web configurator does not display properly. STEPS CORRECTIVE ACTION Make sure you are using Internet Explorer 5.0 and later versions.

  • Page 86: Wan Interface

    WebShare 111/141 be on if the port is connected to a computer or hub. If the 10M/100M LEDs on the front panel are both off, refer to Section A.1.2. Make sure that the IP address and the subnet mask of the ADSL Router and your computer(s) are on the same subnet.

  • Page 87: Remote Management

    WebShare 111/141 STEPS CORRECTIVE ACTION Check the schedule rules. If you use PPPoA or PPPoE encapsulation, check the idle time- out setting. Contact your ISP. A.8 Remote Management I cannot remotely manage the ADSL Router from the LAN or WAN. STEPS CORRECTIVE ACTION Refer to the Remote Management Limitations section in the...

  • Page 88: Appendix B: Technical Features

    WebShare 111/141 APPENDIX B: Technical Features IP, NAT, ARP, ICMP, IGMP, DHCP(server, client Protocols and relay), RIP1/2 , SNTP client, UPnP, Telnet server, SNMP 1 xRJ45 10/100 Base-T port[A02-RA111] LAN port 4 x RJ45 10/100 Base-T port[A02-RA141] RJ-11 (1 port ADSL) WAN port External buttons Reset...

  • Page 89: Appendix C:support

    If you continue to have problems you should contact the dealer where you bought this ADSL Router. If you have any other questions you can contact the Atlantis Land company directly at the following address: Atlantis Land SpA Viale De Gasperi, 122 20017 Mazzo di Rho(MI) Tel: +39.
