This appendix describes how Network Address Translation (NAT) works within the Netopia R910. The Netopia
R910 implements a powerful feature called Network Address Translation as specified in RFC 1631. NAT is used
for IP address conservation and for security purposes since there will only be a single IP "presence" on the
WAN. This appendix describes the NAT functionality within the Netopia R910 and provides examples for setup
and use.
Network configuration

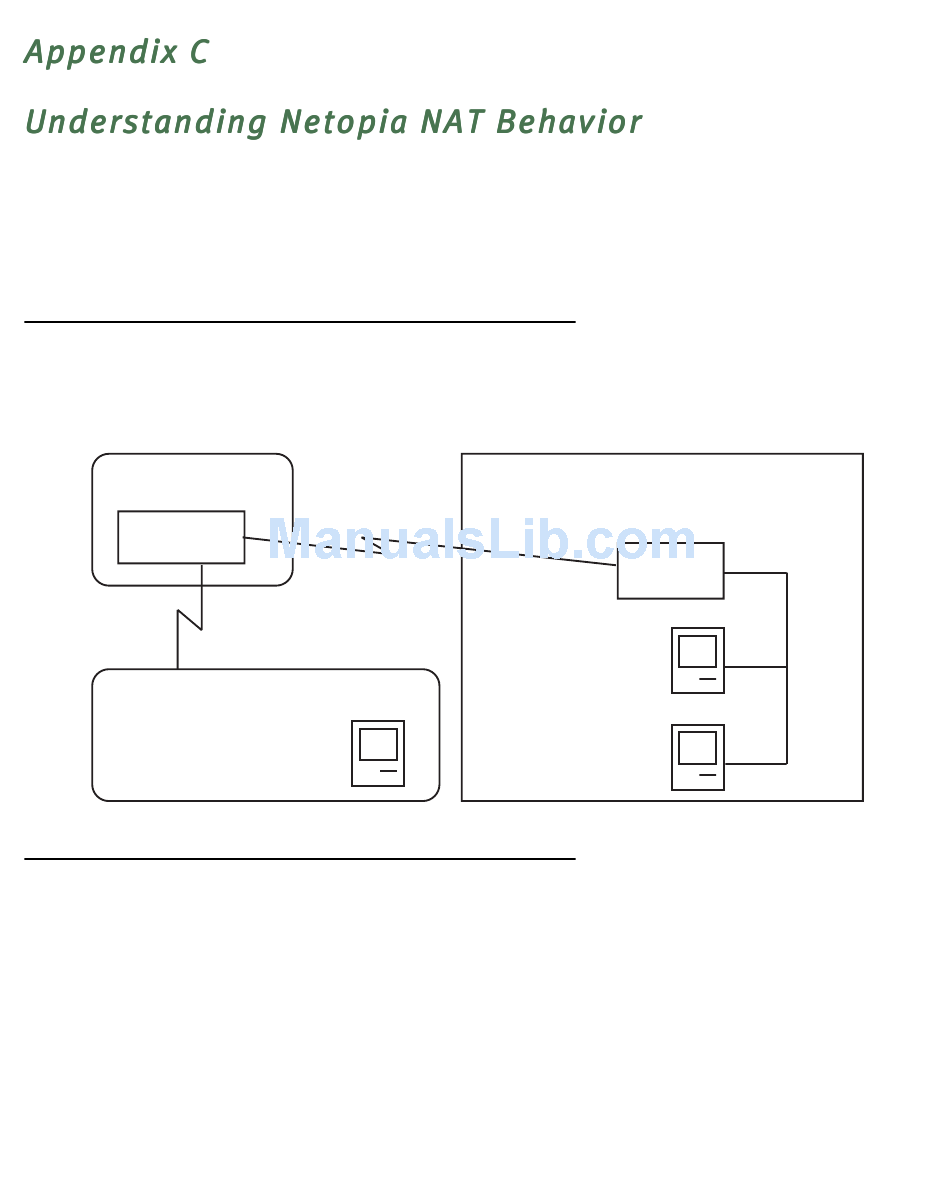

Below is a diagram of the network referenced in this appendix.
ISP Network
IP: 200.1.1.1
Mask: 255.255.255.0
Router
WWW Server
IP: 163.176.4.32
Mask: 255.255.255.0
MAC: 00-05-02-0c-1b-41
Background
NAT is a mechanism employed within the Netopia R910 to acquire a statically or dynamically assigned IP
address on its WAN interface and proxy against locally assigned IP addresses on its LAN interface. The Netopia
R910 uses a one-to-many IP address mapping scheme; that is against a single IP address the Netopia R910
acquires on its WAN interface, the Netopia R910 can proxy 14, 30, or an unlimited number of IP hosts on the
LAN interface.
In order to fully understand how NAT works, you must understand how a connection is established and IP
addresses are negotiated.
Internet
Understanding Netopia NAT Behavior C-187
Customer Site
Netopia Router
WAN IP: 200.1.1.40
Mask: 255.255.255.0
MAC: 00-00-c5-60-21-0a
Netopia
Workstation A
IP: 192.168.5.2
Mask: 255.255.255.240
MAC: 00-05-02-04-12-4f
Workstation B
IP: 192.168.5.3
Mask: 255.255.255.240
MAC: 00-05-02-00-1e-03
Netopia Router
LAN IP: 192.168.5.1
Mask: 255.255.255.240
MAC: 00-00-c5-60-21-0a
LAN
