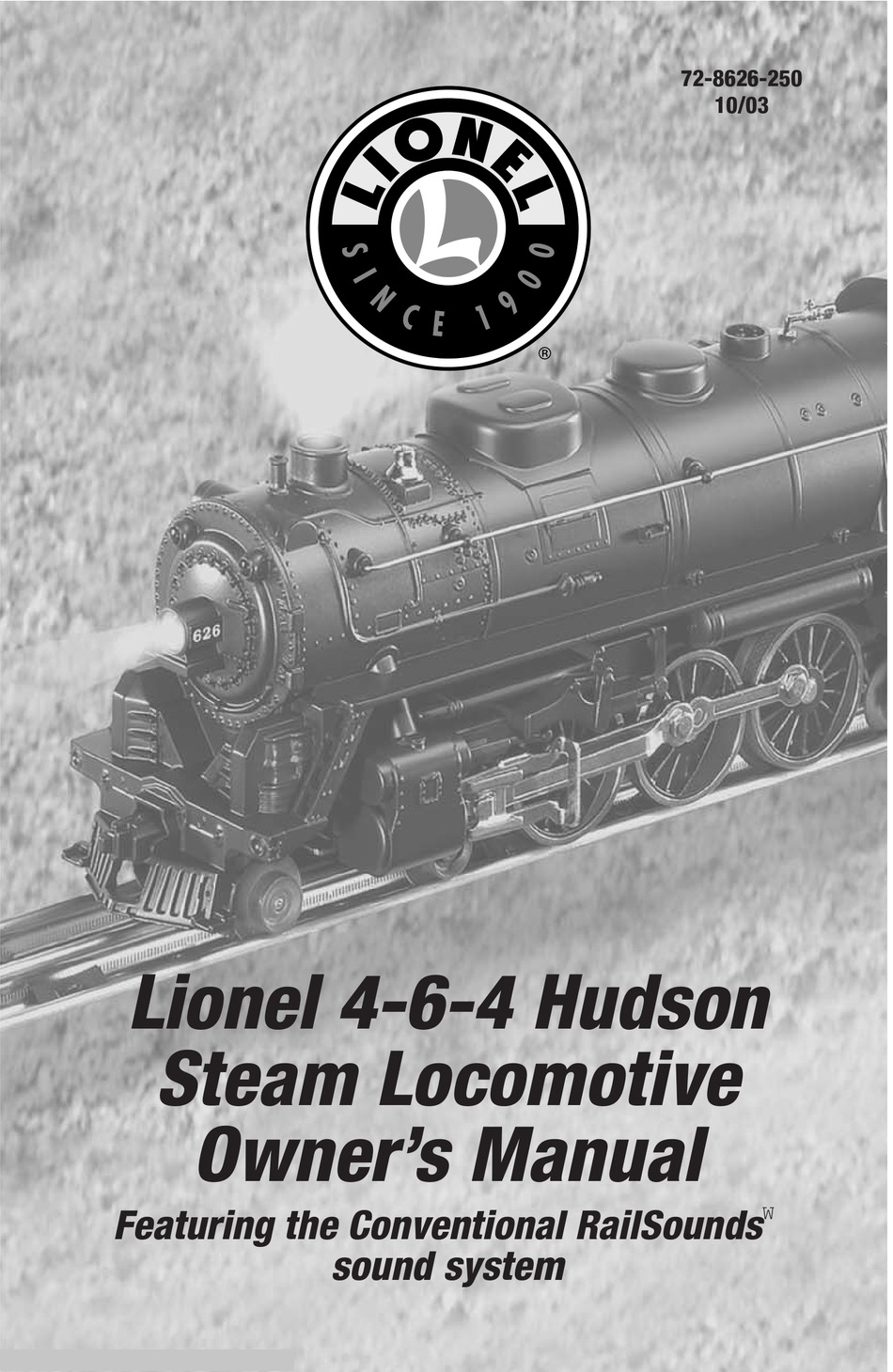

72-8626-250
10/03
Lionel 4-6-4 Hudson
Steam Locomotive
Owner's Manual
W
Featuring the Conventional RailSounds
sound system

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4-6-4 Hudson and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lionel 4-6-4 Hudson

Summary of Contents for Lionel 4-6-4 Hudson

  • Page 1 72-8626-250 10/03 Lionel 4-6-4 Hudson Steam Locomotive Owner’s Manual Featuring the Conventional RailSounds sound system...

  • Page 2: Table Of Contents

    Adding fluid to your locomotive’s smoke stack Replacing your locomotive’s lamp Lubricating your locomotive 10-11 Replacing your locomotive’s traction tires Lionel service The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel ® , TrainMaster ®...

  • Page 3: Transformer Operations

    Move ‘em out! Get your locomotive moving. Press the DIR button on your Lionel transformer. This advances the Lionel reverse unit to the next operating state in the repeating sequence: forward, neutral, reverse, and neutral. Adjust track voltage until your locomotive moves at your desired speed. To increase speed, increase track voltage.

  • Page 4: Locking Your Locomotive Into A Single Operational State

    Transformer operations Locking your locomotive into a single operational state he reverse unit inside your Lionel locomotive is an electronic device that acts like the transmission in your car. When you apply power to the track, the locomotive moves in the direction specified by the reverse unit—or it sits in neutral, awaiting another power...

  • Page 5: Using Your Locomotive's Magnetic Coupler

    Lionel in 1945. These magnetic couplers react to the magnetic field generated by a Lionel Remote-Control Track section (available separately, 6-65530 for O gauge;...

  • Page 6: Conventional Railsounds Sound System Operations

    Lionel no. 610-5906-001 Sound Activation Buttons (available separately) if your transformer is not equipped to activate these features. Connect the button(s) as shown below.

  • Page 7: Experiencing The Conventional Railsounds Sound System

    Conventional RailSounds sound system operations Experiencing the Conventional RailSounds sound system ith the Conventional RailSounds access the battery clip. Remove the three sound system, you experience the tender body screws and lift the body away. sounds of railroading like never before. Be Refer to Figure 4 for the location of these sure to install a nine-volt alkaline battery in screws.

  • Page 8: Features Of Your Locomotive's Railsounds Sound System

    Conventional RailSounds sound system operations Features of your locomotive’s RailSounds sound system Whistle. Press the WHISTLE button on your Variable chuff rate. The speed of your controller and your locomotive’s whistle will locomotive determines the rate of steam sound as long as the button is pressed. chuffing.

  • Page 9: Adding Fluid To Your Locomotive's Smoke Stack

    The smoke generator requires the periodic addition of Lionel smoke fluid in order to function. Pierce the tube end with a pin, then add four to eight drops of fluid directly into the locomo- tive’s stack.

  • Page 10: Lubricating Your Locomotive

    Maintaining your locomotive Lubricating your locomotive elp your Lionel steam locomotive lead a long and productive life on your railroad by main- taining it properly. We recommend that you purchase a Lionel Lubrication and Maintenance Kit (6-62927), available from your Lionel dealer. Two basic rules to keep in mind: never over-lubricate (a small amount will do), and avoid getting grease or oil on the steam locomotive’s wheels, contact rollers, or your track.

  • Page 11: Replacing Your Locomotive's Traction Tires

    To replace the traction tires, simply use a 3/16” nut driver to remove the side rod nut from the wheel and slip off the old traction tire. Refer to Figure 7. Install the replacement, Lionel part no. 620-8616-206. Retighten the side rod nut, and you’re ready to pull that long freight back to the yard.

  • Page 12: Lionel Service

    Lionel product, including all to the nearest Authorized Lionel Service Center. mechanical and electrical components, Your nearest Lionel Service Center can be found by moving parts, motors and structural calling 1-800-4-Lionel, or by accessing our Website components, except for light bulbs, is warranted to at www.lionel.com.
