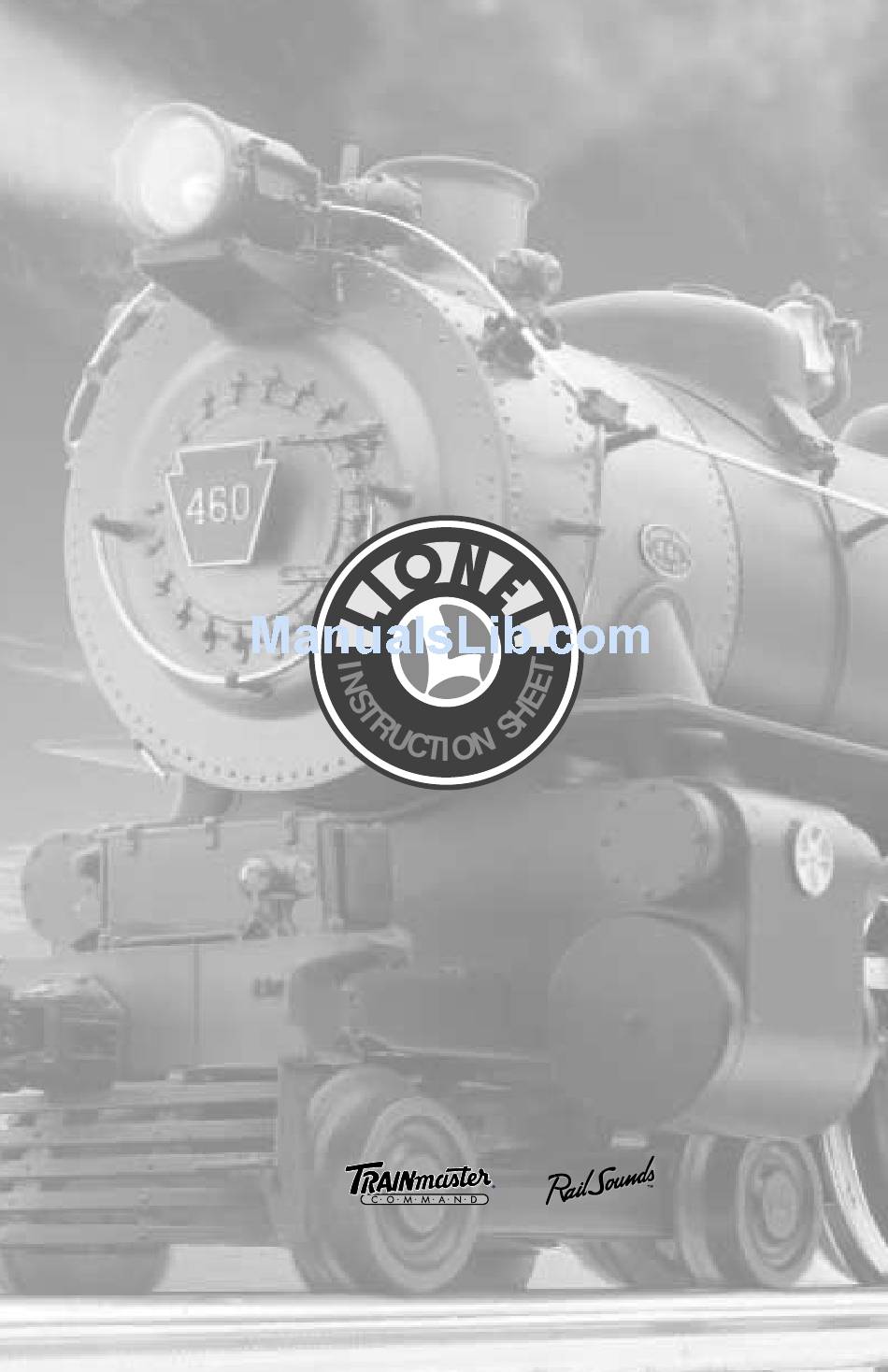

71-8094-250
9/99
LIONEL
Lionel 4-4-2 Atlantic
Steam Locomotive Owner's
Manual
Command Control and RailSounds Equipped
featuring
and

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4-4-2 Atlantic and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lionel 4-4-2 Atlantic

Summary of Contents for Lionel 4-4-2 Atlantic

  • Page 1 71-8094-250 9/99 LIONEL Lionel 4-4-2 Atlantic Steam Locomotive Owner’s Manual Command Control and RailSounds Equipped featuring...
  • Page 2 Experience the superi- From the crisp die-cast detail and the ority of today’s Lionel. authentic decoration outside to the advanced • R2LC radio unit for use with the Lionel • Smoke generator that produces clean, TrainMaster ®...

  • Page 3: Transformer Operations

    Move ‘em out! • Get your locomotive moving. Press the DIR button on your CAB-1 remote or Lionel transformer. This sequences the Lionel Command reverse unit (R2LC) to the next operating state. The R2LC alternates between three states: forward, neu- tral, and reverse.
  • Page 4 Transformer operations Using your tenders Electrocoupler in the non-Command environment he rear of your Lionel locomotive’s ten- magnetic field generated by a Lionel remote- der is equipped with an Electrocoupler. control track section (available separately). When in the non-Command environment, Place your rolling stock’s coupler “trigger...
  • Page 5 The smoke generator requires the periodic smoking. addition of Lionel smoke fluid in order to An idle locomotive will not smoke; press function. Pierce the tube end with a pin, AUX1 and 9 (press for a maximum of 10 sec-...
  • Page 6 Transformer operations Your locomotive’s Railsounds system—the basics ionel Railsounds is the most realistic motive’s Railsounds system delivers an model railroad sound system in the authentic start-up sequence, followed by the world. Your locomotive Railsounds features sounds of the locomotive at idle. As the loco- digital samples for the ultimate in realism.

  • Page 7: Notes On Railsounds

    Transformer operations Notes on Railsounds • The volume control is located on the bot- ensures continuous steam locomotive tom of the tender frame and marked with sounds. a + and -. Turn the volume set screw • Longer track-power interruptions clockwise or counter clockwise to adjust (including locomotive derailments) the volume.

  • Page 8: Installing The Lionel Sound Activation Button

    For AC transformers lacking a horn/whistle button The no. 610-5906-001 button works with any Lionel AC transformer except no. 6-4690 Note! Type MW. Transformers made by other manufacturers may not be compatible with Railsounds.
  • Page 9 • Make sure track power is OFF before placing it on track. • Make sure your Lionel Command Base is ON and its communications wire is connected to the COMMON post on your Lionel transformer or the U on any of your installed PowerMasters.
  • Page 10 TrainMaster Command operations Running your steam locomotive in the TrainMaster Command environment our Command Control steam Example address Locomotive #1 locomotive comes programmed with an ID# of “1.” To get your steam PowerMasters set to CMD or traditional locomotive in action, set power supplies ON FULL PowerMasters to CMD or set all power supplies on full.

  • Page 11: Railsounds In The Command Environment

    TrainMaster Command operations Railsounds in the Command environment our steam locomotive’s Railsounds sys- with the CAB-1 BRAKE command. tem gives you even more in the • Incidental sounds you control with TrainMaster Command environment. CAB-1 numeric keypad commands, like • Bonus sounds like squealing brakes steam letoff and steam release effects.
  • Page 12 TrainMaster Command operations Tuning your steam locomotive’s performance MOMENTUM wise to get the engine moving, then decrease Simulate the labored performance of a loco- speed until the locomotive just stops. Then motive pulling a heavy load with momentum. press SET again; the R2LC remembers the stall Press L, M, or H (located under CAB-1’s remov- setting until you change it.

  • Page 13: Assigning Your Locomotive A New Id

    TrainMaster Command operations Assigning your locomotive a new ID# s your fleet of Command-equipped Assign a new I D# to Lionels grows, you’ll want to give your Example your Command- locomotive a more individualized number. upgraded locomotive Choose from any between 1 and 99. To make Command Base ON things easy, use a portion of your locomo- tive’s cab number.

  • Page 14: Lubricating Your Steam Locomotive

    Maintaining your locomotive Lubricating your steam locomotive elp your Lionel steam locomotive lead a reveals dryness on the parts indicated in the long and productive life on your rail- illustration. Remove accumulated dirt and road by maintaining it properly. dust before lubricating, and always lubricate...
  • Page 15 No. 620-8004-300 Handrail install Your steam tender marker lights are socket. Replace it with Lionel part No. 620- illuminated by one lamp located in the rear 8004-300. The lamp is available from your of the tender body. During the course of nor-...

  • Page 16: Warranty Information

    Website @ www.Lionel.com consumer-purchaser, for one year against original If you prefer to send it back to Lionel L.L.C. for defects in materials or workmanship when pur- factory repair, you must first call 810-949-4100 or chased through an authorized Lionel merchant.
