Operation

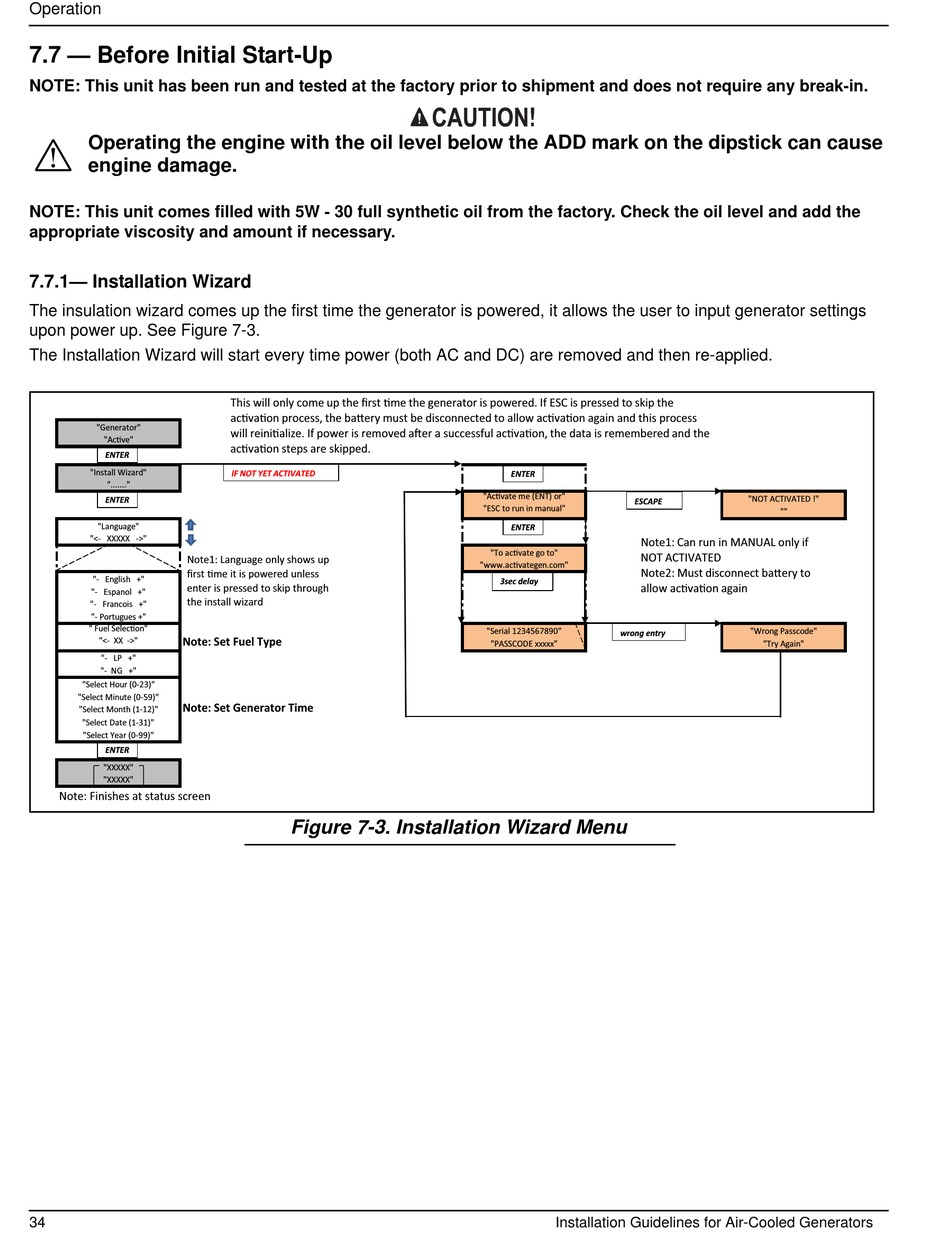

7.7 — Before Initial Start-Up
NOTE: This unit has been run and tested at the factory prior to shipment and does not require any break-in.
*
Operating the engine with the oil level below the ADD mark on the dipstick can cause
engine damage.
NOTE: This unit comes filled with 5W - 30 full synthetic oil from the factory. Check the oil level and add the
appropriate viscosity and amount if necessary.
7.7.1— Installation Wizard
The insulation wizard comes up the first time the generator is powered, it allows the user to input generator settings
upon power up. See Figure 7-3.
The Installation Wizard will start every time power (both AC and DC) are removed and then re-applied.
"Generator"
"Ac ve"
ENTER
"Install Wizard"
"......."
ENTER
"Language"
"<- XXXXX ->"
Note1: Language only shows up
st me it is powered unless
"- English +"
enter is pressed to skip through
"- Espanol +"
the install wizard
"- Francois +"
"- Portugues +"
" Fuel Selec on"
Note: Set Fuel Type
"<- XX ->"
"- LP +"
"- NG +"
"Select Hour (0-23)"
"Select Minute (0-59)"
Note: Set Generator Time
"Select Month (1-12)"
"Select Date (1-31)"
"Select Year (0-99)"
ENTER
"XXXXX"
"XXXXX"
Note: Finishes at status screen
34
This will only come up the rst me the generator is powered. If ESC is pressed to skip the
ac va on process, the ba ry must be disconnected to allow ac va on again and this process
will reini alize. If power is removed a
ac va on steps are skipped.
IF NOT YET ACTIVATED
Figure 7-3. Installation Wizard Menu
r a successful ac va on, the data is remembered and the
ENTER
"Ac vate me (ENT) or"
"ESC to run in manual"
ENTER
"To ac vate go to"
"www.ac vategen.com"
3sec delay
"Serial 1234567890"
"PASSCODE xxxxx"
Installation Guidelines for Air-Cooled Generators
"NOT ACTIVATED !"
ESCAPE
""
Note1: Can run in MANUAL only if
NOT ACTIVATED
Note2: Must disconnect ba ry to
allow ac va on again
"Wrong Passcode"
wrong entry
"Try Again"
