Summary of Contents for Roland VH-13

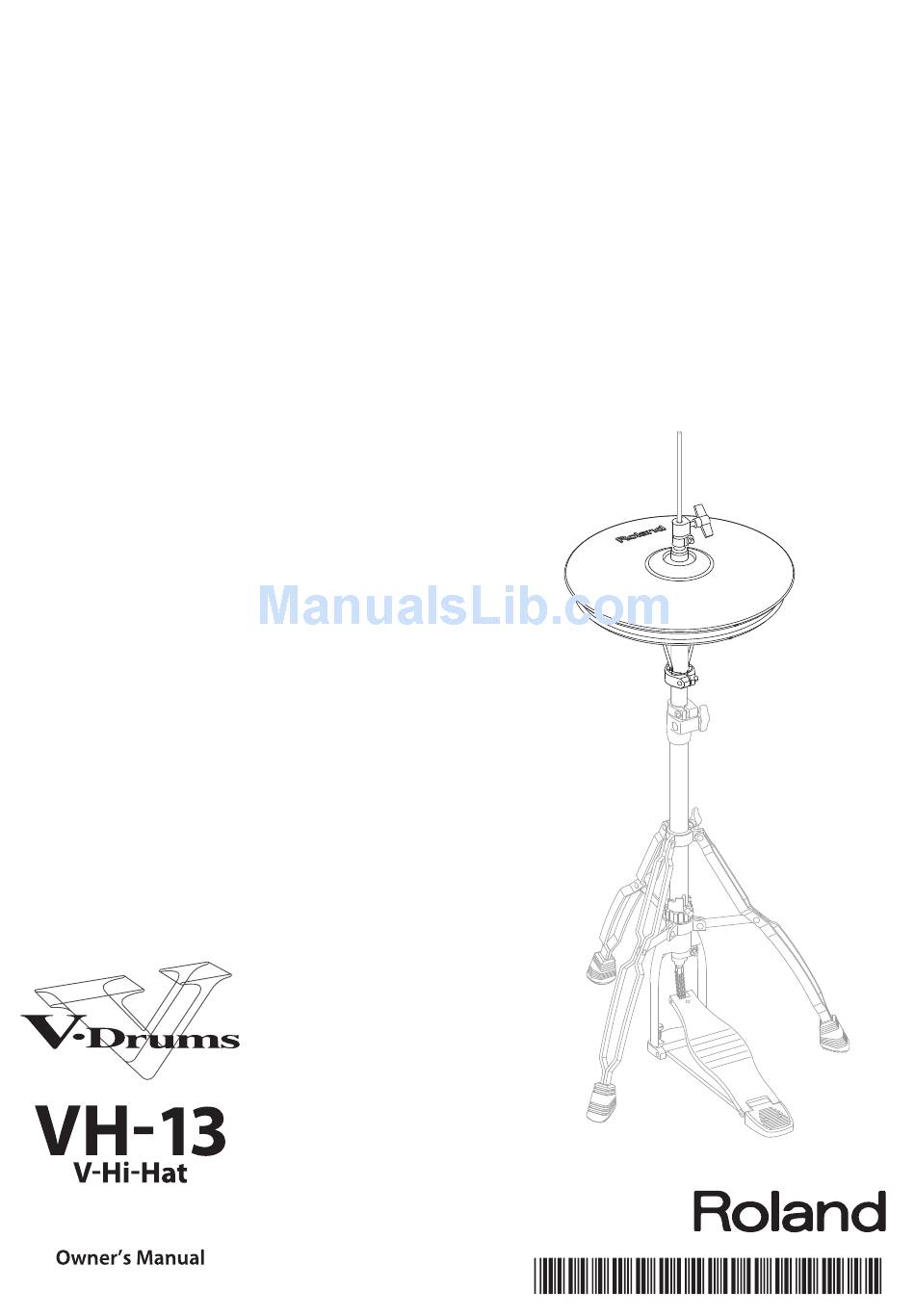

- Page 1 * Hi-hat stand is not included. For details on compatible stands, refer to p. 10.
-
Page 2: Using The Unit Safely
Do not attempt to repair the unit, heavy objects on the unit. or replace parts within it (except when this manual provides Adults must provide supervision in places specific instructions directing you where children are present Disconnect the sound module before moving to do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an the unit When using the unit in locations authorized Roland distributor, as listed on the where children are present, Before you move the unit, “Information” page. be careful so no mishandling disconnect all external equipment. of the unit can take place. An Do not use or store in the following types of... -
Page 3: Important Notes
• The hi-hat stand is supported by means of etc., near the unit. Swiftly wipe away any a tripod. When installing the hi-hat, make liquid that spills on the unit using a dry, sure the legs of the tripod are opened wide soft cloth. enough to keep the equipment from falling Maintenance over. • The rubber portion of the striking surface is • For everyday cleaning wipe the unit with a treated with a preservative to maintain its soft, dry cloth or one that has been slightly performance. With the passage of time, this dampened with water. To remove stubborn preservative may appear on the surface as dirt, use a cloth impregnated with a mild, a white stain, or reveal how the pads were non-abrasive detergent. Afterwards, be struck during product testing. This does not sure to wipe the unit thoroughly with a soft, affect the performance or functionality of dry cloth. the product, and you may continue using it with confidence. • Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation. Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” (p. 2) and “IMPORTANT NOTES” (p. 3). These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, Owner’s manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference. Copyright © 2012 ROLAND CORPORATION All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION. Roland, V-Drums, V-HI-HAT are either registered trademarks or trademarks of Roland Corporation in the United States and/or other countries. -
Page 4: Getting Started
Smooth Transition Between Closed and Open Tones Bottom Hi-Hat When you strike the pad while gradually opening the pedal, the tone smoothly opens in response to how much the pedal is opened. Pressure Sensitive You can alter the closed tone by continuing to press harder on the pedal after it is closed (p. 10). Allows Foot Splashes You can play foot splashes by pressing the pedal and then instantly opening it. Special VH-13 Clutch Quick-Open Tone Changes * The clutch included with the hi- hat stand will not be used. Get realistic tonal changes by hitting the closed hi-hat and immediately opening it. Natural-Feeling Action Clamp The top hi-hat weight, gap between the top and bottom cymbals, and hi-hat stand tension gives the pedal action an extremely natural feel. Holder (3 types) Dual Trigger Capability... - Page 5 Confirm that the upper end of the screw pipe of Use the drum key included with the VH-13 to the stopper can be seen through the slit of the loosen the clutch bolt, then simultaneously turn clutch top, as shown in the figure.
- Page 6 Mounting on the Hi-Hat Stand At this point, position the LINK jack so it’s on the far side (2) Assembling the Bottom Hi-Hat of the unit, facing away from the performer. Remove the clutch included with the hi-hat LINK jack stand from the cymbal rod. * The clutch included with the hi-hat stand will not be used. * It is not necessary to remove the felt (or rubber) pad on the hi-hat stand used for supporting the bottom cymbal. Confirm that the cymbal rod is firmly secured. * For instructions on tightening the cymbal rod, refer to the owner’s manual for your cymbal stand.
- Page 7 Place the top hi-hat assembly on the hi-hat stand with the cymbal rod passing through the top hi-hat hole. At this point, position the “Roland” logo on the farther side, as viewed from the performer. Use the link cable to connect the bottom hi-hat and the top hi-hat LINK jacks.
- Page 8 When Using with the TD-30 Connect the VH-13’s TRIGGER OUTPUT jack to the sound module’s TRIGGER INPUT HI-HAT jack, Press the TD-30’s [TRIGGER] button. and the VH-13’s CONTROL OUTPUT jack to the sound module’s HH CTRL jack. Press the [F3 (HI-HAT)] button. The TRIGGER HI-HAT screen will appear.
-
Page 9: Adjusting The Hi-Hat
Clutch Screw 10 mm (3/8”) * Although the gap can be adjusted to a clearance that makes playing the hi-hat easier, setting too narrow or wide a gap can cause improper function of the unit and prevent the hi-hat from sounding as you intend. Setting the gap to 10 mm provides the most natural feel when playing the VH-13. Change the spring tension by adjusting the hi- hat stand. 10 mm For instructions on adjusting the tension, refer to the (3/8”) or owner’s manual for your hi-hat stand. more * The tension may not be adjustable on some stands. NOTE While playing, always align the marks on the top hi-hat and bottom hi-hat ( and ) to prevent malfunction. -
Page 10: Playing Methods
Playing Methods Open/Closed Edge Shot The hi-hat tone changes smoothly and continuously This playing method involves striking the edge of the from open to closed in response to how far the pedal is top hi-hat with the shoulder of the stick. When played pressed. as shown in the figure, the “rim-side” sound of the connected trigger input is triggered. You can also play the foot closed sound (playing the hi-hat with the pedal completely pressed down) and foot splash sound (playing the hi-hat with the pedal fully pressed and then instantly opening it). Pressure Edge Sensor When you strike the hi-hat while pressing on the pedal with the hi-hat closed, you can then change the closed tone in response to the pressure you place on the pedal. Bow Shot NOTE This playing method involves striking the middle area of Do not strike the bottom hi-hat or the underside of the top hi-hat. It corresponds to the sound of the “head- the top hi-hat. side” of the connected trigger input. Specifications Compatible Stand Size 12 inches Trigger 2 (Bow/Edge) TRIGGER OUTPUT Jack Diameter: 6.0–7.0 mm Connectors CONTROL OUTPUT Jack (0.236”–0.276”) 314 (W) x 314 (D) x 89 (H) mm Dimensions... -
Page 11: Troubleshooting
Troubleshooting Problem Confirmation Resolution Was the unit adjusted after When using the VH-13, be sure to run the automatic offset adjustment on your sound module Hi-hat not closing being connected to the (p. 8). sound module? Isn’t the TRIGGER OUTPUT Connect the VH-13’s TRIGGER OUTPUT jack to the sound module’s HI-HAT jack, and the No sound is heard connected to the sound CONTROL OUTPUT to the sound module’s HH CTRL (p. 8). module’s HH CTRL jack? When a monaural cable is used, the sound does not change when an edge shot is made. Isn’t a monaural cable being used? Use a stereo (TRS) cable. The sound does not change when an The VH-13 has an edge sensor only at the area closest to you, at the front (p. 10). Are you striking the area edge shot is made where an edge sensor is Align the marks ( and ) on the top and bottom hi-hat, and position the marks so they face located? toward the player (p. 9). -
Page 12: For China
For EU Countries For China For C.A. US ( Proposition 65 ) WARNING This product contains chemicals known to cause cancer, birth defects and other reproductive harm, including lead. - Page 13 Information When you need repair service, call your nearest Roland Service Center or authorized Roland distributor in your country as shown below. TAIWAN ECUADOR RUSSIA OMAN AFRICA EUROPE ROLAND TAIWAN ENTERPRISE Mas Musika Roland Music LLC TALENTZ CENTRE L.L.C. Rumichaca 822 y Zaruma Dorozhnaya ul.3,korp.6...
