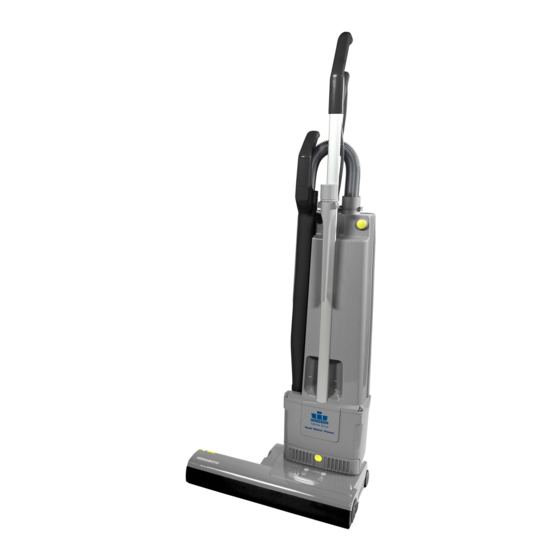

Windsor versamatic vs 14 User Manual
Hide thumbs Also See for versamatic vs 14:

Advertisement

Quick Links

VS 14 / VS 18
980151

Advertisement

loading
Need help?

Need help?

Do you have a question about the versamatic vs 14 and is the answer not in the manual?

Questions and answers

Summary of Contents for Windsor versamatic vs 14

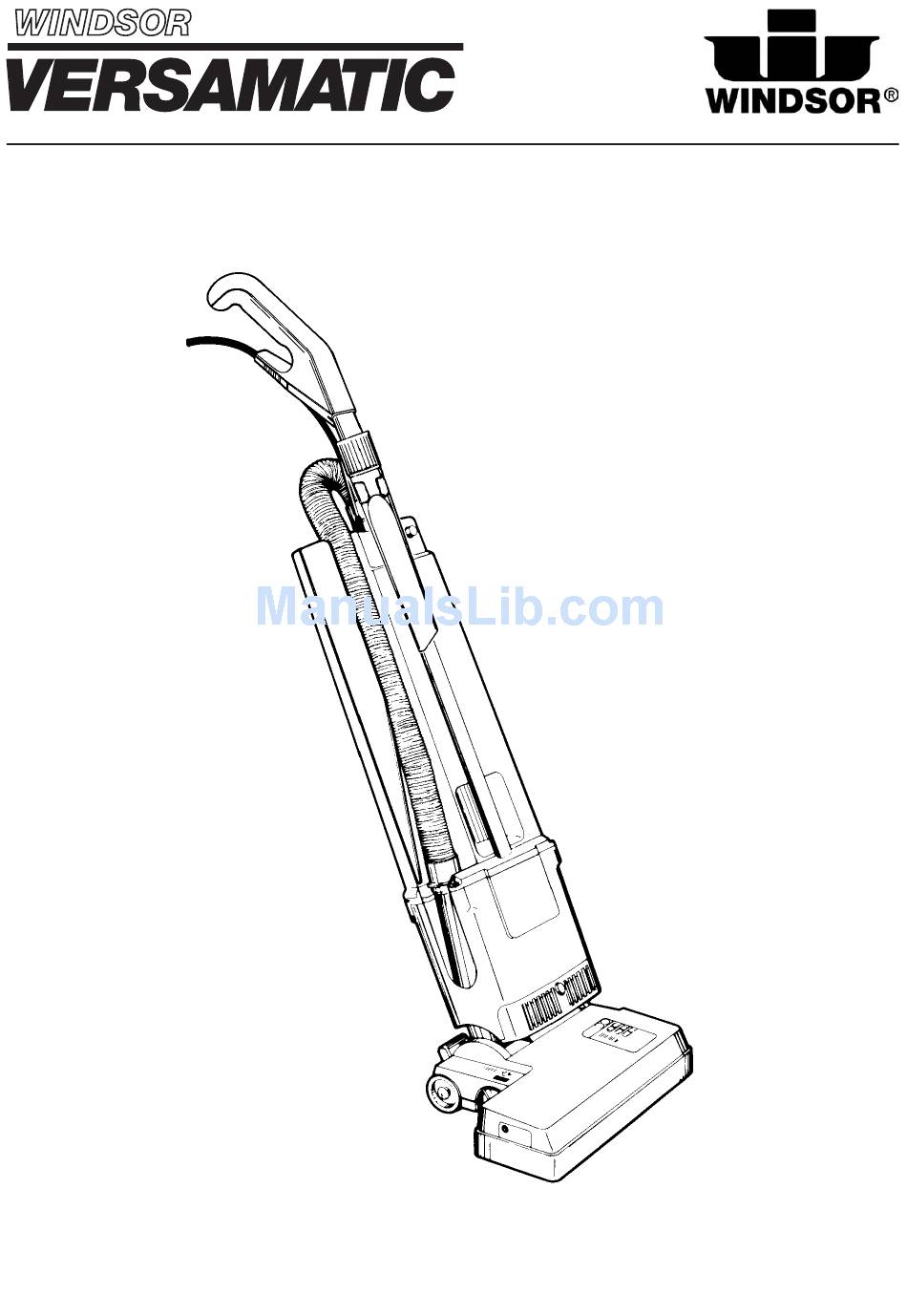

  • Page 1 VS 14 / VS 18 980151...
  • Page 2 VERSAMATIC VS 14 / VS 18 Vacuum motor housing Dustbag housing Suction hose On - off switch Cables cleats Carrying recess Back cover Power head Preparation Assembling the vacuum cleaner Hold the vacuum section in the vertical position and insert into the power head.
  • Page 3 CAUTION - Always unplug machi- ne at mains outlet before dis- mantling any part of the machine. For guarantee use only genuine Windsor-Parts (e.g. Filter Bags, Filtres, Brush strip, etc.) Changing the paper bag To change the dust bag: Remove back cover.
  • Page 4 Service Instructions Maintenance CAUTION - Maintenance and repairs must be done by qualified personnel. WARNING - To reduce the risk of electrik shock - unplug before cleaning or servicing. The switch housing cover is removed by taking out the three screws then lifting off.
  • Page 5 Changing the brush roller: Push the belt (29) off the motor pulley (30) and remove the four screws which hold in the brush bearing blocks. Lift out the bearing blocks evenly. When replacing the roller with the bearing blocks, push downwards keeping the roller parallel with the chassis.
  • Page 6 VS 14 / VS 18 Ref. Part Ref. Part Ref. Part Description Description Description Number Number Number 1870 dg Cable with EU-Plug 1872 dg Cable with GB-Plug 1037 EH Handle grip 1596 hg Handle cover 1794 Handle 1972 bl Dust bag housing 1420 hg Grommet 1966 hg...
  • Page 7 VS 14 Ref. Part Description Number 2635 WI Cover assembly 2542 Brush strip cover 2592 hg Chassis, cpl. 2522 hg Bumper 2630 hg Axle assembly 2525 Axle, only 2528 or Foot pedal 2010 Axle spring 2614 hg Wheel 2014 Axle clamp 2622 hg Pile adjustment knob 4019...
  • Page 8 VS 18 Ref. Part Description Number 4547 WI Cover 2542 Brush strip cover 4529 hg Chassis, cpl. 4522 hg Bumper 4617 hg Axle, cpl. 4523 Axle only 2528 or Foot pedal 2010 Axle spring 4603 hg Wheel 2014 Axle clamp 2622 hg Pile adjustment knob 4012...
  • Page 9: Wiring Diagram

    Vacuum Extension Hose 1087 Optinal VSM-Tool Kit - Optional Straight Tube 1084 Crevice Nozzle 1092 Clip 1081 Dusting Brush 1094 Upholstery Nozzle 1090 Wall- and Upholstery Brush 1325 C) Bags and Filters Paper Bag (Pkg of 10) 2003 Cloth Bag 1079 (only use with Micro-Filter) Exhaust Filter...

This manual is also suitable for:

Versamatic vs 18
