Screen Research FS3 Installation Manual page 14

Manual
n° 1 Manual
n° 1 Flat 10mm
n° 1 Hexagonal spanner 4mm
n° 4 Black corner cover
n° 8 Brakets F-EMB3 (for screen >160")
n°10 Brakets F-EMB3 (for screen >206")
n° 6 Alluminium profile FS3
n° 6 Iron tube or n° 12 when is present the Black Backing
n° 1 Fabric (n°2 when is present the Black Backing)
n°80 Iron spring or n°100 when is present the Black Backing
(for screen >160")
n°140 Iron spring or n°170 when is present the Black
Backing (for screen =>206")
n° 4 Iron corner for alluminium profile
n° 2 Iron joint for alluminium profile
n° 2 Iron tube joint for alluminium profile
n° 24 Screw M6x10 with round head for the corners small and joint
n° 24 FlangeNut M6 for the corners small and joint
n° 4 Big iron bracket corner
n° 2 Bracket Stiffnes for screen (for screen >160")
n° 4 Bracket Stiffnes for screen (for screen =>206")
n° 72 Screw exagonal socket M6 (for screen >160")
n° 144 Screw exagonal socket M6 (for screen =>206")
n° 2 Seafty Screw M8x45 + washer for upper brackets (for screen >160")
n° 4 Seafty Screw M8x45 + washer for upper brackets (for screen =>206")
n° 2 Seafty Screw M8x12 + washer for lower brackets (for screen >160")
n° 4 Seafty Screw M8x12 + washer for lower brackets (for screen =>206")
Made by Adeo Screen sp. Z o.o. (Polska) Specifications are subject to change without notice. E&OE
Please verify that you are working with the latest revision of this document before specifying your screen.
Doc: FS3 160-280– Installation Manual rev2 | 02.02.2015 | Download at: www.screenresearch.com 2015 AdeoSreen All Rights Reserved.

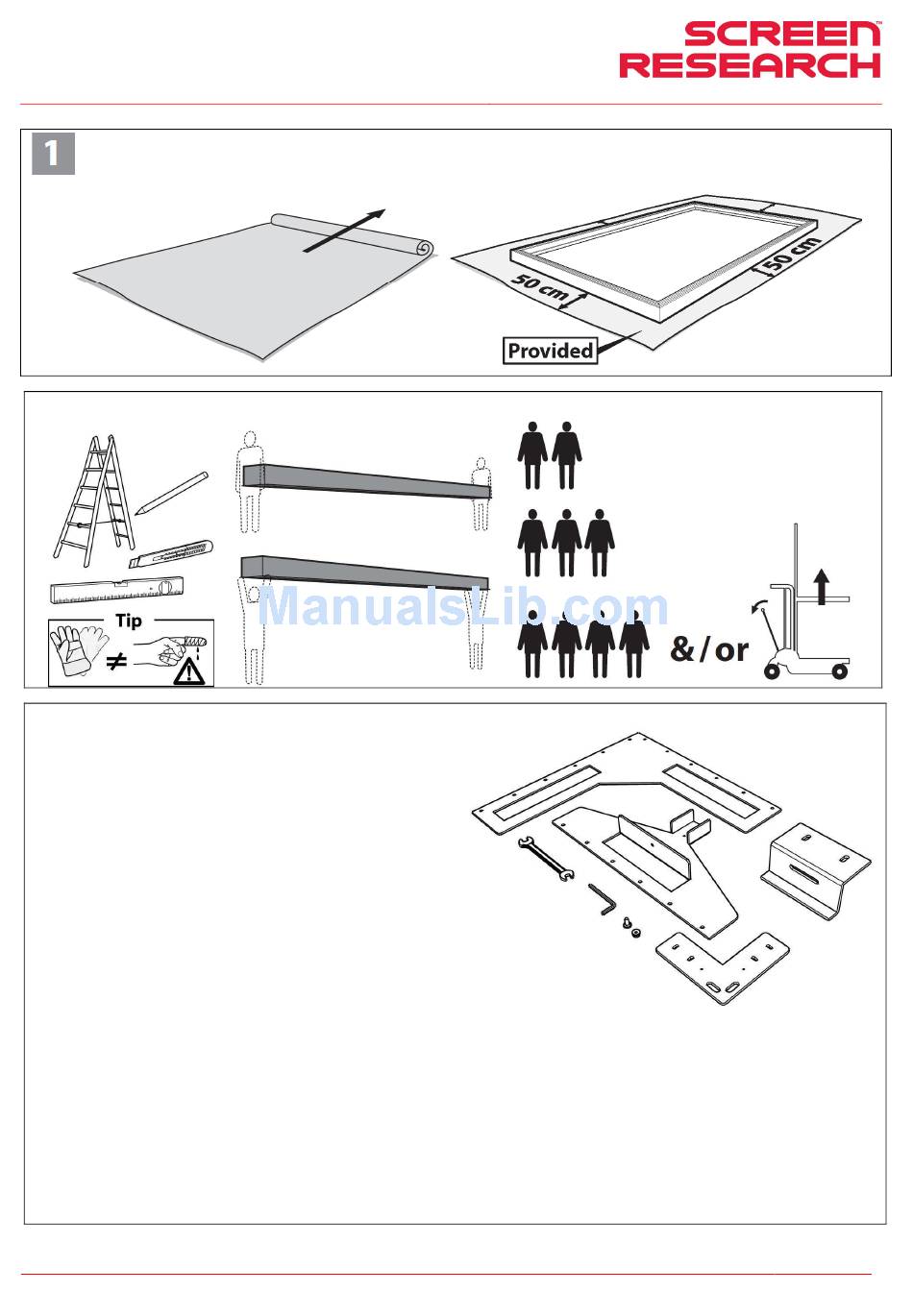

Protective and area to work
Provided
WORKSPACE TOOLS PARTS
Page 14
