Power Connector Cable - HP OMEN Maintenance And Service Manual

Power connector cable

Component
Power connector cable (includes cable, bracket, and screws)
Before replacing the power connector cable, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see
5. Remove the battery (see
6. Remove the heat sink and fans (see
7. Remove the system board (see

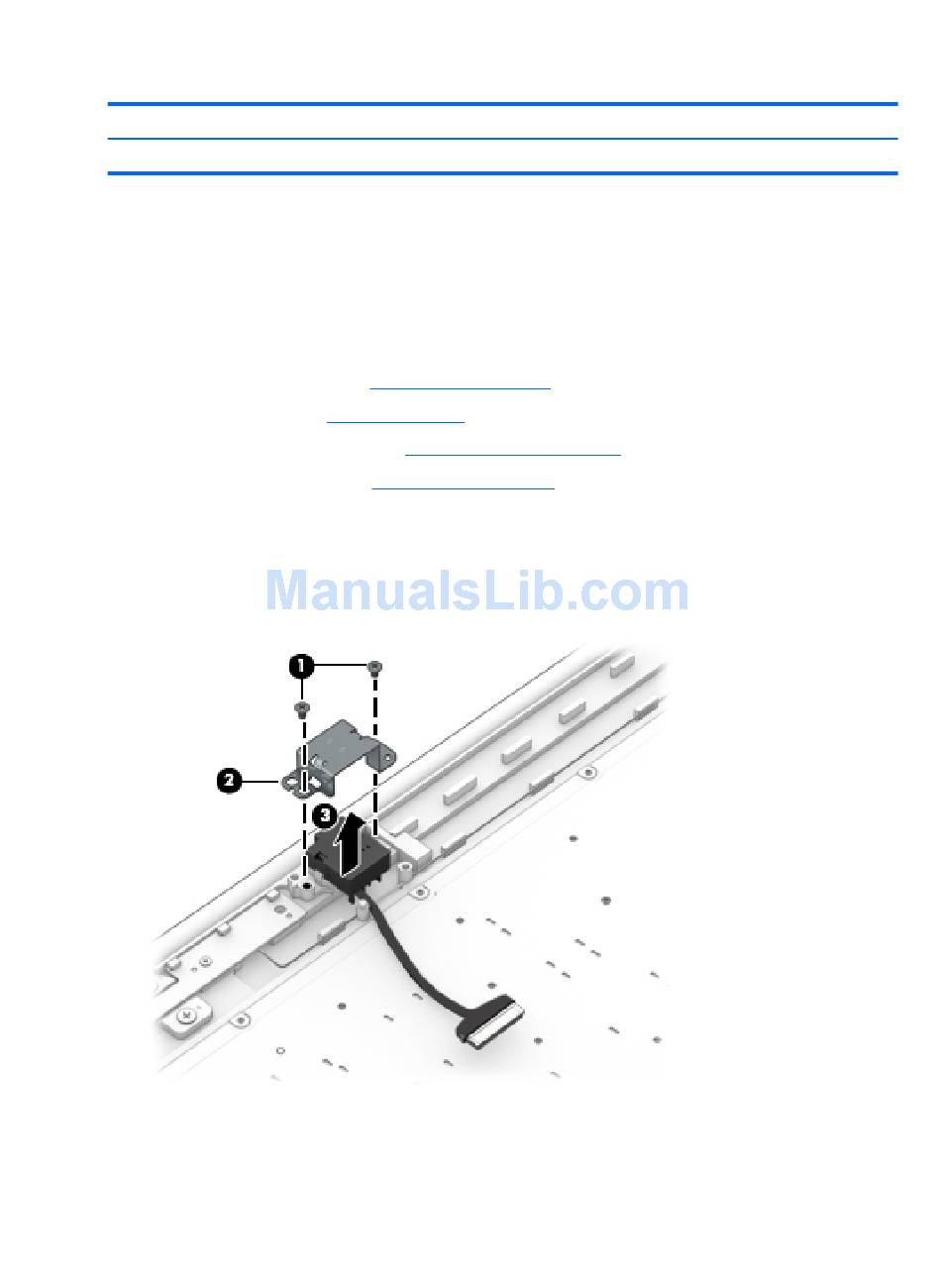

Remove the power connector cable:
1. Remove the two Phillips PM2.0×3.0 screws (1) that secure the bracket over the power connector.
2. Lift the bracket from atop the power connector (2).
3. Remove the power connector and cable (3) from the computer.
Reverse this procedure to install the power connector cable.
40 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
Bottom cover on page
Battery on page 33).
Heat sink and fans on page
System board on page
25).
31).
36).
Spare part number
788599-001
