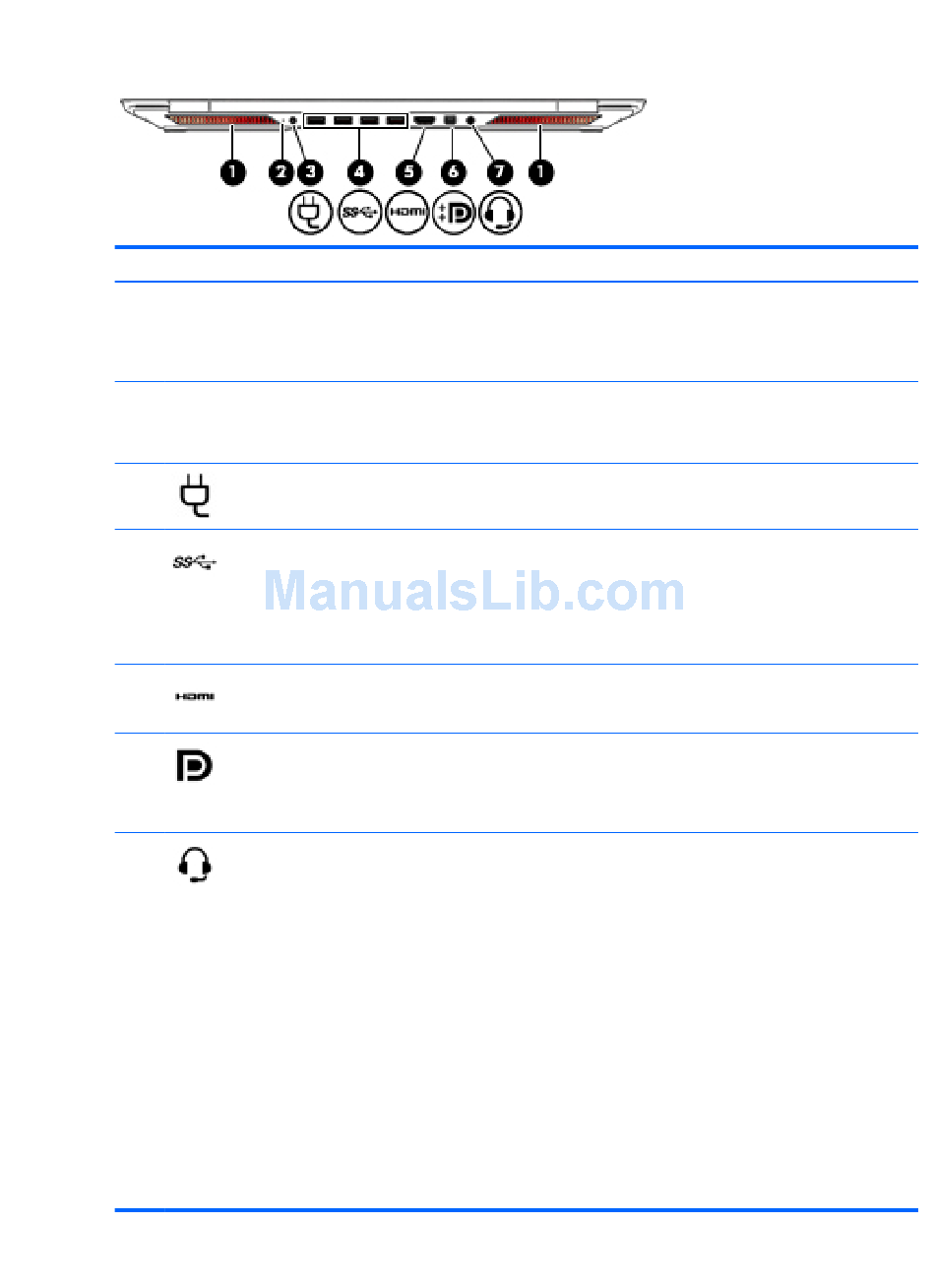

Rear

Component
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Vents (2)
AC adapter light
Power connector
USB 3.0 ports (4)
HDMI port
Mini DisplayPort
Audio-out (headphone)/Audio-in (microphone)
jack
Description
Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal for
the internal fan to cycle on and off during routine operation.
● On: The AC adapter is connected and the battery is
charged.
● Off: The computer is using battery power.
Connects an AC adapter.
Connect optional USB devices, such as a keyboard, mouse,
external drive, printer, scanner or USB hub.
NOTE: Your computer does not include an RJ-45 (network)
jack. To connect to a wired network, use the USB Ethernet
adapter provided with your computer or purchase one
separately.
Connects an optional video or audio device, such as a high-
definition television, any compatible digital or audio component,
or a high-speed HDMI device.
Connects an optional digital display device, such as a high-
performance monitor or projector.
NOTE: You can connect up to 2 optional display devices with a
Mini DisplayPort splitter (purchased separately).
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also connects an
optional headset microphone. This jack does not support
optional microphone-only devices.
WARNING! To reduce the risk of personal injury, adjust the
volume before putting on headphones, earbuds, or a headset.
For additional safety information, refer to the Regulatory,
Safety, and Environmental Notices. To access this guide:
Windows 8.1, from the Start screen, type support, and then
select the HP Support Assistant app.
Windows 10: Select Start, select All apps, select HP Help and
Support, and then select HP Documentation.
NOTE: When a device is connected to the jack, the computer
speakers are disabled.
NOTE: Be sure that the device cable has a 4-conductor
connector that supports both audio-out (headphone) and audio-
in (microphone).
Rear 5
