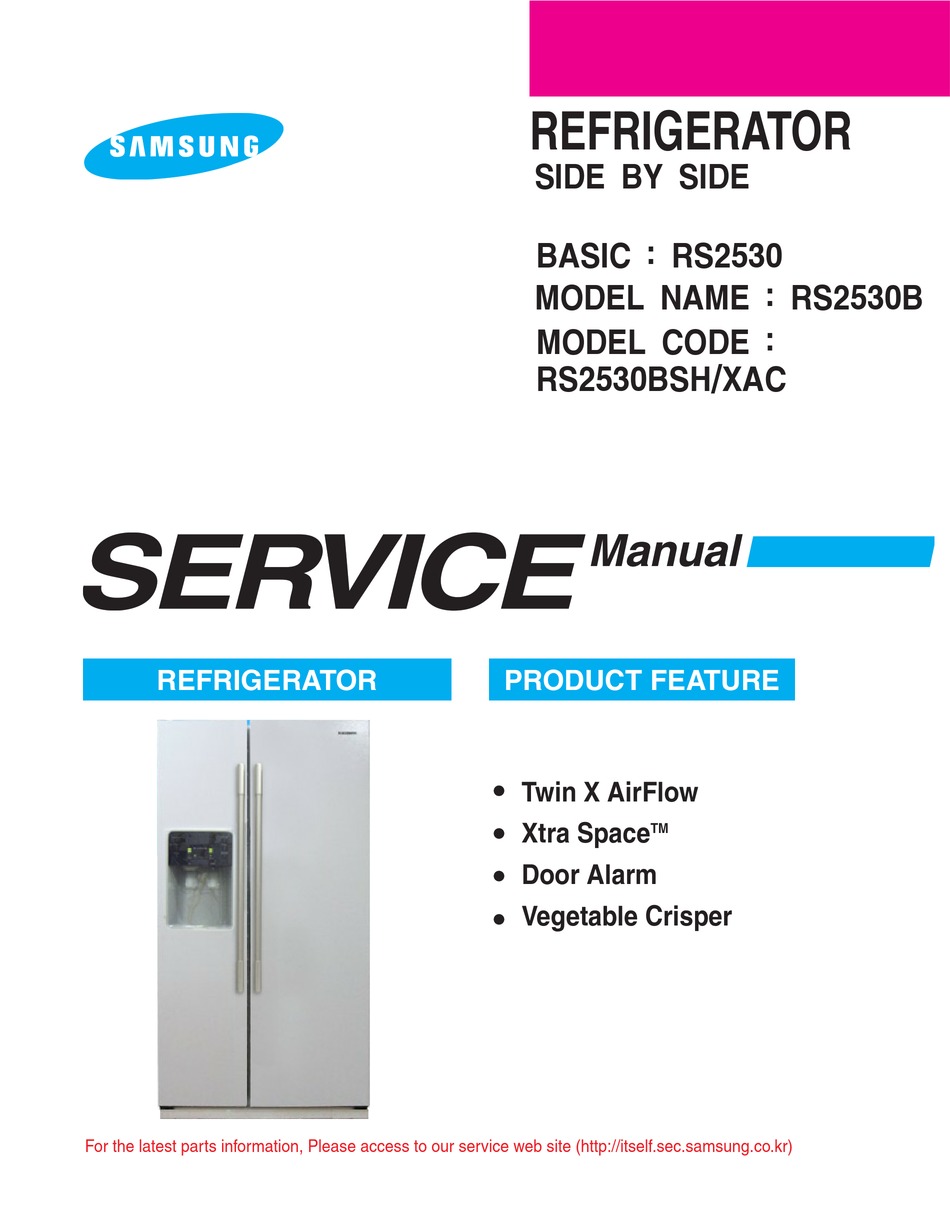

REFRIGERATOR
For the latest parts information, Please access to our service web site (http://itself.sec.samsung.co.kr)
REFRIGERATOR

SIDE BY SIDE

BASIC : RS2530
MODEL NAME : RS2530B
MODEL CODE :
RS2530BSH/XAC
PRODUCT FEATURE
Twin X AirFlow
Xtra Space
TM
Door Alarm
Vegetable Crisper

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS2530B and is the answer not in the manual?

Questions and answers

March 9, 2025

the **** at the back of refrigerator has stopped working and will not cool the condensor. Is there a replacement for this? RS2530B Bought in 2007.

0
1 comments:
Mr. Anderson
May 14, 2025

Yes, the condenser in the Samsung RS2530B refrigerator can be replaced. The condenser is located in the machine compartment, and the replacement process involves desoldering the compressor discharge and the condenser outlet, then removing the condenser.

This answer is automatically generated

0
Michael Effler
March 5, 2025

Does this model have a temperature control panel. I can't find it

0
1 comments:
Mr. Anderson
March 5, 2025

Yes, the Samsung RS2530B model has a temperature control panel. The manual includes sections on the control panel, digital panel, and temperature control, indicating that users can adjust the refrigerator's temperature settings.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Samsung RS2530B

Summary of Contents for Samsung RS2530B

  • Page 1: Side By Side

    REFRIGERATOR SIDE BY SIDE BASIC : RS2530 MODEL NAME : RS2530B MODEL CODE : RS2530BSH/XAC REFRIGERATOR PRODUCT FEATURE Twin X AirFlow Xtra Space Door Alarm Vegetable Crisper For the latest parts information, Please access to our service web site (http://itself.sec.samsung.co.kr)
  • Page 2 1. PRECAUTIONS(SAFETY WARNINGS) ●Unplug the refrigerator before making any repairs or any replacements. Avoid electric shock. ●Use rated components for the replacements. Check that they have the correct model number, rated voltage, rated current, operating temperature and so on. ●On repair, be sure that the wires such as harness are bundled tightly and are not exposed by water.
  • Page 3 PRECAUTIONS(SAFETY WARNINGS) Read all instructions before repairing the product, and follow to the instructions in order to prevent danger or property damage. CAUTION/WARNING SYMBOLS DISPLAYED SYMBOLS means “Forbidden”. Indicates that a Warning danger of death means “do not disassemble”. or serious injury exists.
  • Page 4 PRECAUTIONS(SAFETY WARNINGS) ❈ Please ler users know following warnings & cautions in detail. Warning & Caution Do not allow users to store narrow Do not allow users to store Do not allow users to put glass and long bottles or foods in a small pharmaceutical products, scientific bottles or similar in the freezer.

  • Page 5: Table Of Contents

    4. ALIGNMENT AND ADJUSTMENTS 4-1) TEST (FORCED OPERATION / FORCED DEFROST) ·············· 4-2) RESTORATION OF OPERATION CONDITIONS FOR POWER FAILURE ··· 4-3) ALARM ········································ 4-4) EXHIBITION MODE ·································· 4-5) SELF-DIAGNOSIS ··································· 4-6) LOAD STATUS DISPLAY ······························· 4-7) OPTION SETTING ·································· 4-8) OPTION TABLE ····································...

  • Page 6: 4-1) Test (Forced Operation / Forced Defrost)

    ALIGNMENT AND ADJUSTMENTS 4-1) TEST (FORCED OPERATION / FORCED DEFROST) When pressing Refrigerator temp set KEY and ICE TYPE KEY in PANEL PCB simultaneously for more than 8 ● sec. PANEL DISPLAY will go off and it moves onto TEST MODE. At this point, although Freezer/Refrigerator temp set KEY, Power freezing KEY, and ICE TYPE KEY are pressed, it operates by TEST KEY.

  • Page 7: 4-2) Restoration Of Operation Conditions For Power Failure

    ALIGNMENT AND ADJUSTMENTS 4-2) RESTORATION OF OPERATION CONDITIONS FOR POWER FAILURE 1) In the case of instant power failure and initialization of PANEL DISPLAY, these can make customer’s NON- SENSE CALL. To avoid this, if power is applied, it judges the temp of Freezer and operates as either initialization or restoration of operation conditions.

  • Page 8: 4-5) Self-Diagnosis

    ALIGNMENT AND ADJUSTMENTS 4-5) SELF-DIAGNOSIS Press for 8 seconds 1) Self-diagnosis with initial POWER ON 1-1) With POWER ON, it shall diagnose the status of temp SENSOR in a minute in MICOM internally for itself. 1-2) If inferior sensor is found after self-diagnosis, corresponding DISPLAY LED will be all off at the interval of 0.5 sec.
  • Page 9 ALIGNMENT AND ADJUSTMENTS Details of self-diagnosis lighting by Item DISPLAY LED Description How to Self-Diagnose Fall out SENSOR HOUSING in The voltage should be within the range of Refrigerator contanct failture, breakage of 4.7V~0.6V between MAIN PCB CN30 # wire, short-circuit, inferior Refrigerator 8 and #9.

  • Page 10: 4-6) Load Status Display

    ALIGNMENT AND ADJUSTMENTS 4-6) LOAD STATUS DISPLAY 1) When pressing “ICE TYPE” and “FILTER RESET(LIGHT)” KEYS simultaneously for 6 sec. in normal operation, the indicators of temp set in Freezer/Refrigerator will all ON/OFF for 2 sec. at the interval of 0.5 sec. At this point, when pressing Temp Set Key in Refrigerator while canceling “ICE TYPE”...

  • Page 11: 4-7) Option Setting

    OPERATING INSTRUCTIONS & INSTALLATION 4-7) OPTION SETTING ● When the F-Room Temp Setting button and the Filter Reset button or the Lighting button are pressed for 12 seconds continuously,the display will be converted to the option setting mode. Press for 12 seconds 1) For example, if you want to shift the Refrigerator standard temp by (26.6°F/-3 °C), proceed the following.
  • Page 12 OPERATING INSTRUCTIONS & INSTALLATION 1-3) If you set "6"as shown in the Freezer option table below after setting "0"to the OPTION CATEGORY,the Refrigerator standard temp will be lowered by -5.4°F(Refer to the Refrigerator Temp Option Table) :In 20 seconds after completion of adjustment,the MICOM will store the set value to the EEPROM and it will revert to the normal display and the option setting mode will be cancelled.

  • Page 13: 4-8) Option Table

    OPERATING INSTRUCTIONS & INSTALLATION 4-8) OPTION TABLE Note) With the Freezer button and the Lighting button, additional options can be set. But, those are relevant not to the A/S but to the ref.control function. So, those options are skipped. (Do not change any other options except the above options.) 1) FREEZER TEMP SHIFT TABLE(○: RELEVANT LED OFF, ●: RELEVANT LED ON) SET ITEM Freezer TEMP SHIFT...
  • Page 14 3. OPERATING INSTRUCTIONS & INSTALLATION 3-1) DISPLAY DESIGN ··································· 3-2) TEMP CONTROL ··································· 3-3) POWER FREEZING ·································· 3-4) CHILD LOCK ······································ 3-5) ICE DISPENSER & WATER DISPENSER ····················· 3-6) FAN MOTOR DELAY (COMPRESSOR ROOM) ·················· 3-7) ICE MAKER ······································ 3-8) DEFROST ·······································...

  • Page 15: 3-1) Display Design

    OPERATING INSTRUCTIONS & INSTALLATION 3-1) DISPLAY DESIGN 3-2) TEMP CONTROL 1) Freezer Temp Setting 1-1) With the initial power on, Freezer will be set at MID (-4°F/-20°C) and Refrigerator will be set at MID (37°F/3°C) automatically. At this time, the number of LEDs (1 ~ 5) lighting up on the display panel means intensity (MIN ~ MAX) of room control temperature (6.8 ~ -13°F/-14 ~ -25 °C) and as the intensity gets increased, the number of LEDs increases and the set temperature become lowered.

  • Page 16: 3-3) Power Freezing

    OPERATING INSTRUCTIONS & INSTALLATION 3-3) POWER FREEZING ● It is selected with Power Freeze Button. ● Each time you press Power Freeze Button, it repeats SELECT ↔ CANCEL (Relevant ICON ON/OFF). ● When Power Freeze is selected, the temp settings of Refrigerator/Freezer does not change. When Power Freeze is selected, it is possible to change the temp settings of Refrigerator/Freezer.

  • Page 17: 3-5) Ice Dispenser & Water Dispenser

    OPERATING INSTRUCTIONS & INSTALLATION 3-5) ICE DISPENSER & WATER DISPENSER 1) CUBE/CRUSHED/ICE OFF SELECTION 1-1) Upon the initial Power On, when F-Room Temp is above (41°F/5°C), CUBE LED on the Display lights up and the other LEDs remains OFF. But, when F-Room Temp is lower than (41°F/5°C), it restores the ice selection before the POWER OFF and displays it on the panel.

  • Page 18: 3-6) Fan Motor Delay (Compressor Room)

    OPERATING INSTRUCTIONS & INSTALLATION 3-6) FAN MOTOR DELAY (COMPRESSOR ROOM) ● Among the functions depending on Peripheral Temp, Comp Cooling Fan (Comp Room Fan) is controlled according to Peripheral Temp as follows. Therefore, make sure to check the contents to refer to during A/S because Cooling Fan can operate or not according to conditions during Comp operation.
  • Page 19 OPERATING INSTRUCTIONS & INSTALLATION 2) Water Supply It is the movement to supply water on the ICE-TRAY by using the SOLENOID VALVE after the completion of the ejection (Ejection after the completion of the normal ice making or that by the test movement) Considering cases with low hydraulic pressure, when it is recognized as No Water Supply, the Water Supply will be attempted for 4 times.
  • Page 20 OPERATING INSTRUCTIONS & INSTALLATION Assumption of the ambient temp of higher than 64.4 °F/ 18 °C Low water pressure 5s 1.5s 1.5s 1s Initial 2hr standby 95+(5)min 70+(5)min 70+(5)min No Water Supply No Water Supply No Water Supply Power On High water pressure 58+(5)min 95+(5)min...
  • Page 21 OPERATING INSTRUCTIONS & INSTALLATION 4) Ice Ejection It is the movement to separate the ice cubes from the ICE-TRAY after the completion of ice making, which is conducted by the following steps. Check the changes in status and time for the horizontal S/W (if it is used) and the ice level check S/W in parallel and then operate Ejection.

  • Page 22: 3-8) Defrost

    OPERATING INSTRUCTIONS & INSTALLATION 4-3) Ejection Movement TIMING CHART Max TRAY twist Standby(2sec) Restorating to Completion Initial Ejecting horizontal status horizontal status horizontal status Horizontal S/W Ice Level S/W Eject Motor rotates clockwise Eject Motor rotates counter clockwise 5) Ice Test It is necessary for the forced operation for the purpose of the operation test, A/S, and cleaning, and when pressing the ICE TEST S/W for a certain time period (more than 1.5 sec.), it goes into operation.

  • Page 23: 3-9) Installation

    OPERATING INSTRUCTIONS & INSTALLATION 3-9) INSTALLATION 1) To protect refrigerator in movement Use padded hand truck as shown. If entrance width is less than 39 〃 , remove doors prior to installation and reattach doors according to procedure below. 2) Remove all protective tape and pad in refrigerators. Connect water lines and power cord.
  • Page 24 2. PRODUCT SPECIFICATIONS 2-1) Introduction of main function ····························· 2-2) Comparison of Design Change ···························· 2-3) Model Specification &Comparison Chart ····················· 2-4) Model Specification ·································· 2-5) Electric Parts Specification ······························ 2-6) Dimensions (Inch) ··································· 2-7) Optional Material Specifications ···························...

  • Page 25: 2-1) Introduction Of Main Function

    PRODUCT SPECIFICATIONS 2-1) Introduction of main function A newly developed SAMSUNG side by side refrigerator in 2006 has the following ● ● characteristics. Twin X AirFlow ·Cool air circulates through side vents on every shelf level. This provides even distribution of cooling inside cabinets to keep your food fresh longer.

  • Page 26: 2-2) Comparison Of Design Change

    PRODUCT SPECIFICATIONS 2-2) Comparison of Design Change ITEM Appearance Design Feature • Dispenser & Display Design : Projecting control type • Compartment Lighting : 30W • Handle Design : A-Top Long- Bar (plastic) • Freezer Compartment Basket Type : Wire Basket •...

  • Page 27: 2-3) Model Specification &Comparison Chart

    PRODUCT SPECIFICATIONS 2-3) Model Specification &Comparison Chart...

  • Page 28: 2-4) Model Specification

    PRODUCT SPECIFICATIONS 2-4) Model Specification Item Specification RS2530B** M M o o d d e e l l Dispenser without beverage station Total 24.8 Cu.Ft Net Capacity Fridge 15.5 Cu.Ft Freezer 9.3 Cu.Ft N N e e t t d d i i m m e e n n s s i i o o n n ( ( W W × × D D × × H H ) ) 35.9"...

  • Page 29: 2-5) Electric Parts Specification

    PRODUCT SPECIFICATIONS 2-5) Electric Parts Specification Item Specification Model RS2530B** Model MK183CL2U/E07 Compressor Starting type R.S.C.R Oil Charge FREOL α - 10 (ESTER) Evaporator SPLIT FIN TYPE Condenser Forced and natural convection type Dryer Molecular sieve XH-9 Capillary tube 0.85×3300mm...
  • Page 30 PRODUCT SPECIFICATIONS Specifications Items Model Dispenser Defrost-Heater(FRE) Conducting F Defrosting 115V/300W DISPENSER Heater Interlock with F-FAN 115V/ WATER PIPE Heater 115V/ 60℃ OFF / 40℃ ON Bimetal (140℉ OFF / 104℉ ON) Condenser for Running 250VAC-12μ F COMP Starting (Package type) Model J531Q32E4R7M18 Starting-Relay...

  • Page 31: 2-6) Dimensions (Inch)

    PRODUCT SPECIFICATIONS 2-6) Dimensions (Inches) 29.5 34.8 32.3 28.9...

  • Page 32: 2-7) Optional Material Specifications

    PRODUCT SPECIFICATIONS 2-7) Optional Material Specifications Photographe Part Name Part Code Remarks FILTER DA29-00003B WATER-ASSY ASSY-PACKING DA99-00240A Fridge:1pcs Freezer:1pcs LAMP INCANDENT 4713-001206 120V/40W...
  • Page 33 5. DISASSEMBLY AND REASSEMBLY 5-1) FREEZER DOOR ··································· 5-2) REFRIGERATOR DOOR ······························· 5-3) DOOR GASKET ···································· 5-4) DOOR HANDLE ···································· 5-5) CONTROL PANEL ·································· 5-6) REFRIGERATOR DOOR LIGHT SWITCH ····················· 5-7) GALLON DOOR BIN REFRIGERATOR ······················· 5-8) REFRIGERATOR LIGHT ······························· 5-9) TEMPERED GLASS SHELF IN THE REFRIGERATOR ·············...

  • Page 34: 5-1) Freezer Door

    DISASSEMBLY AND REASSEMBLY 5-1) FREEZER DOOR • Lift the door straight up. • Be careful not to pinch the water tubing and wire harness on the door. NOTE • Place doors on a protected surface. Part name Descriptive Picture How To Do Removing the Front Leg Cover Unscrew three phillips screws from the front leg cover.

  • Page 35: 5-2) Refrigerator Door

    DISASSEMBLY AND REASSEMBLY 5-2) REFRIGERATOR DOOR Part name Descriptive Picture How To Do Removing the Refrigerator Door 1) With the door closed, remove the upper hinge cover (①) along the arrow (②) using a ① screwdriver. ② Be careful not to scratch. Caution 2) Remove hinge screws (③), and ④...

  • Page 36: 5-4) Door Handle

    DISASSEMBLY AND REASSEMBLY 5-4) DOOR HANDLE Part name Descriptive Picture How To Do The door handles allow access into the refrigerator and freezer They are front mounted with screws. Lift the handle upward motion with on. Be careful not to scratch. Door Handle Caution 5-5) CONTROL PANEL...

  • Page 37: 5-6) Refrigerator Door Light Switch

    DISASSEMBLY AND REASSEMBLY 5-6) REFRIGERATOR DOOR LIGHT SWITCH Part name Descriptive Picture How To Do The refrigerator has a door light switch located in the upper right corner for the refrigerator. 1. Use a small flat-blade screwdriver to unlock the locking tab and pull the switch out until the wire Door Light connector is visible.

  • Page 38: 5-10) Plastic Drawers In The Refrigerator

    DISASSEMBLY AND REASSEMBLY 5-10) PLASTIC DRAWERS IN THE REFRIGERATOR Part name Descriptive Picture How To Do Drawers are designed for storage of fruits, vegetables, and deli items. The drawers are located in the lower portion Plastic Drawers of the refrigerator. in Refrigerator 1.

  • Page 39: 5-13) Twin Cool In The Refrigerator

    DISASSEMBLY AND REASSEMBLY 5-13) TWIN COOL IN THE REFRIGERATOR Part name Descriptive Picture How To Do 1. Pull out the Twin cool by unlocking the hooks. Twin cool Be careful of injury. Caution 5-14) REFRIGERATOR THERMISTOR Part name Descriptive Picture How To Do The refrigerator thermistor is located inside of the...

  • Page 40: 5-17) Plastic Drawer In Freezer

    DISASSEMBLY AND REASSEMBLY 5-17) PLASTIC DRAWER IN FREEZER Part name Descriptive Picture How To Do Drawers are designed for storage of meat and dry foods. The drawers are located in the lower portion of the freezer. Plastic Drawer 1. Pull out the drawer as far as it goes. In Freezer 2.

  • Page 41: 5-21) Icemaker Thermistor

    DISASSEMBLY AND REASSEMBLY 5-20) ICE MAKER KIT Part name Descriptive Picture How To Do The ice maker is located inside of the ice dispenser assembly.1. SUPPORT OF ICE-MAKER Remove ice maker support screws (2), and slide out. LOCKING TAB 2. Disconnect the ice maker wire connector.

  • Page 42: 5-23) Freezer Light

    DISASSEMBLY AND REASSEMBLY 5-23) FREEZER LIGHT Part name Descriptive Picture How To Do The freezer light is located in the bottom of the auger motor case. The light is covered by an opaque cover. 1. Remove the screw and the light cover. Freezer Light When diassembling,make sure the unit turned off.

  • Page 43: 5-25) Evaporator Fan Motor

    DISASSEMBLY AND REASSEMBLY 5-25) EVAPORATOR FAN MOTOR Part name Descriptive Picture How To Do The evaporator fan is located in the middle rear of the freezer. This fan circulates cold air in the refrigerator. Evaporator Fan 1. Remove the fan spring, and than remove fan and Motor protector motor.

  • Page 44: 5-28) Machine Compartment & Electric Box

    DISASSEMBLY AND REASSEMBLY 5-28) MACHINE COMPARTMENT & ELECTRIC BOX Part name Descriptive Picture How To Do 1. Disconnect the power cord of the refrigerator. 2. Remove the fixed screws (7) of compressor cover. 3. Slide up and take off the compressor cover to see the machine compartment.

  • Page 45: 5-29) Machine Compartment & Electric Box

    DISASSEMBLY AND REASSEMBLY 5-29) MACHINE COMPARTMENT & ELECTRIC BOX Part name Descriptive Picture How To Do The condenser Fan is located in the middle of machine compartment. It cools down the subcondenser and the compressor. 1. Lift up the rib under the support motor.
  • Page 46 6. TROUBLE SHOOTING 6-1) When power is not supplied ····························· 6-2) When there is a trouble with Self Diagnosis ···················· 6-3) When COMP does not operate ··························· 6-4) When FAN & DAMPER does not operate ···················· 6-5) When Defrost does not operate ···························...

  • Page 47: 6-1) When Power Is Not Supplied

    TROUBLE SHOOTING 6-1) When power is not supplied Pre-Check 1. Check if power is supplied at Concent and Power Cord is connected properly before repair 2. Check by referring to the followings. Start Is Power of primery DC -TRANS applied? Check assembly of wires and do repairing Is Power of secondary...

  • Page 48: 6-2) When There Is A Trouble With Self Diagnosis

    TROUBLE SHOOTING 6-2) When there is a trouble with Self Diagnosis 1) Ambient Sensor trouble => (applied to Ambient Sensor Temp type) Start Is Ambient Sensor normal? (PANEL PCB) Change Ambient Sensor Is MAIN PCB (CN31) insertion normal? Connector contact trouble /re-insertion Is the connection wire between MAIN PCB connector(CN32) and Temp Sensor...
  • Page 49 TROUBLE SHOOTING 3) Freezer Temp Sensor trouble Start Is Freezer Temp Sensor normal? Change Temp Sensor Is the insertion of MAIN PCB connector(CN30) normal? Connector contact trouble /re-insertion Is the connection between MAIN PCB connector(CN30) and Temp Sensor(yellow) normal? Short between connector Sensors Is MICOM Pin#57 input voltage normal? Check soldering fault,short,...

  • Page 50: 6-3) When Comp Does Not Operate

    TROUBLE SHOOTING 6-3) When COMP does not operate Pre-Check 1. If it doesnotpass5 min after a desired Temp reached, COMP does not operate. 2. During Defrost, COMP does not operate. 3. With the disconnected Freezer Sensor or Refrigerator Sensor, COMP does not operate because MAIN PCB picks up theTemp as a desired level.

  • Page 51: 6-4) When Fan & Damper Does Not Operate

    TROUBLE SHOOTING 6-4) When FAN & DAMPER does not operate Note "Check out the F-FAN with the Forced Operation selected" 1. Freezer FAN, Refrigerator DAMPER and COMP COOLING FAN remains off while COMP is turned off. 2. When Comp is ON, Damper does not always remain ON (including Forced Operaation) and when Refrigerator temp reaches to set temp, Damper remains OFF.
  • Page 52 TROUBLE SHOOTING 2) When Refrigerator DAMPER does not operate Start Is DAMPER in operating conditions? Forced Operation/ Temp Increase Does DAMPER operates with DOOR S/W pressed? DAMPER is normal Is DOOR S/W normal? Change DOOR S/W MICOM voltage Is voltage of MICOM DOOR OPEN : 5V #50 normal? DOOR CLOSE : 0V...
  • Page 53 TROUBLE SHOOTING 3) When Comp Cooling Fan does not operate Start Is COMP operating? Operate Forced Operation Is it COMP COOLING FAN ON condition? Stand by for FAN ON condition Confirm FAN operating condition Ambient Temp Range Load Operation Status Comp Fan operates immediately Higher than (64.4 °F/18 °C) upon COMP ON...

  • Page 54: 6-5) When Defrost Does Not Operate

    TROUBLE SHOOTING 6-5) When Defrost does not operate Pre-Check 1. With a shorted-out Defrost Sensor, the fridge operates normally excepting Defrost(The fault can be picked up with self-diagnosis, POWER ON/OFF). 2. There will be Heating trouble with a shorted-out Temp FUSE, which contributes to Defrost by natural Temp increase resulting in a Temp Control problem stemmed from the increased COMP OFF time.
  • Page 55 TROUBLE SHOOTING Does the Function return to the normal after Heating ? Normal Is each concerned Defrost Sensor Temp higher than the terminated Temp? Concerned Sensor Change concerned Sensor resistance measurement (Appendix TABLE) Is the input voltage of MICOM #58 higher than the voltage upon the terminated Temp? Change Temp pick-up part, Concerned Sensor...

  • Page 56: 6-6) When Alarm Sound Continues Without Stop

    TROUBLE SHOOTING 6-6) When Alarm Sound continues without stop Note 1. When Door gets open, Door Open alarm ("Ding Dong") goes off in 2 minutes with Door opened.When Door remains open after this, the alarm goes off every minute. 2. When Door Switch is not pressed well, MICOM considers it as opened and alarming sound goes off. Room Lamp becomes OFF in 10 minutessince it detectsDoor Open (based on R600a).In this case, even though Door gets opened, Room Lamp does not comes ON.
  • Page 57 TROUBLE SHOOTING Note 1. "Beep-Beep" sounds do not go off except Forced Operation & Forced Defrost. 2. It is checckableatPanel PCB when Forced Operation or Forced Defrost is selected, so when error occurs, check it andcorrect theerror. 3) When PANEL PCB doesn’t light up Start Is MAIN PCB 12V normal? (REG101)

  • Page 58: 6-7) When Room Lamp Does Not Light Up

    TROUBLE SHOOTING 6-7) When Room Lamp does not light up Note 1.Because Room Lamp is basically controled with Door Switch and PBA -SUB,PBA -MAIN does not control it. 1)When Freezer/Refrigerator Lamps do not light up Start Is Door Open? DOOR OPEN Is DOOR SWITCH NORMAL? Replace or troubleshoot...

  • Page 59: 6-8) Dispenser Lamp Malfunction

    TROUBLE SHOOTING 6-8) Dispenser Lamp Malfunction Note 1. Long term LED Short when exchanging may result in the malfunction of PCB since Dispenser Lamp is high brightness LED. 2. When changing the PCB, the power must be turned off. Start ▶...

  • Page 60: 6-9) When Water Valve Does Not Operate

    TROUBLE SHOOTING 6-9) When Water Valve Does Not Operate Pre-Check 1. While disassembling, make sure to cut off water since the water valve is directly connected with water. 2.Makesure toavoidthe electricshock while disassembling because one end of wire is applied with power. 3.Check operation of water valve only after the water switch is pressed Check Water Valve Operation...

  • Page 61: 6-10) When Crush (Crushed Ice ) & Cube (Cubed Ice) Does Not Operate Well

    TROUBLE SHOOTING 6-10) When Crush (Crushed Ice ) & Cube (Cubed Ice) does not operate well Start Operating condition is F-Room Door closing condition. Does Ice come out when extracting Ice? Is ice in Ice Box? Is Ice Stop selected in Ice Selection? ①...
  • Page 62 11. CIRCUIT DIAGRAM...
  • Page 63 12. CIRCUIT DESCRIPTION 12-1) POWER ········································ 12-2) OSCILLATION CIRCUIT ······························ 12-3) RESET CIRCUIT ··································· 12-4) EEPROM DETECTION CIRCUIT ························· 12-5) DOOR SWITCH DETECTON CIRCUIT ······················ 12-6) TEMP SENSING CIRCUIT ····························· 12-7) DAMPER CIRCUIT ·································· 12-8) DISPLAY Circuit ··································· 12-9) Load Control Circuit ·································...

  • Page 64: 12-1) Power

    CIRCUIT DESCRIPTION 12-1) POWER Terminal Oscillation Frequency ● Vcc(DC 5V) MICOM POWER AND SENSORS << BLDC BLDC MOTOR POWER(NOT USE) +12V(DC 12V) RELAY,PANEL POWER ● When turned on, rectified AC voltage which is stepped down on 2nd transformer flows between ① and ③ at about AC 15V, goes through the diode D101 and D104 is changed to DC, and provide constant 12V.

  • Page 65: 12-2) Oscillation Circuit

    CIRCUIT DESCRIPTION 12-2) OSCILLATION CIRCUIT Terminal Oscillation Frequency Xin(#19) 8.0MHz Xout(#18) 8.0MHz ● It is an Oscillation Circuit for synchronism clock generation and time calculation on the information sending & receiving of the MICOM internal logic elements and when specifications for Resonator change, the timing system of MICOM changes resulting in errors.

  • Page 66: 12-5) Door Switch Detecton Circuit

    CIRCUIT DESCRIPTION 12-5) DOOR SWITCH DETECTON CIRCUIT 1) If R-Door is opened, the contact point of the door switch (4-3) becomes open, and the current of PCB line comes through R404 and R405 and provides 5 volt which is recognized as door is opened, and turn off the fan at different load.

  • Page 67: 12-6) Temp Sensing Circuit

    CIRCUIT DESCRIPTION 12-6) TEMP SENSING CIRCUIT 1) Sensor uses a thermistor which has a temp coefficient of negative resistance and controls resistance. When the heat goes up, the resistance gets down and vice versa. R302, 4, 6, 9 and C301~C303, C305 are parts for noise prevention but they are not related to temp sensing characteristics.
  • Page 68 CIRCUIT DESCRIPTION Temp to Resistance of Sensor & MICOM PORT Voltage Sensor CHIP : PX41C Standard Temp. Voltage(V) Temp. Voltage(V) Temp. Voltage(V) Temp. Voltage(V) Resistance(Ω) Resistance(Ω) Resistance(Ω) Resistance(Ω) -50 °C/-58.0°F 4.694 -19°C/-2.2°F 3.773 12°C/53.6°F 2.253 43°C/109.4°F 1.068 153319 30752 8200 2714 -49 °C/-56.2°F 4.677...

  • Page 69: 12-7) Damper Circuit

    CIRCUIT DESCRIPTION 12-7) DAMPER CIRCUIT 1) The temperature of R-room is controlled by opening and closing of damper with stepping motor, supplying & blocking cold air. 2) TA7774P (IC07) operates the damper. TA7774P is the driver IC only for step motor. If the regular signal is provided to TA7774P from Micom, send combined signal to Quad-Polar step motor to rotate on certain direction.

  • Page 70: 12-8) Display Circuit

    CIRCUIT DESCRIPTION 12-8) DISPLAY Circuit 1) KEY SCAN When Grid #6 is output, this signal goes through PCB resistance 10 ㏀ and provided to power frequency. When the switch is pressed, R502(6.8 ㏀) and R501 (12 ㏀) decrease the signal and less than 5.1V peak to peak signal is provided to MICOM, the MICOM recognizes the grid #6 is provided, and change the function corresponding to switch key.

  • Page 71: 12-9) Load Control Circuit

    CIRCUIT DESCRIPTION 2) DISPLAY OPERATION Like the signal diagram below, Micom sends “ high ” signal through MICOM 6 terminals of NO #1→ 2 → 3 → 4 → 5 → 6 for 2ms every 12ms. This signal goes to output terminal via input terminal of IC5 (KID65783AP or TD62783AP).
  • Page 72 CIRCUIT DESCRIPTION 1) Main PCB processes most of the load control for electronic refrigerators. 2) Compressor, F-Room, defrost heater, and other functions are controlled with relay. 3) For example, to operate compressor, MICOM 29 pin outputs high (5V) signal which goes into IC3 Pin #4. The IC3 pin NO 4 plays the same role as the base of NPN TR.

  • Page 73: 12-10) Ice Maker Operation Circuit

    CIRCUIT DESCRIPTION 12-10) ICE MAKER OPERATION CIRCUIT 1) The ice maker circuit above is to control the ice maker kit installed on the F room. 2) This circuit is the hardware to control ejection and horizontal positioning, ice making temperature detection and full icing detection.

  • Page 74: 12-11) Option Circuit

    CIRCUIT DESCRIPTION 12-11) OPTION Circuit ● This circuit operates with the initial power on, uses DIODE (1N4148) or JUMPER WIRE. To modify option circuit, Power must be turned off before modification and turned on after the modification. Refer to the table below, the default factory values are highly recommended unless exceptional cases. OP11, OP12 OP11 OP12...
  • Page 75 9. PCB DIAGRAM 9-1) PART ARRANGEMENT (Main Board) 1. AC Load Connector Part 6. EXT Sensor & Ice, Water Switch Sensing Part 2. AC Load Control Device Part 7. DC Power Supply Part 3. Panel Display Control Part 8. Motor Damper Control Part 4.
  • Page 76 PCB DIAGRAM 9-2) SUB-PCB CONNECTOR CONFIGURATION...
  • Page 77 9. PCB DIAGRAM 9-1) PART ARRANGEMENT (Main Board) 1. AC Load Connector Part 6. EXT Sensor & Ice, Water Switch Sensing Part 2. AC Load Control Device Part 7. DC Power Supply Part 3. Panel Display Control Part 8. Motor Damper Control Part 4.
  • Page 78 PCB DIAGRAM 9-2) SUB-PCB CONNECTOR CONFIGURATION...
  • Page 79 13. Reference 13-1) Measure Load Terminals Turn off Power, disassemble Housing connected to MAIN PCB CN70,71,72 and measure followings LOAD TERMINALS PCB CASE VALUE DEFECTS OTHERS 1) DEFROST HEATER 0Ω THERMAL FUSE, HEATER, WIRE SHORT THERMAL CN71 ⑪ & ③ 2) ICE PIPE HEATER ∞Ω...
  • Page 80 Reference Turn on Power and check status of Relay & Driving Circuit by checking followings according to load operation. LOAD RELAY TERMINALS VALUE WHEN IT IS DIFFERENT FROM MEASURED VALUE SUPPLY RY76 /RY75 CN71⑪∼⑨ RY76 CONTACT SHORT,FAULTY DRIVING CIRCUIT VOLTAGE(SV) DEFROST / COMP OFF RY75 CN71⑬∼⑨...
  • Page 81 Reference 13-3) SERVICE PARTS LIST FOR CIRCUIT ITEM SPEC CODE NO OTHERS DA41-00219K PBA-MAIN ELECTRONIC PBA PANEL DA41-00406A ELECTRONIC TRANS DC DA26-00022A 115V/60Hz DA32-00006D DEF SENSOR DA32-00006D F SENSOR SENSOR DA32-00006B R SENSOR DA32-10108B ICE MAKER SENSOR PBA PANEL IN AMBIENT SENSOR ※...
  • Page 82 SW -SNOW WHITE SL -NOBLE STAINLESS MAIN OPTION (specifications for initial development) {11 - VALUE / 21 - GOOD / 31 - BETTER} SAMSUNG 30 - BEST BUY 30A - BBY'06 M/C (Improvement - Brightness & Appearance) 30B - Contour Door Application 40 - ENERGY STAR V*, W*, X*, Y*, Z* ➝...
  • Page 83 6.17 oz(Only for America) Compressor(MK183C-L2U) 1032 Btu/hr(Only for America) Compressor oil Freol α-15 0.033＂ ＂ ,130＂ ＂ Capillary tube(Dia, Length) Dryer Molecular Sieve XH-9 MODELS Electric box RS2530B** REPLACEMENT PARTS PBA MAIN DA41-00219K ················ PBA PANEL DA41-00406A ··············· TRANS DC(115V/60Hz) DA26-00022A ·······...

  • Page 84: Reference Information

    16. REFERENCE INFORMATION 16-1) Q & A Problem Possible Causes What To Do • Disconnected power plug • Check that the power plug is properly connected. The refrigerator does not • Is the temperature control on the display • Try setting it to a lower temperature. work sufficiently or at all panel set to the correct temperature? •...
  • Page 85 REFERENCE INFORMATION Possible Causes What To Do Problem Small or hollow cubes Water filter clogged. • Replace filter cartridge with new cartridge or with plug. Door left open. • Check to see if package is holding door open. Temperature control not set •...
  • Page 86 17. Refrigeration Cycle and Cool Air Circulation Route 17-1) Refrigerant Route in Refrigeration cycle Compressor →Condenser → Hot Pipe → Dryer → Capillary Tube → Evaporator → Suction Pipe → Compressor Accumulator Evaporator Dryer Hot Pipe Suction Pipe Condenser Capillary Tube Muffler Compressor Hot Pipe...
  • Page 87 Refrigeration Cycle and Cool Air Circulation Route 17-2) Cool Air Circulation Freezer Refrigerator...
  • Page 88 Samsung 'Refrigerator' Diagnostic Code Quick Guide Error Items TROUBLE Ice Maker Sensor Error- This can be an Electric wire cut, short-circuit, 1 I/M-SENSOR contact failure, or missing sensor. This can also be caused by a temperature reading > 122° or < -58 ° F.
  • Page 89 Samsung 'Refrigerator' Diagnostic Code Quick Guide Error Items TROUBLE Ambient Temp. Sensor Error- This can be an Electric wire cut, short- 15 EXT-SENSOR circuit, contact failure, or missing sensor. This can also be caused by a temperature reading > 122° or < -58 ° F.
  • Page 90 I/M Sensor Error Cubed Ice failure, or missing sensor. This can also be caused by a temperature reading > 149° or < -58 ° F. Samsung Older "RB" Series 'Refrigerator' Diagnostic Code Quick Guide Error Items Display LED TROUBLE Fridge Compartment Sensor Error- This can be a wire cut, short-...
  • Page 91 Samsung 'Washer' Diagnostic Code Quick Guide Code Description Corrective Action Display The water level fails to drop below the Reset Water Level Go to “ Will Not Drain” Troubleshooting Section. within 15 minutes. Door fails to unlock after 3 attempts.
  • Page 92 Samsung 'Dryer' Diagnostic Code Quick Guide Display Description Trigger Action Taken Dryer Thermistor Short The Thermistor resistance is Check for: Clogged lint screen, Restricted Sensed very low. vent system, Thermistor resistance. Dryer Thermistor Open The Thermistor resistance is Check for: Clogged lint screen, Restricted Sensed very high.
  • Page 93 Samsung 'Microwave' Diagnostic Code Quick Guide Failure Code Cause E-11 Open Error Code Gas Sensor Error Case E-12 Short (E-1X) E-13 T1 Max Time Error E-14 Dry Up / No Load E-21 Open E-22 Short E-23 T1 Max Time Error (Preheating not completed) Error Code Temp.
  • Page 94 Samsung 'Electric Range' Diagnostic Code Quick Guide Failure Cause Solution Code 1. Disconnect power. Open the back cover. Disconnect sensor harness from control Measure sensor resistance :1080Ω at room temperature → If different value, replace oven sensor. Oven sensor opened(over 2950Ω) 2.
  • Page 95 Samsung 'Dishwasher' Diagnostic Code Quick Guide Error Error Type Cause Reason Mode 1. When the pulse of 100 or less is detected 1 minute Water supply valve defect, Flow Water after the water supply starts Meter defect, Particles within water Supply 2.
