Summary of Contents for STOVES 900GR

  • Page 1 By Eurolec...
  • Page 2 Our Warranty Should you need it ..Inside the paperwork which has come with this appliance, there is a leaflet and card explaining the terms of our extended warranty and guarantee. In order to apply for our five year guarantee, simply fill in the details on the card and post it off, this will register your appliance.

  • Page 3: Table Of Contents

    CONTENTS User’s Section ......... 2 Introduction .

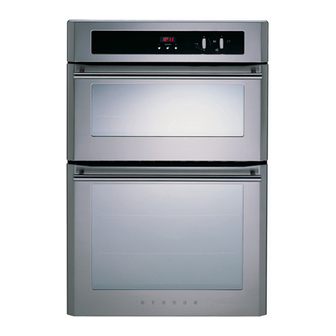

  • Page 4: Your Appliance

    Your Appliance 900GR fascia detail Grill function Top oven Main oven function function Timer display Timer buttons Temperature selectors 900GR oven detail For fascia detail - see above Grill / Top Oven door handle Grill / Top Oven glass door...

  • Page 5: Introduction

    Switch off the electricity supply to the appliance at the socket, to avoid the The 900GR is designed to fit into a risk of electric shock. standard 600mm wide housing unit Wait until the oven is cool then remove with a minimum internal height of the oven shelves.
  • Page 6 INTRODUCTION Gas & Electrical connection Condensation Please refer to installation instructions When hot and cold air meet, for the Gas & Electrical Safety Regulations condensation forms. The outer door is and the Ventilation Requirements. air cooled and the inner door gets hot, so some condensation might form;...
  • Page 7 INTRODUCTION Glass door panels Cooling fan To meet the relevant Standards of When you switch on the ovens or grill Domestic cooking appliances, all the you will hear the cooling fan start. glass panels on this appliance are This fan provides air for the burners toughened to meet the fragmentation keeps exterior...

  • Page 8: Be Safe - Not Sorry

    BE SAFE - NOT SORRY When you are cooking, keep • Do not use foil on oven shelves, or children away from the vicinity allow it to block the oven flue, as of the appliance. this creates a fire hazard, and prevents heat circulation.

  • Page 9: Using The Grill

    USING THE GRILL Caution: Accessible parts may Using the Grill be hot when the grill is used. Push the grill pan towards the back Young children should be kept and centre of the shelf to position it away. under the grill. Variation in grilling performance can be achieved by selecting a higher or lower shelf posi-...
  • Page 10 USING THE GRILL Detachable grill pan handle grid grill pan handle position handle indicators Place the handle over the edge of the grill pan, at the narrow side edges. Slide the handle to the centre, and locate between the handle position indicators.

  • Page 11: Using The Top Oven

    USING THE TOP OVEN When you are cooking keep Notes: children away from the vicinity As part of the cooking process, hot air of the oven. is expelled through a vent at the top of The top oven can be used generally, the oven(s).
  • Page 12 USING THE MAIN OVEN When you are cooking keep Main oven ignition children away from the vicinity Turn the control knob anticlockwise to of the oven. the required gas mark. Manual operation To turn off, return the control knob to The oven cannot be used manually the “off”...

  • Page 13: Using The Ovens

    USING THE OVENS Oven furniture Oven shelves The oven shelf must be positioned with the upstand at the rear of the oven and facing upwards. Position baking trays and roasting tins on the middle of the shelves, and leave one clear shelf position between shelves, to allow for circulation of heat.

  • Page 14: Programmer / Clock

    Programmer / Clock The Programmer Buttons Manual operation minute minder cook time ready time minus plus To set the programmer to manual To set the “Time of Day” operation at any time (cancelling any automatic setting), press the cook time and ready time buttons simultaneously.
  • Page 15 Programmer / Clock Semi-automatic cooking (example) 1. A (Auto) symbol appears. You have started cooking a meal or dish in the oven, and want to set the time for the oven to switch off. Press the cook time button, then use the plus and minus buttons to set the display to show the length of cooking time required, eg;...
  • Page 16 Programmer / Clock Fully automatic cooking (example) 5. A (Auto) symbol appears. For use when a delayed start time is required. You want to set the length of cooking time, and the time for the oven to switch off. The programmer will automatically calculate the cooking start time.
  • Page 17 Programmer / Clock 9. A (Auto) symbol will flash. The oven will automatically switch off at 18.00 hours (6.00 pm) and the alarm will sound (9). To switch off the alarm press the minute minder button (10). When the oven has switched off, return the oven control knob to the “off”...
  • Page 18 Automatic cooking - hints Automatic cooking Do not • Never place warm food in the These notes below are to help you with oven for delayed cooking - eg; using the automatic cooking facility. stews prepared by frying meat first Please make sure that you read them must be thoroughly cooled before carefully before you start using the...

  • Page 19: Cleaning

    CLEANING Caution: Any cleaning agent Chrome plated parts used incorrectly may damage & OVEN SHELVES OVEN SHELF RUNNERS the appliance. GRILL PAN TRIVET Always let the oven cool before Do not use abrasives or polishes. Use a cleaning. moist soap pad. These items may also Some cooking operations generate a be cleaned in a dishwasher.
  • Page 20 CLEANING Glass parts Important: if the inner door glass panel is removed for cleaning, it must & FACIA PANEL DOOR PANELS be replaced the right way up as Use a mild cream cleaner. Rinse thor- shown, and pushed fully in to the oughly and dry with a soft cloth.
  • Page 21 CLEANING Stainless Steel surfaces (stainless steel finish models only) FACIA PANEL HANDLES DOOR PANELS Only use a clean cloth wrung out in hot soapy water, and dry with a soft cloth. Stubborn marks can be removed using a stainless steel cleaner. We recom- mend that you clean the whole of the stainless steel area to maintain a uni- form finish.

  • Page 22: Micro-Computer Operation

    Customer Care. non exists, chiefly when first turning on. The 900GR double oven & grill unit uses a built in micro-computer to control the oven It may be necessary to reset the micro- temperature.

  • Page 23: Installation Instructions

    INSTALLATION INSTRUCTIONS Before start: Please read For installation in countries other than the instructions. Planning your installation will UK, the appliance must be connected in save you time and effort. accordance with all local gas and electrical regulations. In the Republic of Ireland, Prior to installation, ensure that the local Installers should refer to IS813 Domestic distribution conditions (nature of the gas and...
  • Page 24 INSTALLATION INSTRUCTIONS Step 1: Prepare installation When the false back is removed, it is normally the case that the support shelf Do not lift the appliance by the for the appliance leaves a gap door handle. between the back edge of the support Remove the fixing screws from the shelf and the rear wall of approxi- polythene bag on the top of the...
  • Page 25 INSTALLATION INSTRUCTIONS The appliance is designed to fit into a standard 600 mm wide housing unit, with minimum internal dimensions as shown. 560 mm 547 mm Hose assembly Gas valve Gas pressure regulator 6 mm 550 mm 547 mm Union connection 560 mm Gas pressure regulator...
  • Page 26 INSTALLATION INSTRUCTIONS Dimensions The appliance is designed to fit into a standard 600mm wide housing unit, with minimum internal dimensions as shown. Note: All sizes are nominal, some variation is to be expected. 560mm 550mm m i n m i n m i n...
  • Page 27 INSTALLATION INSTRUCTIONS Step 3: Connect to the electricity As the colours of the wires in the mains supply lead for the appliance may not correspond with the coloured markings This appliance must be connected by identifying the terminals in your spur a competent person, using fixed box, proceed as follows: wiring via a double pole switched...
  • Page 28 INSTALLATION INSTRUCTIONS Step 3: Connect to the gas supply 5. Flexible connections should be A.S. 1869, to at least class B. 1. The inlet to the appliance is pipe Parts of the appliance likely to thread ISO RP ” internal situated ⁄...
  • Page 29 INSTALLATION INSTRUCTIONS Step 4: Check edging strip Step 5: Secure appliance into housing unit The edging strip is factory fitted to the front side edges of the appliance Insert appliance into cabinet. Note: front frame. This strip provides the The unit housing the appliance must be cabinetry with extra protection from appropriately fixed.
  • Page 30 INSTALLATION INSTRUCTIONS Step 6: Commissioning Ignition The automatic ignition will continue to spark for a short time after the burner Burner aeration flame has lit, until the flame is established. All burners have fixed aeration and no adjustment is possible. Grill 1.

  • Page 31: Fault Finding

    FAULT FINDING Method of operation Electrical faults When the control knob is rotated from These may be either component failure the ‘OFF’ position, a microswitch or wiring / connector faults. Should closes and allows the gas control any disconnections be made, it is solenoids to be energised;...
  • Page 32 FAULT FINDING Typical faults assuming all wiring is correct (ensure programmer is set to manual): Symptom Fault HLO on switching On mains Component fault on main PCB, incorrect wiring HLO on turning On oven/grill Fault on control board / potentiometer, incorrect wiring, open circuit solenoid.
  • Page 33 FAULT FINDING Symptom Fault Oven fan does not start Faulty fan or connections. burner lights, oven lamp lights Oven fan does not start Component failure on main board. lamps do not light Cooling fan fails to start 1. Faulty fan. ‘ON’...

  • Page 34: Servicing Instructions

    SERVICING INSTRUCTIONS Before servicing - disconnect the gas 4. Oven Light bulb and electric supplies. a. Remove the oven shelves. After servicing - Check for gas soundness. b. Grasp the back edge of the light cover and pull forward. Note: The control system only allows gas Unscrew the bulb.
  • Page 35 SERVICING INSTRUCTIONS 7. Burner 10. Door switch a. It is easier to lift out the fan cover if you a. Remove appliance from housing unit (2). first remove the oven shelf runners: b. Remove top panel and RHS panel. (i) Pull the bottom edge away from the Unscrew the screws which secure the oven side.
  • Page 36 SERVICING INSTRUCTIONS 15. Programmer / clock 17. Solenoid Block a. Remove appliance from housing. a. Remove appliance from housing. b. Remove top & facia panels (1). b. Remove top, rear and right side panels. The programmer is fixed to the facia Disconnect the olive pipe connection panel with high temperature double at the oven fan motor and unclip the...
  • Page 37 ISSUE A STOVES 900 GR - AU Wiring colour code: Bk - Black, Bn - Brown, Bu - Blue, Gn - Green, Or - Orange, R - Red, W - White, F1 - Door Switch A1 - Main oven fan...

  • Page 38: Technical Data

    TECHNICAL DATA Data Badge Abbreviated data badge located on Grill front frame. Full data badge located Burner: Surface combustion. on rear panel. Spark gap: 3 - 4mm. Gas Category Top Oven This appliance is factory set for use on Burner: Rotary surface combustion. Natural Gas only.

  • Page 39: Customer Care

    Service Record Please record your model number and serial number in the space below. Where are my model and serial numbers? Freestanding HL appliances: base of storage drawer Freestanding appliances: front frame near oven cavity Built in oven: front frame near oven cavity Hobs: base plate of the hob Having these numbers to hand will help us to help you, quickly and more efficiently.
  • Page 40 Before you contact a service agent, make sure that you have the following information to hand: Model Number Serial Number Date or Purchase Postcode Proudly distributed by Eurolec. Head Office address: 27 Watland Street, Springwood, Queensland 4127 08 27313 00 © 07.2006 Built In Gas Oven Model Names: 900GR...
