Powering Off

Press and hold the Power Button (or the side button
if it is configured for turning the power on and off) for
several seconds and observe the LCD countdown
progress from 3 to 1. The power will then be turned off.
This can be done from any menu or screen.
Powering
NOTE: If the Power Button
is released before the
O . . .
countdown is completed, the
unit will remain turned on
and the LCD will return to the
same screen or menu that
1
was displayed previously.

Standby Mode

A brief push of the Power Button turns the unit on and
places it into a "standby" mode (not transmitting). This
allows the transmitter to be set up without the risk of
creating interference for other wireless systems that
are operating in the vicinity.

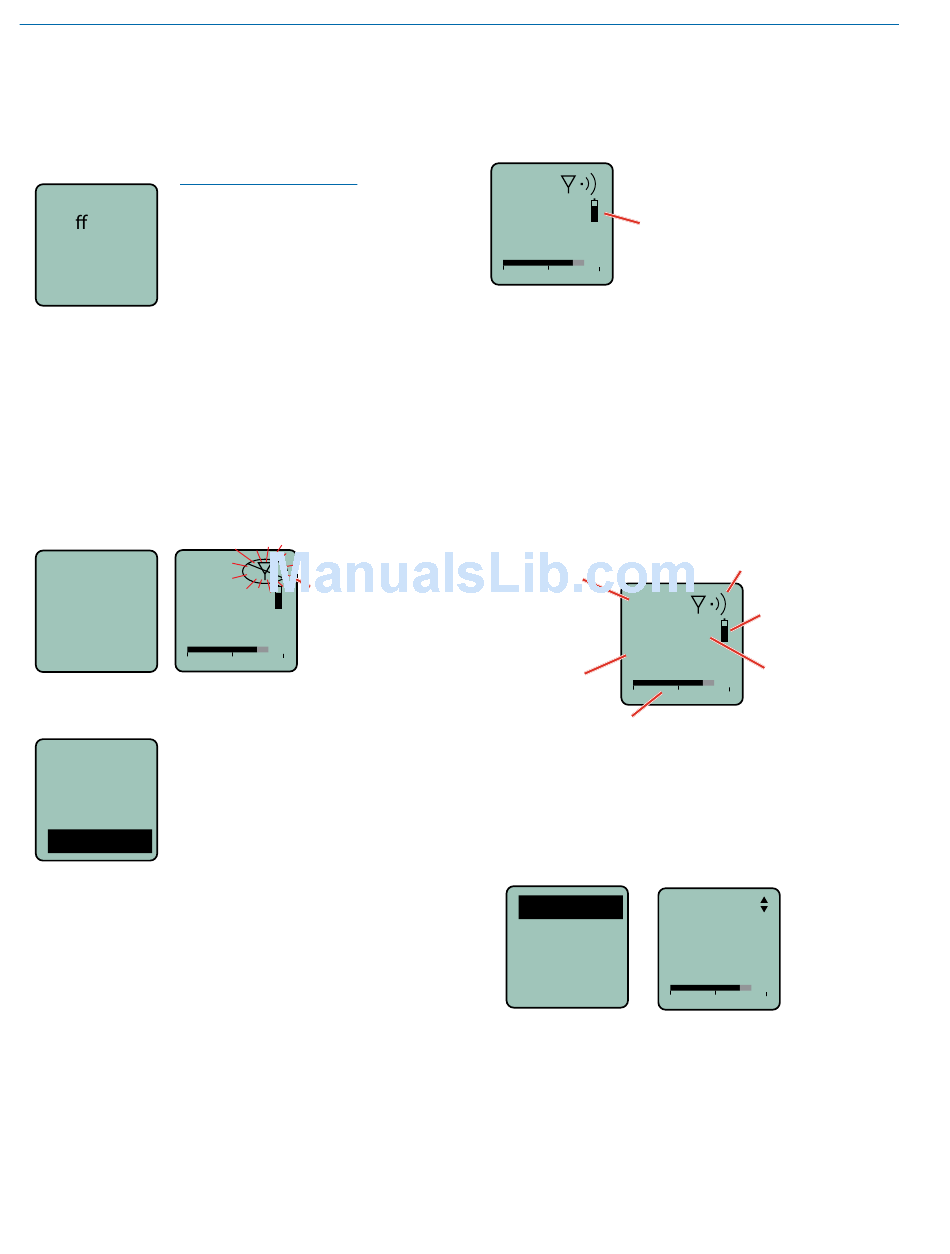

A notice will appear briefly confirming that the RF out-
put of the transmitter is turned off, followed by the Main
Window. The antenna symbol will blink as a reminder
that the RF output is turned off.
5
Rf
623.400
Off
-40

Power Menu

When the transmitter is turned on, a
Resume
brief push of the Power Button will
reveal a menu allowing you to
Pwr Off
choose between Resume, Pwr Off,
Rf On?
Rf On?, Backlit and About.
Backlit
Use the UP/DOWN buttons to select
one of the menu items, then press
the MENU/SEL button to confirm
this action.
• Resume: Continue operating in the same condi-
tion as before.
• Pwr Off: Turns off the transmitter.
• Rf On?: Begin transmitting the RF signal, enters
another screen prompting a Yes or No answer.
• Backlit: The LCD includes a backlight that il-
luminates the display for easier viewing. It is set
to come on when any button on the control panel
is pressed, then stay on for either 30 seconds or
5 minutes, or to stay on all the time.
• About: Displays the model, firmware version,
frequency block and compatibility mode.
The unit can also be turned off from any menu or
screen on the LCD by holding the power button in for
the duration of the countdown.
8
A
Symbol blinks
MUTE
when RF output
is turned OFF
-20 0

Battery Condition

An icon on the Main Window indicates the remaining
power of the transmitter batteries. This battery gauge
is most accurate with the typical voltage drop across
the life of alkaline batteries.
5
A
623.400
Battery Gauge
-40 -20 0
Rechargeable batteries give little or no warning when
nearing depletion. If you use rechargeable batteries in
the HH, we recommend trying fully charged batteries
first, noting the length of time that the batteries will run
the unit, and in the future using somewhat less than
that time to determine when the battery needs to be
replaced. The Venue and other receivers from Lectro-
sonics offer a timer function to assist in this process.

Navigating Menus and Screens

The Main Window displays the following information:
Hex Code for
Operating frequency
5
A
623.400
Operating
frequency in MHz
-40
Audio level
1) Press the MENU/SEL button to enter the setup
menu. Use the UP/DOWN buttons to highlight the
menu item.
2) Press the MENU/SEL button to enter the setup
screen for that item. Use the UP/DOWN buttons
to select the desired value or mode.
Gain
Freq.
ProgSw
Rolloff
3) Press the MENU/SEL button to save this setting
and return to the previous screen.
4) Press the BACK button to return to the Main Win-
dow.
Icon indicates
whether RF output
is turned on or off
Battery condition
TB
Function of the
rear panel switch
(talkback button)
-20
0
Gain
25
-40 -20 0
