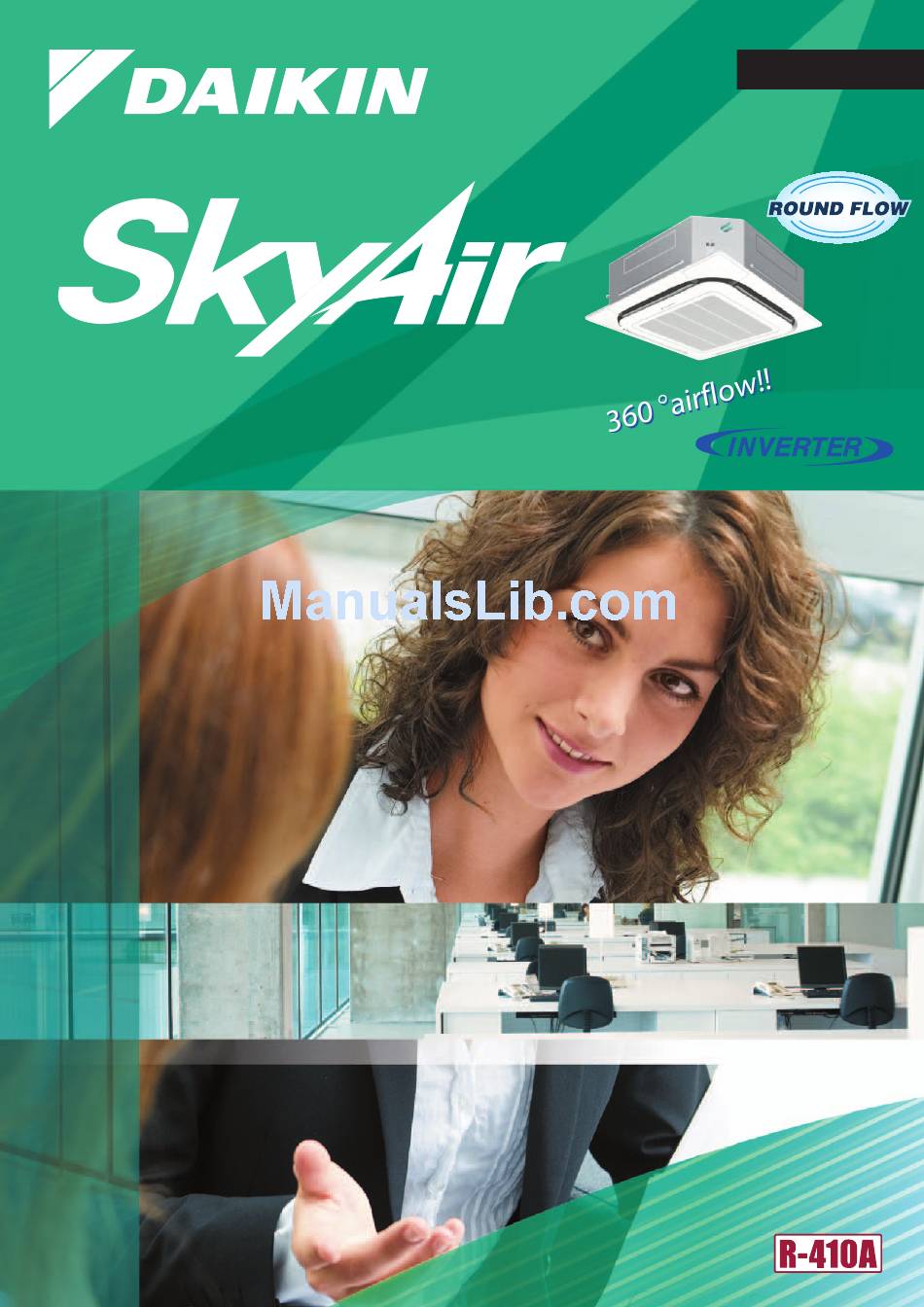

  • Page 1 PCSAU0739C Air Conditioning Systems FCQN-KVEA + RQ-LV1A HEAT PUMP...

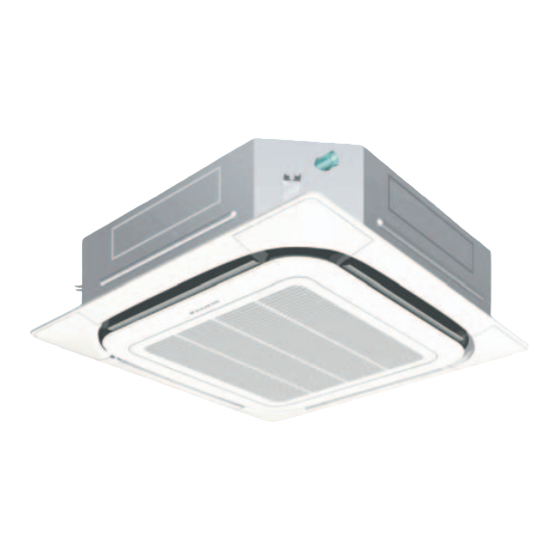

  • Page 2 CEILING MOUNTED CASSETTE TYPE Round Flow Uniform 360 airflow cassette air conditioner Uniform 360 airflow cassette air conditioner is setting tomorrow's standards. is setting tomorrow's standards. Option Accessory required for indoor unit Wired Remote Controller "Nav Ease" "Nav Ease" BRC1E61 Note: Remote controller cable not included.
  • Page 3 Avoids uneven temperature and discomfort caused by drafts. Comfort enhanced by Round Flow! Air movement is gentle 360 ° airflow with Round Flow With uniform temperature distribution Enhanced Comfort 360° airflow can maintain comfort even if air Airflow discharge speed is distribution lower.
  • Page 4 CEILING MOUNTED CASSETTE TYPE Round Flow Unified square panels Compact body and quiet operation dB(A) Panel size is the same for all models, FCQN71-140K. Indoor unit High It is easy to maintain a neat appearance when multiple units are installed in the same room. Note : Anechoic chamber conversion value, measured 100K...
  • Page 5: Fresh Air Intake Kit

    *Connecting ducts, insect nets, fire dampers, air filters, and other Note: Some ceiling constructions may hinder installation. parts should, as required, be procured locally. Contact your Daikin Dealer before installing your unit. **Outside Air fan interlocked with air conditioning unit is necessary. Optional PCB(KRP1C63)is required for interlocking.
  • Page 6 OUTDOOR UNIT Compact Outdoor Unit for Round Flow Cassette RQ71LV1A RQ100LV1A RQ125LV1A RQ140LV1A Easy installation and maintenance Durability Pre charged for up to 30 metres 4-direction piping offers greater As the bottom frame is subject to corrosion, a corrosion-proof galvarium steel plate is layout freedom If refrigerant piping length does not exceed adopted to enhance the durability.
  • Page 7: Scroll Compressor

    AC motor AC motor AC motor AC motor AC motor under controlled increase conditions at a Daikin Smooth Air Inlet Bell Mouth and laboratory. 200 300 400 500 600 700 800 900 1000 Aero Spiral Fan Motor speed (rpm) These two features work to reduce noise. Guides are...
  • Page 8 LCD REMOTE CONTROLLER Optional accessory Easy-to-read LCD remote controller allows vario can control multiple indoor units. Remote controller options are shown on the page introducing each indoor unit model. "Nav Ease" "Nav Ease" Wired Remote Controller Clear display, Simple operation. This advanced, yet simple and modern remote controller, makes operation easier by simply following the indications on the new remote...
  • Page 9: Other Features

    (For ceiling mounted cassette type) BRC7F632F Wireless remote controller SkyAir shares common control with the Heat Reclaim Ventilator SkyAir Indoor unit and other Daikin air-conditioning units, thus simplifying interlocking operations. Interlocking Interlocking Interlocking LCD remote controller Heat Reclaim for SkyAir indoor unit...
  • Page 10: Wireless Remote Controller

    The interface adaptor for the SkyAir series is Interface adaptor for SkyAir series to a high-speed, DIII-NET communication optional except for the ceiling mounted cassette system, adopted for the Daikin VRV system. DTA112BA51 (Option) type. Necessary for interface adaptor for SkyAir series with the...
  • Page 11 Abundance of features that provide comfortable air-conditioning in stores and offices. C o m f o r t Auto-swing High-ceiling application Delivers comfortable air- Delivers air-conditioning comfort all the way down to the floor The air flow direction can be fixed conditioning to all areas, in air-conditioning zones with high ceilings.
  • Page 12: Emergency Operation

    Ceiling soiling prevention function Self diagnosis function Daikin's innovative air discharge mechanism keeps airflow The operating parameters of indoor and outdoor units, and away from the ceiling. Ceiling cleaning is less frequently sensor data at critical locations throughout the system, are required.
  • Page 13: Specifications

    SPECIFICATIONS CEILING MOUNTED CASSETTE TYPE Indoor unit FCQN71KVEA FCQN100KVEA FCQN125KVEA FCQN140KVEA Model Name Outdoor unit RQ71LV1A RQ100LV1A RQ125LV1A RQ140LV1A Power supply 1 Phase, 220-240 V, 50 Hz Cooling capacity 10.0 12.5 13.6 rated (Min. - Max.) (3.6–7.1) (5.0–10.0) (6.3–12.5) (6.8–13.6) Heating capacity 11.2 14.0...
  • Page 14 OPTIONS Round flow type: List of optional parts required to achieve different flow patterns For each flow pattern – all round, 4-way, 3-way, 2-way, branch duct connection – the compatibility of each independently installed option (shown in the column on the left) to accessory options (listed across the top of each table) is shown in the cells where the relevant row and column intersect. A circle ( ) indicates compatibility, and a cross ( ) indicates incompatibility.
  • Page 15 DIMENSIONS (Unit: mm) CEILING MOUNTED CASSETTE TYPE [FCQN71-140KVEA] [FCQN71-140KVEA] [FCQN71KVEA] [FCQN100-140KVEA] Connection position 860~910(Ceiling opening space) (Note 4) of branch duct 2 100 = 200 2x100=200 Connection position of branch duct (round shape type) 710(Suspension position) or less (round shape type) Note 2 16-M4 Hole 16-M4 Hole...
  • Page 16 DIMENSIONS (Unit: mm) OUTDOOR UNIT // RQ71LV1A Hole for anchor bolt 4-M12 Gas pipe connection Liquid pipe connection Service port Grounding terminal M5 (in switch box) Refrigerant piping intake Power supply wiring intake Control wiring intake Drain outlet OUTDOOR UNIT // RQ100LV1A, 125LV1A, 140LV1A Hole for anchor bolt 4-M12 71 11...
  • Page 17: Remote Controller

    REMOTE CONTROLLER Wireless type Remote controller dimensions CEILING MOUNTED CASSETTE TYPE Transmitting part Receiver installation procedure Receiver Refrigerant piping side Drain piping side 17.5 Remote controller holder Decoration panel installation procedure Receiver detail <installation to wall surface> Liquid crystal remote controller (wireless) Remote controller holder...
  • Page 18 Example of installation service space for outdoor unit For RQ71-140LV1A The values represent the case for the RQ100-140LV1A. The dimensions in ( ) are for the RQ71LV1A (The unit values is mm. ) When there is an obstruction on the inlet side When there is an obstruction on the outlet side 1) When the overhead space is open 1) When the overhead space is open...
  • Page 19 MEMO...
  • Page 20 Improper installation can result in water or refrigerant leakage, electrical shock, fire or explosion and may have resultant impacts on warranty. Use only those parts and accessories supplied or specified by Daikin. Ask a qualified installer or contractor to install those parts and accessories. Use of unauthorised parts and accessories or improper installation of parts and accessories can result in water or refrigerant leakage, electrical shock, fire or explosion.
