Thank you for choosing MotorGuide, one of the finest trolling
motors available. Years of experience have been committed to the
goal of producing the finest quality products. This led to
MotorGuide's reputation for strict quality control, excellence,
durability, long‑lasting performance and being the best at providing
after‑the‑sale service and support.
Please read this manual carefully before operating your motor. This
manual has been prepared to assist you in the operation, safe
use, and care of your trolling motor.
Again, thank you for your confidence in MotorGuide.
NEVER STOP LEARNING, NEVER STOP IMPROVING, AND
NEVER, EVER STOP FISHING.
Warranty Message
The product you have purchased comes with a One-Year Limited
Warranty from MotorGuide, the terms of the policy are set forth in
the Warranty Information section of this manual. The policy
statement contains a description of the duration of coverage,
important disclaimers and limitations of damages, and other
related information. Please review this important information.
The description and specifications contained herein were in effect
at the time this manual was approved for printing. Mercury
Marine, whose policy is one of continued improvement, reserves
the right to discontinue models at any time, to change
specifications, designs, methods, or procedures without notice and
without incurring obligation.
MotorGuide, Tulsa, Oklahoma U.S.A.
Litho in U.S.A.
© 2009, MotorGuide
i
Advertisement
Table of Contents
Related Manuals for Mercury T30
Summary of Contents for Mercury T30
- Page 1 Please review this important information. The description and specifications contained herein were in effect at the time this manual was approved for printing. Mercury Marine, whose policy is one of continued improvement, reserves the right to discontinue models at any time, to change specifications, designs, methods, or procedures without notice and without incurring obligation.
- Page 2 K‑Planes, MerCathode, RideGuide, SmartCraft, Total Command, VesselView, Zero Effort, Zeus, M with Waves logo, Mercury with Waves logo, and SmartCraft logo are all registered trademarks of Brunswick Corporation. Mercury Product Protection logo is a registered service mark of Brunswick Corporation.
-
Page 3: Table Of Contents
MotorGuide Limited One‑Year Warranty..........1 General Information Boater's Responsibilities..............4 Protecting People in the Water............4 Passenger Safety Message..............4 Safe Boating Suggestions..............5 Product Overview T30/T34 MotorGuide Trolling Motor............6 Specifications..................6 Wiring and Battery Information Wiring and Battery Information............7 Standard Practices and Procedures............7 Battery Recommendations..............7 Battery Precautions................8 Wire and Cable Routing..............8... - Page 4 Trolling Motor Care................15 Inspection and Maintenance Schedule..........15 Lubricating the Pivot Points...............16 Battery Inspection................16 Propeller Replacement..............17 Troubleshooting Trolling Motor Performance...............19 Storage Storage Preparation................20 Owner Service Assistance MotorGuide Accessories Inquiries.............21 Mercury Marine Service Offices............21 Maintenance Log Maintenance Log................23 Accessories Trolling Motor Accessories..............24...
-
Page 5: Warranty Information
MotorGuide Service Dealers are responsible for damages to MotorGuide products due to repairs performed by anyone other than the MotorGuide Factory Service Center. Neither MotorGuide nor Mercury Marine is responsible for failure or damage caused by improper installation, set‑up, preparation, or previous service or repair errors. - Page 6 WARRANTY INFORMATION 4. Warranty coverage is available only to customers that purchase from a Dealer authorized by MotorGuide/Mercury Marine to distribute the product in the country in which the sale occurred. Warranty coverage and duration varies by the country in which the product resides.
- Page 7 WARRANTY INFORMATION 8. Serialized "Service‑Repair" motors have a (1) one year warranty. Non‑serialized "Service‑Repair" electric trolling motors are NOT warranted. "Service‑Repair" motor denotes a trolling motor sold by MotorGuide that may be "used" but has been inspected and may have had minor repairs. Original retail purchaser of a "Service‑Repair"...
-
Page 8: General Information
GENERAL INFORMATION Boater's Responsibilities The operator (driver) is responsible for the correct and safe operation of the boat and safety of its occupants and general public. It is strongly recommended that each operator (driver) read and understand this entire manual before operating the trolling motor. Be sure at least one additional person on board is instructed in the basic operation of the trolling motor in case the driver is unable to operate the boat. -
Page 9: Safe Boating Suggestions
GENERAL INFORMATION Safe Boating Suggestions In order to safely enjoy the waterways, familiarize yourself with local and other governmental boating regulations and restrictions, and consider the following suggestions. Use flotation devices. It is the law to have an approved personal flotation device of suitable size for each person aboard and have it readily accessible. -
Page 10: Product Overview

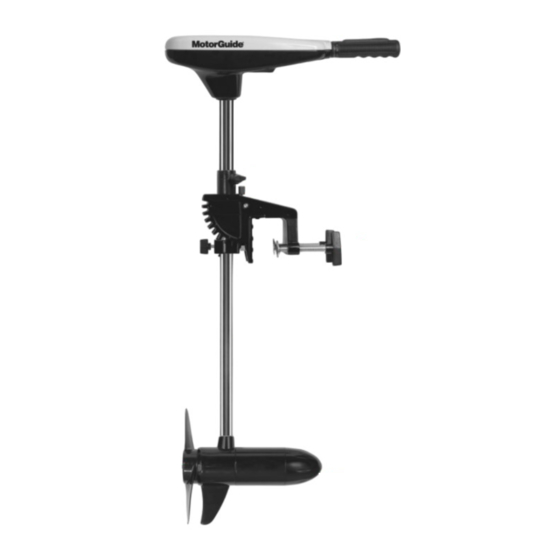

PRODUCT OVERVIEW T30/T34 MotorGuide Trolling Motor 37395 Twist‑tiller handle Lower unit Depth collar knob 2‑blade power propeller Tilt‑positioning pin Steering tension knob Transom clamp screws 03 transom mount Shaft Specifications Model Peak Thrust Shaft Volts Speed Control 30 lbf thrust 76.2 cm (30 in.) -
Page 11: Wiring And Battery Information
WIRING AND BATTERY INFORMATION Wiring and Battery Information WARNING An operating or charging battery produces gas that can ignite and explode, spraying out sulfuric acid, which can cause severe burns. Ventilate the area around the battery and wear protective equipment when handling or servicing batteries. -
Page 12: Battery Precautions
WIRING AND BATTERY INFORMATION Battery Precautions WARNING An operating or charging battery produces gas that can ignite and explode, spraying out sulfuric acid, which can cause severe burns. Ventilate the area around the battery and wear protective equipment when handling or servicing batteries. When charging batteries, an explosive gas mixture forms in each cell. -
Page 13: Battery Connection
WIRING AND BATTERY INFORMATION Battery Connection CAUTION Disconnecting or connecting the battery cables in the incorrect order can cause injury from electrical shock or can damage the electrical system. Always disconnect the negative (‑) battery cable first and connect it last. 12-VOLT BATTERY CONNECTION 37289 Power cable... -
Page 14: Trolling Motor Installation And Operation
TROLLING MOTOR INSTALLATION AND OPERATION Transom Mount Installation NOTE: Fits up to 3‑1/4 in. thick transoms. 1. Select an appropriate area on the transom of the boat to install the mount. 2. Retract the transom clamp screws. 3. Place the transom mount over the transom of the boat. Ensure the mount is securely positioned. - Page 15 TROLLING MOTOR INSTALLATION AND OPERATION 1. Firmly grasp the column and press down on the tilt‑positioning pin. 37852 Tilt‑positioning pin 2. Pull back on the column while simultaneously pressing down on the tilt‑positioning pin to reach the desired angle. 37986 Angled position 3.
- Page 16 TROLLING MOTOR INSTALLATION AND OPERATION DEPLOYING THE MOTOR CAUTION Moving parts, such as hinges and pivot points, can cause serious injury. Keep away from moving parts when stowing, deploying, or tilting the motor. 1. Firmly grasp the column and press down on the tilt‑positioning pin.
-
Page 17: Adjusting The Steering Tension
TROLLING MOTOR INSTALLATION AND OPERATION 3. Release the tilt‑positioning pin. Verify that the latch pin is sercurely engaged. 37851 Tilt‑positioning pin Latch pin Adjusting the Steering Tension Adjust the steering tension knob to increase or decrease the effort to turn the motor freely. To fasten the column in a fixed position, tighten the friction strip by turning the steering tension knob clockwise. -
Page 18: Speed Control
TROLLING MOTOR INSTALLATION AND OPERATION Firmly grasp the column with one hand while turning the depth collar adjustment knob clockwise until the motor column slides freely. To secure the column in the desired depth position, turn the depth collar adjustment knob counterclockwise and then tighten securely. 37377 Depth collar adjustment knob IMPORTANT: When adjusting the motor depth, ensure the lower unit... -
Page 19: Trolling Motor Care
MAINTENANCE Trolling Motor Care To keep your trolling motor in the best operating condition and retain its dependability, it is important that your trolling motor receive periodic inspections and maintenance. We urge you to keep it maintained properly to ensure the safety of you and your passengers. WARNING Neglecting to inspect, maintain, or repair your trolling motor can result in product damage or serious injury or death. -
Page 20: Lubricating The Pivot Points
MAINTENANCE • Inspect the battery. Refer to Battery Inspection. BEFORE PERIODS OF STORAGE • Refer to Maintenance - Inspection and Maintenance Schedule and complete the appropriate care instructions to prepare your trolling motor for storage. Lubricating the Pivot Points To reduce friction, lubricate the the following pivot points periodically: •... -
Page 21: Propeller Replacement
MAINTENANCE Propeller Replacement WARNING Performing service or maintenance without first disconnecting the battery can cause product damage, personal injury, or death due to fire, explosion, electrical shock, or unexpected motor starting. Always disconnect the battery cables from the battery before maintaining, servicing, installing, or removing motor components. - Page 22 MAINTENANCE INSTALLING THE PROPELLER 1. Rotate the motor shaft to insert the propeller pin horizontally. 37936 Propeller pin 2. Install the propeller onto the motor shaft by engaging the propeller onto the propeller pin. 37935 3. Install the propeller nut. Tighten securely. 37934 Propeller wrench 4.
-
Page 23: Troubleshooting
TROUBLESHOOTING Trolling Motor Performance Symptom Possible Cause Resolution Weak battery Refer to Wiring and Battery Loose or corroded battery Information. connections Propeller is loose, damaged Refer to Maintenance. Loss of power or off‑balance Wire gauge from the battery to Wiring or electrical the trolling motor is insufficient. -
Page 24: Storage
STORAGE Storage Preparation The major consideration in preparing your trolling motor for storage is to protect it from corrosion and damage caused by freezing of trapped water. Refer to the Maintenance - Inspection and Maintenance Schedule section and complete the appropriate care instructions to prepare your trolling motor for storage. -
Page 25: Owner Service Assistance
When inquiring on accessories, the dealer requires the model and serial number to order the correct parts. Mercury Marine Service Offices For assistance, call, fax, or write. Please include your daytime telephone number with mail and fax correspondence. - Page 26 OWNER SERVICE ASSISTANCE Japan Telephone 81‑053‑423‑2500 Mercury Marine - Japan Anshin-cho 283-1 Hamamatsu 81‑053‑423‑2510 Shizuoka-ken, Japan 435-0005 Japan Asia, Singapore Telephone 5466160 Mercury Marine Singapore 72 Loyang Way 5467789 Singapore, 508762...
-
Page 27: Maintenance Log
MAINTENANCE LOG Maintenance Log Record all maintenance performed on your trolling motor here. Be sure to save all work orders and receipts. Date Maintenance Performed Operation Hours... -
Page 28: Accessories
ACCESSORIES Trolling Motor Accessories Trolling Motor Power Plug Two‑prong, 12‑, 24‑ or 36‑volt power plug 8M4000953 provides a solid, safe connection. 38003 Trolling Motor SP (receptacle) Matching two‑prong 12‑, 24‑ or 36‑volt power plug provides a solid, safe 8M4000954 connection. 38004 6 g Battery Cable and Terminals with 50 A Manual Reset Breaker Protect your investment with this 50 A manual reset... - Page 29 ACCESSORIES MotorGuide Prop Wrench Kit Comes complete with spare prop nut and two prop MGA050B6 pins, allowing fast prop changes. 37853...
