DESCRIPTION:
This KF850z Bi-Amp Crossover Retro Kit is used for converting the KF850z Loudspeaker to bi-amp capability
and can only be used on a KF850 that was originally manufactured as a KF850z. It cannot be used on a KF850
originally manufactured as a KF850E that was upgraded to a KF850z.
A
B
OVERVIEW
KF850z Bi-Amp Crossover Kit installation requires the technician to:

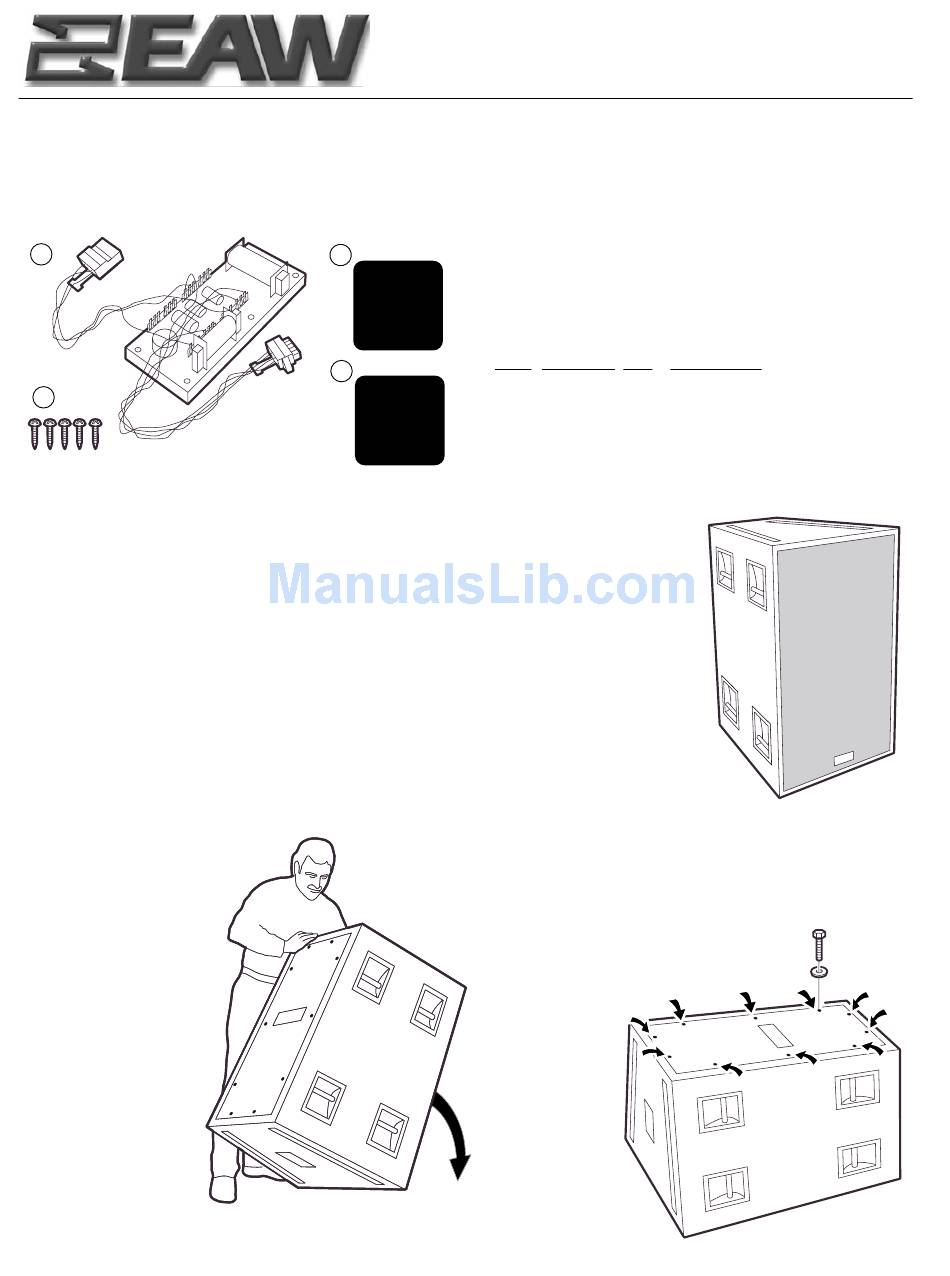

1. Lay the enclosure down onto its front.
2. Remove the rear access panel.
3. Flip the panel over and rest it on the enclosure's back.
4. Position the new crossover board on the inside of the access panel.
5. Screw the new crossover board to the access panel.
6. Unplug the existing wiring.
7. Connect the new crossover board.
8. Remove two existing wires.
9. Reattach the rear access panel.
10. Attach the appropriate sticker to the input label.
11. Return the enclosure onto its standing position.
INSTRUCTIONS
1. Insure your work area
is clear of objects that can
damage the enclosure's
steel grill then set
the enclosure onto
its front.
Instructions/Installation KF850z
Bi-Amp Crossover Retro Kit
Warning: Installation should only be done by an
C
experienced technician. Improper installation may
result in damage to the equipment, injury or death.
PIN 1...LF--
PIN 2...LF+
PIN 3...MF/HF--
PIN 4...MF/HF+
KF850z Bi-Amp Crossover Retro Kit Parts List,
PIN 5...NC
PIN 6...NC
EAW P/N 0007951:
Item EAW P/N Qty Description
D
A
PIN 1--...NC
PIN 1+...NC
B
PIN 2--...LF--
PIN 2+...LF+
C
PIN 3--...MF/HF--
PIN 3+...MF/HF+
D
PIN 4--...NC
PIN 4+...NC
E
0007523 1
Bi-Amp Crossover
102087
5
Wood Screw #8 x 1 Lg PH
0007748 1
Sticker/AP6/Bi-Amp
0007749 1
Sticker/NL8/Bi-Amp
0007952 1
Instructions (this sheet)
KF850z
Loudspeaker
2. Remove the 10 hex head
bolts and washers that attach
the rear access panel. Do not
discard this hardware.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EAW KF850z
Summary of Contents for EAW KF850z
- Page 1 This KF850z Bi-Amp Crossover Retro Kit is used for converting the KF850z Loudspeaker to bi-amp capability and can only be used on a KF850 that was originally manufactured as a KF850z. It cannot be used on a KF850 originally manufactured as a KF850E that was upgraded to a KF850z.
- Page 2 NOTE: The illustrations for Steps 3 through 8 are as viewed from the bottom of the enclosure. 3. Carefully lift and turn over the access panel, not damaging the internal wiring, and rest it on the back of the enclosure. 4.
- Page 3 6. Unplug the inline connector between the access panel and the drivers. 7. Connect the male connector from the access panel to the female connector from the bi-amp crossover board. Connect the female connector from the drivers to the male connector from the bi-amp crossover board.
- Page 4 If the input has two AP6 connectors (shown right), cover the pin-out code with sicker P/N 0007748. 11. Return the enclosure to its upright position. If you have any questions about installing the KF850z Bi-Amp Crossover Board, please contact the EAW Application Support Group for assistance: EAW ASG...
