Emptying the Dust Tray

To achieve the best performance, empty the Dust Tray after each use.

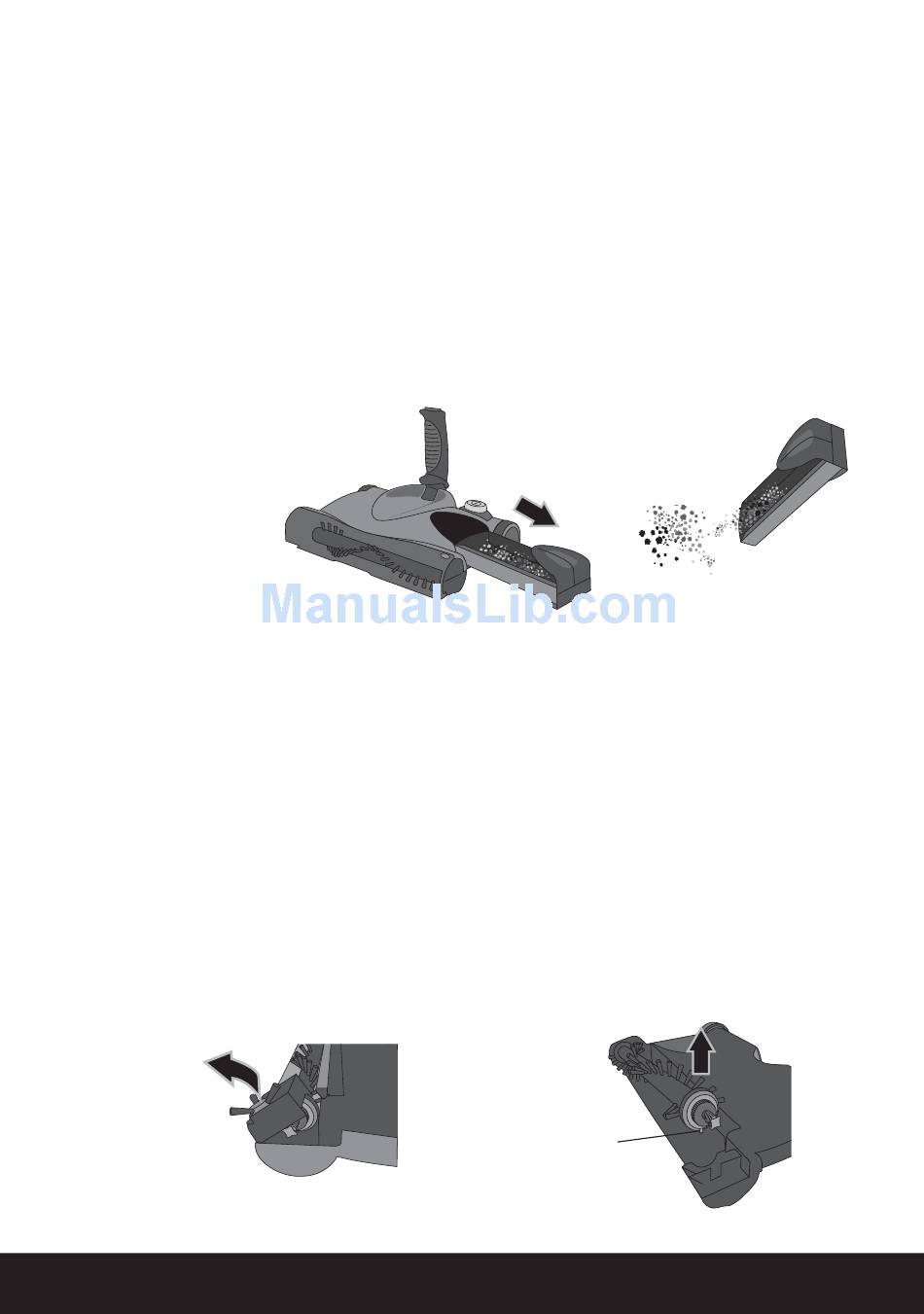

1 To remove the Dust Tray, grip the clear window and the bottom of the tray and pull
it out from the side of the unit. Note: Make sure the sweeper is not turned on
whilst the Dust Tray is removed.
2 Empty the Dust Tray, and replace by sliding all the way back into the unit.
The Dust Tray can be cleaned with a damp cloth, but make sure it is completely dry
before replacing in the sweeper.
Brush Bar & Edge Wheel Removal
The Brush Bar and Edge Wheel can be removed for cleaning or replacement.
1 Push the latch and un-hook the Edge Wheel Cover from the front of the unit.
2 Slide the belt off the end of the Brush Bar drive gear.
3 Lift the end of the Brush Bar, then slide out of the unit.
4 The Edge Wheel Brush can be pushed out of the cover.
5 Remove any hair, fibre and dust from the Edge Wheel and Brush Bar.
6 Replace the Brush Bar by fitting the shaft into the bearing in the housing, then engage
the end with the drive gear into the unit. Note: peg to relocate into unit.
7 Refit the belt onto the drive gear.
8 Hook the Edge Wheel Cover back onto the unit and push into place until the latch
is securely engaged.
Replacement Brush Bars and Edge Wheels can be purchased through the
helpline, or by visiting www.gtechonline.co.uk
