Model number:
SCV100/SCV101
OPERATING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HyLite SCV100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gtech HyLite SCV100

Summary of Contents for Gtech HyLite SCV100

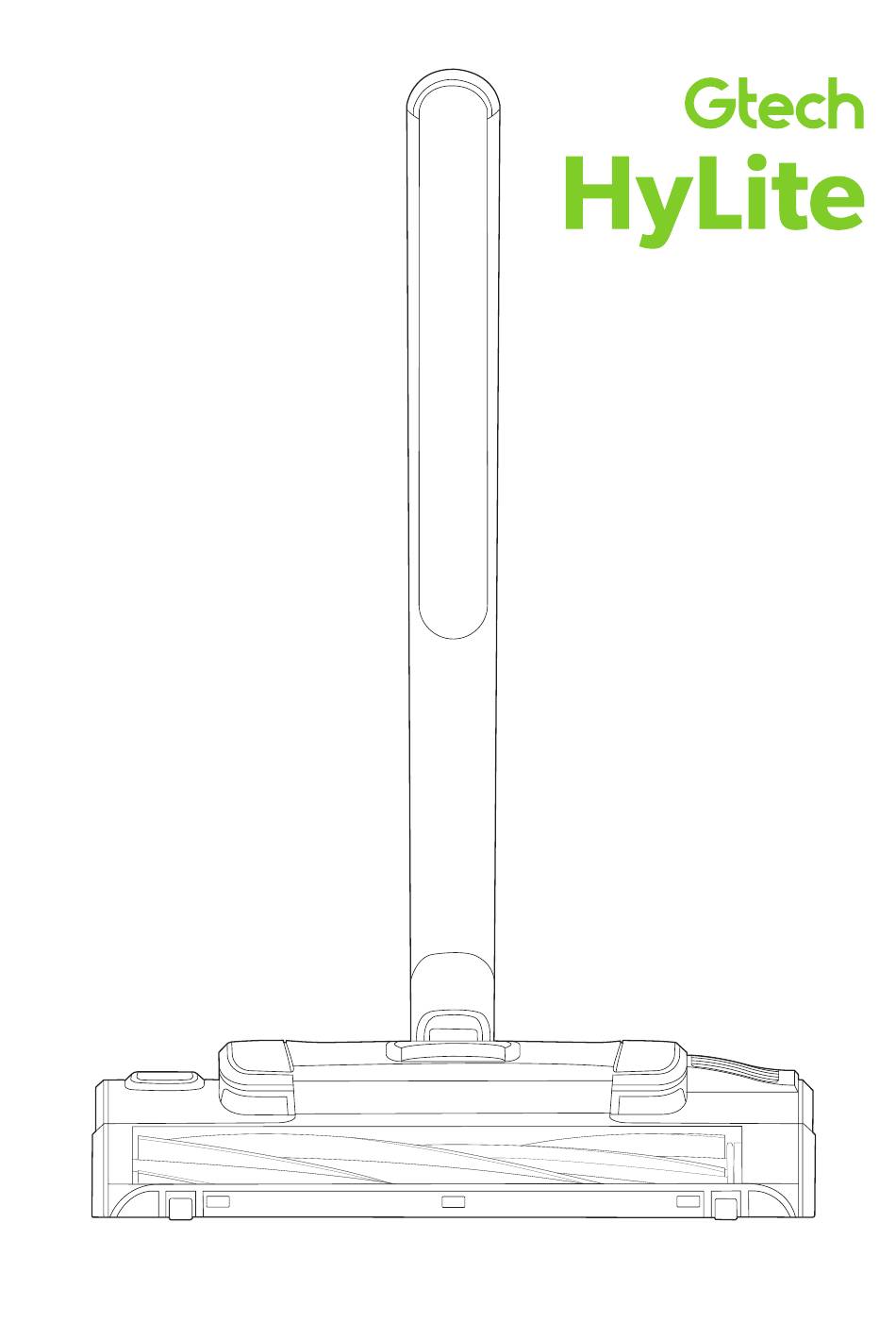

  • Page 1 Model number: SCV100/SCV101 OPERATING MANUAL...

  • Page 2: Important Safeguards

    • Only use batteries and chargers supplied by • Unplug the charger from the mains socket Gtech. before removing the battery and before • Never modify the charger in any way. cleaning and maintaining the appliance. • The charger has been designed for a specific •...

  • Page 3: Battery Safety

    Repairs by unqualified persons could be heated (see Troubleshooting - p.13). dangerous and will render the warranty void. • The Gtech HyLite can be used in hand-held mode. • Never modify the appliance in any way, as this may increase the risk of personal injury.

  • Page 4: What's In The Box

    Thank you for choosing a Gtech HyLite “I started Gtech to create sensible, easy to use products, which do a great job. Your opinion is important to us and we will use your feedback to improve our products and services and let other people know what it’s like to be part of the Gtech family.”...

  • Page 5: Battery Removal

    Battery removal Press the latch on the top of the battery and To refit the battery, line it up and slide it into slide it out of the battery-housing. the battery-housing. The battery will click into place when correctly fitted. WARNING: remove battery before carrying out any form of assembly.
  • Page 6 Assembly (continued) Holding the unit from the right-hand side, line Lift the handle up to a 90° angle. The locking the steering module up with the locking tabs tabs on the steering module will slot in and on the main unit. You can’t do this while the you’ll hear a ‘click’...

  • Page 7: Hand-Held Operation

    Operation Place your foot on the left side of the unit and To detach the handle, squeeze the two green recline the handle. Press the power button to buttons on each side of the steering module. turn it on. You can also do this with your hand The handle will now unlock and can be when it is in hand-held mode - be careful of removed from the main unit.
  • Page 8 Brush-bar eject system In the case of a jam, the brush-bar will Once the brush-bar ejects, turn the unit off. automatically eject itself to allow you to remove any obstructions and prevent damages. Assess the blockage. If necessary, remove After clearing the jam, slide the brush-bar back the brush-bar, running the blade of the hair into place and turn the latch to the ‘locked’...

  • Page 9: Recharging The Battery

    Recharging the battery hours hours 14.4V Plug the charger into the mains and connect it to The battery can be charged on or off the main the battery. Switch the power on at the mains. vacuum unit. For optimum battery performance, we recommend turning the plug socket off once the battery is fully charged.
  • Page 10 You can then remove the bag. (You can get more bags at www.gtech.co.uk) Do not reuse bags as this could damage and reduce the performance of the HyLite.

  • Page 11: Replacing The Bag

    Replacing the bag Put the new bag in the bag-chamber, fitting the To expand the bag, pull the hoop at the end collar over the inlet. of the bag over the hook at the edge of the chamber. Brush-bar removal Place the lid back onto the chamber and press Remove the battery before maintaining any down.
  • Page 12 Brush-bar removal (continued) Pull the latch out to remove the brush-bar. When replacing the brush-bar, ensure that it locates onto the steel pin at the other end of the head, then turn the latch to the ‘locked’ position. Brush-bar hair removal To remove hair from the brush-bar, run the You can then use the comb end of the hair blade of the hair removal tool between the...

  • Page 13: Product Care

    Product care HyLite Your Gtech doesn’t need much maintenance: just keep the filters clean, keep the brush-bar tangle-free and charge the battery. Wipe it with a dry cloth if it gets dirty, including under the bin. Before maintaining any part of the HyLite, remove the battery.

  • Page 14: Product Support

    Product support If these initial tips don’t solve your problem, we have various other ways to help. Visit: www.gtech.co.uk/support Online Live chat support support@gtech.co.uk How-to videos HYLITE TECHNICAL SPECIFICATION Battery model 165A0005 Battery 14.4V 2000mAh Li-Ion Charging period 2 hours Battery charger output 17.3V DC 1.0A...

  • Page 15: Warranty Registration

    If you purchased directly from Gtech, your details are already registered and your 2-year warranty will start automatically. If you purchased from an authorised Gtech retailer, please register your warranty within 3 months. You will need to provide proof of purchase to support any claim(s) against your warranty.
  • Page 16 Grey Technology Limited Brindley Road, Warndon, Worcester WR4 9FB email: support@gtech.co.uk telephone: 01905 345891 www.gtech.co.uk...

This manual is also suitable for:

Hylite scv101
