Gtech SW04 Safety And Instruction Manual

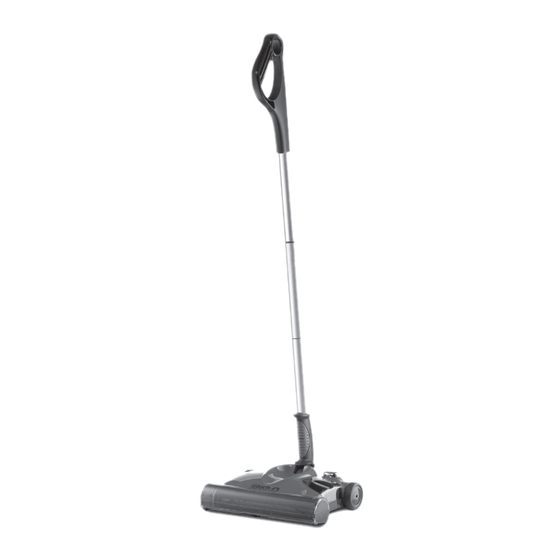

Cordless floor cleaner
Hide thumbs Also See for SW04:

Advertisement

Table of Contents

See also: Manual
Safety and Instruction Manual for
al for
cordless floor cleaner
SW04
www.gtechonline.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW04 and is the answer not in the manual?

Questions and answers

Related Manuals for Gtech SW04

Summary of Contents for Gtech SW04

  • Page 1 Safety and Instruction Manual for al for cordless floor cleaner SW04 www.gtechonline.co.uk...

  • Page 2: Table Of Contents

    Introduction It is my pleasure to introduce the SW04 Cordless Floor Cleaner from Gtech. Designed, patented and developed in the heart of England we hope that you find this product helps you effortlessly stay on top of your household cleaning. If you have any queries or comments about your new sweeper, we would love to hear from you.

  • Page 3: Important Safeguards

    Important Safeguards IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. WARNING: When using an electrical appliance basic safety precautions should always be observed, including the following to reduce the risk of fire; electrical shock, or injury: Do not store or charge the unit outdoors. Do not use outdoors or on wet surfaces.

  • Page 4: Unpacking: Part Location

    Unpacking: Part Location Main Unit Handle Tubes Brush Bar Lower Handle* Front Visor Charging Adaptor* Dust Tray 10 Charging Jack Edge Wheel 11 LED Indicator Upper Handle 12 ON/OFF button *will be packed inside 4 Dust Tray Technical specification Unit operating cycle with full battery up to 60 minutes (dependent on floor surface) Battery type...

  • Page 5: Assembly

    Assembly Fit the Lower Handle onto the Main Unit, ensuring the handle faces forward. The clips on the Lower Handle push into the hole in the pivot joint on the Main Unit. This will require some force to push together. Then push the handle upright. Push the 3 Handle Tubes and the Upper Handle firmly together.

  • Page 6: Battery Charging & Recharging

    Battery Charging & Recharging Connect the Charging Adaptor to the Charging Jack on the rear of the Main Unit, and then plug into an electrical outlet. The LED illuminates GREEN when the charger is connected. The LED does not flash or change colour when the unit is fully charged. The unit will only re-charge when the unit is switched off.

  • Page 7: Operation

    Operation Parking & Release of Main Handle The Handles and Tubes park upright for storage. To release for use, press on the top of the sweeper with your foot while pulling back on the Handle. Push the ON/OFF button to operate the unit. The LED will light green.
  • Page 8 Operation Handheld Operation For handheld operation, remove the main handle (Upper Handle and Telescopic Tubes). The Lower Handle can be used to push and steer the sweeper, or folded forward and locked into position. helpline 01905 345891 email support@ greytechnology.co.uk web www.gte- chonline.co.uk Stair Cleaning When cleaning stairs, the front...

  • Page 9: Emptying The Dust Tray

    Emptying the Dust Tray To achieve the best performance, empty the Dust Tray after each use. To remove the Dust Tray, grip the clear window and the bottom of the tray and pull it out from the side of the unit. Note: Make sure the sweeper is not turned on whilst the Dust Tray is removed.

  • Page 10: Battery Pack Removal And Replacement

    Battery Pack Removal & Replacement The battery pack is removable and replaceable At the end of the product’s or battery’s life the battery should be removed for disposal and recycling. Only a technically competent person should undertake battery removal and replacement. If uncertain as to how to replace your battery pack, we suggest you take your unit to a reputable small appliance service technician to have this service performed.

  • Page 11: Care And Maintenance

    Remove any build-up of hair or fibre from the Brush Bar and Edge Wheel. Fully discharge the product (run until battery is flat) and then recharge for 16 hours. Telephone the Gtech Helpline on: 01905 345891. If the product needs to be repaired or replaced only use parts which are approved by the manufacturer.

  • Page 12: Warranty Information

    Out of Guarantee: If your Gtech product is over 12 months old and you need any parts or advice then please contact our Helpline. Parts will be sent out usually within 3 weeks of request.

This manual is also suitable for:

Sw08
