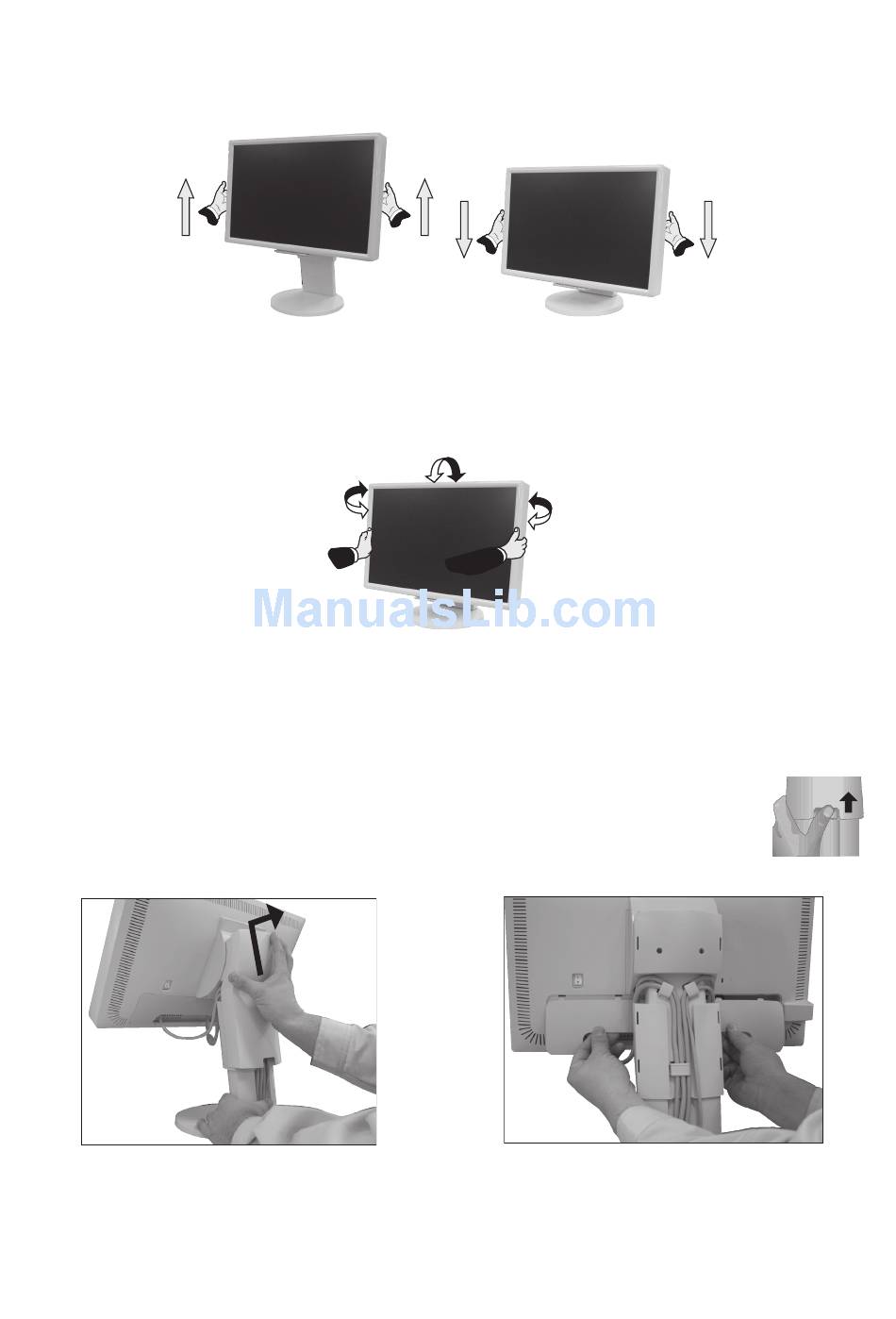

Raise and Lower Monitor Screen

The monitor may be raised or lowered. To raise or lower screen, place hands on each side of the monitor and lift or lower to
the desired height (Figure RL.1).
NOTE: Handle with care when raising or lowering the monitor screen.

Tilt and Swivel

Grasp both sides of the monitor screen with your hands and adjust the tilt and swivel as desired (Figure TS.1).
NOTE: Handle with care when tilting and swivelling the monitor screen.

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:
1. Place hands on each side of the monitor to lift up to the highest position.
Remove the cable cover (Figure M.1).
Remove the connector cover (Figure M.2).
NOTE: If you have difficulty removing the cable cover, please push the lower opening upward to remove it,
as shown in the figure beside.
2. Disconnect all cables.
Figure M.1
Figure RL.1
Figure TS.1
English-6
Figure M.2
