Quick Start

To attach the MultiSync
instructions:
1. Turn off the power to your computer.
2. If necessary, install the display card into your system. For more information,
refer to the display card manual.
3. For the PC: Connect the 15-pin mini D-SUB of the captive signal cable to the
connector of the display card in your system (Figure A.1). Tighten all screws.
For the Mac: Connect the Macintosh cable adapter (not included) to the
monitor connector on the Macintosh (Figure B.1). Attach the 15-pin mini
D-SUB end of the captive signal cable to the Macintosh cable adapter on
the computer (Figure B.1). Tighten all screws.
NOTE: To obtain the Macintosh cable adapter, call NEC-Mitsubishi Electronics
Display of America, Inc. at (800) 632-4662.
4. Connect one end of the power cord to the MultiSync monitor and the other
end to the power outlet (Figure C.1).
5. Turn on the monitor (Figure D.1) and the computer.
NOTE: For download information on the Windows
for your MultiSync monitor, refer to the References section of this User's
Manual.
NOTE: If you have any problems, please refer to the Troubleshooting section of
this User's Manual.
15-pin mini D-SUB
MS77F97F112701.p65
® monitor to your system, follow these

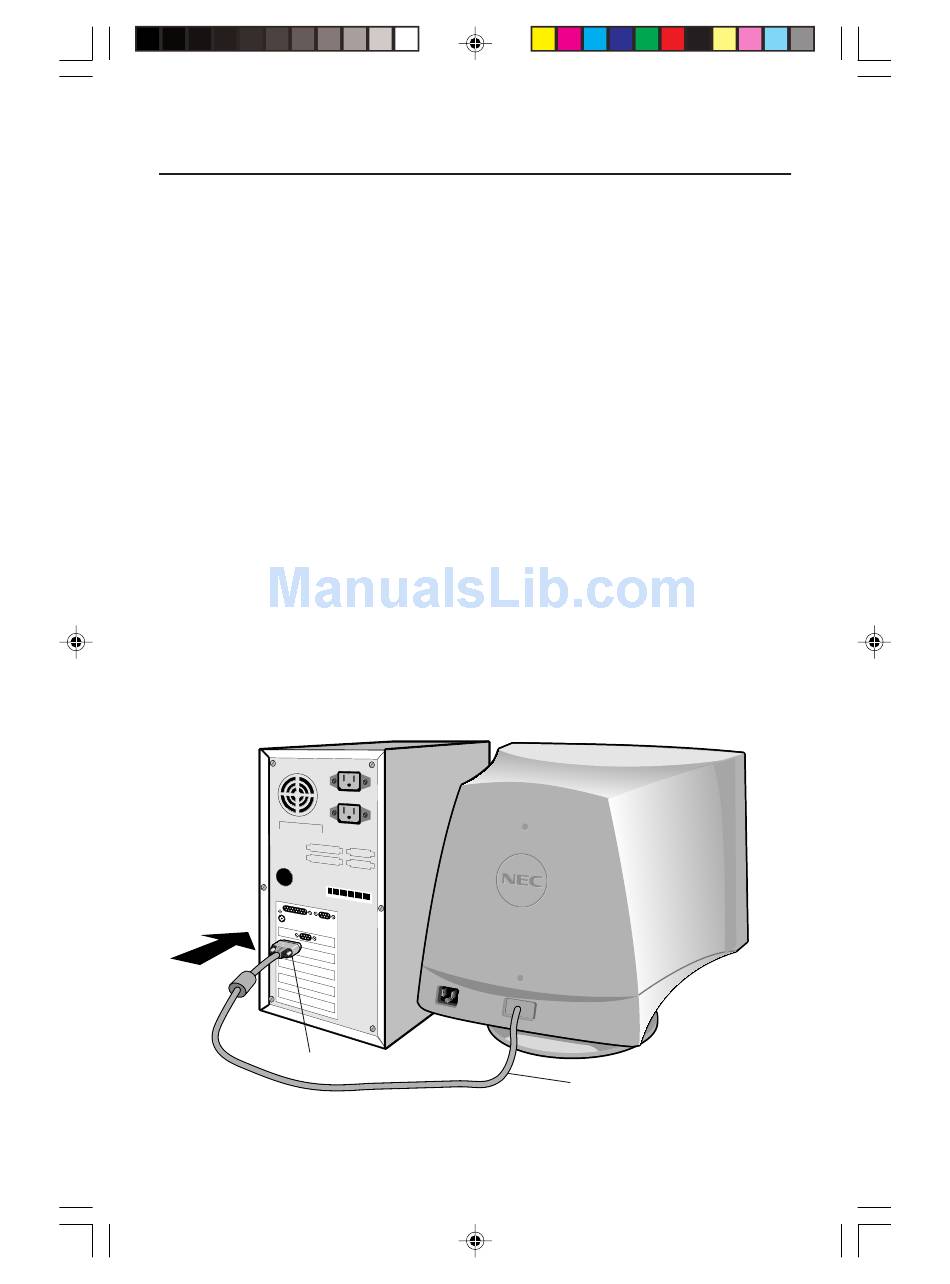

Figure A.1
