Page 1: Quick Installation Guide

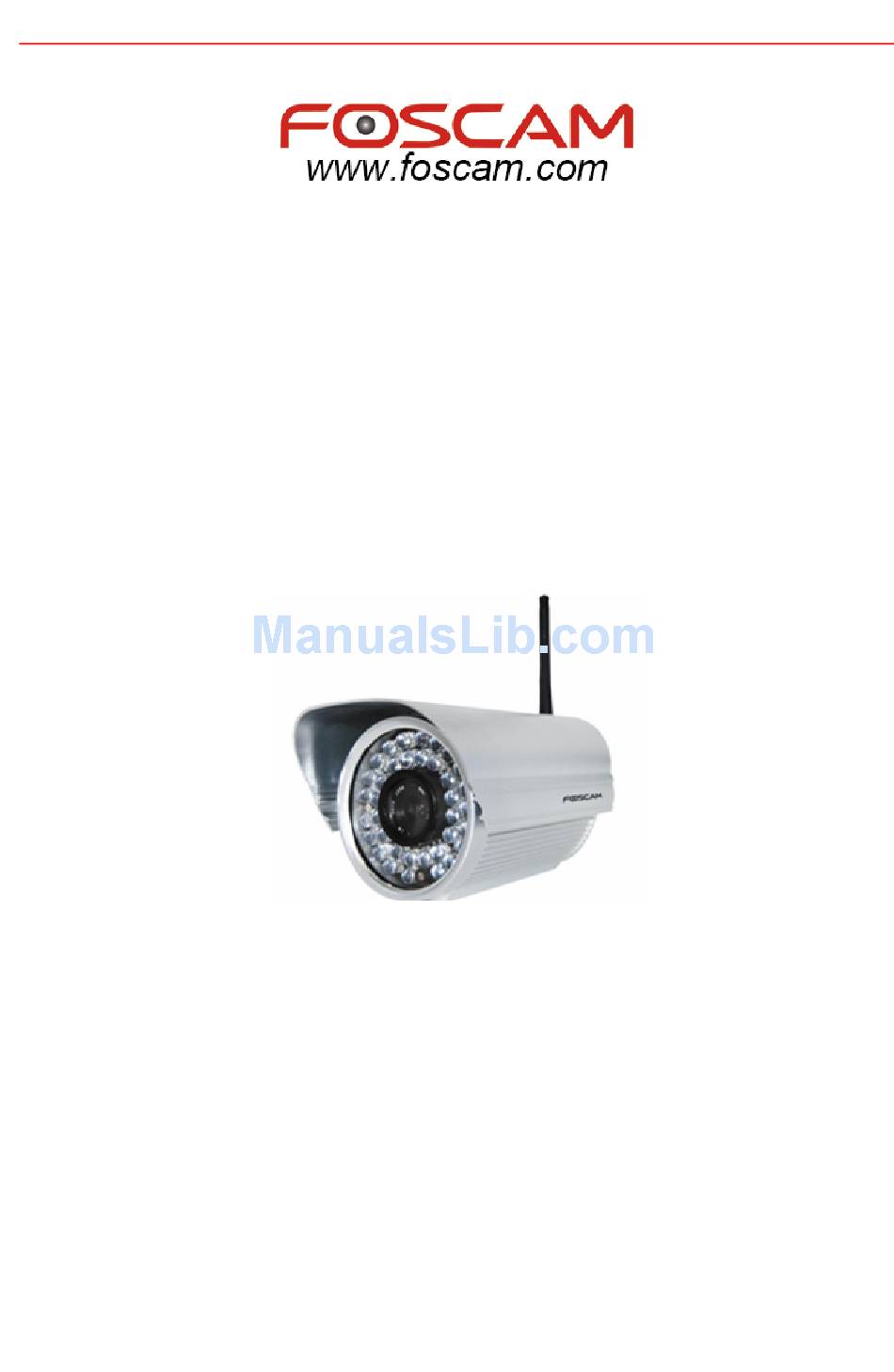

V2.01 IP Wired / Wireless Camera Quick Installation Guide (For Windows OS) Model: FI8602/FI8602W ShenZhen Foscam Intelligent Technology Co., Ltd... -
Page 2: Packing List
FI8602/FI8602W Quick Installation Guide Quick Installation Guide Packing List 1) IP CAMERA X 1 2) Wi-Fi Antenna (only available for wireless model) 3) DC Power Supply X 1 4) Network Cable X 1 5) Mounting bracket ×1 6) Quick Installation Guide X1 7) Warranty Card X 1 8) CD X 1 (Includes user manual、IP camera tool、... -
Page 3: Software Installation
FI8602/FI8602W Quick Installation Guide Connect the Antenna. Screw the antenna to the back of the camera, make sure it attached well. Figure 1.1 Plug the network cable and power. Connect the network cable to your camera and to your router. Plug in the power. - Page 4 FI8602/FI8602W Quick Installation Guide Figure 1.3 Click Next. www.foscam.com - 3 -...
- Page 5 FI8602/FI8602W Quick Installation Guide Figure 1.4 Select the folder where setup will install and click Next. www.foscam.com - 4 -...
- Page 6 FI8602/FI8602W Quick Installation Guide Figure 1.5 Click Install and an icon will appear on your desktop after the IP Camera Tool software installation has successfully completed. 3 Login the camera Double click the IP Camera Tool icon and the following screen should appear.
- Page 7 FI8602/FI8602W Quick Installation Guide Fill in the user name and password, click ok and it will display the login UI (Figure 1.8). Camera supports three-level users management: admin, user and guest. The default “admin” user name and password are all “admin”, the default “user”...
-
Page 8: Wireless Settings
FI8602/FI8602W Quick Installation Guide Figure 1.9 If you are unable to see a live video, please make sure you have installed the ActiveX and allow the activeX running when prompted. (for more details: see user manual) Note: If you are still unable to see a live video, try shutting down any firewall or anti-virus software on your computer. - Page 9 FI8602/FI8602W Quick Installation Guide Figure 2.0 Click the Search button and the camera will detect all WIFI devices around the area. It could also find your router and show it in the list. (Figure 2.1) www.foscam.com - 8 -...
- Page 10 FI8602/FI8602W Quick Installation Guide Figure 2.1 (2) Click OK in the first column and the corresponding information (SSID, Security mode, WPA Algorithm & WEP key index) will be filled automatically as the following picture. Figure 2.2 You only need fill in the key. Make sure that SSID, Security Mode, WPA Algorithm and the key you filled in for the camera are exactly the same for your router.
- Page 11 FI8602/FI8602W Quick Installation Guide Figure 2.4 (3) Click check after all settings have been entered. You can see whether WIFI settings are correct. If correct, you can see the following dialog box. Figure 2.5 If failed, you will see a dialog box as the following picture. Close the dialog box and reset wireless again.
- Page 12 FI8602/FI8602W Quick Installation Guide Figure 2.6 When wireless settings are correctly, click Apply. Plug out the network cable. Re-plug the power and the camera should work through your wireless router. 4.2 Point_to_Point Mode If you want to use the wireless function without the wireless router, you can choose Point_to_Point mode.
-
Page 13: Remote Access
FI8602/FI8602W Quick Installation Guide of PC and search the SSID you have filled at figure 2.7. You can find it as the following picture: Figure 2.8 Choose it and your computer will use the wireless network. Make sure you have disabled the wired connection of the PC. - Page 14 FI8602/FI8602W Quick Installation Guide http://www.whatismyip.com.The webpage at this address will show you the current WAN IP. Figure 2.9 Obtain the WAN IP address from the router You can find the WAN IP from your router. Normally, it is in system status.
- Page 15 FI8602/FI8602W Quick Installation Guide Figure 3.0 Click show, you will see the WAN IP as below. Figure3.1 Access the IP Camera from the Internet You can access the IP Camera from the Internet. (Remote access) Enter WAN IP address and HTTP port number in the browser to login the camera.
- Page 16 FI8602/FI8602W Quick Installation Guide function. Then login the camera as administrator, fill a port number at Basic Network Settings and enable UPNP Port Forwarding. 2) Do port forwarding manually. (details: Figure 4.3/4.4) If your router has Virtual server, it is used to do port mapping. Please add the camera’s LAN IP and port which you set in network to the Virtual map list.
- Page 17 FI8602/FI8602W Quick Installation Guide Figure 3.3 Then choose Add To Cart. Click here after you finish the settings above Figure 3.4 Set the following information as the picture below. www.foscam.com - 16 -...
- Page 18 FI8602/FI8602W Quick Installation Guide Fill in user name, password and email address Click here to create account Figure 3.5 The website will send you an email to your mailbox activate your account. Figure 3.6 Click the link in your email to activate your account.
- Page 19 FI8602/FI8602W Quick Installation Guide Figure 3.7 You will see the following screen. Click Activate Services>> Figure 3.8 All settings are saved and the following screen appears: Your host name will be displayed in the list. Note: Please remember the host name, user name and password, they are needed when you set DDNS service settings of your camera.
- Page 20 FI8602/FI8602W Quick Installation Guide (2) Basic Network Settings A static IP for the camera is needed when configuring the DDNS service settings. Login your camera and set basic network settings as the picture below (Figure 4.0). Figure 4.0 Make sure that your camera is in the same subnet as your router. In other words, keep the first three sections the same as your router or your computer.
- Page 21 FI8602/FI8602W Quick Installation Guide Figure 4.1 (3) DDNS Set DDNS settings as followings. Use the DDNS domain name you got from the DynDns website. Figure 4.2 Enable UPnP Port Forwarding or you enable it manually (Figure4.3/4.4). Please click Apply after entering in all the information.
- Page 22 FI8602/FI8602W Quick Installation Guide Figure 4.3 You can also choose port range forwarding. In order to forward the port successfully, we recommend you set both of the start port and end port as the same port number. Add the camera’s LAN IP and HTTP port (Figure 4.0) in the list of port forwarding page.
- Page 23 FI8602/FI8602W Quick Installation Guide Use DDNS domain name and HTTP port to login Figure4.5 Conclusion Other detail settings, please consult the user manual. ShenZhen Foscam Intelligent Technology Co., Ltd www.foscam.com - 22 -...
