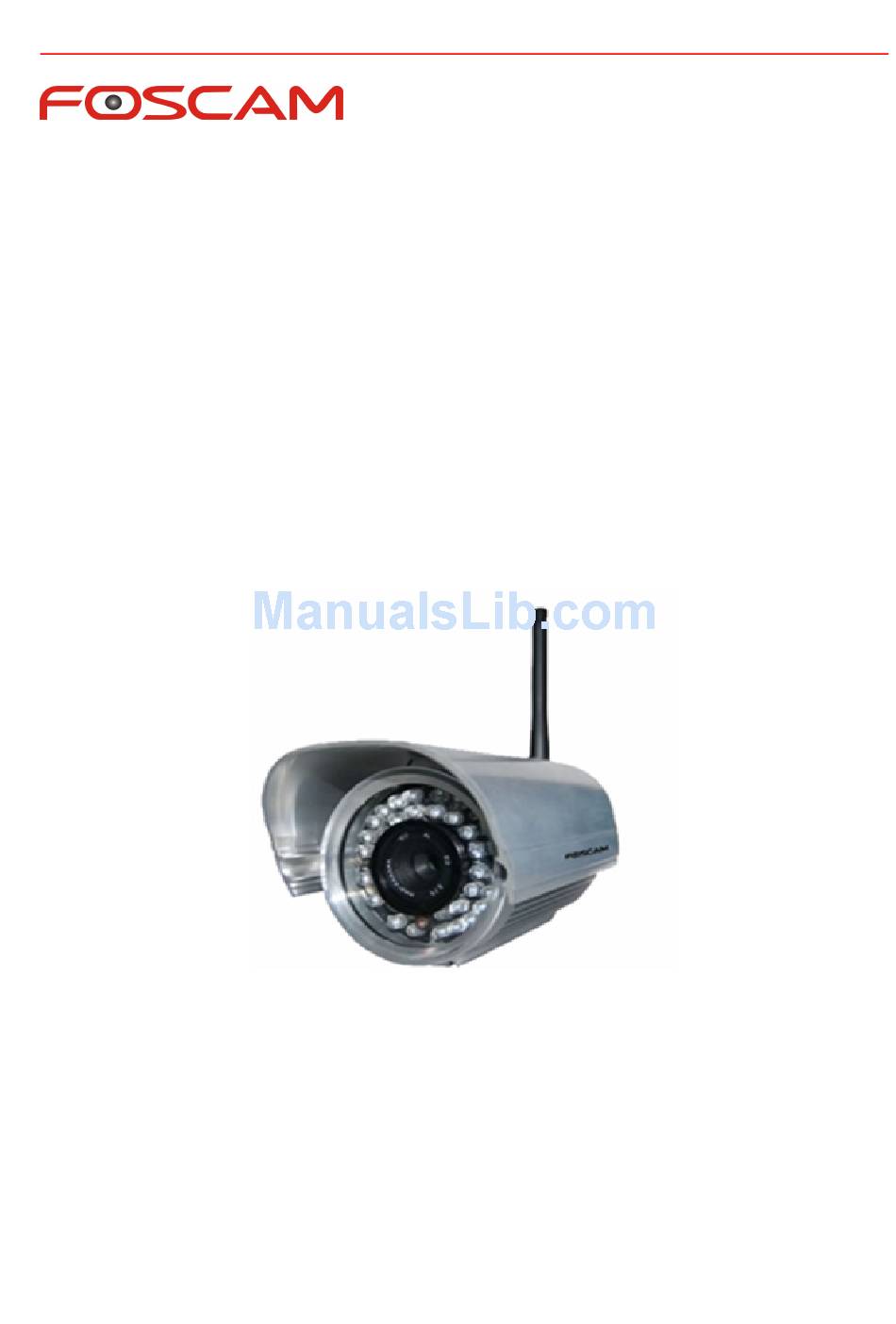

Page 1: Quick Installation Guide
V3.01 Model: FI8601W Quick Installation Guide Outdoor Water-proof Wireless IP Camera ShenZhen Foscam Intelligent Technology Co., Ltd... - Page 2 FI8601W Quick Installation Guide Quick Installation Guide - For Windows OS Package Contents IP Camera FI8601W DC Power Adapter (12V-2.0A) Network Cable Wi-Fi Antenna .x 1 Mounting Bracket .x 1 Quick Installation Guide CD-ROM with Setup Software .x 1 Warranty Card...
-
Page 3: Start Installation
FI8601W Quick Installation Guide Start Installation 1. Hardware Installation Open the package. Take out the camera out of the box carefully. Mount the antenna. Then take the Wi-Fi antenna, mount it on the SMA connector on the back of the camera, screw the antenna to the bottom, and make the antenna stand vertically. - Page 4 FI8601W Quick Installation Guide Figure 1.4 Click Close to finish installation, and get computer restarted A shortcut icon will appear on your desktop after the IP Camera Tool software installation is successfully completed. Figure 1.5 Shortcut icon 3. Login the Camera Double click the IP Camera Tool icon and the following screen should appear.
- Page 5 FI8601W Quick Installation Guide Figure 1.7 Enter the username and password Camera supports three-level users management: admin, user and guest.The default “admin” user name and password are all “admin”, the default “user” user name and password are all “user”, and the default “guest”...
- Page 6 FI8601W Quick Installation Guide Figure 1.9 Surveillance Windows Congratulations! You have succeeded in accessing in the camera by wired connection. Just leave all the menus alone before you finish the quick installation. Note The default administrator user name and password are all admin.
- Page 7 FI8601W Quick Installation Guide 4.1 Infrastructure Mode Step 01) Enable wireless and choose Infrastructure mode. Figure 2.0 Wireless Settings Click the Search button and the camera will detect all WIFI devices around the area. It will pop up a dialog box and display all available routers: (Figure 2.1) Figure 2.1 All available WIFI routers...
- Page 8 FI8601W Quick Installation Guide you filled in for the camera are exactly the same for your router. Figure 2.2 Wireless LAN Settings Step 03) Click Check after all settings have been entered. You can see whether WIFI settings are correct. Such as the following screen: Figure 2.3 WIFI Settings are correct...
- Page 9 FI8601W Quick Installation Guide Figure 2.4 WIFI Settings are incorrect When wireless settings are correctly, click Apply. Plug out the network cable. Re-plug the power and the camera should work through your wireless router. The LAN IP address will disappear on the window of IP Camera Tool when the camera gets restarted.
- Page 10 FI8601W Quick Installation Guide Figure 2.5 Point_to_Point mode Step 02) Plug out the network cable of the camera and re-plug the power. After the camera restarts, you can search the camera LAN IP again in the IP Camera Tool. Open the wireless network card of PC and search the wireless network around the area. You can find the SSID you filled for the camera (Figure 2.5).
-
Page 11: Remote Access Settings
FI8601W Quick Installation Guide 5. Remote Access Settings We have been able to access the camera within the LAN network, but how to access the camera via WAN or via internet? We have to do Remote Access Settings before we want to access the camera outside the LAN network. - Page 12 FI8601W Quick Installation Guide Figure 2.9 Get to know the WAN IP address of the router Access the IP Camera from the Internet You can access the IP Camera from the Internet (remote access). Enter the WAN IP address and port number in IE browser or other browsers you use.
- Page 13 FI8601W Quick Installation Guide Click here to register Figure 3.0 Register a user name on www.no-ip.com Please register the account step by step according to instructions on www.no-ip.com After registration, please login your email which used to register. You will receive an email from website as below, please click the link to activate your ACCOUNT as indicated in email.
- Page 14 Firstly, goes to option of Remote Access on the administrator panel and enable DDNS. Secondly, select No-ip.com as a server. Thirdly, fill foscam as DDNS user, fill password foscam2012 as DDNS password, fill ycxgwp.no-ip.info as DDNS domain and server URL, Then click save to make effect.
- Page 15 FI8601W Quick Installation Guide Or Use Google to check out what is port forwarding. How to do port forwarding within the router Example: The camera’s LAN IP address is http://192.168.1.35:88 , Firstly, login the router, goes to the menu of Port Forwarding or Port Trigger (or named Virtue Server on some brands of router).
-
Page 16: Other Settings
Please refer to the electronic user manual burned in the CD-ROM for other settings. Other advanced software settings, such as Alarm, Email Settings, User Settings. If you have problem with FOSCAM IP camera, please first contact FOSCAM reseller for solving the problems. If our reseller cannot provide service, pls contact our service department: tech@foscam.com...
