Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:
1. Disconnect all cables.
2. Place hands on each side of the monitor and lift up to the highest position.
3. Place monitor face down on a non-abrasive surface. (Place the screen on a 55 mm/
2.2 inch platform so that the stand is parallel with the surface.) (Figure S.1)
55 mm
4. Remove the stand cover by sliding the top/bottom pieces off the stand (Figure S.2).
5. Remove the 4 screws connecting the monitor to the stand and lift off the stand
assembly (Figure S.2). The monitor is now ready for mounting in an alternate manner.
6. Reverse this process to reattach stand.
NOTE: Use only VESA-compatible alternative mounting method. (100 mm pitch)
Stand cover top
Caution: Please use the attached screws (4 pcs) when mounting. To fulfil the safety
requirements the monitor must be mounted to an arm which guaranties the
necessary stability under consideration of the weight of the monitor. The
LCD monitor shall only be used with an approved arm (e.g. GS mark).
LCD1960NX050603.p65
–continued

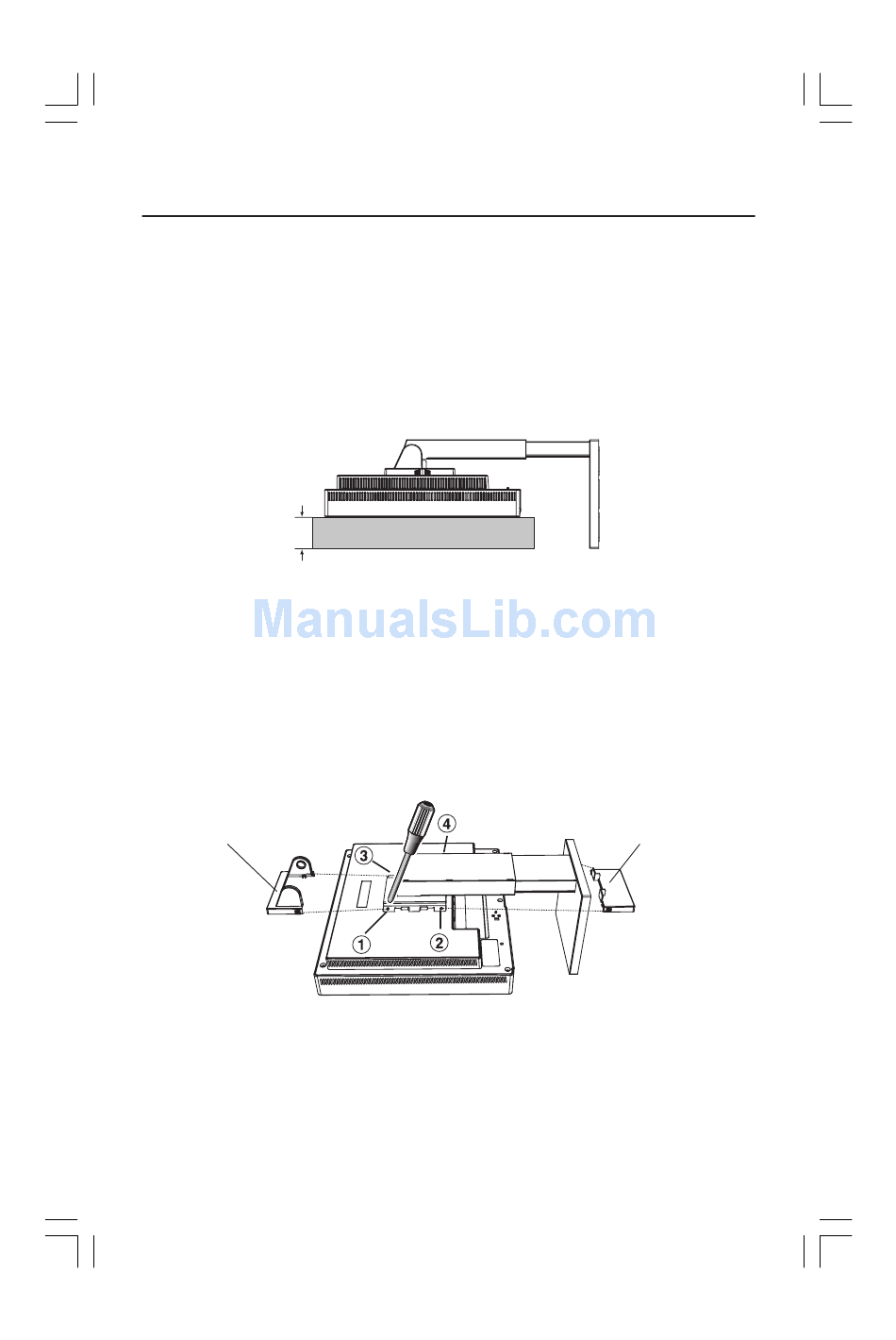

Figure S.1
