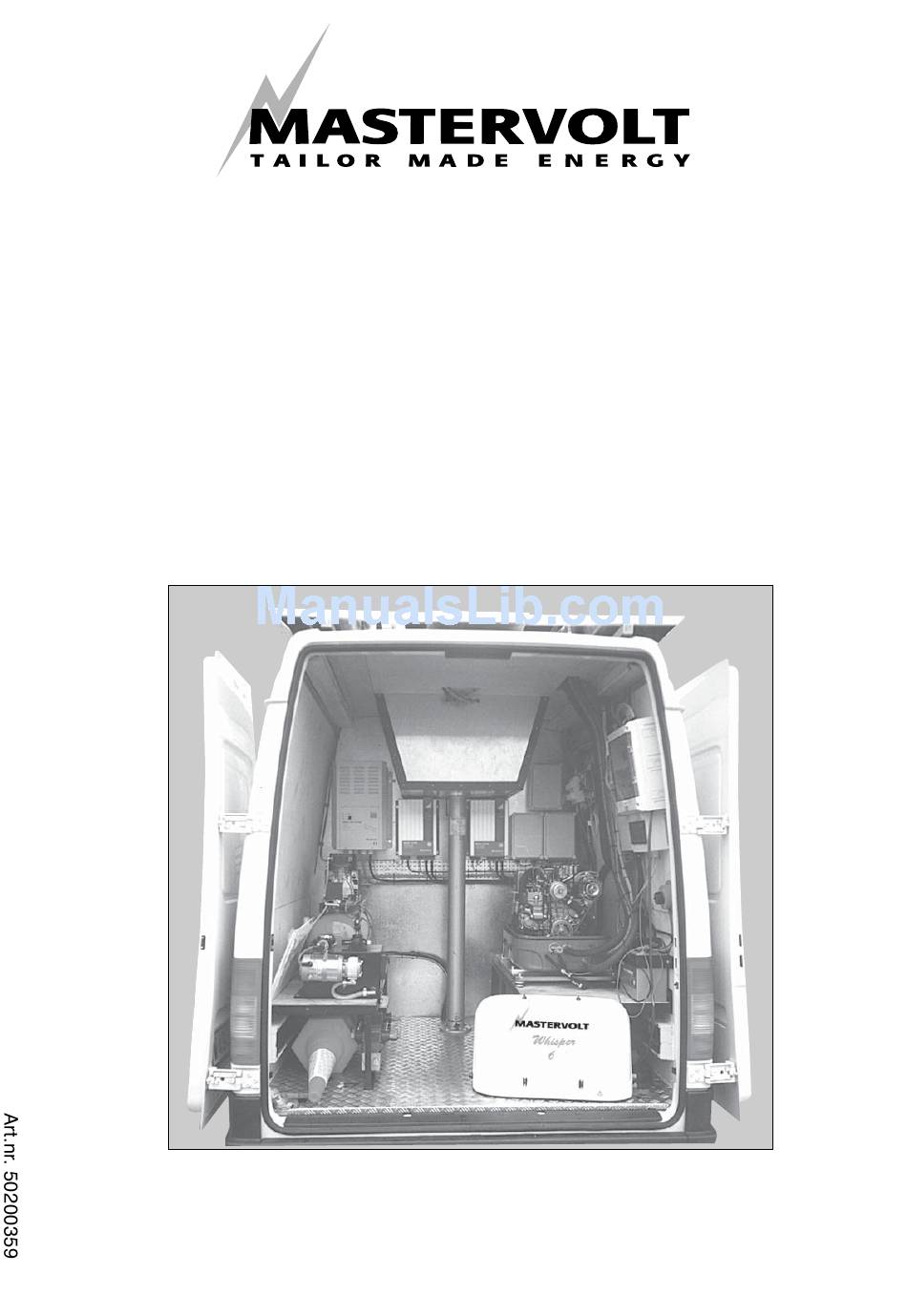

USERS MANUAL FOR MOBILE APPLICATIONS
WHISPER 6/ 12
-3000 RPM-
Mobile diesel generating set 230V-50 Hz
MASTERVOLT
Snijdersbergweg 93
1105 AN Amsterdam
The Netherlands
Tel.: +31-20-3422100
V1. November 2004
Fax: +31-20-6971006
www.mastervolt.com

Advertisement

Table of Contents

Troubleshooting

loading
Need help?

Need help?

Do you have a question about the whisper 6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mastervolt whisper 6

Summary of Contents for Mastervolt whisper 6

  • Page 1 USERS MANUAL FOR MOBILE APPLICATIONS WHISPER 6/ 12 -3000 RPM- Mobile diesel generating set 230V-50 Hz MASTERVOLT Snijdersbergweg 93 1105 AN Amsterdam The Netherlands Tel.: +31-20-3422100 V1. November 2004 Fax: +31-20-6971006 www.mastervolt.com...

  • Page 2: Table Of Contents

    The Whisper 6/12 generating set ........
  • Page 3 ..............37 EN / WHISPER 6 /12 Mobile / November 2004...

  • Page 4: Introduction

    Mastervolt guarantees that this generating set has been GENERAL built according to good workmanship, according to the The Whisper 6/ 12 Mobile Diesel Generating set is ma- specifications in this manual and according to European nufactured and marketed by Mastervolt.

  • Page 5: Liability

    Mastervolt does not accept liabi- WxDxH lity for damage due to use of the generator, possible errors WEIGHT 178 kg in the manuals and the results thereof. Fig. 1: Nameplate. EN / WHISPER 6 /12 Mobile / November 2004...

  • Page 6: Information

    Realise hat people are not used to have 230V available on a vehicle. Put warning Warning signs indicate parts which could signs on wall sockets and on junction be live. boxes. Instruct non-regular users of the November 2004 / WHISPER 6 / 12 Mobile / EN...

  • Page 7: Earth Insulation Failures

    Do not smoke or allow sparks, flames, or other 2.1.5 Operation sources of ignition around batteries. External moving parts like fans and V-belts are covered by the canopy and therefore the Whisper 6/12 is very • Keep a fire extinguisher on hand. safe, when the canopy is closed •...

  • Page 8: Transport Lifting And Storage

    After removing the generating set from long term storage perform an insulation check. (Refer to the alternator maintenance paragraph for procedures) • While the battery is stored it should be recharge every 12 weeks. November 2004 / WHISPER 6 / 12 Mobile / EN...

  • Page 9: Components

    37 Alternator; 38 Filling cap coolant; 40 Drain plug coolant; 41 Stop lever; 42 Oil filter; 43 Digital Diesel Control Unit; 44 Air ventilation connection. Fig. 2: Overview Whisper 6/ 12. EN / WHISPER 6 /12 Mobile / November 2004...

  • Page 10: Generator Control Panel

    On the engine is an alternator generating 50 Amp 12V. 4 Set button; This current is rectified to charge the battery. The 5 Failure lamp; voltage is regulated at 14.2V. 6 Generator load indicator. 7 Display November 2004 / WHISPER 6 / 12 Mobile / EN...

  • Page 11: Alarms And Shut Down

    2.5.11 Oil information calculated according to the information of the supplier of 1 Specification: the anti freeze. The cooling system is pressurised. The oil must be suitable for oil changes as specified EN / WHISPER 6 /12 Mobile / November 2004...

  • Page 12: Technical Data

    (+15 m cable), indicating: run, load, overload, failure, hour counter, charging (MasterVision), fuel filter, fuel lift pump, user and installation manuals Optional installation kits, non earth return, automatic start/stop, spare part kits November 2004 / WHISPER 6 / 12 Mobile / EN...

  • Page 13: Wiring, Codes And Colours

    1,5 mm2 DDC > LCP red/green 1,5 mm2 DDC > generator AC output brown 1 mm2 DDC > generator AC output blue 1 mm2 DDC=Digital Diesel Control Unit LCP=Local Control Panel EN / WHISPER 6 /12 Mobile / November 2004...
  • Page 14 INFORMATION 2.5.15a Lay out control wiring 230V AC radiator fan 3xPUMP OUTPUT REGULATOR START/STOP RED (PULL) BLUE (COM.) WHITE (HOLD) Fig. 6: Lay out control 230V fan November 2004 / WHISPER 6 / 12 Mobile / EN...
  • Page 15 INFORMATION 2.5.15b Lay out control wiring 24V DC radiator fan 3xPUMP OUTPUT REGULATOR START/STOP RED (PULL) BLUE (COM.) WHITE (HOLD) Fig. 7: Lay out control 24V fan. EN / WHISPER 6 /12 Mobile / November 2004...

  • Page 16: Lay Out Control Wiring 12V

    2.5.15c Lay out control wiring 12V DC radiator fan 3xPUMP OUTPUT REGULATOR START/STOP RED (PULL) BLUE (COM.) WHITE (HOLD) Fig. 8: Lay out control 12V fan. November 2004 / WHISPER 6 / 12 Mobile / EN...

  • Page 17: Electrical Diagram 230V 50Hz

    RED (3) BLUE MAIN WINDING DDC/AC-1 BLACK (4) YELLOW/GREEN EARTH AND NEUTRAL CONNECTED CURRENT TRANSFORMER BLACK (11) (11) 230V 50Hz DDC/ct-1 BROWN YELLOW/GREEN BLUE DDC/AC-1 Fig. 9: Electrical diagram 230V. YELLOW/GREEN EN / WHISPER 6 /12 Mobile / November 2004...
  • Page 18 CU0,75 CU1.5 CU1.5 DIMENTION BOX: 360x200x150 MM 45-35∞C POWER SUPPLY 230 VAC MAIN 80-70∞C 230VAC 230VAC CIRCUIT BREAKER GENERATOR CIRCUIT BREAKER AIRFAN AIRFAN Fig. 10: Diagram fan control 230V AC. November 2004 / WHISPER 6 / 12 Mobile / EN...

  • Page 19: Diagram Fan Control

    ENGINE ALTERNATOR ENGINE ALTERNATOR TERMINAL BLOCK JUCTION BOX AIR FANS CU0,75 CU2,5 CU0,75 CU0,75 CU2.5 FUSE 20/40A 80-70∞C 45-35∞C DIMENTION BOX: 160x160x90 MM Fig. 11: Diagram fasn control 12/ 24V DC EN / WHISPER 6 /12 Mobile / November 2004...

  • Page 20: Operation

    Source Selector switch to "OFF" or switch off all de- vices. In operation checks: 5 Switch on the battery switch. 1 Check for abnormal noise or vibration 2 Check the voltage November 2004 / WHISPER 6 / 12 Mobile / EN...
  • Page 21 (By Do not run the generator for very long periods at no load pushing the stop button the system is deactivated) EN / WHISPER 6 /12 Mobile / November 2004...

  • Page 22: Alternator

    Push the glow button activating the electric system and activating the fuelpump. Retighten the bleed screw when no further air bubbles are expelled. Fig. 14. November 2004 / WHISPER 6 / 12 Mobile / EN...

  • Page 23: Regular Maintenance

    2 Min. oil level. Install the new impeller and add some grease. Turn the blades in the direction of rotation of the pump i.e. anti Fig. 17. clockwise looking at the impeller. EN / WHISPER 6 /12 Mobile / November 2004...

  • Page 24: Maintenance Schedule

    Clean radiator with compressed air 1000 hours Retighten cylinder head bolts, adjust valve clearance 1000 hours Replace the V-belt 1000 hours Check injector and injection pressure 2000 hours Check inlet air filter 2000 hours November 2004 / WHISPER 6 / 12 Mobile / EN...

  • Page 25: Trouble Shooting

    • Disturbances on the electrical system/ Check if electrical load is fluctuating. user side. • Engine runs irregular. When engine runs irregular refer to section: "Engine runs irregular" in engine faults. EN / WHISPER 6 /12 Mobile / November 2004...

  • Page 26: General

    Fill up with fuel or replace by better quality. smoothly, but engine fails • Fuel solenoid is not opening. Check wire connections and circuitry to solenoid. to start. (Refer to DC wiring diagram). November 2004 / WHISPER 6 / 12 Mobile / EN...
  • Page 27 • Black smoke - Check the fuel . incomplete combustion caused by: Check for overload. Overload, choked air filter, inlet temperature too high, unsuitable fuel or water in fuel. EN / WHISPER 6 /12 Mobile / November 2004...
  • Page 28 Fill up with liquid and release air bubbles. • air in the cooling system. Check if there are air blocks in the system; refer to the installation manual. • Broken impeller. Clean radiator. November 2004 / WHISPER 6 / 12 Mobile / EN...

  • Page 29: Warnings

    A short circuit can Resistance values should be within 10% of the values cause heavy sparking, fire and injuries. given in the table below: EN / WHISPER 6 /12 Mobile / November 2004...

  • Page 30: Meggering

    2 cylinder engine 3 cylinder engine It is very important to identify the correct setting assem- bly (refer to fig. 18). The screw is to be locked in position with the lock-nut. November 2004 / WHISPER 6 / 12 Mobile / EN...
  • Page 31 4 Before the alternator can be taken off one has to take out the fitting to the oil heatexchanger to be able to take off the aluminium housing. All cables and wiring has to be taken loose first. EN / WHISPER 6 /12 Mobile / November 2004...
  • Page 32 Nozzle injector, 3pcs (**) 50204160 Fuel pump (high pressure) complete 50203045 Thermostat (**) 50203038 Gasket thermostat (**) 50204037 Gasket rocker cover (**) More extensive partslist on the internet: mastervolt.com (fast moving parts) November 2004 / WHISPER 6 / 12 Mobile / EN...
  • Page 33 O-ring, 1x 50209017 Bearing, 2x 50209014 Clip, 2x 50209019 Clip, 1x 50209016 Shaft type M 1x 50201811 O-ring, 1x 50201814 Clamp, 4x 50201815 Impeller kit: impeller + gasket + screw 50209011 EN / WHISPER 6 /12 Mobile / November 2004...
  • Page 34 INFORMATION LOG first service after 50 hours: hour counter: remarks: next service (every 150 hours) hour counter: remarks: November 2004 / WHISPER 6 / 12 Mobile / EN...

  • Page 35: Notes

    NOTES EN / WHISPER 6 /12 Mobile / November 2004...
  • Page 36 MASTERVOLT Snijdersbergweg 93, 1105 AN Amsterdam, The Netherlands Tel.: +31-20-3422100 / Fax: +31-20-6971006 www.mastervolt.com / info@mastervolt.com November 2004 / WHISPER 6 / 12 Mobile / EN...

This manual is also suitable for:

Whisper 12
