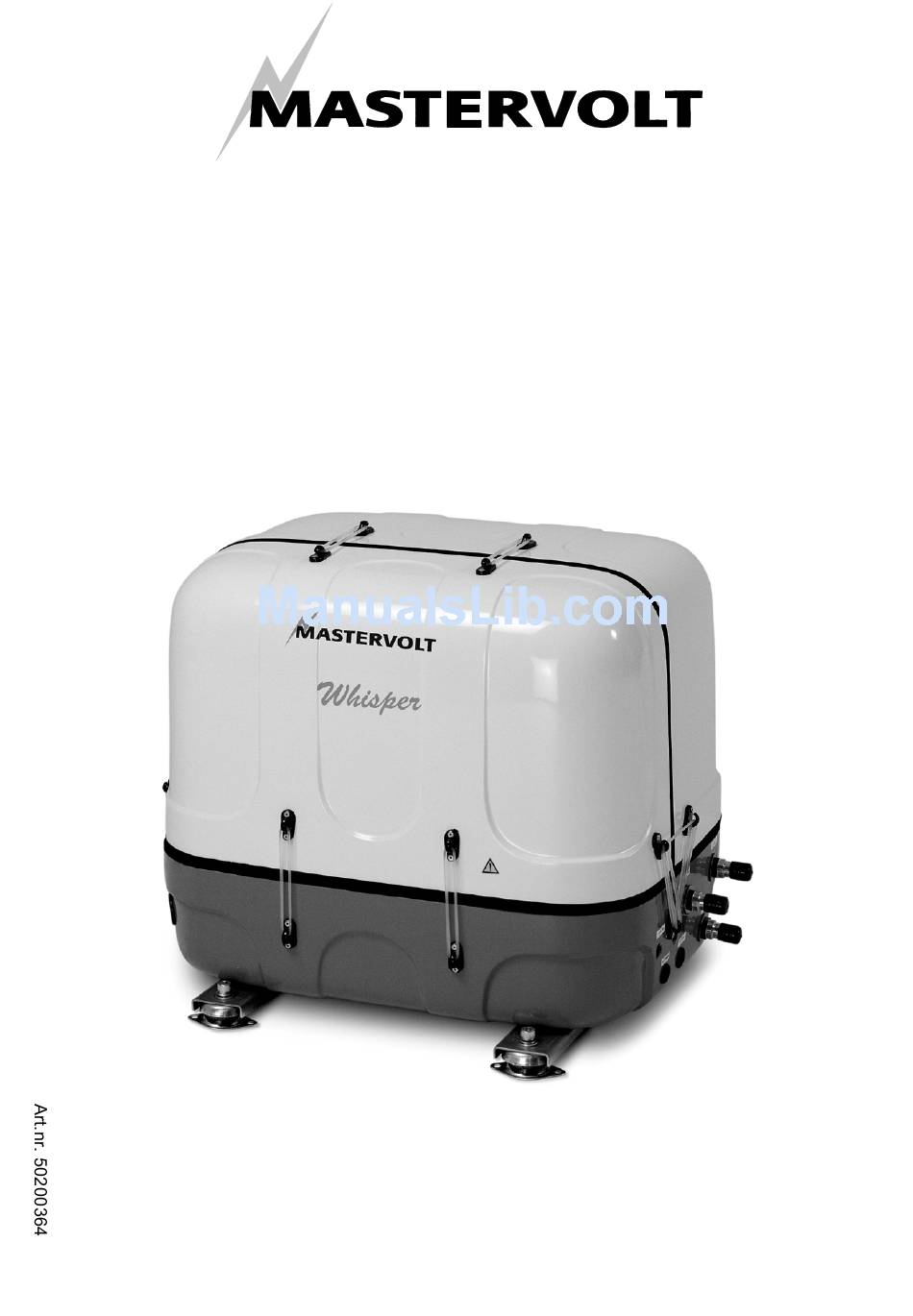

Marine diesel generating set 120/240v / 60hz
Hide thumbs Also See for WHISPER 6:

Advertisement

INSTALLATION MANUAL U.S.A EDITION
WHISPER 6 / 8 / 12
- 3600 RPM -
Marine diesel generating set 120/240V / 60Hz
Digital Diesel Control
MASTERVOLT
Snijdersbergweg 93,
1105 AN Amsterdam
The Netherlands
Tel.: +31-20-3422100
Fax.: +31-20-6971006
www.mastervolt.com
V5. February 2007
