Summary of Contents for Jump n Carry JNC1224

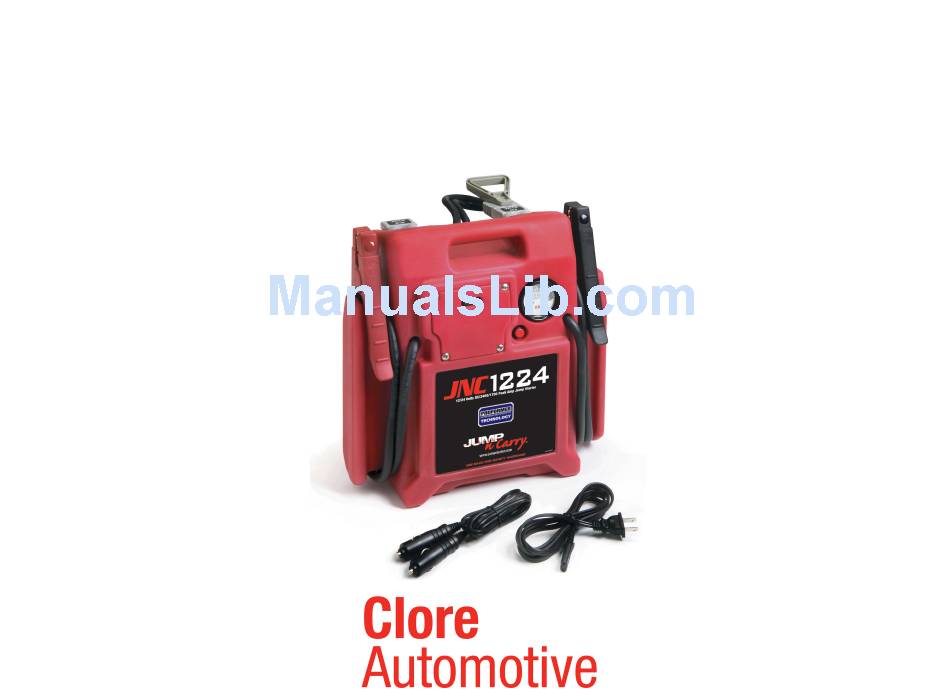

- Page 1 Safety Presenta,on JNC1224 Jump Starter ...
- Page 2 SAFETY: OPERATOR TRAINING People typically underes,mate the dangers associated with jump star,ng and oIen neglect to provide proper training for operators. Operator training on the proper use of the unit is a must for safe opera,on. The following sec,ons will point out the most common perils in jump star,ng a vehicle and show you the proper and safe way to use your JNC1224. ...
- Page 3 READ AND FOLLOW DIRECTIONS ! WARNING • Read, understand and follow instruc,ons found in the operator’s manual before using your jump starter. • Failure to follow opera,ng instruc,ons may result in property damage or serious injury. PROPER CLAMP STORAGE ! WARNING • Always be sure to properly store clamps when the unit is not in use. Store clamps away from each other and other common conductors. Improper storage may cause the baOery to short circuit and catch fire. ...
- Page 4 GENERAL EXPLOSIVE WAR ! ! WARNING • Working in the vicinity of a lead acid baOery is dangerous. BaOeries generate explosive gases during normal baOery opera,on. For this reason, it is essen,al that you read this manual and follow the instruc,ons exactly. Review any cau,onary markings on all baOeries and related equipment. FLYING DEBRIS WARNING WARNING ! ! • Always wear safety equipment when working with jump starters to protect yourself from flying debris, acid spills, or other objects in and around an engine compartment.
- Page 5 SAFETY GENERAL PRECAUTIONS • Read and follow the JNC1224 Operator’s Manual. • Read and follow all vehicle safety instruc,ons. • Use proper safety equipment. • Do Not aOempt to jump start a vehicle with the jump starter’s AC power cord connected to an AC power source. STORAGE • Store unit with the voltage selector disconnected. • Store unit in a stable and protected loca,on. • If possible, store the unit where it will not be exposed to extreme temperature condi,ons. ...
- Page 6 SAFETY PERSONAL • Always have someone near you while using this type of product. • Never smoke or allow a spark or flame near the vehicle or the jump starter. • Remove all watches and metal jewelry when working with a lead acid baOery. • Always read, understand and follow all direc,ons in the manual prior to using the unit. PREPARING TO USE THE UNIT • Keep in mind that working around a lead‐acid baOery is dangerous. • Check all connectors and cables to ensure there is no damage. ...
- Page 7 SAFETY PREPARING TO USE THE UNIT (Con5nued) • BaOeries generate explosive gases during normal baOery opera,ons (charging and discharging) – Always use in a well ven,lated area. – Always ensure that the vehicle and jump starter voltage match (12V to 12V, 24V to 24V) • WARNING: Mixing voltages will cause excessive genera,on of explosive gasses. • Set selector cable to the proper voltage (12V or 24V) to match vehicle. • Verify that the clamps and jaws are undamaged and in proper working condi,on. • Never spark the JNC1224 clamps together. • Make sure the built in charger is unplugged. ...
- Page 8 SAFETY USING THE UNIT (JUMP STARTING) • Make sure the baOery is fully charged. – NOTE: The JNC1224 comes with an automa,c charger. For best baOery life, never store the unit discharged, especially if stored in very hot or very cold condi,ons. • Make sure the charger has been turned off by unplugging cable from the wall outlet, and then from unit. • Verify your connec,ons and voltage selec,on. ...
- Page 9 SAFETY USING THE UNIT (JUMP STARTING, con5nued) • If you’ve made a mistake and set the jump starter to 12 Volts, and the vehicle is 24 Volts, follow these steps: – Immediately move away from the JNC1224. – Disconnect from the vehicle’s baOery. – Allow the unit to vent for at least 30 minutes. – Disconnect the power selector plug. – Tag the unit out as non‐func,onal. – Return to Clore Automo,ve for baOery evalua,on. • If the vehicle has a 12 Volt system with dual baOeries, hook up the jump starter to the baOery closest to the starter. • Posi,on jump starter cables to reduce risk of damage by hood, door or moving engine parts. ...
- Page 10 SAFETY USING THE UNIT (JUMP STARTING, con5nued) • Stay clear of fan belts, pulleys, and other parts that can cause injury. • Connect the POSITIVE (red) grip from the unit to the POSITIVE (POS, P, +) ungrounded post of the baOery. • Connect the NEGATIVE (black) grip to the vehicle chassis or engine block away from the baOery – do this last! – DO NOT connect grip to carburetor, fuel lines, or sheet metal body parts. Connect to a heave gauge metal part of the frame or engine block. • AIer jump star,ng is complete, disconnect nega,ve grip from vehicle chassis first, then remove the posi,ve grip from the baOery terminal . ...
- Page 11 SAFETY CHARGING THE UNIT • Regular charging is a good prac,ce and will extend the life of the baOery (charge daily if possible). • Make sure the voltage selector is disconnected. • Place the unit in a stable and well ven,lated loca,on. • Check the voltage on the gauge by pressing the test buOon (should be no voltage). • Use the built in charger – NEVER use an external charger. It may damage the jump starter. – Make sure the charger cable has not been damaged. If it has been damaged, replace it with a new cable ...
- Page 12 SAFETY CHARGING THE UNIT (con5nued) • AIer charging is completed, connect in 12V mode and check the voltage: – A fully charged baOery has 12.8 volts. – During the charging cycle, the baOery may reach up to 14.4 volts. • When full charge is confirmed, unplug the charger. ...
- Page 13 SUMMARY • Train operators on the proper use of the JNC1224 • Be aware of the dangers involved in jump star,ng a vehicle • Read, understand and follow the instruc,on manual • Verify your connec,ons and your voltage selec,ons • Charge the JNC1224 on a regular basis in a safe environment • Store the JNC1224 safely in a proper loca,on ...
- Page 14 THANK YOU, AND BE SAFE! For more informa5on, please visit: Clore Automo,ve: www.cloreautomo,ve.com Chris,e Automo,ve: www.chris,eautomo,ve.com Jump N Carry: www.jumpstarter.com ...
