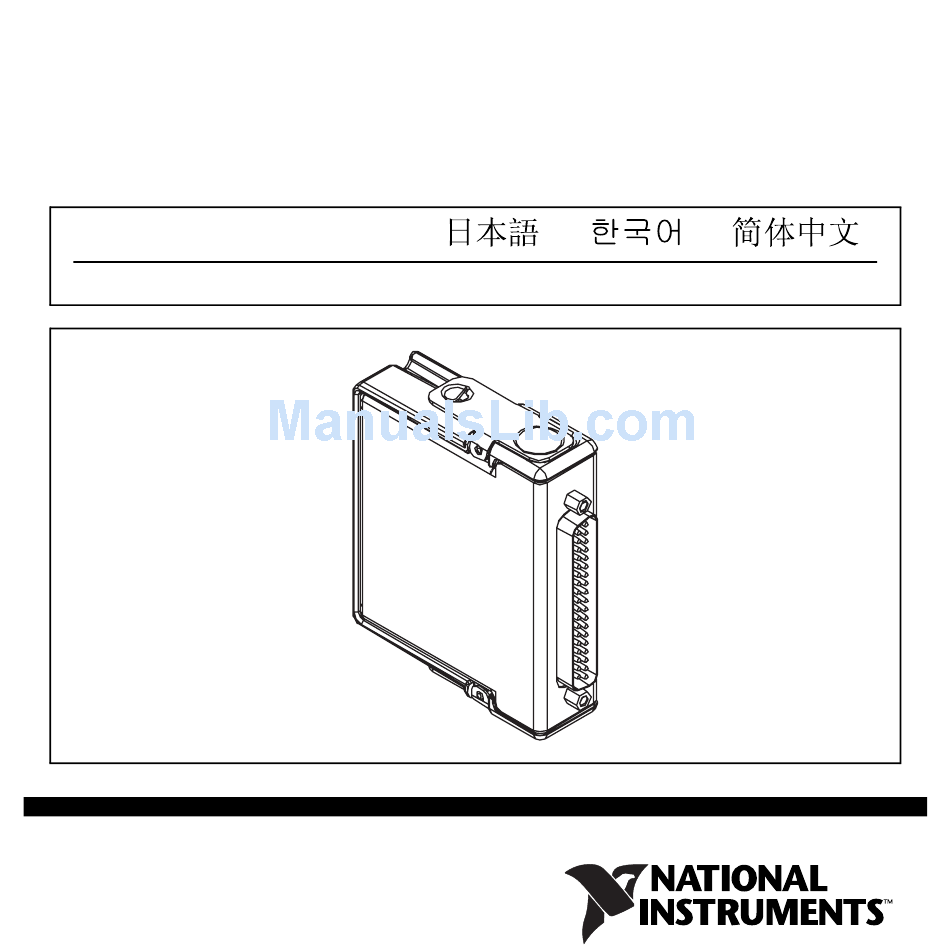

- Page 1 OPERATING INSTRUCTIONS AND SPECIFICATIONS NI 9403 32-Channel, TTL Digital Input/Output Module Français Deutsch ni.com/manuals...
- Page 2 This document describes how to use the National Instruments 9403 and includes specifications and pin assignments for the NI 9403. Visit ni.com/info which software you need for the modules you are using. For information about installing, configuring, and programming the system, refer to the system documentation.
-
Page 3: Safety Guidelines For Hazardous Locations
Touching this component may result in bodily injury. Safety Guidelines for Hazardous Locations The NI 9403 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4, and Ex nA IIC T4 hazardous locations;... - Page 4 II 3G and is suitable for use in Zone 2 hazardous locations. If you are using the NI 9403 in Gas Group IIC hazardous locations or in ambient temperatures of –40 °C ≤ Ta ≤ 70 °C, you must use the device in an NI chassis that has been evaluated as EEx nC IIC T4, Ex nA IIC T4, or Ex nL IIC T4 equipment.
- Page 5 Power supply and module cables must be separated on opposite sides of the enclosure and must enter and exit through opposing enclosure walls. © National Instruments Corp. and search for the LR certificate, or NI 9403 Operating Instructions and Specifications...
- Page 6 Connecting the NI 9403 The NI 9403 has a 37-pin DSUB connector that provides connections for the 32 digital input/output channels. Figure 1. NI 9403 Pin Assignments NI 9403 Operating Instructions and Specifications DIO0 DIO16 DIO1 DIO17 DIO2 DIO18 DIO3...
- Page 7 Refer to the Specifications section for more information about input thresholds and overvoltage protection. Refer to the Overcurrent/Short-Circuit Protection section for more information about overcurrent and short-circuit protection. © National Instruments Corp. NI 9403 Operating Instructions and Specifications...
- Page 8 NI 9403. Dev 1 +5 V Dev 2 +5 V Dev 3 Figure 2. Connecting Digital Devices to the NI 9403 NI 9403 Operating Instructions and Specifications DIO0 as Input TTL Signal DIO1 as Input DIO2 as Output NI 9403 ni.com...
-
Page 9: Sleep Mode
The overcurrent protection allows only a specified amount of current through the output channels to protect the NI 9403 from short circuits. If the NI 9403 goes into an overcurrent state, the module sets all the DIO channels to high impedance for approximately 280 milliseconds. -
Page 10: Specifications
The following specifications are typical for the range –40 to 70 °C unless otherwise noted. All voltages are relative to COM unless otherwise noted. Input/Output Characteristics Number of channels... 32 DIO channels Input/output type... TTL, single-ended Default power-on line direction ... Input NI 9403 Operating Instructions and Specifications ni.com... - Page 11 Module output current is the maximum guaranteed current that the module can drive from all the I/O lines without going into an overcurrent state. © National Instruments Corp..0.2 V min ≤ 4.5 V)... ±250 μA max ... 64 mA max NI 9403 Operating Instructions and Specifications 5.25 V...
- Page 12 Channel-to-channel skew is the amount of time between the first output signal updating and the last output signal updating. NI 9403 Operating Instructions and Specifications ... 10 ns min ... 60 ns min ... 330 ns max ...
- Page 13 CompactRIO system. When used in other systems, driver software and system latencies impact these times. © National Instruments Corp..18 μS max 8 channels at a time; however, continued use at this level will degrade the life of the module. NI 9403 Operating Instructions and Specifications...
-
Page 14: Power Requirements
Sleep mode ... 25 μW max Physical Characteristics If you need to clean the module, wipe it with a dry towel. Weight... 150 g (5.3 oz) NI 9403 Operating Instructions and Specifications Bellcore Issue 2, Method 1, Case 3, Limited Part Stress Method... - Page 15 Such voltage measurements include signal levels, special © National Instruments Corp. 8 channels at a time, Measurement Category I Measurement Category I , verified by a 5 s dielectric withstand test NI 9403 Operating Instructions and Specifications...
- Page 16 Do not connect the NI 9403 to signals or use for Caution measurements within Measurement Categories II, III, or IV. Safety Standards This product is designed to meet the requirements of the following...
- Page 17 Europe (DEMKO)... Ex nA IIC T4 Environmental National Instruments C Series modules are intended for indoor use only but may be used outdoors if installed in a suitable enclosure. Refer to the manual for the chassis you are using for more information about meeting these specifications.
-
Page 18: Shock And Vibration
Random (IEC 60068-2-64)... 5 g Sinusoidal (IEC 60068-2-6) ... 5 g, 10 to 500 Hz Operating shock (IEC 60068-2-27)... 30 g, 11 ms half sine, NI 9403 Operating Instructions and Specifications noncondensing noncondensing , 10 to 500 Hz 50 g, 3 ms half sine, 18 shocks at 6 orientations ni.com... -
Page 19: Electromagnetic Compatibility
2004/108/EC; Electromagnetic Compatibility Directive (EMC) Refer to the Declaration of Conformity (DoC) for Note this product for any additional regulatory compliance information. To obtain the DoC for this product, visit © National Instruments Corp. NI 9403 Operating Instructions and Specifications... -
Page 20: Environmental Management
Certification column. Environmental Management National Instruments is committed to designing and manufacturing products in an environmentally responsible manner. NI recognizes that eliminating certain hazardous substances from our products is beneficial not only to the environment but also to NI customers. -
Page 21: Where To Go For Support
China RoHS compliance, go to environment/rohs_china Where to Go for Support The National Instruments Web site is your complete resource for technical support. At everything from troubleshooting and application development self-help resources to email and phone assistance from NI Application Engineers. - Page 22 South Africa 27 0 11 805 8197, Spain 34 91 640 0085, Sweden 46 (0) 8 587 895 00, Switzerland 41 56 2005151, Taiwan 886 02 2377 2222, Thailand 662 278 6777, Turkey 90 212 279 3031, United Kingdom 44 (0) 1635 523545 NI 9403 Operating Instructions and Specifications ni.com...
- Page 23 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies.
