OPERATING INSTRUCTIONS AND SPECIFICATIONS
NI 9229E/9239E
4-Channel, ±60/±10 V, 24-Bit Simultaneous,
Channel-to-Channel Isolated Analog Input Modules

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NI 9229E and is the answer not in the manual?

Questions and answers

Summary of Contents for National Instruments NI 9229E

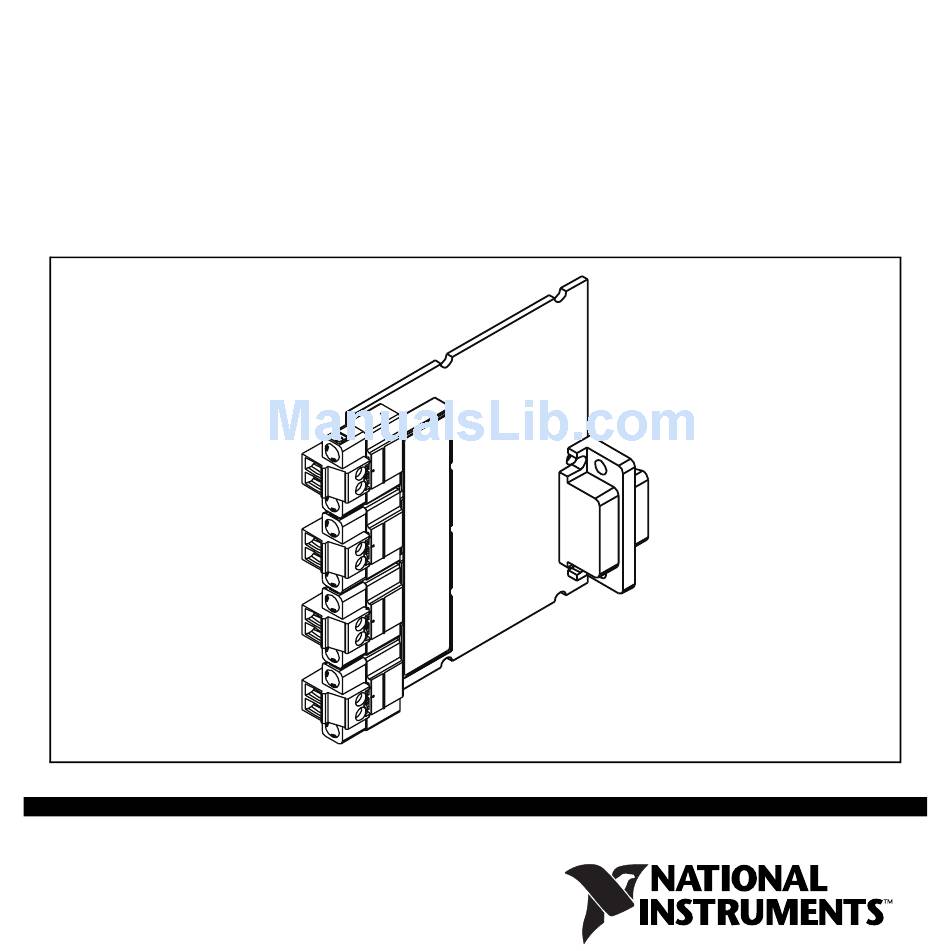

  • Page 1 OPERATING INSTRUCTIONS AND SPECIFICATIONS NI 9229E/9239E 4-Channel, ±60/±10 V, 24-Bit Simultaneous, Channel-to-Channel Isolated Analog Input Modules...
  • Page 2 This document describes how to use the National Instruments 9229E and National Instruments 9239E and includes dimensions, terminal assignments, and specifications. In this document, the NI 9229E and NI 9239E are referred to inclusively as the NI 9229E/9239E. Visit rdsoftwareversion the modules you are using.
  • Page 3 NI 9229E/9239E Dimensions The following figure shows the dimensions of the NI 9229E/9239E. 73.4 (2.89) 0.0 (0.00) Figure 1. NI 9229E/9239E Dimensions in Millimeters (Inches) © National Instruments Corp. NI 9229E/9239E...
  • Page 4 Connecting the NI 9229E/9239E The NI 9229E/9239E provides connections for four simultaneously sampled, isolated analog input channels. Figure 2. NI 9229E/9239E Terminal Assignments NI 9229E/9239E AI0+ AI0– AI1+ AI1– AI2+ AI2– AI3+ AI3– ni.com...
  • Page 5 NI 9229E /9239E. You can connect ground-referenced or floating signal sources to the NI 9229E/9239E. Connect the positive signal of the signal source to the AI+ terminal, and connect the negative signal of the signal source to the AI– terminal. If you make a ground-referenced connection between the signal source and the NI 9229E/9239E, make sure the voltage on the AI+ and AI–...
  • Page 6 Signal Source – AI– NI 9229E/9239E Figure 3. Connecting a Grounded Signal Source to the NI 9229E/9239E Signal Source – AI– NI 9229E/9239E Figure 4. Connecting a Floating Signal Source to the NI 9229E/9239E NI 9229E/9239E ni.com...
  • Page 7 Refer to Figure 5 for an illustration of the circuitry for one channel. Overvoltage Protection AI– Amplifier Prefilter NI 9229E/9239E Figure 5. Input Circuitry for One Channel of the NI 9229E/9239E © National Instruments Corp. NI 9229E/9239E...
  • Page 8 Understanding NI 9229E/9239E Filtering The NI 9229E/9239E uses a combination of analog and digital filtering to provide an accurate representation of in-band signals while rejecting out-of-band signals. The filters discriminate between signals based on the frequency range, or bandwidth, of the signal.
  • Page 9 0.025 0.000 –0.025 –0.050 Figure 6. Typical Passband Flatness for the NI 9229E/9239E © National Instruments Corp. Frequency/Data Rate NI 9229E/9239E...
  • Page 10: Alias-Free Bandwidth

    Alias-Free Bandwidth Any signal that appears in the alias-free bandwidth of the NI 9229E/9239E is not an aliased artifact of signals at a higher frequency. The alias-free bandwidth is defined by the ability of the filter to reject frequencies above the stopband frequency and equals the data rate minus the stopband frequency.
  • Page 11 1.613 kS/s, depending on the value of n. When using an external timebase with a frequency other than 12.8 MHz, the NI 9229E/9239E has a different set of data rates. © National Instruments Corp. and enter...
  • Page 12: Sleep Mode

    In sleep mode, the system consumes minimal power and may dissipate less heat than it does in normal mode. Refer to the Specifications section for more information about power consumption and thermal dissipation. NI 9229E/9239E ni.com...
  • Page 13: Specifications

    The following specifications are typical for the range –40 to 85 °C internal to any enclosures unless otherwise noted. All voltages are relative to the AI– signal on each channel unless otherwise noted. The specifications are the same for the NI 9229E and the NI 9239E unless otherwise noted. Input Characteristics Number of channels...
  • Page 14 Overvoltage protection ... ±100 V Input coupling... DC Input impedance (AI+ to AI–) ... 1 MΩ The data rate must remain within the appropriate data rate range. Refer to the Understanding NI 9229E/9239E Data Rates NI 9229E/9239E -------------------- - Typical (V) ±60...
  • Page 15 Accuracy, NI 9229E Measurement Conditions Calibrated max (–40 to 70 °C) Calibrated typ (25 °C, ±5 °C) Uncalibrated max (–40 to 70 °C) Uncalibrated typ (25 °C, ±5 °C) Range equals 62.64 V © National Instruments Corp. Percent of Reading...
  • Page 16 Calibrated typ (25 °C, ±5 °C) Uncalibrated max (–40 to 70 °C) Uncalibrated typ (25 °C, ±5 °C) Range equals 10.52 V Input noise NI 9229E ... 320 μV NI 9239E ... 70 μV Stability Gain drift ... ±5 ppm/°C Offset drift NI 9229E...
  • Page 17 Phase mismatch (ch-to-ch) NI 9229E ... 0.045°/kHz max NI 9239E ... 0.075°/kHz max Phase mismatch (module-to-module, max) NI 9229E ... 0.045°/kHz + 360°· f NI 9239E ... 0.075°/kHz + 360°· f Phase nonlinearity ( f Input delay NI 9229E ... 38.4/f NI 9239E ...
  • Page 18 –3 dB prefilter bandwidth = 50 kS/s) ... 24.56 kHz CMRR ( f = 60 Hz) NI 9229E ... 116 dB NI 9239E ... 126 dB SFDR (1 kHz, –60 dBFS)... 128 dBFS Total Harmonic Distortion (THD) 1 kHz, –1 dBFS ... –99 dB 1 kHz, –20 dBFS ...
  • Page 19: Power Requirements

    Note three-dimensional models of the C Series module and connectors, visit module number. Screw-terminal wiring ... 16 to 28 AWG copper © National Instruments Corp. ni.com/dimensions conductor wire with 7 mm (0.28 in.) of insulation stripped from the end and search by...
  • Page 20 Channel-to-channel Continuous ... 250 V Withstand... 1,390 V Channel-to-earth ground Continuous ... 250 V Withstand... 2,300 V NI 9229E/9239E (1.95 to 2.21 lb · in.) to 0.5 mm Measurement Category II, (Basic insulation) , verified by a 5 s dielectric withstand test...
  • Page 21 This category refers to local-level electrical distribution, such as that provided by a standard wall outlet, for example, 115 V for U.S. or 230 V for Europe. Do not connect the NI 9229E/9239E to Caution signals or use for measurements within Measurement Categories III or IV.
  • Page 22: Online Product Certification

    Certification column. Environmental National Instruments C Series modules are intended for indoor use only but may be used outdoors if installed in a suitable enclosure. Refer to the manual for the chassis you are using for more information about meeting these specifications.
  • Page 23: Environmental Management

    Maximum altitude... 2,000 m Pollution Degree (IEC 60664) ... 2 Environmental Management National Instruments is committed to designing and manufacturing products in an environmentally responsible manner. NI recognizes that eliminating certain hazardous substances from our products is beneficial to the environment and to NI customers.
  • Page 24 National Instruments ni.com/environment/rohs_china about China RoHS compliance, go to environment/rohs_china Calibration You can obtain the calibration certificate and information about calibration services for the NI 9229E/9239E at calibration Calibration interval ... 1 year NI 9229E/9239E National Instruments RoHS RoHS (RoHS) (For information ni.com/...
  • Page 25: Where To Go For Support

    Where to Go for Support The National Instruments Web site is your complete resource for technical support. At you have access to ni.com/support everything from troubleshooting and application development self-help resources to email and phone assistance from NI Application Engineers.
  • Page 26 Turkey 90 212 279 3031, United Kingdom 44 (0) 1635 523545 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies.
