Summary of Contents for Viking Access Systems Q-7

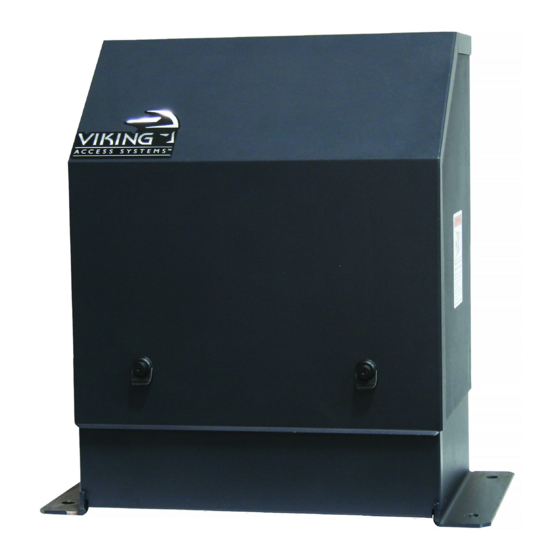

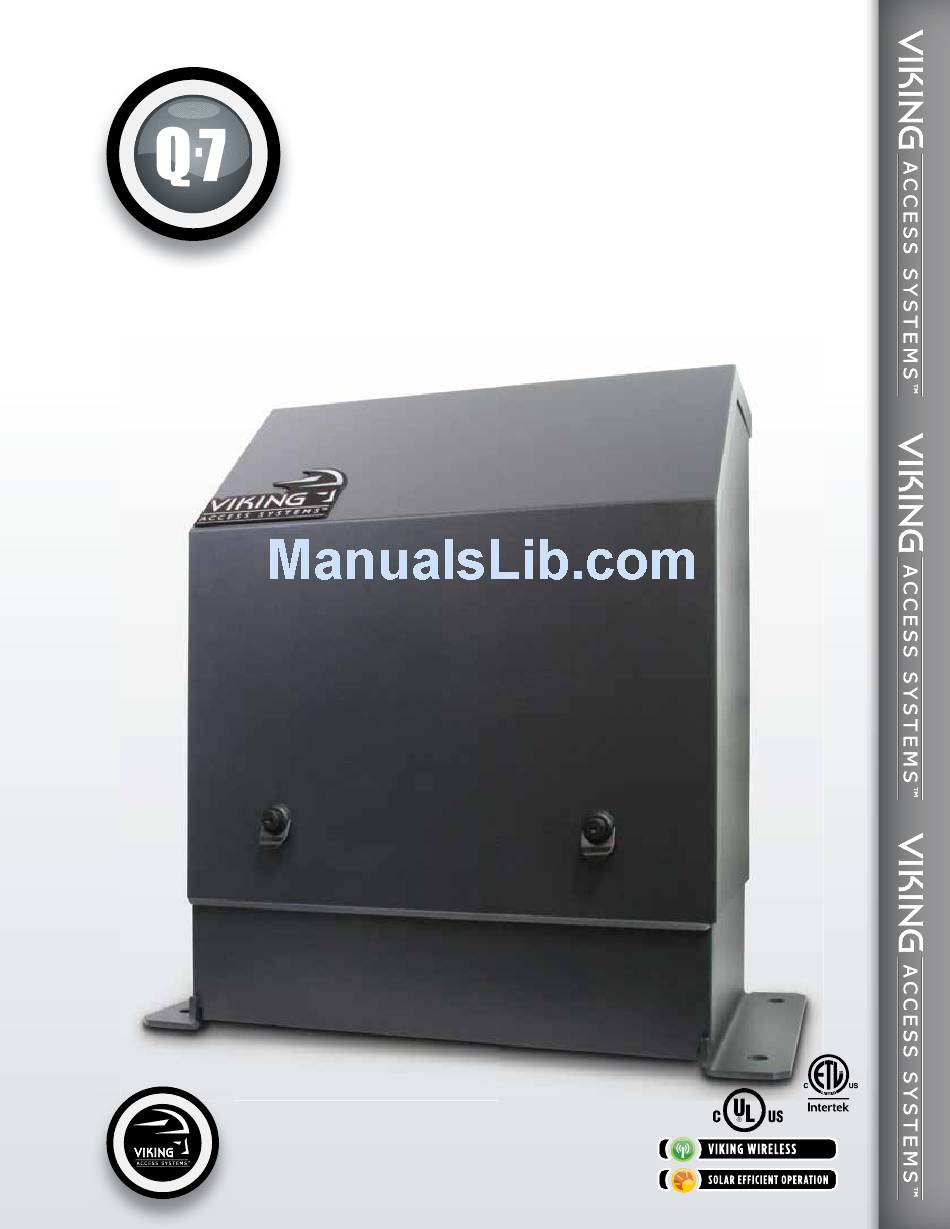

  • Page 1 INSTALLATION INSTRUCTIONS AND SAFETY INFORMATION F O R T H E V I K I N G Q -7 G AT E O P E R ATO R C L A S S I I , C L A S S I I I , A N D C L A S S I V Heavy-Duty Commercial Vehicular Slide Gate Operator...
  • Page 2 The Q-7™ gate operator has the capacity to operate slide gates up to 7000 lbs. and 120 ft. in length at 100% duty cycle under extreme conditions. This effi cient operator provides a solution for high traffi c commercial and industrial slide gate applications. The Viking Q-7™...
  • Page 3 Q-7 Vehicular Gate Operator • Revision Q7NXMN10.G • February 2016...
  • Page 4: Parts Diagram/Parts List

    PARTS DIAGRAM: Item Description Part No. Chassis VAQ7CH10 Chassis Top Cover VAQ7CHTC10 Q7 Cover Lock & Key VAQ7CL Chassis Front Cover VAQ7CHFC10 Chain Guard VAQ7CHCG10 Q7 J-Box Cover VAQ7JBC Battery DUBA35 Loop Rack VA-LR Control Board VFLEXPCBU16-Q7 Fuse - 4 amp VNXF4A Fuse - NOT USED Release Handle...
  • Page 5: Operator References

    OPERATOR REFERENCES: 1. FRONT COVER 10. POWER BOX ASSEMBLY removable; convenient access to the power supply 2. COVER LOCK (2) components 3. TOP COVER 11. MOTOR POWER SWITCH switch & breaker; provides additional protection for 4. LOOP RACK the motor circuitry . for convenient loop detector installation 12.
  • Page 6: Control Board References

    24. EXPANSION PRODUCT CONNECTIONS monitors manual release operation. connections for additional products 16. CONTROL BOARD MOUNTING HOLES from Viking Access Systems. pg 46 6. “EPS2” CONNECTOR secures and grounds the control board. monitors the limit positions. 25. “FAIL SAFE/SECURE” Jumper 17.
  • Page 7: Table Of Contents

    TABLE OF CONTENTS: PARTS DIAGRAM/PARTS LIST PARTS DIAGRAM/PARTS LIST OPERATOR REFERENCES OPERATOR REFERENCES CONTROL BOARD REFERENCES CONTROL BOARD REFERENCES IMPORTANT SAFETY INFORMATION IMPORTANT SAFETY INFORMATION 6-12 6-12 Important Safety Instructions Important Installation Instructions Maintenance General Safety Precautions Operator Classification Secondary Entrapment Protection Requirements Secondary Entrapment Protection Installation Manual Release Audible Alarm Reset Installation...
  • Page 8: Important Safety Information

    IMPORTANT SAFETY INFORMATION WARNING! Not Following these instructions may cause severe injury or death. IMPORTANT SAFETY INSTRUCTIONS WARNING! To reduce the risk of severe injury or death. READ AND FOLLOW ALL INSTRUCTIONS . 2. Never let children operate or play with gate controls. Keep the remote away from children.
  • Page 9: Important Installation Instructions

    IMPORTANT SAFETY INFORMATION WARNING! Not Following these instructions may cause severe injury or death. IMPORTANT INSTALLATION INSTRUCTIONS (Continued) 6. Controls intended for user activation must be located at least six feet (6’) away from any moving part of the gate and where the user is prevented from reaching over, under, around or through the gate to operate the controls.
  • Page 10: Maintenance

    IMPORTANT SAFETY INFORMATION WARNING! Not Following these instructions may cause severe injury or death. MAINTENANCE Remove the Power Harness from the Control Board. (refer to page 18) • Clean and lubricate the gate track wheels using the recommended lubricant. • Inspect the track for any signs of cracking or separation. • Check that all mounting hardware of the gate operator is properly tighten. • Ensure that the gate moves freely. • Check for corroded parts and replace if necessary.
  • Page 11: Operator Classification

    IMPORTANT SAFETY INFORMATION CAUTION: To Reduce the Risk of Fire or Injury to Persons: a. Use only the following type and size battery(ies): Yuasa NP7-12 or VIKING DUBA12 b. Do not dispose of the battery(ies) in fire. The cells may explode. Check with local codes for possible disposal instructions. c. Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may cause damage to the eyes or skin.
  • Page 12: Secondary Entrapment Protection Requirements

    IMPORTANT SAFETY INFORMATION WARNING! Not Following these instructions may cause severe injury or death. Secondary Entrapment Protection Requirements IMPORTANT: SECONDARY PROTECTION MUST BE INSTALLED • REQUIRED BY UL 325, an approved MONITORED secondary entrapment protection sensor is REQUIRED to be installed in all areas accessible to potential entrapment and pinch points.
  • Page 13: Secondary Entrapment Protection Installation

    IMPORTANT SAFETY INFORMATION WARNING! Not Following these instructions may cause severe injury or death. Secondary Entrapment Protection Installation STEP 1 Connect the secondary entrapment protection sensor(s) to the Viking control board as illustrated below. Up to four 10K resistor based sensors can be wired in parallel. STEP 2 Confirm the number of sensors connected: • Toggle the “Diagnose”...
  • Page 14: Audible Alarm Reset Switch Installation

    IMPORTANT SAFETY INFORMATION WARNING! Not Following these instructions may cause severe injury or death. Audible Alarm Reset Switch Installation Manual Reset for the Audible Alarm • UL325 standard requires an audible alarm to sound after two consecutive events detected by the primary entrapment protection of the gate operator (obstruction sensor).
  • Page 15: Important Installation Information

    IMPORTANT INSTALLATION INFORMATION CAUTION: To Reduce the Risk of Fire or Injury to Persons: WARNING: For use with gates at a maximum 7000 lbs. in weight or 120 ft. in length. DO NOT allow pedestrian use of this gate DO NOT install the gate operator to lift gates Locate Control Buttons: 1.
  • Page 16: Gate Operator Installation

    Follow the local building code to determine the required depth of the concrete pad. 2. Pad measurements recommended by Viking Access Systems are at least 28” long, 18” wide and 24” deep to ensure the stable operation of the operator, and a minimum of 4” above level grade to avoid any flooding of the machinery.
  • Page 17: Positive Stop Installation

    This will be used as a reference to relearn the limit positions if the gate has been operated manually while released or if the EPS2 Cable has been disconnected. NOTE: Viking Access Systems does not provide any form of positive stops. Suggested Positive Stop Types: • Wheel stop affixed to the track • Gate catch plate, yoke or receiver...
  • Page 18: Operator Positioning

    GATE OPERATOR INSTALLATION Operator Positioning IMPORTANT: All openings of a horizontal slide gate are guarded or screened from the bottom of the gate to a minimum of 6 feet (1.83 m) above the ground to prevent a 2-1/4 inch (57.2 mm) diameter sphere from passing through the openings anywhere in the gate, and in that portion of the adjacent fence that the gate covers in the open position.
  • Page 19 GATE OPERATOR INSTALLATION ! TECHNICAL TIP: Before completing the installation procedure; • Open and close the gate manually, making sure there is sufficient space between the gate and adjacent walls. • Check that the wheels are turning freely on the track and there are no restrictions while pushing the gate to the open and closed positions. • Confirm that there is adequate spacing for the guide rollers and that there are no restrictions throughout the travel of the gate.
  • Page 20: Electrical Installation

    ELECTRICAL INSTALLATION High Voltage Supply Option ! Caution: Always turn off power breakers when working with high voltage. DO NOT connect the “Power Harness” to the Control Board until the electrical installation is complete and ready for verification. STEP 1 At the “Power Box”: a.
  • Page 21: Solar Supply Option

    Solar Harness. ! IMPORTANT: Vikings Solar Package (part # VA-SOCHP) and its individual components are NOT RECOMMENDED for the Q-7 operator. Contact Viking Access Systems or your local solar provider for further information. VIKING TECHNICAL SUPPORT 1.800.908.0884...
  • Page 22: Limits Setup

    LIMITS SETUP ! IMPORTANT: Before the initial limits setup, a Positive Stop MUST be installed at the close position. This will be used as a reference to relearn the limit positions if the gate has been operated manually while released or if the EPS2 Cable has been disconnected. 2.
  • Page 23 LIMITS SETUP ! IMPORTANT: If the gate has been manually released and re-engaged: The Open Limit LED will be illuminated solid and the Close Limit LED will be flashing. 2. The gate will not run in the open direction until step 4 is repeated on page 20. To Readjust the Close Limit: To Readjust the Open Limit: Clear the current limit setting by...
  • Page 24: Master/Slave Setup

    MASTER/SLAVE SETUP Two Wire Communication ! IMPORTANT: DO NOT run the Master/Slave communication cable in the same conduit or within 12” of 115 - 230V power supply cables. ! Technical Tip: DO NOT set the “Timer” and/or “Overlap” features on both operators Control Boards.
  • Page 25: Wireless Communication Options

    MASTER/SLAVE SETUP Wireless Communication Options ! Technical Tip: DO NOT set the “Timer” and/or “Overlap” features on both operators Control Boards. Only turn these features on at the Master Control Board. REQUIRED ADD-ON: 1. Choose option A or B A. Viking Konnect - Wireless Master/Slave Kit PART# VA-KONNECT-MS B.
  • Page 26: Control Board Setup

    CONTROL BOARD SETUP Initial Settings “Speed” “ODS” Motor Speed Obstruction Detection Sensor Increases or decreases the speed of gate Sets the amount of force required to trip travel. the inherent obstruction sensor. See page 26 for more details about this feature.
  • Page 27: Initial Settings

    CONTROL BOARD SETUP Initial Settings NOTE: Installing a shunt or jumper on the pins will activate the feature. “Auto Open” - Power Failure Option Opens the gate automatically during power failure. Resumes normal operation when power is restored. “Last Open” - Power Failure Option Opens the gate automatically when the battery backup voltage is critically low.
  • Page 28: Obstruction Detection Sensor (Primary Entrapment Protection)

    CONTROL BOARD SETUP Obstruction Sensor (Primary Entrapment Protection) ! IMPORTANT: The appropriate “ODS” setting is dependant upon the gate installation and construction. Set this feature accordingly. Additional Safety equipment should be used to reduce possible risk of injury or vehicle damage. “ODS”...
  • Page 29: Heater, Lock Mode

    CONTROL BOARD SETUP Viking Heater The operator has an integrated heater that is thermostatically controlled. Activate this feature when the operator is used in application temperatures down to -20°F (-29°C). To set the heater to turn on at the Close Limit: HEATER 1.
  • Page 30 (THIS PAGE LEFT BLANK INTENTIONALLY) VIKING TECHNICAL SUPPORT 1.800.908.0884...
  • Page 31: Accessory Connections

    ACCESSORY CONNECTIONS Re-Open Photo Beam (vehicular Safety) NOTE: This type of photo-beam installation will stop then RE-OPEN the gate all the way to the open limit, when the beam is obstructed. Intended for vehicular safety ONLY. For the purpose of pedestrian entrapment, see pages 10-11. Note regarding Photo Beam types: Check for proper operation: The “Re-Open”...
  • Page 32: Radio Receiver (Typical)

    ACCESSORY CONNECTIONS Radio Receiver (Typical) ! IMPORTANT: The Hold Open “Timer” setting (page 24) affects how the gate will respond to the radio receiver command. The control board provides two modes of operation that a radio receiver can control the gate: Open-Stop-Close 1.
  • Page 33: Anti-Tailgate, Open Commands, Guard Station

    ACCESSORY CONNECTIONS Anti-Tailgate, Open Commands & Guard Station TECHNICAL TIP: For more information regarding accessory connections and terminal functions, refer to “Appendix (A)” on pages 42-43. Open Commands “Exit ”, “Fire” and “Strike” input terminals all provide an open command to the control board.
  • Page 34: Viking Loop Rack

    ACCESSORY CONNECTIONS Viking Loop Rack TIP: This operator may be equipped with a pre-wired Loop Rack that plug-in type loop detectors can be connected to. This provides a convenient alternative to the box type loop detectors that would need to be wired to the control board. Viking does not provide either type of loop detectors.
  • Page 35: Guidelines For Loop Installations

    ACCESSORY CONNECTIONS Guidelines for Loop Installation 1. Prevent sharp corners in the geometry of the loop sensor. 2. Install the appropriate number of turns for your loop geometry based on the loop perimeter. Use Table C (below) as a guide. 3.
  • Page 36: Magnetic Lock, Lock Solenoid

    ACCESSORY CONNECTIONS Magnetic Lock, Lock Solenoid NOTE: Viking Access Systems does not provide external gate lock devices. These items can be purchased from your dealer or distributor. Power for the Locks: Do not use the 24VDC power supplied by the control board. An external power...
  • Page 37: Barrier Arm (B-12) Synchronization Option

    SYNCHRONIZATION WITH B-12 Barrier Arm (B-12) Synchronization Option NOTE: The Control Board provides a convenient solution for applications that require synchronized operation with the Viking Barrier Arm Operator model B-12. This type of application opens and closes in the following pattern: 1.
  • Page 38: Troubleshooting

    TROUBLESHOOTING LED References In addition to the LCD Display, the control board LEDs monitor the various circuits of the control board. Use the table below to identify the corresponding “TS Ref#” and refer to page 38-41 for further troubleshooting. Page 41 # LED Status Meaning...
  • Page 39 TROUBLESHOOTING LED References Use the table below to identify the corresponding “TS Ref#” and refer to page 38-41 for Pg 41 further troubleshooting. # LED Status Meaning TS Ref#(s) “C Loop” Normal Condition. SOLID Control Board is receiving an input from a device connected to the 9, 10 C Loop terminal (pg 32, 42).
  • Page 40: Lcd Display References

    TROUBLESHOOTING LCD Display References The control board is equipped with a LCD Display that provides operator information, current conditions, settings, diagnostics and error messages. Use the table below to identify the corresponding “TS Ref#” and refer to page 41 for further troubleshooting. 1.
  • Page 41 TROUBLESHOOTING LCD Display References Page 41 Meaning LCD MSG TS Ref #s SEARCH Needs to search for the Positive Stop, that has been installed at the close position, in order to use as a reference for the limits after manual operation. POS STOP Multi Meter Displays MOT AMP...
  • Page 42 TROUBLESHOOTING LCD Display References Page 41 Meaning LCD MSG TS Ref #s Error Messages ERR AC Indicates that the 24VAC supply to the VFlex Board is too low from the 1, 3. 20 115/230 power supply. ERR AC Indicates that the 24VAC supply to the VFlex Board is too high from the 1, 3, 20 115/230 power supply.
  • Page 43: Solutions

    TROUBLESHOOTING Solutions Begin the troubleshooting process by referring to the error messages on the LCD Display and/or the Status LEDs on the control board. Use pages 36-40 to identify the Troubleshooting Reference # (TS Ref#) then reference the table below. TS Ref# CHECK Page Ref# Check that the high voltage power supplied to “J-Box”...
  • Page 44: Appendix A, B & C

    Appendix (A) Access Control Connections Power Connections The control board provides a 24VDC output to power external devices and controls. Alternatively, for devices that require a power supply other than 24VDC , the operators Power Box contains a convenient 120VAC receptacle to connect a plug-in transformer.
  • Page 45 APPENDIX (A) Relays In General NOTE: Viking Access Systems does not provide the external safety devices and access controls. These items can be purchases from your dealer or distributor. In General Glossary of Terms 1. Terminal: Wire Connections. In regards to the Viking control board, 2.
  • Page 46 Appendix (B) Appendix (B) Common Radio Receivers - Connections Common Radio Receivers - Connections VIKING TECHNICAL SUPPORT 1.800.908.0884...
  • Page 47 One low voltage, low current loop detector c. One low voltage, low current photo beam If more specific information is needed please consult with Viking Access Systems. For more information regarding solar energy refer to www.nrel.gov/solar VIKING TECHNICAL SUPPORT 1.800.908.0884...
  • Page 48: Viking Expansion Products

    VIKING EXPANSION PRODUCTS VIKING KONNECT Master/Slave Kit Secure and reliable Master/Slave communication using Viking’s Konnect technology. Paired with the Viking App, each module also doubles as a diagnostic tool. Part# VA-KONNECT-MS ***Q -7, B-12 & ECU Operators require (2) Antenna Extension Cables (part# VA- RPSMA)*** VIKING KONNECT Diagnostic Tool On-site remote access to the operator from the convenience of a compatible hand held...
  • Page 49 OUR CONTINUOUS COMMITMENT TO EXCELLENCE Viking Access Systems is continuously working hard to identify and design products that will appeal to the industry and its needs. As technology continues to advance, we have developed a completely effi cient and intelligent line of gate operators to meet the changing demands.
  • Page 50 STANDARD FEATURES AND OPERATOR SPECIFICATIONS • UL Listed; UL325 and UL991 • Intelligent obstruction detection with adjustable sensitivity • ETL Listed; UL325 and UL991 • Built-in climate control for cold weather • Elegant design, appealing to any applications architectural project •...
