Summary of Contents for Aruba MSR2000

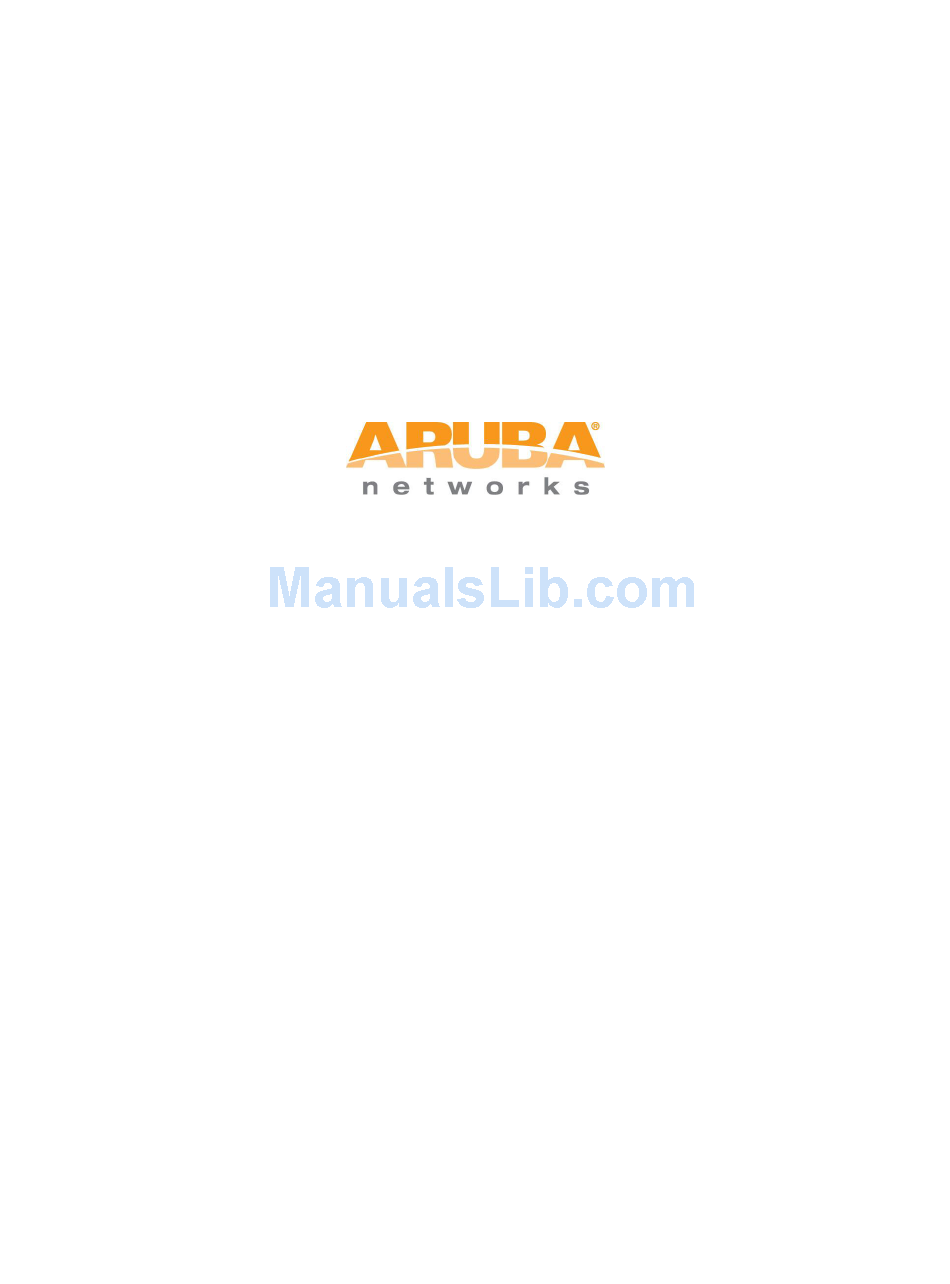

- Page 1 Aruba Networks MSR2000 Installation Guide 0510881-01...
- Page 2 4. The company disclaims any and all warranties and guarantees, express, implied or otherwise, arising, with respect to the MSR2000 products or services, including but not limited to the warranty of merchandisability, the warranty of fitness for a particular purpose, and any warranty of non-...
- Page 3 MSR2000 and this manual. Safety and Regulatory Compliance Aruba Networks provides a multi-language document that contains country-specific restrictions and additional safety and regulatory information for all Aruba access points. This document can be viewed or downloaded from the following location: www.arubanetworks.com/safety_addendum Safety Warnings The MSR2000 must be installed by trained professional installation technicians.
- Page 4 Do not install any antenna near overhead power lines or other electric light, or where the antenna can come into contact with such circuits. Antenna Selection Warning Please use DC grounding antenna with lightning protection to prevent surge and static electricity. Grounding Warning MSR2000 Installation Guide...
- Page 5 The installation of the power switch must be performed by a trained professional technician. The power switch is not supplied with the MSR2000. The power cord must be assembled by a professional installer, and the final assembly must comply with related requirements.
- Page 6 The unused RF interface must be closed via configuration command and its protective cap must be wrapped up by waterproof PVC tape to prevent from falling off. Otherwise, the RF module may be damaged. Aruba will not take any responsibility for such damage. FCC Certificate Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 7 To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropic radiated power (EIRP) is not more than that permitted for successful communication. RoHS for MSR2K23N0 MSR2000 Installation Guide...
- Page 8 MSR2000 Installation Guide...
-
Page 9: Table Of Contents
TATUS NDICATORS 2 INSTALLATION PREPARATIONS ......................11 ...................... 11 REPARING NSTALLATION OOLS ....................11 XAMINING THE NSTALLATION 3 MSR2000 INSTALLATION .......................... 12 MSR2000 ..................... 13 NSTALLING ON A POLE MSR2000 ..................... 16 NSTALLING ON A WALL MSR2000 ......................17 ROUNDING THE ...................... -
Page 10: Product Overview
The MSR2000 family will include three models supporting POE, AC and DC power supply respectively. Currently the model supporting POE is available as MSR2K23N0. Note In this guide, for general instruction that apply to all models, ‘MSR2000’ will be used; otherwise, ‘MSR2K23N0’ will be used. 1.1 Interfaces Figure 1-1 Interfaces on MSR2K23N0... -
Page 11: Led Status Indicators
The MSR2000 include visual indicators for power, link and radio status. Figure 1-2 LED layout R0 (Row of five) R1 (Row of five) The table below lists the meanings of the LEDs on the MSR2000. Table 1-1 MSR2000 LED status indicators Color QTY Definition... -
Page 12: Installation Preparations
This chapter describes the preparations for MSR2000 installation, including preparation of installation tools,selection of installation sites and etc. 2.1 Preparing Installation Tools When installing MSR2000, you may need the following tools. You shall select the tools according to the actual situation. Table 2-1 Installation tools list... -
Page 13: Msr2000 Installation
3 MSR2000 Installation The installation flowchart of MSR2K23N0: MSR2000 Installation Guide... -
Page 14: Installing Msr2000 On A Pole
The mounting bracket assembly for installing MSR2000 concludes: a solar shield, a pair of pole anchors, a mounting bracket and bolts. MSR2000 can be mounted on a pole or wall. (Pole diameter must be 40 to 60 mm at the position where the MSR2000 will be mounted.) Note ... - Page 15 2 {M6 x30 bolt, flat washer, spring washer}x2 nut}x4 Step 1 Fix the MSR2000 on the mounting bracket using the two M6 x30 bolts (with flat and spring washers) on each side of the mounting bracket. (There is screw thread in the screw hole of the mounting...
- Page 16 Figure 3-4 Fix the mounting bracket (with MSR2000) on the pole MSR2000 Installation Guide...
-
Page 17: Installing Msr2000 On A Wall
Step 5 Fix MSR2000 on the wall-mounting bracket 1) Fix the MSR2000 on the wall-mounting bracket by inserting the two M6 x30 bolts (with flat and spring washers) through the installation holes, and tighten the bolts. (There is screw thread in the screw hole of... -
Page 18: Grounding The Msr2000
Figure 3-6 Positions of installation holes on MSR2000 3.3 Grounding the MSR2000 The grounding must be completed before powering up the MSR2000.The residence of grounding wire should be less than 5 ohm and the grounding cable’s cross-section area should be no less than 6 mm .The... -
Page 19: Connecting The Rf Cable
Step 2 Fasten the copper lug to the grounding hole on the MSR2000 with the M4 x12 bolt and external- tooth washer. - Page 20 Slide the sealing nut over the narrow end of the weatherproof connector socket and hand tighten it. 10. Insert the Ethernet cable connector into the Ethernet interface and hand-tighten the locknut. 11. Water-proof the Ethernet cable connection with PVC insulation tape and adhesive tape. MSR2000 Installation Guide...
-
Page 21: Fixing The Solar Shield On Msr2000
Figure 3-10 Connecting Ethernet cable 3.6 Fixing the solar shield on MSR2000 Step 1 Fix the solar shield on MSR2000 by using the four M4 x16 bolts (with flat and spring washers). Figure 3-11 Fixing the solar shield on MSR2000... -
Page 22: Installing An Outdoor Antenna
Install the directional antenna Step 1 Fix the directional antenna on the pole. (Pole diameter: 40-60mm) Step 2 Adjust the direction of the antenna and tighten the screws. 4.2 Installing an omni outdoor antenna Install the lightning rod MSR2000 Installation Guide... - Page 23 The installation should be done by an experienced antenna installer. Power lines and high electric fields must be avoided. Don’t stand on side of antenna when MSR2000 is operating as there are strong electromagnetic fields surrounding the antenna.
-
Page 24: Note
5 Note To log onto the MSR2000 via Console port, use the setting as shown in table below: Baud Rate 115200 Data Bits Parity None Stop Bits Flow Control None Default Username and Password root : public MSR2000 Installation Guide...
