Summary of Contents for Aruba S2500
- Page 1 Aruba S2500 Series Mobility Access Switch...
- Page 2 Legal Notice The use of Aruba Networks, Inc. switching platforms and software, by all individuals or corporations, to terminate other vendors’ VPN client devices constitutes complete acceptance of liability by that individual or corporation for this action and indemnifies, in full, Aruba Networks, Inc.
-
Page 3: Table Of Contents
Required Tools and Equipment ..............27 Installation Steps...................27 Connecting the AC Power Cord ................27 Installing an SFP....................28 Removing an SFP ..................28 Connecting an LC Fiber Optic Cable ............28 Installing a Direct Attach Cable ................29 DAC Removal....................30 Aruba S2500 Series Mobility Access Switch | Installation Guide... - Page 4 Safety and Regulatory Compliance ..............31 Electromagnetic Interference ................32 Battery Statements ..................33 Proper Disposal of Aruba Equipment ..............33 Waste of Electrical and Electronic Equipment ..........33 European Union RoHS ..................34 China RoHS ....................34 Aruba S2500 Series Mobility Access Switch | Installation Guide...
-
Page 5: Preface
Preface This document describes the hardware features of the Aruba S2500 Series Mobility Access Switch. It provides a detailed overview of the physical and performance characteristics of each mobility access switch model and explains how to install the mobility access switch and its accessories. -
Page 6: Contacting Support
Wireless Security Incident http://www.arubanetworks.com/support-services/security-bulletins/ Response Team (WSIRT) Support Email Addresses Americas and APAC support@arubanetworks.com EMEA emea_support@arubanetworks.com WSIRT Email wsirt@arubanetworks.com Please email details of any security problem found in an Aruba product. | Preface Aruba S2500 Series Mobility Access Switch | Installation Guide... -
Page 7: S2500 Mobility Access Switch

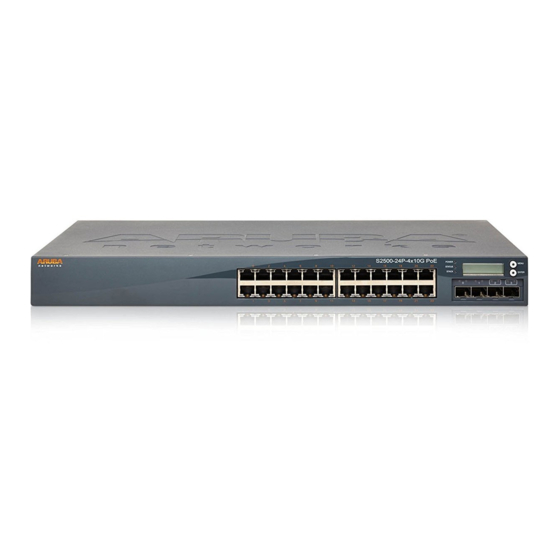

Chapter 1 S2500 Mobility Access Switch The Aruba S2500 Mobility Access Switch is a multiport Ethernet mobility access switch that offers Layer 2 and Layer 3 switching and the capability to act as a wired access point (AP). The Aruba S2500 requires ArubaOS 7.1.2 or later. -
Page 8: Front Panel
Quick Start Guide (Printed) End User License Agreement (Printed) Aruba Document Pointer (Printed) Optional accessories, such as SFP modules, are available for use with the Aruba S2500 Series and are sold separately. Contact your Aruba sales representative for details and assistance. Front Panel... -
Page 9: 10/100/1000 Ethernet Ports
10GBASE-X Ports 10/100/1000 Ethernet Ports Depending on the model, the S2500 is equipped with 24 or 48 10/100/1000BASE-T Gigabit Ethernet (RJ-45) ports. Gigabit Ethernet uses all eight wires and each pair is used in a bi-directional fashion, meaning the same pairs are used for both data transmission and reception. - Page 10 15.4 W of DC power, and IEEE 802.3at Power over Ethernet Plus (PoE+), supplying up to 30.0 W of DC power to connected devices, but the power per port is subject to the total power available in the chassis. For more information on PoE and S2500 Power Supplies, see “Power Supply” on page 18.
-
Page 11: Power/Status And Stack Led Indicators
In addition to the LEDs on each individual port, there are three additional LEDs on the front panel that provide overall status of the device. These LEDs provide basic monitoring of the overall status of the S2500. Table 6 Power/Status and Stack LEDs... -
Page 12: Lcd Panel
Linecard (Stack Member) LCD Panel The S2500 is equipped with an LCD panel that displays a variety of information about the mobility access switch’s status and provides a menu that allows for basic operations such as initial setup and reboot. The LCD panel displays two lines of text with a maximum of 16 characters on each line. - Page 13 Uploads the mobility access switch’s current configuration to a predefined location on the attached USB flash device. Standalone: Upload Config [no | yes] Primary: Upload Config [no | yes] Non-Primary: N/A Aruba S2500 Series Mobility Access Switch | Installation Guide S2500 Mobility Access Switch |...
- Page 14 EXIT MAINTENANCE Disabling the LCD Screen By default, the LCD screen is enabled. However, if your S2500 is deployed in a location without physical security, the LCD screen can be disabled through the CLI. When disabled, pushing one of the navigation buttons will only illuminate the screen and display the slot, role, device name, and any alarms.
-
Page 15: Uplink Ports
Uplink Ports Each S2500 is equipped with four 10GBASE-X ports. These ports are intended for use with Aruba supported SFPs/SFP+. These ports can be used as uplink ports or a combination of two uplink ports and two stacking ports. By default, Ports 0 and 1 are configured as uplink ports and Ports 2 and 3 are configured as ArubaStack ports. -
Page 16: Rear Panel
Rear Panel The rear panel of the Aruba S2500 mobility access switch consists of the following components: 10/100/1000BASE-T Management port RJ-45 Console port USB 2.0 interface Mini USB console port Shutdown LED Power Connector ... -
Page 17: Mini Usb Console Connector
If you are connected using the Mini USB connector and the RJ-45 Console Port, the Mini USB connection will take priority. Mini USB Driver To use the Mini USB console port, you must install the Aruba Mini USB driver on the computer that will manage your S2500. To download the driver: 1. Go to https://support.arubanetworks.com. -
Page 18: Usb Interface
If the temperature of the S2500 exceeds the temperature threshold, the SHUTDOWN LED turns on and the S2500 shutsdown to protect itself from damage. The CPU threshold is 212 ºF (100 ºC). To check the temperature of the chassis at anytime, scroll to the Environmental screen under the Status menu on LCD. -
Page 19: Sfp And Sfp+ Modules
PoE. The S2500-P models support PoE (802.3af) and PoE+ (802.3at) to provide power to connected devices. PoE/ PoE+ is enabled by default to provide plug and play capability for PoE capable devices. The S2500 has three PoE Management Modes: Dynamic Mode: This the default mode. -
Page 20: Direct Attach Cables
Aruba SFP+, 10GBASE-LRM, 1310nm serial pluggable SFP+ optic, LC Connector Direct Attach Cables Direct attach cables (DACs) are used to connect one S2500 with another when forming a stack. DACs are installed in an uplink port in the same manner as an SFP module, using the 10GBASE-X Ports. For information on how to install an SFP or a DAC, see “Installing a Direct Attach Cable”... -
Page 21: Installation
This chapter describes how to install an Aruba S2500 mobility access switch using the many mounting options available. The S2500 ships with an accessory kit that includes the equipment required to install the mobility access switch in standard, two-point 19-inch telco rack. Additional mounting options are sold separately. -
Page 22: Selecting A Location
Limited electromagnetic interference For best operation, keep the S2500 and all cords and cables at least 0.7 meters (2 feet) from fluorescent lighting fixtures, and 2 meters (6 feet) from photocopiers, radio transmitters, electric generators, and other sources of strong electromagnetic interference. - Page 23 4. Mount the mobility access switch within your organization’s rack system using four (two per bracket) M6 x 15mm phillips pan head screws and suitable screwdriver (see Figure 10). Figure 10 Rack Mount Installation Aruba S2500 Series Mobility Access Switch | Installation Guide Installation |...
-
Page 24: Rack Mount Installation- Mid
LED status indicators. Rack Mount Installation- Mid An optional accessory kit is available that allows you mount the S2500 in a standard 19” Telco rack from the middle of the device. Each S2500 should have its own mounting equipment. Do not place other networking equipment directly on top a mounted S2500. -
Page 25: Wall Mount Installation
LED status indicators Wall Mount Installation An optional accessory kit is available that allows you to mount your S2500 to a wall. For more information about the S2500 Wall Mounting Kit, contact your Aruba sales representative. Required Tools and Equipment... - Page 26 4. Align the mounting bracket holes with the holes you created in the wall as shown in Figure 5. Use appropriate screws to secure your S2500. 6. Connect the AC power cord to the rear of the unit. | Installation...
-
Page 27: Required Tools And Equipment
Connecting the AC Power Cord Once you have installed the S2500, you are ready to power on the device. The S2500 is not equipped with an On/Off switch. The device will turn on when the AC power cord has been connected to the power supply module and an AC power outlet. -
Page 28: Installing An Sfp
3. Lower the power cord retaining clip over the AC power cord. The S2500 should now be receiving power. Since the S2500 does not have an On/Off switch, you must use the power cord to turn the device on an off. To turn the device off: 1. -
Page 29: Installing A Direct Attach Cable
(see Figure 17). Figure 17 DAC Installation M E N U E N T E P O W S T A T S T A C Aruba S2500 Series Mobility Access Switch | Installation Guide Installation |... -
Page 30: Dac Removal
P O W S T A T S T A C Some DACs will have a rubber ring, instead of the white tab shown in Figure 18, for removal. | Installation Aruba S2500 Series Mobility Access Switch | Installation Guide... -
Page 31: Specifications, Safety, And Compliance
Aruba products. This document can be viewed or downloaded from the following location: www.arubanetworks.com/safety_addendum Aruba wired access points must be installed by a professional installer. The professional installer is responsible for ensuring that grounding is available and it meets applicable local and national electrical codes. CAUTION... -
Page 32: Electromagnetic Interference
Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe A prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques,” NMB-003 édictée par le ministère des Communications. | Specifications, Safety, and Compliance Aruba S2500 Series Mobility Access Switch | Installation Guide... -
Page 33: Battery Statements
Proper Disposal of Aruba Equipment Waste of Electrical and Electronic Equipment Aruba products at end of life are subject to separate collection and treatment in the EU Member States, Norway, and Switzerland and therefore are marked with the symbol shown at the left (crossed-out wheelie bin). The treatment applied at end of life of these... -
Page 34: European Union Rohs
RoHS Directive are Lead (including Solder used in printed circuit assemblies), Cadmium, Mercury, Hexavalent Chromium, and Bromine. Some Aruba products are subject to the exemptions listed in RoHS Directive Annex 7 (Lead in solder used in printed circuit assemblies). - Page 35 Aruba S2500 Series Mobility Access Switch | Installation Guide Specifications, Safety, and Compliance |...
- Page 36 | Specifications, Safety, and Compliance Aruba S2500 Series Mobility Access Switch | Installation Guide...
