Aruba Networks
MSR2000 Installation Guide
0511239-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSR2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Aruba MSR2000

Summary of Contents for Aruba MSR2000

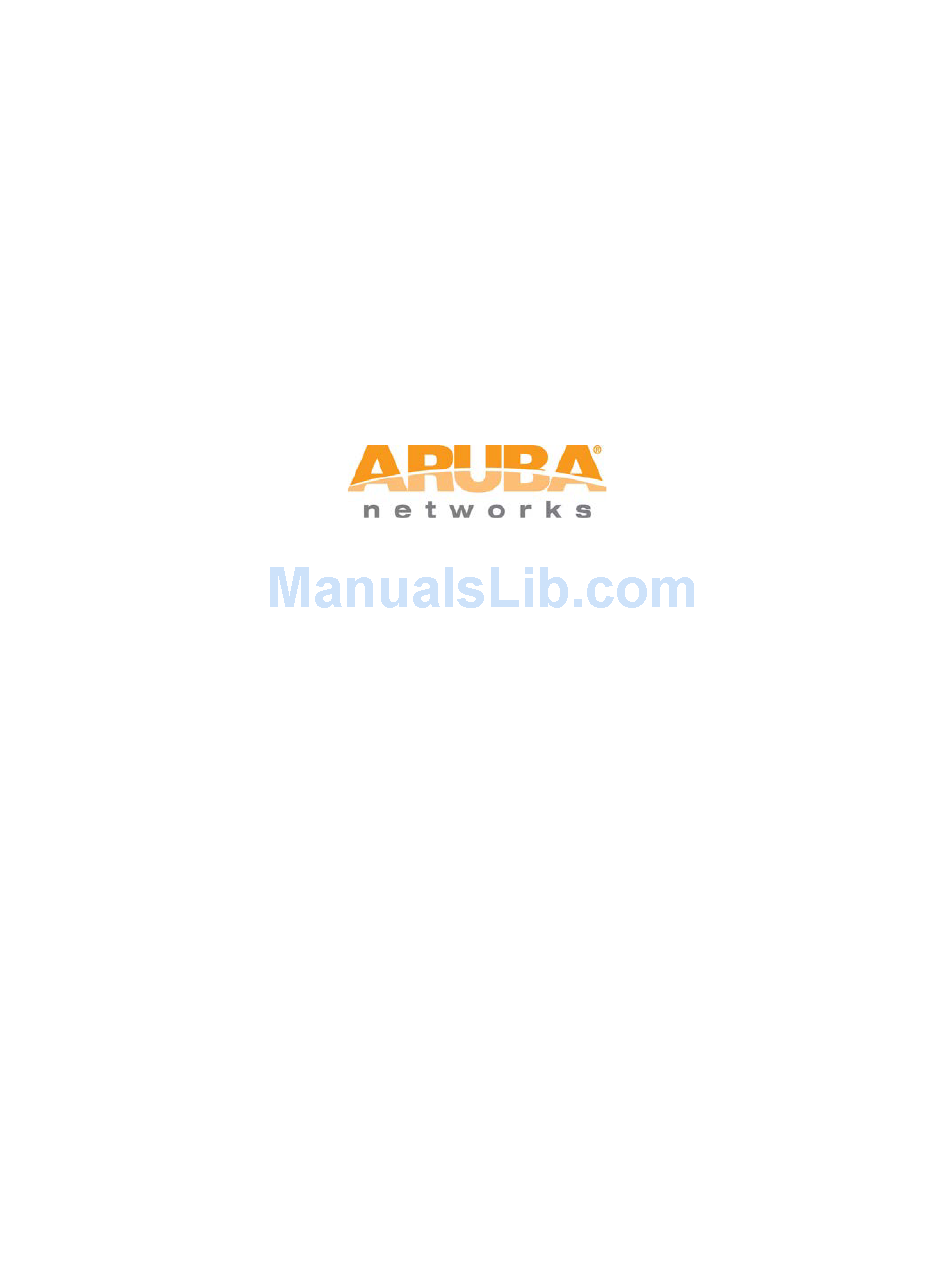

  • Page 1 Aruba Networks MSR2000 Installation Guide 0511239-01...
  • Page 2 In the interest of improving internal design, operation function, and/or reliability, Aruba Networks reserves the right to make changes to products described in this document without notice. Aruba Networks does not assume any liability that may occur due to the use or application of the product(s) described herein.
  • Page 3 5． It shall never be understood that this manual expresses or implies to any customer or any third party authorize or transfer any rights. The company reserves fully the final interpretation of the MSR2000 and this manual. Safety and Regulatory Compliance Aruba Networks provides a multi-language document that contains country-specific restrictions and additional safety and regulatory information for all Aruba access points.
  • Page 4 The installation of the power switch must be performed by a trained professional technician. The power switch is not supplied with the MSR2000. The power cord must be assembled by a professional installer, and the final assembly must comply with the related requirements.
  • Page 5 RF Device Protection Before powering up the MSR2000, we recommend that the RF ports are connected to antennas or valid loads. RF modules with less than 100mW power may work in a test environment without antennas or load connections, provided the duration of operation is less than 30 minutes.
  • Page 6 Waste of Electrical and Electronic Equipment Aruba products at end of life are subject to separate collection and treatment in the EU Member States, Norway, and Switzerland and therefore are marked with the symbol shown at the left (crossed-out wheelie bin). The treatment applied at end of life of these...
  • Page 7 MSR2KP MSR2000 Installation Guide...
  • Page 8 MSR2KAC/ MSR2KDC MSR2000 Installation Guide...

  • Page 9: Table Of Contents

    MPORTANT OINTS TO EMEMBER MSR2000 ........19 EATHERPROOFING NTENNAS ONNECTED IRECTLY TO THE ..................23 EATHERPROOFING ABLE ONNECTIONS 4 MSR2000 INSTALLATION .......................... 26 ....................... 27 OUNTING RACKET SSEMBLY MSR2000 ....................29 NSTALLING THE ON A MSR2000 ....................30 NSTALLING THE ON A MSR2000 ......................

  • Page 10: Product Overview

    1 Product Overview There are three versions of the MSR2000, which mainly differ in the way they receive power.  MSR2KP: PoE powered  MSR2KAC: AC powered (100-240VAC)  MSR2KDC: DC powered (12-48VDC) 1.1 Interfaces Figure 1-1 Interfaces on the MSR2KP...

  • Page 11: Led Status Indicators

    Antenna 1 (Radio 0) Grounding hole 1.2 LED Status Indicators The MSR2000 includes visual indicators for power, link, and radio status. The LED layout is different for the three versions of MSR2000. Figure 1-3 MSR2KP LED Location MSR2000 Installation Guide...
  • Page 12 Displays the Gigabit-Ethernet 0 link status: • Dark: No uplink on the Ethernet port • Green: The link speed is 1000M • Yellow: The link speed is 10M or 100M • Flashing: Data is being transmitted or received MSR2000 Installation Guide...
  • Page 13 Figure 1-5 MSR2KAC/MSR2KDC LED Location Figure 1-6 MSR2KAC/MSR2KDC LED Layout The following table lists the meanings of the LEDs on the MSR2KAC/ MSR2KDC. MSR2000 Installation Guide...
  • Page 14 Displays the Gigabit-Ethernet 0 link status: • Dark: No uplink on the Ethernet port • Green: The link speed is 1000M • Yellow: The link speed is 10M or 100M • Flashing: Data is being transmitted or received MSR2000 Installation Guide...
  • Page 15 Note Starting with MeshOS 4.5, you can turn off the LEDs in the MSR2000 devices using the WMI and CLI. The LEDs are enabled by default. This option may be used to disable the LED lights in a MSR2000 device that is mounted in an elevated place on the city streets or residential areas, to avoid unwanted attention or disturbance.

  • Page 16: Installation Preparations

    2 Installation Preparations This chapter describes the preparations for MSR2000 installation, including checking package contents, preparing installation tools, and selection of installation sites. 2.1 Package Contents • Aruba MSR2000 AirMesh Router • MSR2000 Mounting Bracket • Solar Shield • Pole Anchors x 2 •...

  • Page 17: Preparing Installation Tools

    3. Interference must be considered in site selection. New site should avoid known interference, unless the interference is controllable. 4. Keep the MSR2000 away from places that are susceptible to high temperature, dust, harmful gas, inflammable, explosive, electromagnetic interference (high power radar, radio station and transformer), unstable voltage, heavy vibration, or loud noise.

  • Page 18: Weatherproofing Connections

    (Figure 3-2). The same materials are needed for weatherproofing both types of connections but the procedure is slightly different. For weatherproofing directly connected antennas, see Weatherproofing Antennas Connected Directly to the MSR2000 section. For weatherproofing cable connections, see the Weatherproofing Cable Connections section.
  • Page 19 Figure 3-1 Antennas Connected Directly to the MSR2000 Figure 3-2 Cable Connections MSR2000 Installation Guide...

  • Page 20: Important Points To Remember

    When wrapping, make each layer of tape as flat as possible. Wrinkles and folds in the tape create places for water and moisture to gather. 3.4 Weatherproofing Antennas Connected Directly to the MSR2000 Note The following instructions assume that you have installed a lightning arrestor between your router and the antennas.
  • Page 21 Cut a 3/4” (19 mm) strip of butyl rubber. Wrap the strip of rubber around the taped connector (Figure 3-4) Join the two ends by pushing them together until there is no longer a seam (Figure 3-5). MSR2000 Installation Guide...
  • Page 22 Figure 3-4 Butyl Rubber Placement MSR2000 Installation Guide...
  • Page 23 After completing the fourth layer of tape, check your work to ensure there are no places where water can collect. If there are, you must smooth out those areas with additional layers of tape or remove the weatherproofing and begin again. MSR2000 Installation Guide...

  • Page 24: Weatherproofing Cable Connections

    Begin at the top of the connector and tightly wrap the connection with a layer of the 3/4” (19mm) electrical tape. Overlap the tape to a half-width. Repeat steps 3 and 4 until the wrapping extends all the way to the cable’s insulation. MSR2000 Installation Guide...
  • Page 25 Cut a piece of butyl rubber large enough to wrap around the connector and extended past the first layer of tape. Wrap the strip of rubber around the taped connector (Figure 3-8). Join the two ends by pushing them together until there is no longer a seam (Figure 3-9). Figure 3-8 Butyl Rubber Placement MSR2000 Installation Guide...
  • Page 26 After completing the fourth layer of tape, check your work to ensure there are no places where water can collect. If there are, you must smooth out those areas with additional layers of tape or remove the weatherproofing and begin again. Figure 3-10 Completed Wrapping Repeat this process for all connections. MSR2000 Installation Guide...

  • Page 27: Msr2000 Installation

    4 MSR2000 Installation The following flowchart shows the installation flow for a MSR2KP: The following flowchart shows the installation flow for a MSR2KP: MSR2000 Installation Guide...

  • Page 28: Mounting Bracket Assembly

    The mounting bracket assembly for installing MSR2000 includes a solar shield, a pair of pole anchors, a mounting bracket, and bolts. MSR2000 can be installed on a wall or attached to a pole. Pole diameter at the position where the MSR2000 is mounted should be 40 to 60 mm.
  • Page 29 Note If you are using M8 x150 long bolts (not provided in the box shipped with MSR2000), the MSR2000 can be mounted on a pole with 96mm diameter. Figure 4-1 Pole anchors and Mounting Bracket Solar shield A pair of pole anchors...

  • Page 30: Installing The Msr2000 On A Pole

    4.2 Installing the MSR2000 on a Pole Step 1 Attach the MSR2000 on the mounting bracket using the two M6 x 20 bolts (with flat and spring washers) on each side of the mounting bracket. A screw thread is provided in the screw hole of the mounting bracket for this purpose.

  • Page 31: Installing The Msr2000 On A Wall

    2) Adjust the position of the wall-mounting bracket and tighten the expansion screws. Step 5 Fix MSR2000 on the wall-mounting bracket. 1) Fix the MSR2000 on the wall-mounting bracket by inserting the two M6 x20 bolts (with flat and spring washers) through the installation holes, and tighten the bolts.

  • Page 32: Grounding The Msr2000

    The grounding must be completed before powering up the MSR2000. The grounding hole is located at the left side of the MSR2000.The resistance of the grounding wire should be less than 5 ohm and the grounding cable’s cross-section area should be no less than 6 mm...

  • Page 33: Connecting The Rf Cable

    Step 2 Fasten the copper lug to the grounding hole on the MSR2000 with the M4 x12 bolt and external- tooth washer.
  • Page 34 One directional dual-polarization antenna needs two RF cables to connect to the two corresponding antenna interfaces on MSR2000. For example, if the antenna needs to connect to Radio 1 on MSR2000, the RF cables from antenna need to connect to the two Antenna Interfaces (Radio 1) as shown in Figure 4-10.

  • Page 35: Connecting The Ethernet Cable

    4.6 Connecting the Ethernet Cable To ensure that MSR2000 maintains Ethernet connectivity or Power over Ethernet, install the weatherproof connector kit (included in the package) as follows: Note Failure to use the weatherproof connector kit can lead to connectivity and PoE issues.

  • Page 36: Connecting The Ethernet Cable (Msr2Kac/Msr2Kdc)

    Attach the ground wire to the narrow end of the inner ring and place the outer ring over the narrow end of the inner ring. Insert the Ethernet cable into the narrow end of the clamp ring and pass it through the opening end of weatherproof connector socket. MSR2000 Installation Guide...

  • Page 37: Connecting The Power Cable (Msr2Kac/Msr2Kdc)

    • It is recommended to fix the Ethernet cable near the MSR2000 side to the wall or the pole. This is to ensure that the weight of the cable does not affect the RJ45 connector.

  • Page 38: Powering The Msr2Kac/Msr2Kdc

    Note The MSR2000 does not ship with any power cables; these are available as accessories and should be ordered separately. • AC power source specifications (at the MSR2000 interface): 100-240Vac, 100W • DC power source specifications (at the MSR2000 interface): 12-48Vdc, 100W 4.7.1...

  • Page 39: Using The Ckit-Ac-M And Ckit-Dc-M

    60V/10A, diameter 6-12mm, rated for outdoor use and UV exposure. 4.7.4 AC/DC power connector PIN OUT on MSR2KAC/MSR2KDC Figure 4-14 Power Interface on the MSR2KAC and AC Power Cable Connector Power Interface on the MSR2KAC AC Power Cable Connector MSR2000 Installation Guide...

  • Page 40: Connecting The Power Cable To The Msr2Kac/Msr2Kdc

    Step 3 Waterproof the power cable connection with PVC insulation tape, adhesive insulation tape and strap. Figure 4-16 Connecting the Power Cable Note Do not connect a DC power cable to a MSR2KAC or an AC power cable to a MSR2KDC. MSR2000 Installation Guide...

  • Page 41: Fixing The Solar Shield On The Msr2000

    4.8 Fixing the solar shield on the MSR2000 Step 1 Fix the solar shield on MSR2000 by using the four M4 x16 bolts (with flat and spring washers). Figure 4-17 Fixing the Solar Shield on the MSR2000 5. Note To log in to the MSR2000 via the WMI (Web Management Interface), use the settings as shown in the...
  • Page 42 MSR2KDC, MSR2KDC-JP MSR2KDC-US, MSR2KDC-IL The baudrate setting depends on the manufacturing date of the MSR2000 (before or after March 2012) and the Serial Number (14 characters or 9 characters). The table above lists all the SKUs for this product along with the corresponding baudrate.

  • Page 43: Product Specifications

    Feeder cable may be used for external antenna deployments  Visual Status Indicators (LEDs): See Table 1-1 Table 1-2. Electrical  Power  MSR2KP: 802.3at PoE+ input required  MSR2KAC: 100-240 VAC 50/60 Hz  MSR2KDC: 12-48 VDC  Power Consumption: 15 watts Interfaces MSR2000 Installation Guide...
  • Page 44 802.11b: 1, 2, 5.5, 11  802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54  802.11n: MCS0 - MCS15 (6.5 Mbps to 300 Mbps)  802.11n high-throughput (HT) support: HT 20/40  802.11n packet aggregation: A-MPDU, A-MSDU MSR2000 Installation Guide...

  • Page 45: Contacting Support

    Software Licensing Site licensing.arubanetworks.com/login.php Wireless Security Incident arubanetworks.com/support/wsirt.php Response Team (WSIRT) Support Email Addresses Americas and APAC support@arubanetworks.com EMEA emea_support@arubanetworks.com WSIRT Email wsirt@arubanetworks.com Please email details of any security problem found in an Aruba product. MSR2000 Installation Guide...
