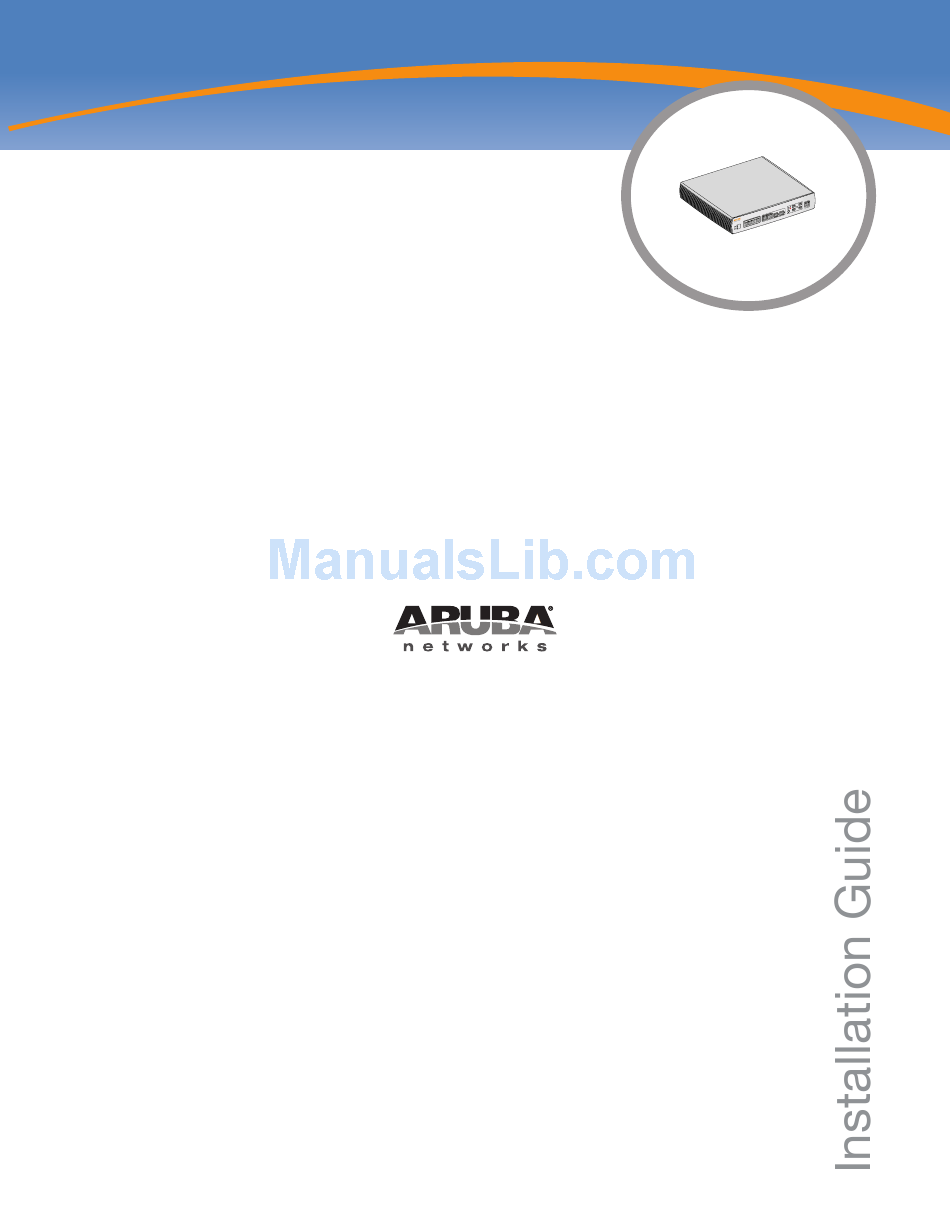

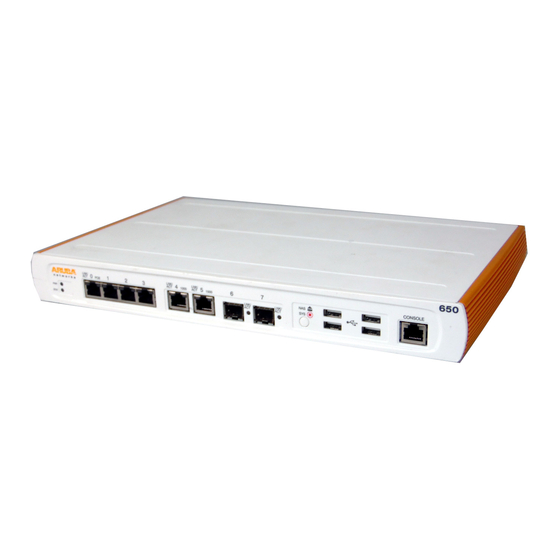

- Page 1 CONS LINK/ LINK/ LINK/ 1000 LINK/ Aruba 650 Series Controller...
- Page 2 Legal Notice The use of Aruba Networks, Inc. switching platforms and software, by all individuals or corporations, to terminate other vendors' VPN client devices constitutes complete acceptance of liability by that individual or corporation for this action and indemnifies, in full, Aruba Networks, Inc.
-
Page 3: Table Of Contents
AP type ....................17 Operating Frequency ................17 Available Channels .................17 Modulations ....................17 Transmit Power..................18 Association Rates (Mbps)...............18 802.11n High-Throughput (HT) Support..........18 802.11n Packet Aggregation ..............18 Antenna (Aruba 651 Internal AP) ..............18 Aruba 650 Series Mobility Controller | Installation Guide Contents | 3... - Page 4 Safety and Regulatory Compliance ..............19 FCC Class B Device..................19 Aruba 650......................19 Aruba 651......................19 Proper Disposal of Aruba Equipment ..............20 Waste of Electrical and Electronic Equipment ..........20 European Union RoHS ..................20 China RoHS ....................20 4 | Contents Aruba 650 Series Mobility Controller | Installation Guide...
-
Page 5: Preface
Related Documentation The following documentation are referred to in this guide and are considered components of the complete documentation set needed for a successful installation and management of an Aruba Mobility Controller. ArubaOS Quick Start Guide ArubaOS User Guide... -
Page 6: Contacting Aruba Networks
Universal Free Phone Service Number +800-4WIFI-LAN (+800-49434-526) (UIFN): Australia, Canada, China, France, Germany, Hong Kong, Ireland, Israel, Japan, Korea, Singapore, South Africa, Taiwan, and the UK. All Other Countries +1 (408) 754-1200 6 | Preface Aruba 650 Series Mobility Controller | Installation Guide... -
Page 7: Aruba 650 Series Hardware Overview
The Aruba 651 is capable of supporting up to 16 external, campus connected APs in addition to its single, internal AP. 651-1: includes a single, internal AP; no built-in external AP support; optional Aruba AP upgrade licenses are available. -
Page 8: Hardware Model Overview
10/100/1000Base-T Gigabit Ethernet Ports There are six 10/100/1000Base-T Gigabit Ethernet (RJ-45) ports on the Aruba 650 Series. Gigabit Ethernet uses all eight wires and each pair is used in a bi-directional fashion, meaning the same pairs are used for both data transmission and reception. -
Page 9: Serial Console Port
Do not connect an AP to the serial console port. The serial console port is compatible only with RS- 232 devices. Non-RS-232 devices, such as APs, are not supported. CAUTION Aruba 650 Series Mobility Controller | Installation Guide Aruba 650 Series Hardware Overview | 9... -
Page 10: Serial Console Port Adaptor
Media Eject Button The Aruba 650 Series is equipped with a media eject button, which allows users to eject storage devices safely and place the system in standby. Pushing the media eject button changes the state of the Aruba 650 Series; the table below describes the states and LED behaviors associated with use of the media eject button. -
Page 11: Rear View
AC Power Socket AC Power Socket The Aruba 650 Series supports integrated AC powering and the AC power socket on the rear of the unit is for use with an AC power cord (country-specific). Refer to "Power Specifications" on page 17 for power specification details. - Page 12 Radio enabled in WLAN mode (Aruba 651 Only) On (Solid Green) Radio enabled in 802.11n mode On (Flashing Green) Air monitor mode Radio is disabled 12 | Aruba 650 Series Hardware Overview Aruba 650 Series Mobility Controller | Installation Guide...
-
Page 13: Aruba 650 Series Installation
Installation Pre-Installation Requirements The following tools and equipment are required for installation of an Aruba 650 Series controller. Rack Mount Bracket (x2, not used for tabletop installation) 6-32 x 1/4” Phillips Flat Head Screws (4x, included with rack mount brackets) 12-24 x 5/8”... - Page 14 AC T LIN K/ AC T LIN K/ 10 00 AC T for Air Exhaust LIN K/ PO E AC T Keep Open for Easy Access 14 | Aruba 650 Series Installation Aruba 650 Series Mobility Controller | Installation Guide...
-
Page 15: Tabletop Deployment
8. Plug the opposite end of the power cord into an electrical outlet to power the controller. Aruba 650 Series controller does not have a switch for turning power to the unit on or off. Power to the unit is controlled by connecting or disconnecting the plug on the power cord to or from an electrical outlet. - Page 16 16 | Aruba 650 Series Installation Aruba 650 Series Mobility Controller | Installation Guide...
-
Page 17: Appendix A Specifications, Safety, & Compliance
2.4-2.5 GHz or 5.150–5.950 GHz Available Channels Mobility Controller-managed, dependent upon configured regulatory domain Modulations 802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g: Orthogonal Frequency Division Multiplexing (OFDM) 802.11n: 802.11n draft 2.0 Aruba 650 Series Mobility Controller | Installation Guide Specifications, Safety, & Compliance | 17... -
Page 18: Transmit Power
Antenna (Aruba 651 Internal AP) Three RP-SMA interfaces for external antenna support (supports up to 3x3 MIMO with spatial diversity) Three AP-ANT-1B omni-directional dual-band antennas included 18 | Specifications, Safety, & Compliance Aruba 650 Series Mobility Controller | Installation Guide... -
Page 19: Safety And Regulatory Compliance
Safety and Regulatory Compliance Aruba provides a multi-language document containing country specific restrictions and additional safety and regulatory information for all Aruba hardware products. The Aruba Safety and Regulatory Addendum can be viewed or downloaded from the following location: www.arubanetworks.com/safety_addendum. -
Page 20: Proper Disposal Of Aruba Equipment
Waste of Electrical and Electronic Equipment Aruba products at end of life are subject to separate collection and treatment in the EU Member States, Norway, and Switzerland and therefore are marked with the symbol shown at the left (crossed-out wheelie bin).
