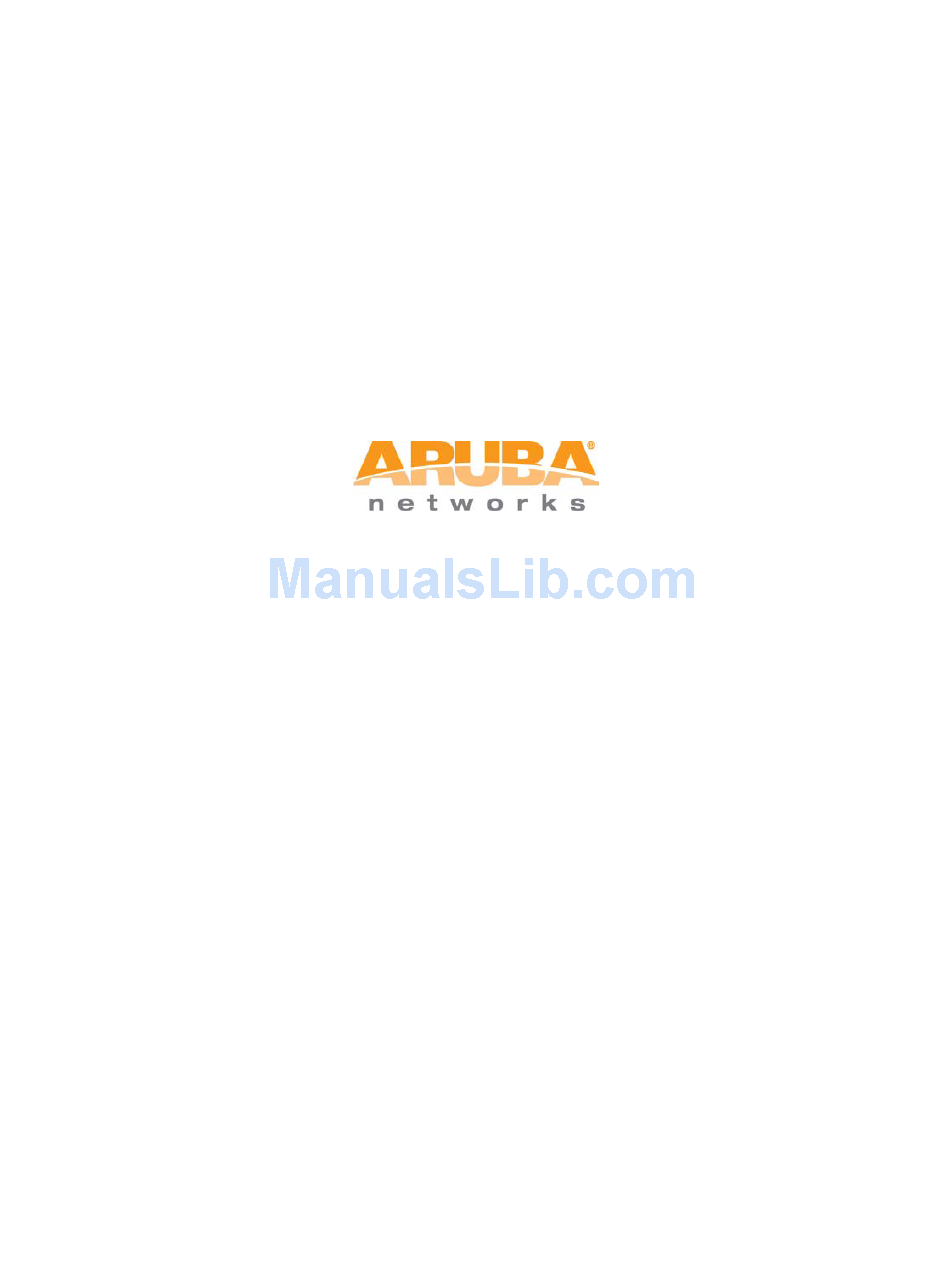

  • Page 1 Aruba Networks MSR4000 Installation Guide 0511135-02...
  • Page 2 In the interest of improving internal design, operation function, and/or reliability, Aruba Networks reserves the right to make changes to products described in this document without notice. Aruba Networks does not assume any liability that may occur due to the use or application of the product(s) described herein.
  • Page 3 Liability of the company for loss is limited to the total amount paid to the company by the customer during the previous calendar year. The company will have no obligation or liability, whether arising in contract (including Warranty), tort (including active, passive or imputed negligence, strict liability or product liability) or otherwise for any special, incidental, consequential, or indirect damages including but not limited to loss of use, loss of data, business interruption, loss of revenue, loss of business, or other financial loss arising out of...
  • Page 4 Explosive Device Proximity Warning Do not operate wireless network devices close to explosive merchandise or in explosive environments if devices are not certified for operation in such an environment, for example, in the vicinity of a gas station . Antenna Placement Warning Do not install any antenna near overhead power lines or other electric light, or where the antenna can come into contact with such circuits.
  • Page 5 MSR4000. Make sure the working temperature of the MSR4000 is not higher than the specifications listed in this document. A solar shield is provided in the Aruba standard package and should be installed to protect any outdoor MSR4000. The Aruba Warrantee policy does not cover those outdoor products for which solar shields are not installed.
  • Page 6 (EIRP) is not more than that permitted for successful communication. Proper Disposal of Aruba Equipment For the most current information about Global Environmental Compliance and Aruba products, see our website at www.arubanetworks.com. MSR4000 Installation Guide...
  • Page 7 Waste of Electrical and Electronic Equipment Aruba products at end of life are subject to separate collection and treatment in the EU Member States, Norway, and Switzerland and therefore are marked with the symbol shown at the left (crossed-out wheelie bin). The treatment applied at end of life of these products in...
  • Page 8 MSR4KAC MSR4000 Installation Guide...

  • Page 9: Table Of Contents

    Table of Contents 1 PRODUCT OVERVIEW ............................. 9 ..............................9 NTERFACES LED S ..........................10 TATUS NDICATORS 2 INSTALLATION PREPARATIONS ........................14 ............................. 14 ACKAGE ONTENTS ......................... 15 REPARING NSTALLATION OOLS ......................15 XAMINING THE NSTALLATION 3 WEATHERPROOFING CONNECTIONS ......................16 ........................

  • Page 10: Product Overview

    1 Product Overview There are two versions of the MSR4000, which mainly differ in the way they receive power.  MSR4KP: PoE powered  MSR4KAC: AC powered (100-240VAC) 1.1 Interfaces Figure 1-1 Interfaces on the MSR4KP Antenna 2 (Radio 2) Antenna 1 (Radio 0) Antenna 2 (Radio 1) Antenna 1 (Radio 3)

  • Page 11: Led Status Indicators

    Antenna 2 (Radio 2) Antenna 1 (Radio 0) Antenna 2 (Radio 1) Antenna 1 (Radio 3) Antenna 2 (Radio 3) Antenna 1 (Radio 1) Antenna 2 (Radio 0) Antenna 1 (Radio 2) Ethernet Interface USB Console Interface AC Power Interface 1.2 LED Status Indicators The MSR4000 includes visual indicators for power, link, and radio status.
  • Page 12 Table 1-1 MSR4KP LED status indicators Function Indicator Status No power to device Device has power but does not yet On (Amber) have a mesh network routing path Power to a gateway (portal) node Device has power and has found a On (Green) mesh network routing path to a gateway (portal) node...
  • Page 13 Figure 1-4 MSR4KAC LED Layout The following table lists the meanings of the LEDs on the MSR4KAC: Table 1-2 MSR4KAC LED status indicators Function Indicator Status No power to device Device has power but does not yet have a On (Amber) mesh network routing path to a gateway Power (portal) node...
  • Page 14 LED lights that indicate the software status, for example the RF. The LEDs that indicate the hardware status, for example Power, P/S, POE, and ETH, cannot be turned off using this feature. For additional details, refer to the Aruba MeshOS User Guide and the Aruba MeshOS Command Reference Guide.

  • Page 15: Installation Preparations

    2 Installation Preparations This chapter describes the preparations for MSR4000 installation, including checking package contents, preparing installation tools, and selection of installation sites. 2.1 Package Contents • Aruba MSR4000 AirMesh Router • MSR4000 Mounting Bracket • Solar Shield • Pole Anchors x 4 •...

  • Page 16: Preparing Installation Tools

    2.2 Preparing Installation Tools The following tools may be required while installing a MSR4000: Table 2-1 Installation Tools List Type Tools Screwdriver, adjustable spanner, vice, safety belt, hard hat, power board (220 VAC or as required by local regulation), POE power General tools injector, crimping pliers, electric soldering iron, welding wire, PVC insulation tape, adhesive insulation tape, strap, insulation tools...

  • Page 17: Weatherproofing Connections

    3 Weatherproofing Connections Weatherproofing your antenna and/or cable connections on your outdoor router is essential to reliability and longevity of your product. This process prevents water from entering the router or the antennas through the connectors. A good weatherproofing job consists of three wrappings: 1.
  • Page 18 Figure 3-1 Antennas Connected Directly to the MSR4000 Figure 3-2 Cable connections MSR4000 Installation Guide...

  • Page 19: Important Points To Remember

    3.3 Important Points to Remember • Do not cover the weep holes on the antennas. Doing so can restrict the release of condensation from the antennas. • Proper weatherproofing is not a fast process. Set aside ample time to complete the steps outlined below.
  • Page 20 Figure 3-3 First Wrapping of Tape Wrapping of Butyl Rubber Cut a 3/4” (19 mm) strip of butyl rubber. Wrap the strip of rubber around the taped connector (Figure 3-4). Join the two ends by pushing them together until there is no longer a seam (Figure 3-5).
  • Page 21 Figure 3-4 Butyl Rubber Placement Figure 3-5 Butyl Rubber Wrap MSR4000 Installation Guide...
  • Page 22 Second Wrapping of Tape Cut a 4” (100 mm) strip of electrical tape from the roll. Where you begin wrapping depends on the orientation of the antenna. Water should flow in the opposite direction of the wrapping to prevent water from entering the connector between the layers of tape.

  • Page 23: Weatherproofing Cable Connections

    3.5 Weatherproofing Cable Connections First Wrapping of Tape Prepare the antenna connector by cleaning and drying it. Cut a 4” (100 mm) strip of electrical tape from the roll. Pre-cutting the tape into strips makes it easier to maneuver the tape around the connectors and other components but is not required.
  • Page 24 Figure 3-8 Butyl Rubber Placement Figure 3-9 Butyl Rubber Wrap Second Wrapping of Tape Cut a 4” (100 mm) strip of electrical tape from the roll. Using 3/4” (19mm) electrical tape, begin wrapping at the connector and create four layers. After completing the fourth layer of tape, check your work to ensure there are no places where water can collect.
  • Page 25 Figure 3-10 Completed wrapping Repeat this process for all connections. MSR4000 Installation Guide...

  • Page 26: Msr4000 Installation

    4 MSR4000 Installation 4.1 Installing the MSR4000 on a pole The mounting bracket assembly for installing MSR4000 includes: solar shield, a pair of pole anchors, a mounting bracket, and bolts. MSR4000 can be mounted on a pole or wall. Pole diameter must be 40 to 60 mm at the position where the MSR4000 will be mounted.
  • Page 27 Figure 4-2 Positions of Screw Holes on the Solar Shield Step 2 Screw the two M4 x16 bolts into the holes on the back of the MSR4000 (Figure 4-3). Figure 4-3 Positions of Screw Holes on the Back of the MSR4000 Step 3 Fix the mounting bracket and the pair of pole anchors on the pole using four M8 x110 bolts (with flat washers, spring washers and nuts).
  • Page 28 Figure 4-4 Pole Anchors and Mounting Bracket A mounting bracket A pair of pole anchors Figure 4-5 Fix the Mounting Bracket and the Pair of Pole Anchors on the Mounting Bracket Step 4 Align the two M4 x16 bolts on the back of MSR4000 with the holes on the mounting bracket and hang the MSR4000 on the bracket.
  • Page 29 Figure 4-6 Fix the MSR4000 on the Bracket Hang the two M4 x16 bolts of the back of the MSR4000 on the two holes of the mounting bracket. Step 5 Align the two installation holes on the side of the MSR4000 with the corresponding holes on the mounting bracket and then use the two M6 x30 bolts (with flat and spring washers) to fix them.

  • Page 30: Installing The Msr4000 On A Wall

    4.2 Installing the MSR4000 on a Wall Step 1 Mark the screw points. 1) Put the mounting bracket on the installation position against the wall. 2) Mark four expansion screw holes on the wall. Figure 4-8 Position of Screw Holes Step 2 Drill holes 1) Use a percussion drill to drill four holes on the four markings.
  • Page 31 Figure 4-9 Positions of the Two M4 x16 Bolts and the Holes Hang the two M4 x16 bolts of the back of the MSR4000 on the two holes of the mounting bracket. Step 6 Fix the MSR4000 1) Align the two installation holes in the MSR4000 with the corresponding holes in the wall- mounting bracket.

  • Page 32: Grounding The Msr4000

    4.3 Grounding the MSR4000 The grounding must be completed before powering up the MSR4000.The residence of grounding wire should be less than 5 ohm and the grounding cable’s cross-section area should be no less than 6 mm .The grounding hole is at the left side of the MSR4000. Figure 4-11 Grounding the MSR4000 Step 1 Peel the cover of one end of the grounding cable (green or yellow and green grounding cable) and place the bare grounding cable into the copper lug, and press...

  • Page 33: Connecting The Rf Cable

    4.4 Connecting the RF Cable The RF cable is used to connect the antennas and the MSR4000. Note You must install the lightning arrester between the antenna and the MSR4000. Figure 4-12 Connecting the RF Cable Grounding cable for lightning RF cable arrester Lightning arrester...
  • Page 34 Figure 4-13 Antenna Interfaces on MSR4000 (MSR4KAC shown) MSR4000 Installation Guide...

  • Page 35: Connecting The Ethernet Cable

    4.5 Connecting the Ethernet Cable To ensure that MSR4000 maintains Ethernet connectivity and Power over Ethernet (PoE), you must use the weatherproof connector kit and install it using the steps below. Note  Failure to use the weatherproof connector kit can lead to connectivity and PoE issues. Figure 4-14 Weatherproof Connector Kit Shielded RJ45 connector Shield rings...
  • Page 36 Place the seal bolt (6) over the Ethernet cable. Strip off about 55mm (2 inches) of the outer Ethernet cable sheath to expose the ground wire and other pair wires. Insert all pair wires into the two shield rings (5). Make the ground wire attach to the narrow end of the inner ring and place the outer ring over the narrow end of the inner ring.

  • Page 37: Connecting The Power Cable (Msr4Kac)

    Note • The Ethernet cable and power cable need proper drip loops. Drip loops prevent water from entering the router through the connectors. • It is recommended to fix the Ethernet cable near the MSR2000 side to the wall or the pole.
  • Page 38 4.6.2 Best practices for Outdoor Connection to AC Mains • With virtually all infrastructure equipment that is installed outdoors connection to AC mains should be accomplished with an outdoor rated junction box. Note The connection to the AC mains must be implemented by a qualified resource in a manner that is consistent with the electrical code in force in the jurisdiction of deployment.
  • Page 39 4.6.5 Connecting the Power Cable to the MSR4KAC Step 1 Remove the protective cap on the power interface. Step 2 Insert the power cable connector into the power interface and hand-fasten the waterproof cover. Step 3 Water-proof the power cable connection with PVC insulation tape, adhesive insulation tape and strap.

  • Page 40: Note

    Authentication/Encryption None DHCP Disabled For additional details, refer to the Aruba MeshOS User Guide. To log in to the MSR4000 via the console port, use the settings as shown in the table below: The default username is root and the password is public.

  • Page 41: Product Specifications

    6 Product Specifications Mechanical  Dimensions(H x W x D)  13 inches x 11.5 inches x 5 inches  325 mm x 290 mm x 135 mm  Weight  MSR4KP: 12.1 lbs/5.5 kg  MSR4KAC: 14.3 lbs/6.5 kg ...
  • Page 42 Interfaces  Network:  1 x 10/100/1000BASE-T Ethernet (RJ-45)  Power:  1 X AC power connector (in MSR4KAC model only)  Antenna  8 x N-type antenna interfaces  Other:  1 x USB console interface Wireless LAN  AP type: outdoor, four radio, dual band plus 4.9-GHz public safety band ...

  • Page 43: Contacting Support

    Software Licensing Site licensing.arubanetworks.com/login.php Wireless Security Incident arubanetworks.com/support/wsirt.php Response Team (WSIRT) Support Email Addresses Americas and APAC support@arubanetworks.com EMEA emea_support@arubanetworks.com WSIRT Email wsirt@arubanetworks.com Please email details of any security problem found in an Aruba product. MSR4000 Installation Guide...
