Daikin BRC1E51A7 Installation Manual page 8

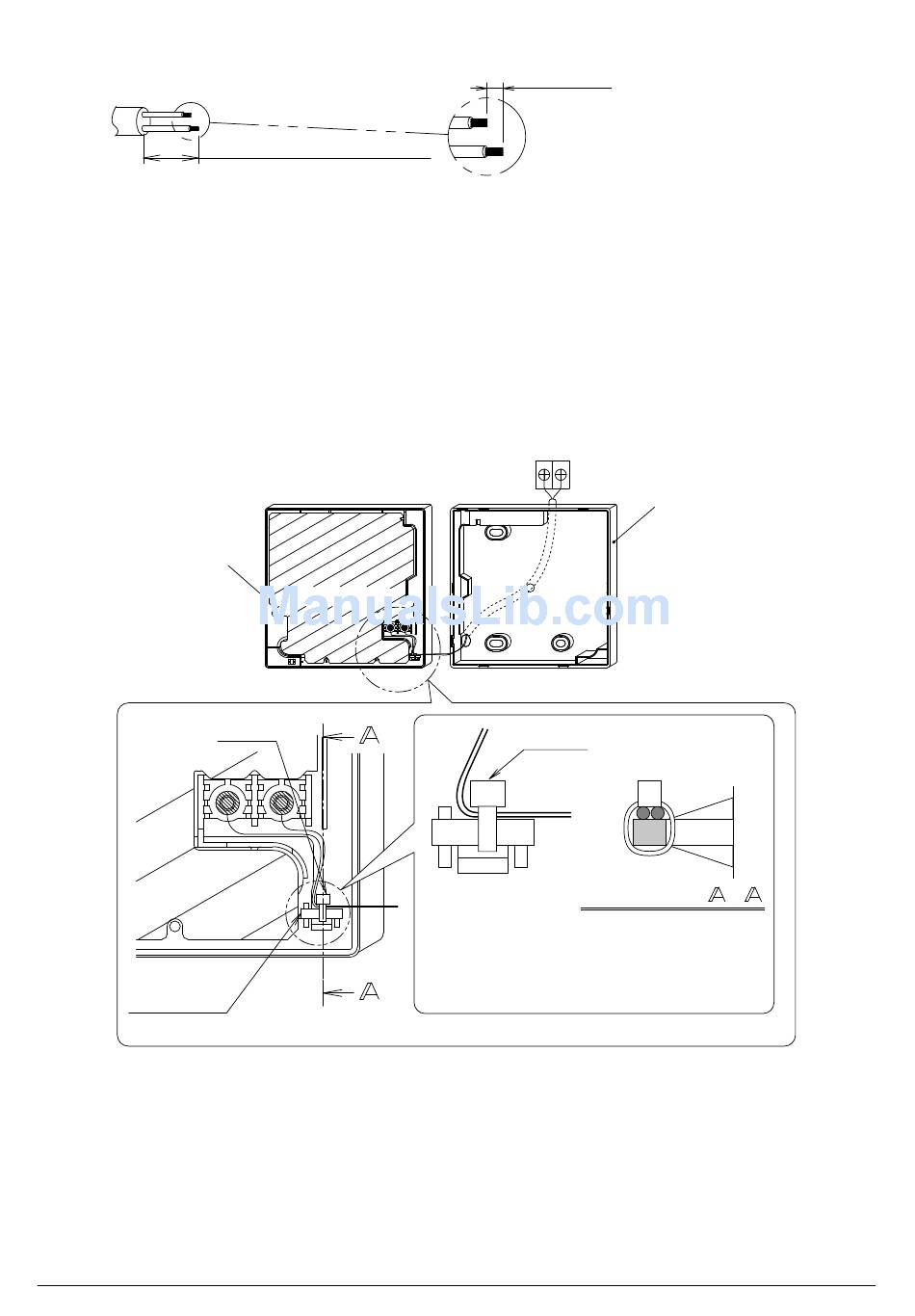

Sheath part in the remote controller case should be stripped.
Sheath stripping length:
● Ca. 150mm for upper outlet
● Ca. 200mm for upper center outlet
Connect the terminals (P/P1, N/P2) of the remote controller upper case with the terminals (P1, P2)
of the indoor unit. (P1 and P2 have no polarities.)
3-5-1 Back outlet
Upper case
Wiring fixing
point
6
Peel the shield and sheath
PC-board
Clamp
<Wiring fixing guideline>
Ca. 10mm
For easy wiring, it is better to
keep ca. 10mm difference
between the length of two wires.
Cutting guideline
of the wiring
Indoor unit
P1 P2
Clamp
Cross-section
Secure the wiring at
the wiring fixing point
by using attached
clamping material.
Lower case
-
English
