CAUTION
● Perform wiring apart from a power line not to receive electrical noise (external noise)
during the wiring.
● Seal wiring draw-in port securely with putty (fi eld supply) to prevent entry of insects or
the like.
3-6 Fixing procedure of lower case.
In the case of wiring center upward drawing or rearward drawing, see wiring procedure fi rst as
wiring with the case is needed before fi xing.

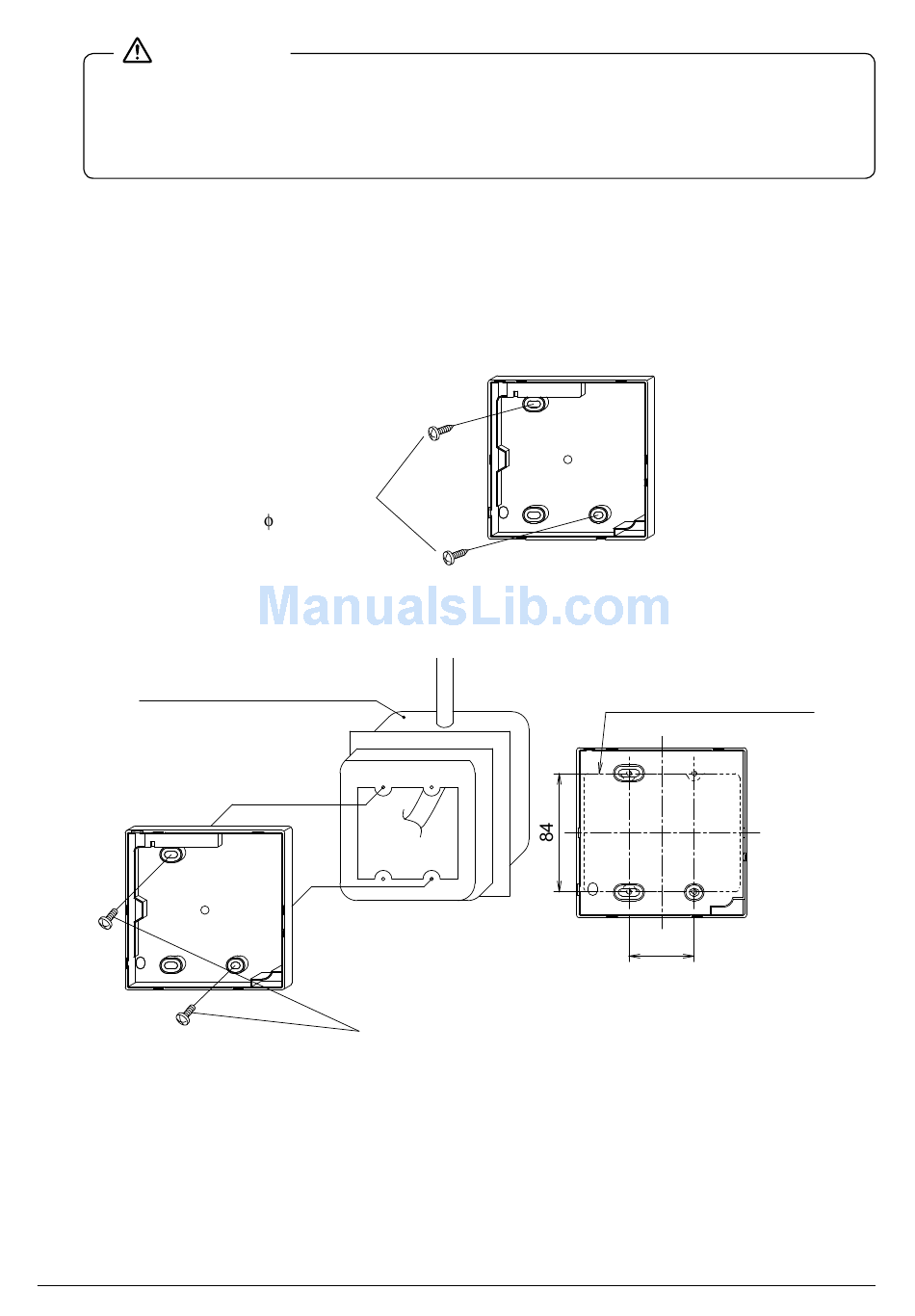

3-6-1 In the case of installation on the wall
Secure by using attached wood screws (2 pcs.).
3-6-2 In the case of installation on the switch box
Secure by using attached small screws (2 pcs.).
Switch box
(field supply)
(Use optional accessory
KJB211A)
8
Wood screws
( 3.5×16)
Small screws (M4×16)
Switch box for two units
(with no cover)
46
(Installation pitch)
