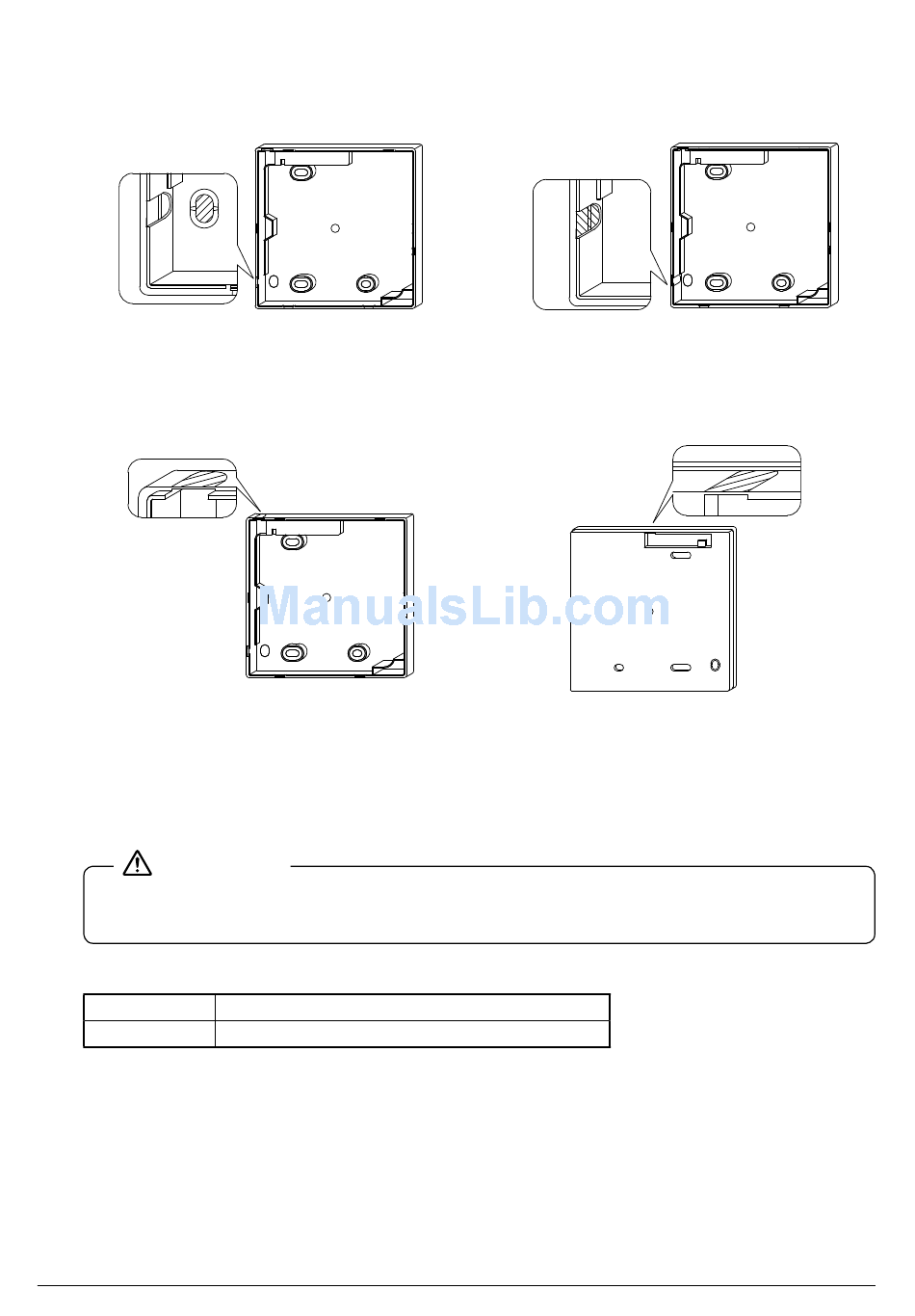

3-4 Determine the direction of controller wiring outlet (back
outlet, left outlet, upper center outlet, upper outlet).
3-4-1 Back outlet
Cut off resin area (hatched area).
3-4-3 Upper outlet
Cut off thin area (hatched area) with nippers
or the like, and then remove burr with a fi le or
the like.
3-5 Conduct wiring.
CAUTION
1. Switch box and transmission wiring are not attached.
2. Do not directly touch the remote controller PC-board.
Wiring Specifi cations
Wiring Type
Wiring Size
English
Sheathed vinyl cord or cable
0.75-1.25mm²
3-4-2 Left outlet
Cut off thin area (hatched area) with nippers
or the like, and then remove burr with a fi le or
the like.
3-4-4 Upper center outlet
Cut off thin area (hatched area) with nippers
or the like, and then remove burr with a fi le or
the like.
