Summary of Contents for Stanley CO25
-

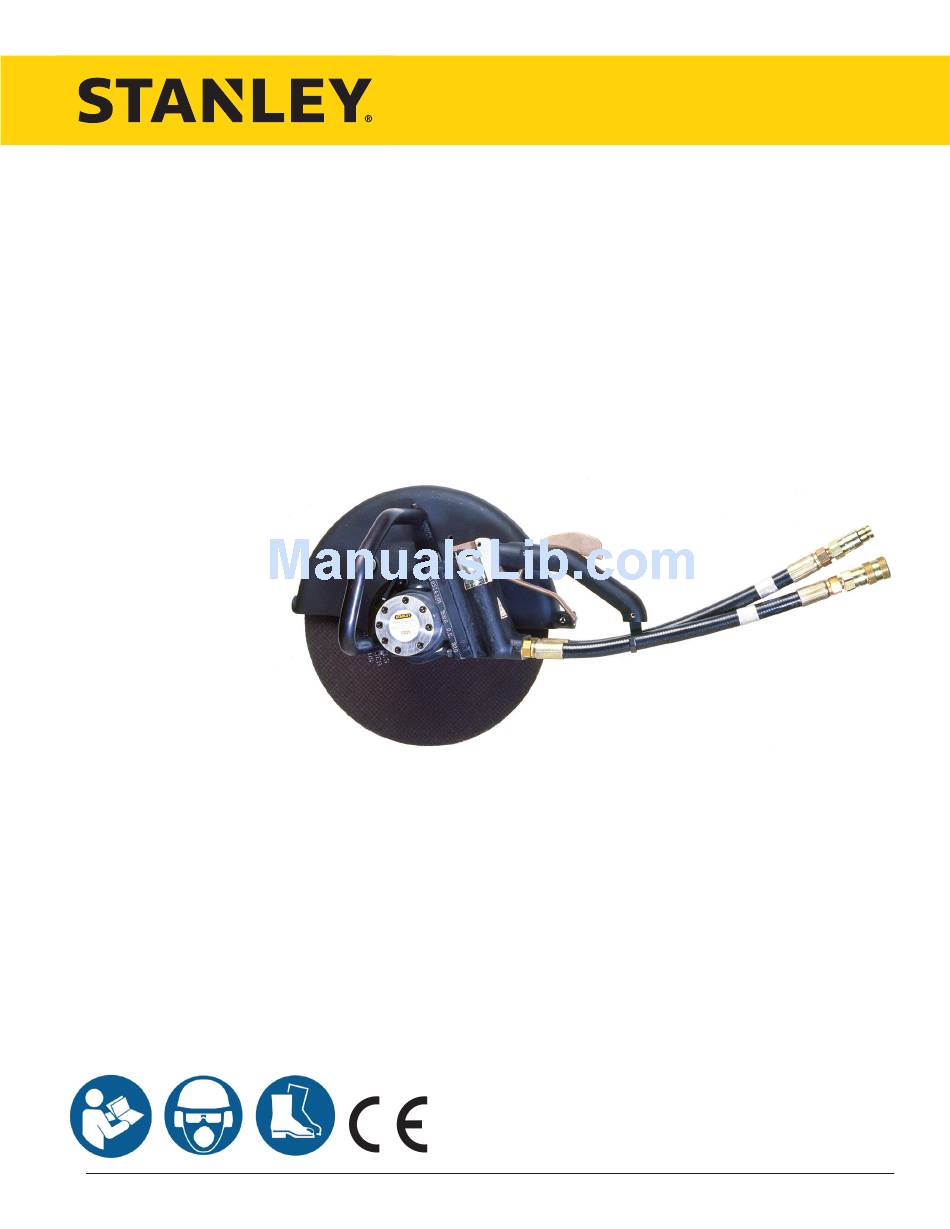

Page 1: User Manual
CO25 HYDRAULIC CUT-OFF SAW USER MANUAL Safety, Operation and Maintenance © 2014 Stanley Black & Decker, Inc. New Britain, CT 06053 U.S.A. 34962 4-2016 Ver-15... -
Page 2: Certificate Of Conformity
Provisiones especiales: Disposizioni speciali: Representative in the Union: Patrick Vervier, Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France. Vertreter in der Union/Représentant dans l’union/Representante en la Union/Rappresentante presso l’Unione Done at/Ort/Fait à/Dado en/Fatto a Stanley Hydraulic Tools, Milwaukie, Oregon USA... -
Page 3: Table Of Contents
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER. For the nearest authorized and certified dealer, call Stanley Hydraulic Tools at the number listed on the back of this manual and ask for a Customer Service Representative. -
Page 4: Safety Symbols
Always observe safety symbols. They are included for your safety and for the protection of the tool. LOCAL SAFETY REGULATIONS Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and mainte- nance personnel. 4 ► CO25 User Manual... -
Page 5: Safety Precautions
• Release the trigger if the power supply has been inter- The CO25 Hydraulic Cut-Off Saw will provide safe and rupted. dependable service if operated in accordance with the •... - Page 6 • Always inspect the cut-off wheels for possible damage be- fore operating the tool. Do not use a wheel that is cracked or otherwise damaged. • Never transport or store the tool with the cut-off wheel 6 ► CO25 User Manual...
-
Page 7: Tool Stickers & Tags
OPERATION MANUAL. OPERATION MANUAL. TAG TO BE REMOVED ONLY BY TAG TO BE REMOVED ONLY BY TOOL OPERATOR. TOOL OPERATOR. SEE OTHER SIDE SEE OTHER SIDE SAFETY TAG P/N 15875 (Shown smaller then actual size) CO25 User Manual ◄ 7... -
Page 8: Hydraulic Hose Types
HOSE SAFETY TAGS To help ensure your safety, the following DANGER tags are attached to all hose purchased from Stanley Hydraulic Tools. DO NOT REMOVE THESE TAGS. -
Page 9: Hose Recommendations
HOSE RECOMMENDATIONS CO25 User Manual ◄ 9... -
Page 10: Htma / Ehtma Requirements
2000 psi 2000 psi 2000 psi (at the power supply outlet) (172 bar) (138 bar) (138 bar) (138 bar) (138 bar) NOTE: These are general hydraulic system requirements. See tool specification page for tool specific requirements 10 ► CO25 User Manual... -
Page 11: Operation
“ON: and “OFF” positions. 2. Slowly squeeze the hand control lever. 2. Make sure the trigger is set to disengage the cut-off saw 3. Run the saw at least one minute, then release the control when released. lever. CO25 User Manual ◄ 11... -
Page 12: General Operation
MOUNTED CONFIGURATION (SAW CART): SEE PAGES b. Shut off the water. 15 THRU 17 FOR MOUNTING CO25 TO SAW CART. Restart the tool and allow the wheel to spin off the excess When the cutoff saw is mounted on a saw cart, always use water. -
Page 13: Periodic Maintenance
• Maintain a record of the speed checks. moved after use, and discarded or stored carefully (steps 1 and 2). • The maximum rated speed of the CO25 Hydraulic Cutoff Saw is 4500 rpm. TOOL • The rated speed of the cutting wheel must be equal to, or greater than that of the tool to ensure the integrity of the 1. -
Page 14: Cutoff Wheel Replacement
Before using the tool in cold weather, preheat the hydraulic fluid with the power unit operating at a low speed. The oil should be at or above 50°F (10°C) with a viscosity of 400 SSU (82 cs) before operating the tool. 14 ► CO25 User Manual... -
Page 15: Saw Cart Assembly
Cable Guide This will allow the cut-off-saw to be mounted on the saw cart. Safety Latch Remove this handle Plate from the cut-off saw. Trigger Plate Cable Adjustment Holes Cable Lock CO25 User Manual ◄ 15... - Page 16 After mounting the cut-off-saw, make sure the cutting blade is perpendicular to the floor and parallel with the cart frame. 3b. Motor mount. 16 ► CO25 User Manual...
- Page 17 1. Item 24 on the parts illustration page of the slab saw cart manual is a grease fitting, apply grease once a month under normal use or twice a month under heavy use. 2. Lubricate all moving parts weekly with a general lubri- cant. CO25 User Manual ◄ 17...
-
Page 18: Equipment Protection & Care
The circuit RETURN hose (with female quick disconnect) is connected to the opposite port. Do not reverse circuit flow. This can cause damage to internal seals. • Always replace hoses, couplings and other parts with replacement parts recommended by Stanley Hydraulic Tools. Supply hoses must have a minimum working pressure rating of 2500 psi/172 bar. -
Page 19: Troubleshooting
Wrong cut-off wheel for work material. Use correct wheel. Insufficient oil flow. Adjust oil flow to 7-9 gpm/26-34 lpm. Saw cuts too slowly. Relief valve setting too low. Adjust relief valve to 2100-2250 psi/145-155 bar. CO25 User Manual ◄ 19... -
Page 20: Specifications
Diamond Blade, 14-inch Dry Cut ..........................62358 Water Attachment Kit for CO25 (Includes (1) Water Hose Assy P/N-33220, (1) 9.125-inch Long Tube P/N-33226, (1)- 7.812-inch Long Tube P/N-33227, (1) Brass Adaptor P/N-35196, (3) Male 90Deg Elbow 1/4” hose barb P/N-33223, (1) Male Elbow Brass P/N-35197............................ -
Page 21: Co25 Parts Illustration
Kit, See Accessories on Page 17 FINAL ASSY CO25141 ND MAY BREAK ALL SHARP EDGES: EANS, OR .010 R. MAX OR .010 x 45° N THAT SHEET: SIZE: DATE: REVISION: PART NUMBER: SURFACE ROUGHNESS: 125 04/15/14 CO25 CO25 User Manual ◄ 21... -
Page 22: Co25 Parts List
HEX JAM NUT CW (LH) 32436 WHEEL GUARD 02649 HANDLE BAR RETAINER 32445 GUARD CLAMP SECTOR 02654 HANDLE BAR 74698 NAME TAG STICKER - CO25 02688 CAPSCREW 35963 SCREW, OVAL HEAD 02911 HOSE CLIP 56725 HOSE ASSY RAILROAD 18" 02912... - Page 24 Stanley Hydraulic Tools 3810 SE Naef Road Milwaukie, Oregon 97267-5698 USA (503) 659-5660 / Fax (503) 652-1780 www.stanleyhydraulics.com...
