to fill in the cable exit and pull through the cable. It supports the cable whose diameter ranges from
4.0~6.0. It is very convenient for you to do the waterproof work when you pull the cable through your
own exit. Please refer to the steps listed.
Step 1

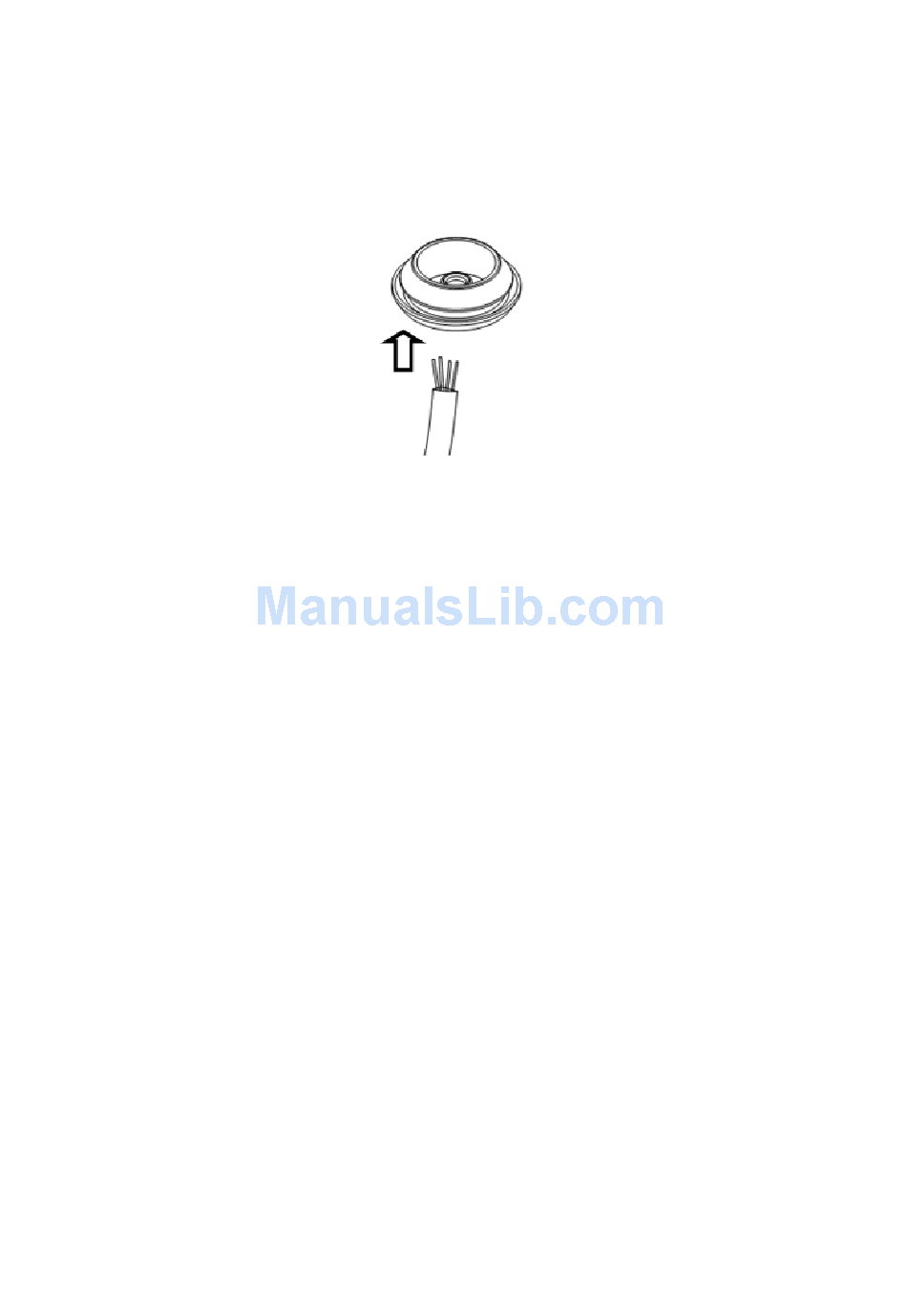

Take the waterproof airproof plug out, pull the cable (diameter ranges from 4.0 to 6.0) through the
waterproof airproof plug. See Figure 3-8.
Figure 3-8
Step 2
Before you go to the Step 4 in the chapter 3.1 installation steps, please pull through cable with the
waterproof airproof plug to the device chassis via the installation hole at the bottom of the chassis and
then connect the cable pins.
Step 3
Refer to Step 4 and Step 5 in the chapter 3.1 installation steps to install and connect the cable pin to the
device and then follow the proper steps to go on the installation.
Important
This series product has the power connection pin and I/O connection pin for you to pull through
the signal cable.
