f) For the IR series product, please skip current step and complete the angle setup directly.

Important

Please note Figure 3-5and Figure 3-6is based on the IR motorized zoom camera. For the IR

manual zoom camera and non-IR series product, the lock screw position and the lens angle

adjustment are the same.

Step 7

Line up the dome camera protection enclosure to the cable exit on the side panel. Put the enclosure

back and then use the inner hex wrench to secure the 3 inner hex screws firmly. Now the installation is

complete.

Note

Usually we recommend, after the installation, please take the three white static protection gaskets from

the accessories bag and insert them to the screw holes of the protection enclosure. It is to enhance

device reliability.

3.2.1 Side Cable Exit

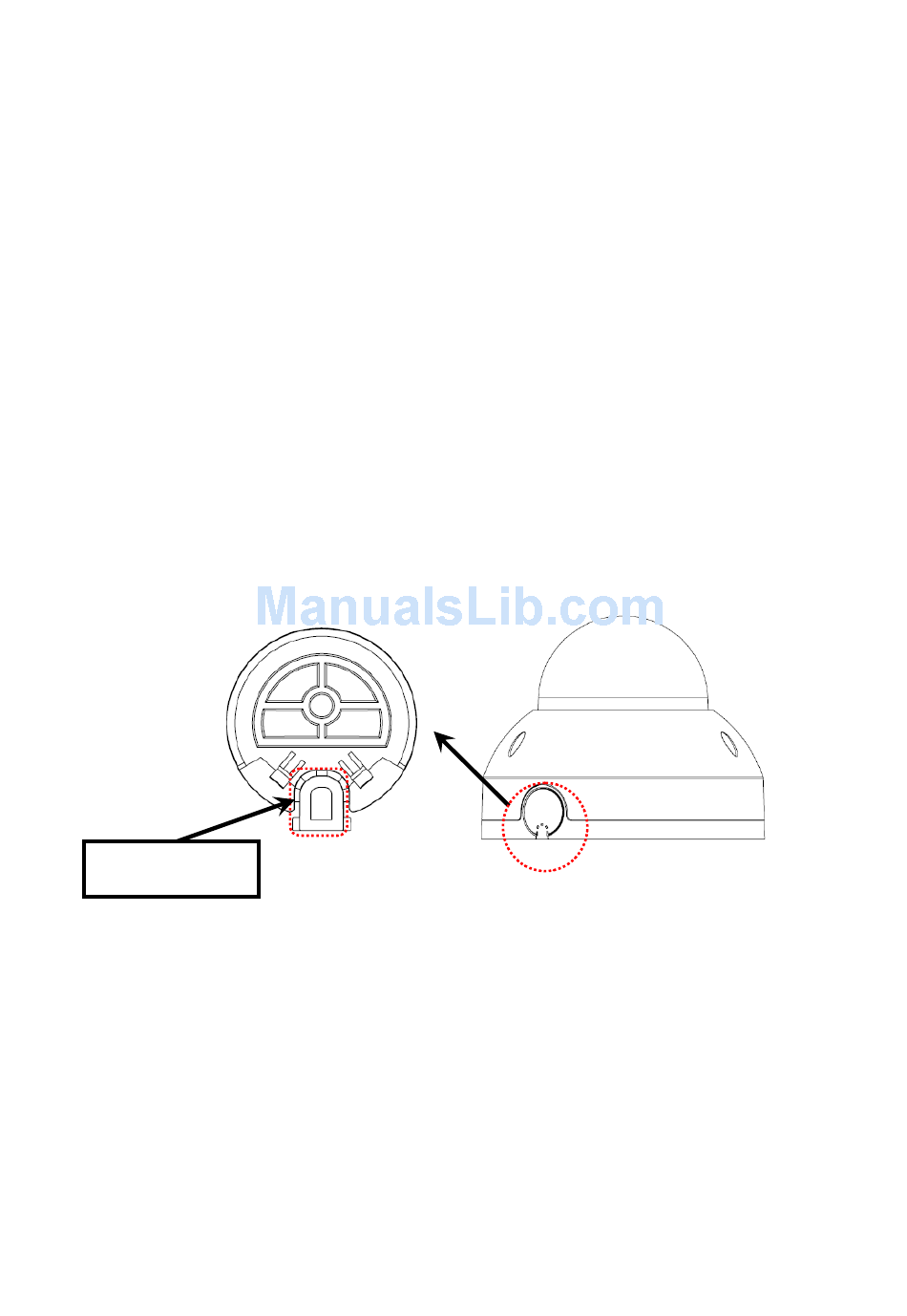

If you adopt side cable exit when you are installing the device, you need to remove the plastic decoration

plug from the side of the chassis. Use the proper tool to dig through the part specified in Figure

3-7toform a cable exit. Put the plastic decoration plug back to the chassis and then pull the cable

through the side panel of the chassis.

Dig through here

Figure 3-7

For some special user, he may need the metal protection tube to protect when he pulls through the

cable from the side cable. There is PG11screw thread port when you pull through the cable from the

side panel. Please remove the plastic decoration plug from the side panel of the chassis and pull

through the cable to the tunnel of the PG11 screw thread. Now secure the tunnel in the PG11 screw

threaded hole of the device.

The device reserves two cable exits. The pin diameter shall be less than 15mm. One of the cable exits

has M22 screw thread and can work with the default combination cable to remove the risk of the

dragging and pulling of the cable.

The device has two waterproof airproof plugs (One default position is the cable exit of the chassis of the

device and the other is in the accessories bag.). The waterproof airproof plug has two functions. One is
