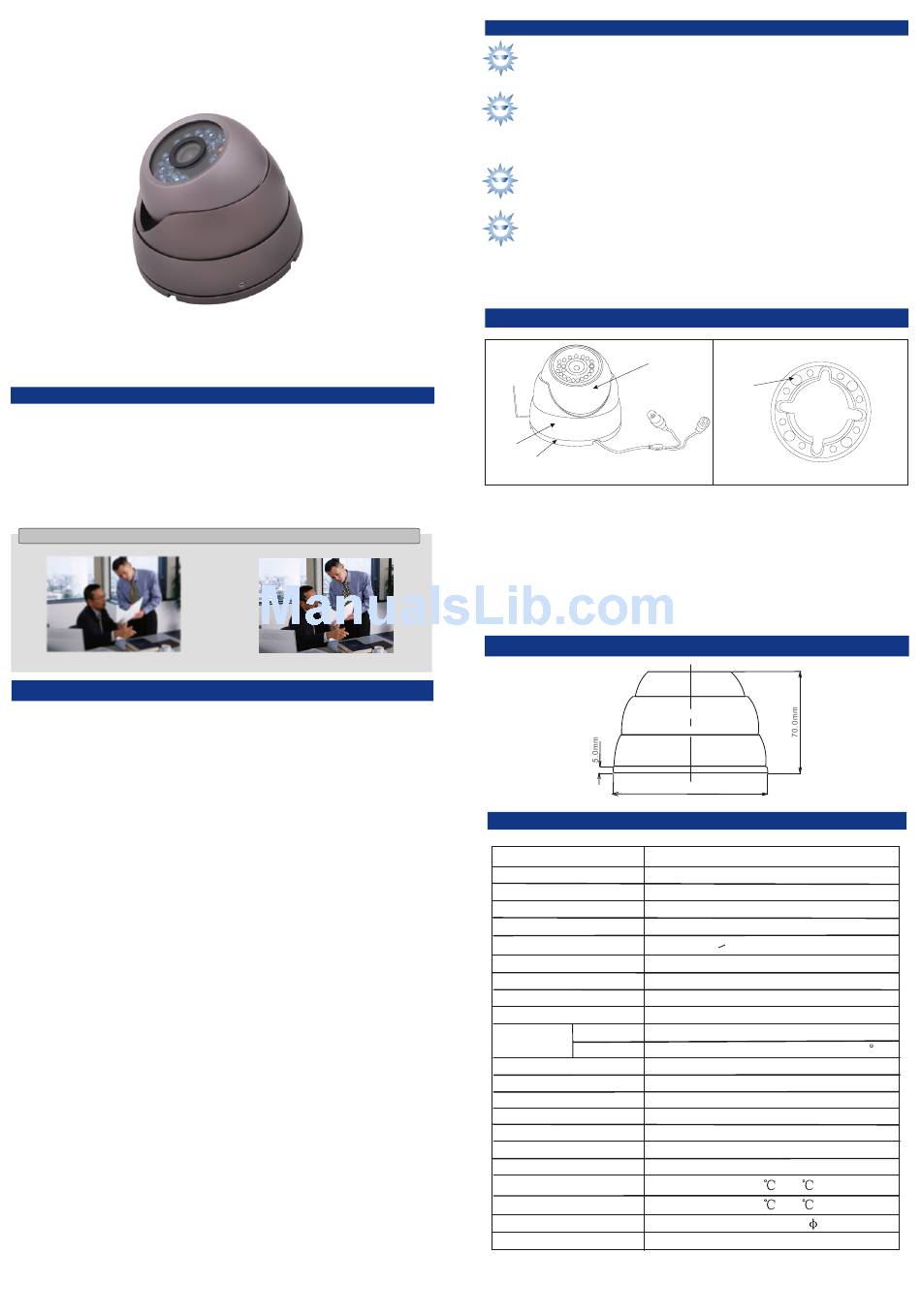

IR Waterproof Camera
Operating Instruction
ICR200W
D E S C R I P T I O N
ICR200W employs advanced digital signal image processing technology
and realizeshigh horizontal resolution up to 700TVL. various f uncti ons on th e
came ra. Wh en li ght ch an gi ng re ac hes a certain value, IR LEDs wil l start
themselves automatically.It h elp s to ha ve an e asy 2 4-h our d ay& nig ht
monitoring and operation.
Advanced Image Processing Technology; 700TVL High Resolution; Clear Bright Pictures
420 TV Line
PRECAUTIONS
1.
Use the Appropriate Power Supply
The input power for ICR200W
it to the appropriate power. Wrong connection may cause
malfunction and/or damage to the video camera.
2.
Do not attempt to disassemble the camera.
To prevent electric shock, do not remove screws or covers.
There are no user serviceable parts inside. Ask a qualified
service person for servicing.
3.
Handle the camera with care.
Do not abuse the camera. Avoid striking, shaking, etc.
The camera could be damaged by improper handling or
storage.
4.
Do note use strong or abrasive detergents when cleaning the
camera body.
Use a dry cloth to clean the camera when dirty. In case the dirt is
hard to remove. Use a mild detergent and wipe gently.
5. Do not attempt to aim the camera at the sun
Do not attempt to aim the camera at the sun or other extremely
bright objects that cause smear to appear irrespective of whether
the camera is operating or not. This can damage the CCD (Charge
Coupled Device).
6.
Do not put the camera in a place with interference.
When this camera is installed near the equipment like wireless
communication device which emits strong electromagnetic field,
some irregularity such as noise on monitor screen may happen.
700 TV Line
is DC12V.
Be sure to connect
FEATURES
High Resolution
700TVL horizontal resolution
Long-term IR LED Design
High-performance IR LED,whose brightness is several times
higher and service life longer than an ordinary LED's.
IP 55 Waterproof
Waterproof, Dustproof Design.
Auto D/N Swithover Operating Mode
COLOR mode in daytime when there is enough light; at night when there is
little light, sensitivity and image quality need to be higher, it will switch to
B/W mode automatically and start IR.IR range is up to 20m.
PARTS INSTRUCTION AND INSTALLATION
Sphere
Wrench
Video Cable
Lock Base
Base Plate
1. Take out the fixing screws on the lock base by the allen wrench in the
accessory bag. (Another way: hold the base plate and turn it in
anti-clockwise direction)
2. Separate the base plate and lock base.
3. Use screws to fix the base plate to the needed place.
4. Then put the sphere and lock base to where they belong and screw up the
fixing screws.
DIMENSIONS
SPECIFICATIONS
Model Number
Sensor
Video Format
Resolution
Mini. Illumination
S/N Ratio
AGC
BLC
Iris Control
Electronic Shutter Speed
Mode
White Bal
Range
Day/Night
3-DNR
WDR
Sync Mode
Voltage
Current
Lens
Operating Temp
Storage Temp
Dimension
Weight
Screw Hole
Power Cable
94.0mm
ICR200W
1/3 960H High Sensitivity CCD
PAL/NTSC
700TVL
0Lux (IR ON)
>50dB (AGC OFF)
AUTO
AUTO
Electronic Iris
1/60(1/50)-1/100000
SECOND
AUTO
(AUTOMATICAL)
2200~10000 K
AUTO
AUTO
AUTO
INTERNAL
DC12V
<250mA
3.6mm
-10 ~50
-20 ~50
70(H) * 94( )
490g
EN-U3-512P-120229
