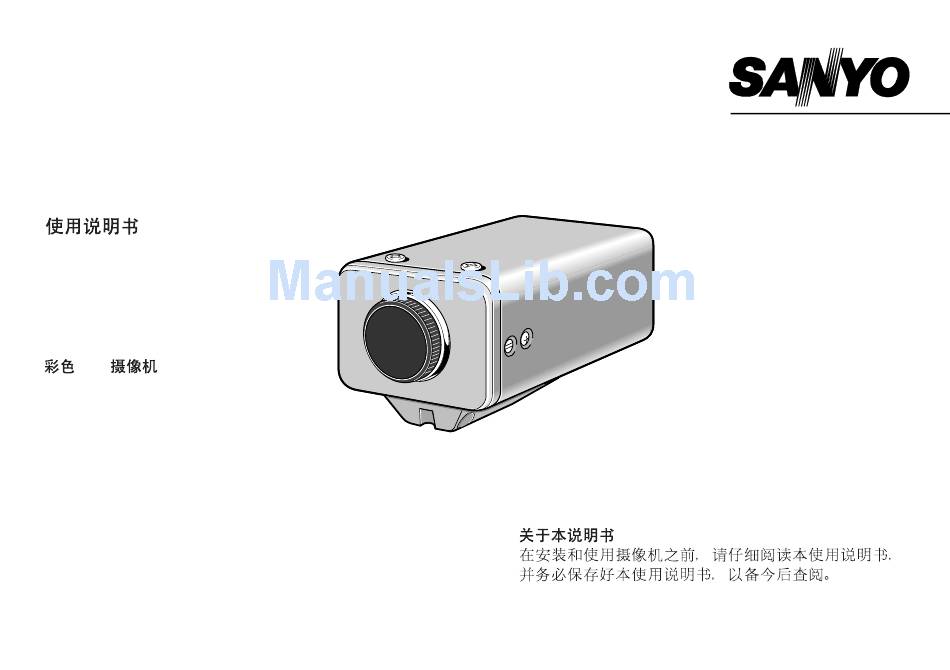

INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D'INSTRUCTIONS
COLOUR CCD camera
CCD-Farbkamera
Caméra CCD COULEUR
CCD
About this manual
Before installing and using the camera, please read this manual
carefully. Be sure to keep it handy for later reference.
Über diese Bedienungsanleitung
Lesen Sie bitte vor der Montage und dem Inbetriebnehmen der
Kamera zuerst diese Bedienungsanleitung sorgfältig durch und
bewahren Sie sie zum späteren Nachschlagen auf.
A propos de ce manuel
Avant d'installer et d'utiliser la caméra, veuillez lire ce
manuel attentivement. Gardez-le à portée de main pour
toute référence ultérieure.
VCC-4110P
Advertisement
Table of Contents
Related Manuals for Sanyo VCC-4110P
Summary of Contents for Sanyo VCC-4110P
- Page 1 VCC-4110P INSTRUCTION MANUAL BEDIENUNGSANLEITUNG MANUEL D’INSTRUCTIONS COLOUR CCD camera CCD-Farbkamera Caméra CCD COULEUR About this manual A propos de ce manuel Before installing and using the camera, please read this manual Avant d’installer et d’utiliser la caméra, veuillez lire ce carefully.
-
Page 2: Table Of Contents
Depending on the conditions of use, installation and environment, FEATURES please be sure to make the appropriate settings and adjustments. If you need help with installation and/or settings, please consult your dealer. • Built-in interline transfer method 1/4" CCD, approx. 320,000 CONTENTS picture elements •... -
Page 3: Precautions
Disconnect the power greasy smoke or steam, where the dampness may get too high, or cord immediately, and consult your dealer (or a Sanyo Authorized where there is a lot of dust. -
Page 4: Parts Names
PARTS NAMES Power indicator (POWER) Comes on when the power to the camera is on. Video output connector (VIDEO OUT: BNC type) Connect this connector to a device such as a VCR or monitor with a VIDEO IN connector. AC power cord Line phase adjustment volume (LINE PHASE) When using two cameras or more, the image on the monitor may roll vertically when switching sources. - Page 5 PARTS NAMES Lens mount cap The cap is installed to protect the lens mount section. Remove the lens mount cap before installing a lens (sold separately). Flange-back adjustment screw (FLANGE BACK ADJ.) Flange-back lock screw (FLANGE BACK LOCK) Camera mounting bracket This bracket can be installed to either the top or bottom of the camera as desired.
-
Page 6: Concerning Auto-Iris Lenses
PARTS NAMES Lens iris output connector (LENS) This 4-pin connector is used to send the DC control signal and power supply to an auto-iris type lens. Camera setup section (under the cover) These settings are for when using a 1/4 inch CS mount DC (without EE internal amplifier) type lens. However, if due to installation conditions or environment the settings may need to be modified for best results (see "SETTINGS"). -
Page 7: Mounting The Lens
MOUNTING THE LENS Please use a DC type auto-iris lens (sold separately). Check the lens mount Do not use a lens if the length “ ” is more than mm. That may damage the camera and prevent proper installation. C mount type lens Remove the lens mount cap from the camera. - Page 8 MOUNTING THE LENS Pin layout DC type lenses Brake coil (–) Brake coil (+) Drive coil (+) Drive coil (–) Flange-back adjustment If the pick-up surface is not correctly positioned with relation to the lens focal point, the picture will be out of 2, 3 focus (in particular when using auto-iris power zoom lenses, sold separately).
-
Page 9: Connections
CONNECTIONS (Video signal connections) : VIDEO IN : VIDEO OUT Coaxial cable type and maximum length Basic connection for monitoring or recording • Cable type RG-59U (3C-2V), 250 m maximum. The peripheral devices (VCR, monitor, lens, etc.) and cables are •... -
Page 10: Settings
SETTINGS The illustration shows the factory default settings for the switches in the camera setup section. The camera settings are described on the assumption that a DC type auto iris lens is being used. Control name Position Electronic Iris (EI)/Auto iris (AI) setting Aperture compensation setting SHRP (SHRP: Sharp/NOR: Normal) - Page 11 SETTINGS Iris function setting 1 Aperture 2 This should normally be set to the down (AI) position. The initial setting for switch 2 is up (SHRP) so that the contours of the object are emphasized. However, if the Use a manual or fixed iris lens and set the lens aperture contours of the object are already emphasized more to the shortest F stop.
-
Page 12: Backlight Compensation Setting
SETTINGS Backlight compensation setting 45 (MULTI mode: 48 sections) This camera has two different backlight compensation functions: Normally backlight compensation switch 4 (MULT) and 5 (CENT) are set to the down (OFF) position. Change the backlight compensation switch settings depending on the conditions. •... -
Page 13: White Balance Adjustment
SETTINGS White balance adjustment 6 Line phase adjustment 7 Normally the switch 6 (WB) is set to the down (ATW: auto white When using a camera switcher to connect 2 cameras or more to one balance) position and the white balance is adjusted automatically. If a monitor, there may be a vertical roll of the images when switched. -
Page 14: Troubleshooting
If it still does not perform correctly, If using a DC type auto-iris lens, you will need to set the LEVEL please consult your dealer or a Sanyo Authorized Service Centre. (VR301) volume when shooting in the conditions described below. -
Page 15: Specifications
SPECIFICATIONS Camera: Dimensions Scanning system PAL standard (625 TV lines, 25 frames/sec.) Interlace PLL 2:1 interlace Image device 1/4 inch solid state image device CCD Picture elements 537 (H) x 597 (V) Effective picture elements 500 (H) x 582 (V) Synchronizing system Internal sync, Line lock manually switchable Resolution... - Page 16 Printed on recycled paper Gedruckt auf recyceltem Papier Imprimé sur du papier recyclé Sanyo Electric Co, Ltd. 1AC6P1P2634-- Printed in Japan L5AH5/XE (0103KP-CZ)
