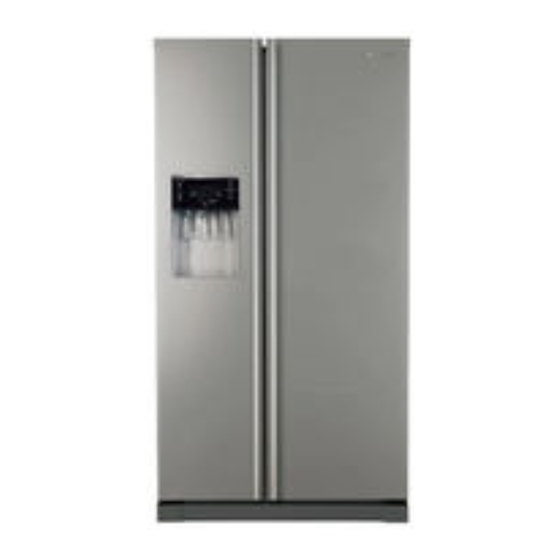

Free Standing Appliance
条形码
DA68-02439Z-16
Refrigerator

user manual

imagine
the possibilities
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/global/register
RSA1D***
RSA1J***
RSA1N***
RSA1Z***
RSA1S***
RSA1U
***
V
RSA1
***
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSA1D Series and is the answer not in the manual?

Questions and answers

Related Manuals for Samsung RSA1D Series

Summary of Contents for Samsung RSA1D Series

  • Page 1: User Manual

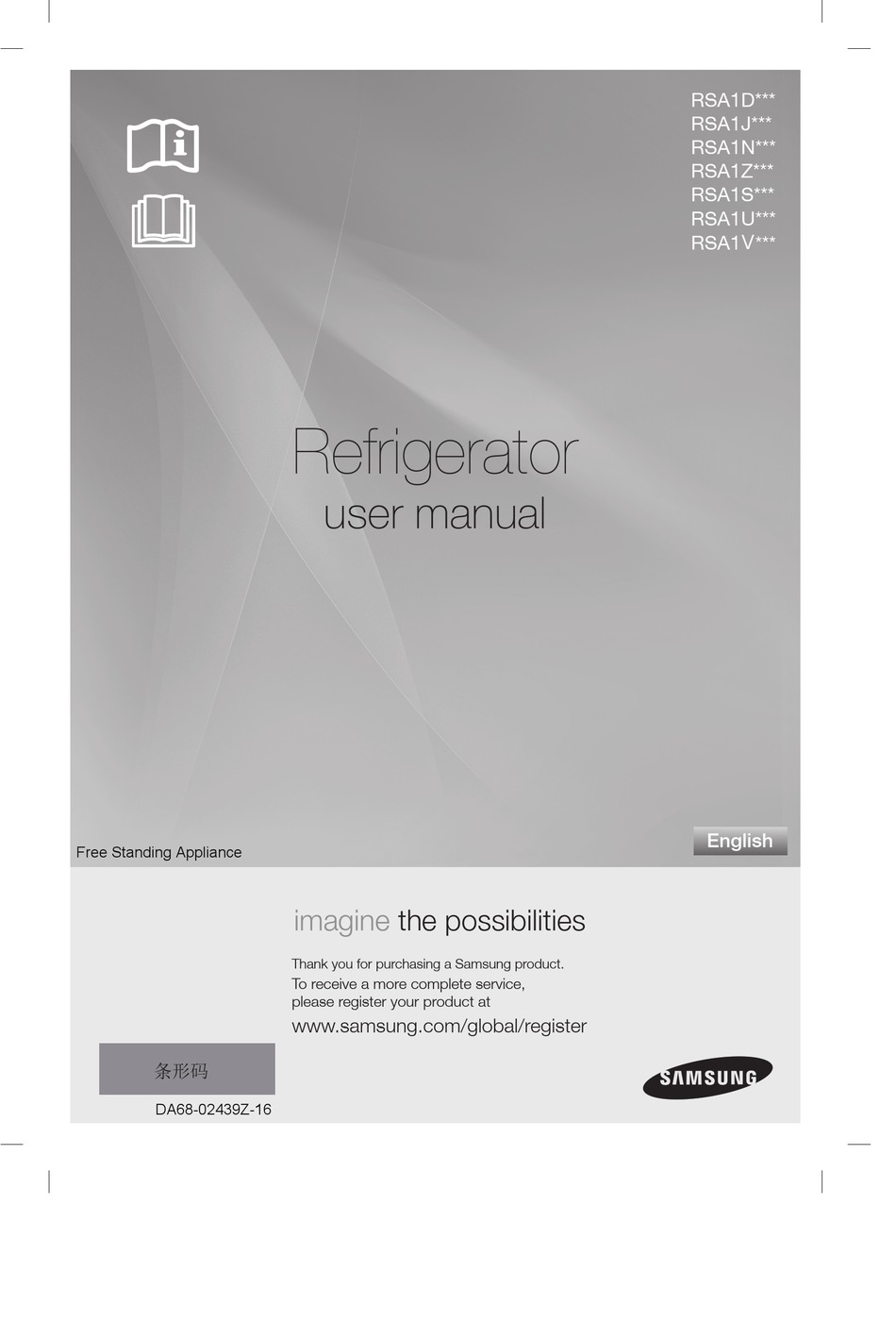

    RSA1D*** RSA1J*** RSA1N*** RSA1Z*** RSA1S*** RSA1U RSA1 Refrigerator user manual English Free Standing Appliance imagine the possibilities Thank you for purchasing a Samsung product. To receive a more complete service, please register your product at www.samsung.com/global/register 条形码 DA68-02439Z-16...

  • Page 2: Key Features Of Refrigerator

    KEy fEaturEs of your nEw rEfrigErator Your Samsung Side-By-Side Refrigerator comes equipped with many space-saving, innovative storage and energy-efficient features. • HiDDEn HingEs & Door s/w Slick-covered hidden hinges & door s/w helps Neat & Stylish square frontal view.
  • Page 3 safety information SAFETY INFORMATION Before operating the appliance, please read this manual • thoroughly and retain it for your reference. WARNING • Because these following operating instructions cover various models, the characteristics of your refrigerator WARNING may differ slightly from those described in this manual. • This appliance is intended to be used in household and WARNING similar applications such as:...
  • Page 4 safety information These warning signs are here to prevent injury to you and others.Please follow them explicitly.After reading this section, keep it in a safe place for future reference. • This refrigerator must be properly installed and located in accordance with the manual before it is used. •...
  • Page 5 safety information • Please dispose of the packaging material for this product in an environmentally friendly manner • Do not change the pars in the refrigerator at random. SEVERE WARNING SIGNS • Do not install the refrigerator in a damp place or place where it may come in contact with water.
  • Page 6 safety information • Make sure that the power plug is not squashed or damaged by the back of the refrigerator. • Do not bend the power cord excessively or place heavy articles on it. - This constitutes a fire hazard. •...
  • Page 7 - You run risk of causing a fire, malfunction and/or personal injury. • If you smell pharmaceutical or smoke, pull out power plug immediately and contact your Samsung electronics service center. • Keep ventilation opening in the appliance enclosure or mounting structure clear of obstruction.
  • Page 8 safety information • The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 9 safety information • Do not overfill the refrigerator with food. - When you open the door, an item may fall out and cause personal injury or material damage. • Do not put bottles or glass containers in the freezer. - When the contents freeze, the glass may break and cause personal injury.
  • Page 10 CAUTION SIGNS FOR CLEANING • Do not insert your hands into the bottom area under the appliance. - Any sharp edges may cause personal injury. • Never put fingers or other objects into the dispenser hole and ice chute. - It may cause personal injury or material damage. •...
  • Page 11 safety information In the event of a power failure, call the local office of your Electricity Company CAUTION and ask how long it is going to last. Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures.
  • Page 12 safety information ADDITIONAL TIPS FOR PROPER USAGE • Allow the appliance to stand for 2hours after installation. • To get best performance of product, - Do not place foods too closely in front of the vents at the rear of the appliance as it can obstruct free air circulation in the freezer compartment.
  • Page 13 safety information while defrosting the appliance, please wrap the frozen food in several layers of paper such as newspaper. • Any increase in temperature of frozen food during defrosting can shorten its storage life. SAVING ENERGY TIPS - Install the appliance in a cool, dry room with adequate ventilation.

  • Page 14: Table Of Contents

    Leveling the refrigerator seTTING UP yOUR sIde-by-sIde Making minor adjustments to the doors RefRIGeRATOR Checking the water dispenser line(optional) Installing the water dispenser line OPeRATING The sAMsUNG Setting up the refrigerator sIde-by-sIde RefRIGeRATOR Operating the refrigerator Using the digital display Controlling the temperature Using the ice and cold water dispenser...

  • Page 15: Setting Up Your Side-By-Side Refrigerator

    Congratulations on the purchase of your Samsung Side-By-Side Refrigerator. We hope you will enjoy the many state-of-the-art features and efficiencies that this new appliance has to offer. Selecting the best location for the refrigerator • Select a location with easy access to the water supply.

  • Page 16: Removing The Refrigerator Doors

    REMOVING THE REFRIGERATOR DOORS If your entrance won’t allow the refrigerator to pass easily through it, you can remove the doors. 1. Removing the Front Leg Cover First, open both the freezer and refrigerator doors, and then take off the front leg cover by turning the three screws counter-clockwise.

  • Page 17: Setting Up Your Side-By-Side Refrigerator

    setting up your side-by-side refrigerator 2. Removing the freezer door A few things to mention first. • Make sure that you lift the door straight up so the hinges are not bent or broken. • Be careful not to pinch the water tubing and wire harness on the door. • Place doors on a protected surface to prevent scratching or damage.

  • Page 18: Removing The Fridge Door

    Removing the Fridge Door 1. With the door closed, remove the upper hinge cover using a screwdriver. . Remove hinge screws and the ground screw by turning counter-clockwise, and take off the upper hinge . Be careful that the door does not fall on you as you are removing it. . Remove the door from the lower hinge by lifting the door straight up 1_ setting up...

  • Page 19: Reattaching The Refrigerator Doors

    setting up your side-by-side refrigerator rEattaCHing tHE rEfrigErator Doors Once you have safely placed your refrigerator where you plan for it to stay, it is time to put the doors back on. Reattaching the Freezer Door 1. Insert the upper hinge shaft into the hole on the corner of the freezer door .
  • Page 20 Reattaching the Fridge Door 1. Fit the hole in the corner of the fridge door over the lower hinge . Insert the upper hinge shaft into the hole on the hinge . Make sure the hinge is level between the upper hinge hole and the hole on the top of the cabinet .
  • Page 21 setting up your side-by-side refrigerator Reattaching the Water Supply Line 1. Insert the water line into the coupler 2.The Water Line must be fully Inserted to the center of transparent coupler to prevent water leakage from the dispenser. 3.Insert the clip in the install pack and check that it holds the line firmly. Center of transparent coupler clip A (1/4”)

  • Page 22: Leveling The Refrigerator

    LEVELing tHE rEfrigErator Now that the doors are back on the refrigerator, you will want to make sure the refrigerator is level so you can then make final adjustments. If the refrigerator is not level, it will not be possible to get the doors perfectly even.

  • Page 23: Making Minor Adjustments To The Doors

    setting up your side-by-side refrigerator MaKing Minor aDjustMEnts to tHE Doors Remember, a leveling refrigerator is necessary for getting the doors perfectly even. If you need help, review the previous section on leveling the refrigerator. When the door of the freezer is higher than the fridge adjustment part In the case of the process to correct the imbalance is the same. Open the doors and adjust them, one at a time, as follows: 1. Unscrew the nut from the lower hinge until it reaches the upper end of the bolt...

  • Page 24: Installing The Water Dispenser Line

    CHECKing tHE watEr DisPEnsEr LinE (oPtionaL) A water dispenser is just one of the helpful features on your new Samsung refrigerator. To help promote better health, the Samsung water filter removes unwanted particles from your water. However, it does not sterilize or destroy microorganisms.
  • Page 25 setting up your side-by-side refrigerator LINE OUTLET select the location where the filter is to install. (Model with the filter) - If you wish to reassemble the water inlet and out- 90 degree SIDE OF let sides of the filter during filter installation, FILTER see the reference illustration.
  • Page 26 Connect the water line to the refrigerator. WATER LINE CONNECTION NUT - Remove the compressor cover of the refrigerator. - Connect the water line to the valve, as shown in the figure. - When connected, check if there is any leakage. If any, repeat the connection.
  • Page 27 setting up your side-by-side refrigerator Removing any residual matter inside the water supply line after installing filter. 1. Turn ON the main water supply & turn OFF the valve to the water supply line. 2. Run water through the dispenser until the water runs Water clear (approx.

  • Page 28: Operating The Samsung

    If you have any further questions, contact your Samsung Electronics service center. 1. Place the refrigerator in an appropriate location with reasonable clearance between the wall and the refrigerator.

  • Page 29: Operating The Refrigerator

    OPERATING THE REFRIGERATOR Using the Control Panel RSA1Z/U/D RSA1S/N/V RSA1Z/U/D RSA1S/N When not in use the temperature, Dual Flow and Filter (green) display will turn off, and press the key or door open will turn on again,this is normal. Speeds up the time needed to freeze products in the freezer. This can POWER FREEZE be helpful if you need to quickly freeze items that spoil easily or if the BUTTON...

  • Page 30: Side-By-Side Refrigerator

    SAMSUNG side-by-side refrigerator USING THE DIGITAL DISPLAY “88” segment on Freezer part indicates the current Freezer temperature. “88” segment on Fridge part indicates the current Fridge temperature. RSA1Z/U/D RSA1Z/U/D RSA1S/N/V RSA1S/N Power Freeze This icon will light up when you activate the “Power Freeze” feature. “Power Freeze” is great for times when you need a lot of ice.

  • Page 31: Child Lock

    Filter Indicator When the filter indicator light is on, it is time to change the filter. Typically this happens about every 6 months. After removing the old water filter and installing a new one (see page 18 for instructions on how to do this), reset the indicator status light by pressing the Ice Type button for about 3 seconds.

  • Page 32: Using The Ice And Cold Water Dispenser

    SAMSUNG side-by-side refrigerator USING THE ICE AND COLD WATER DISPENSER Press the Ice Type button to select the type of ice you want No Ice Select this if you want to turn off the icemaker No Ice Select this if you want to turn off the icemaker Ice is made in cubes.

  • Page 33: Shelves And Bins

    SHELVES AND BINS Freezer Ice Maker Bucket (Optional) Lamp Cover Ice Chute (Optional) Glass Shelves Door Bins Drawers (Optional) Front Leg Cover Fridge Lamp Cover Dairy Bin Glass Shelf Tray Utility Beverage Station (Optional) Door Bins Vegetable &Fruit Drawers (Optional) CoolSelect Duo (Optional) operating...

  • Page 34: Storing Food

    STORING FOOD Storing Food in the Freezer The Samsung Side-By-Side Refrigerator has been designed to provide you with maximum spacesaving features and functions. Here are some of the customized compartments we have created to keep your food fresher, longer. Remember, in order to prevent odor penetration to the ice, stored food should be wrapped securely and as airtight as possible.

  • Page 35: Coolselect Duo (Optional)

    Storing Food in the Freezer Do not put your fingers, hands or any other objects in the ice ICE CHUTE chute or the ice maker bucket. This may result in personal injury WARNING or material damage. Can be used to store all types of frozen SHELVES food.
  • Page 36 SAMSUNG side-by-side refrigerator using tHE Coolselect Duo (oPtionaL) The CoolSelect Duo is designed to make your busy life just a little bit easler. Meat When MEat is selected, the temperature of the CoolSelect Duo is suitable for storing meat or ham by entering chill of freezer to it.

  • Page 37: Removing The Freezer Accessories

    REMOVING THE FREEZER ACCESSORIES Cleaning and rearranging the interior of the freezer is a snap. 1. Remove the Glass Shelf by pulling the shelf out as far as it will go. Then, gently lift it up and remove it. In case it does not have hooks itself in the back Block Hook side for not being tilted,a shelf should be placed...

  • Page 38: Removing The Fridge Accessories

    side-by-side refrigerator REMOVING THE FRIDGE ACCESSORIES 1. Remove the Glass Shelf by pulling the shelf out as far as it will go. Then, gently lift it up and gently remove it. Block In case it does not have hooks itself in the back Hook side for not being tilted,a shelf should be placed CAUTION...

  • Page 39: Cleaning The Refrigerator

    SAMSUNG side-by-side refrigerator CLEaning tHE rEfrigErator Caring for your Samsung Side-By-Side Refrigerator prolongs the life of your appliance and helps keep it odor and germ-free. Cleaning the Interior Clean the inside walls and accessories with a mild detergent and then wipe dry with a soft cloth.

  • Page 40: Changing The Interior Lights

    SAMSUNG side-by-side refrigerator CHANGING THE INTERIOR LIGHTS Do not replace LED lamp privately and please contact the specialized repair staff if necessary. CAUTION And make it sure that the new LED lamp is the same as the old one.

  • Page 41: Troubleshooting

    troubleshooting PRObleM sOlUTION the refrigerator does not • Check that the power plug is properly connected. work at all or it does not • Is the temperature control on the display panel set to the correct chill sufficiently. temperature? Try setting it to a lower temperature. • Is the refrigerator in direct sunlight or located too near a heat source? • Is the back of the refrigerator too close to the wall and therefore keeping air from circulating?
  • Page 42 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. COUNTRY CALL Web site AUSTRALIA 1300 362 603 www.samsung.com/au/support Bogotá en el 600 12 72 COLOMBIA Sin costo en todo el pais 01 8000 112 112 www.samsung.com/co...
